Freewheel removal - over sized motor plug

In the past, some models of the Yukon came with an oversized power chord plug for the hub motor which restricted the ability to use a standard freewheel removal tool.

This article covers the process of removing the freewheel on such Yukons.

• Tools Required:
• Hammmer
• Pointed Metal Punch
• Bench Vice (or large vice-grips/channel lock plier)

Step 1

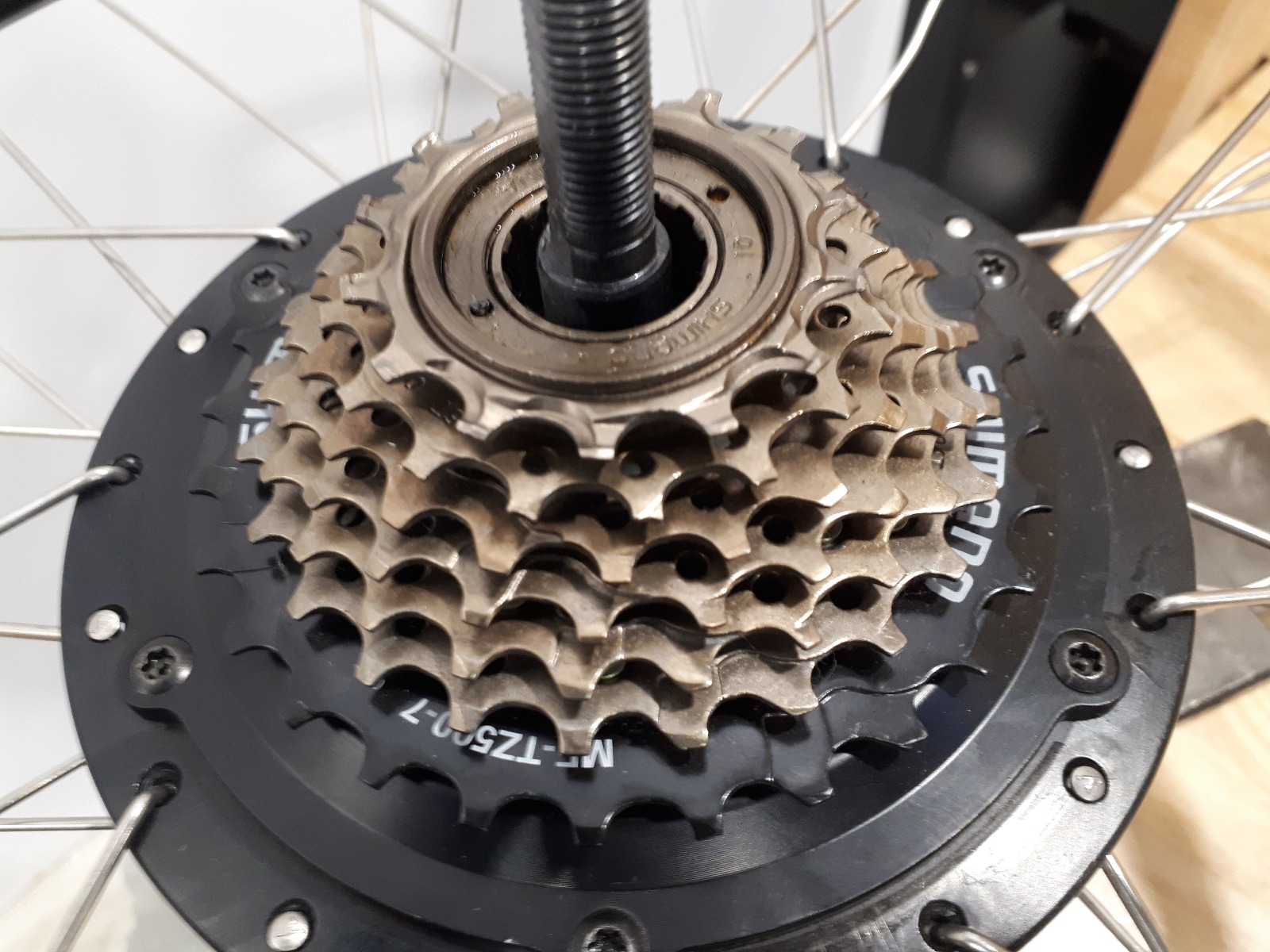

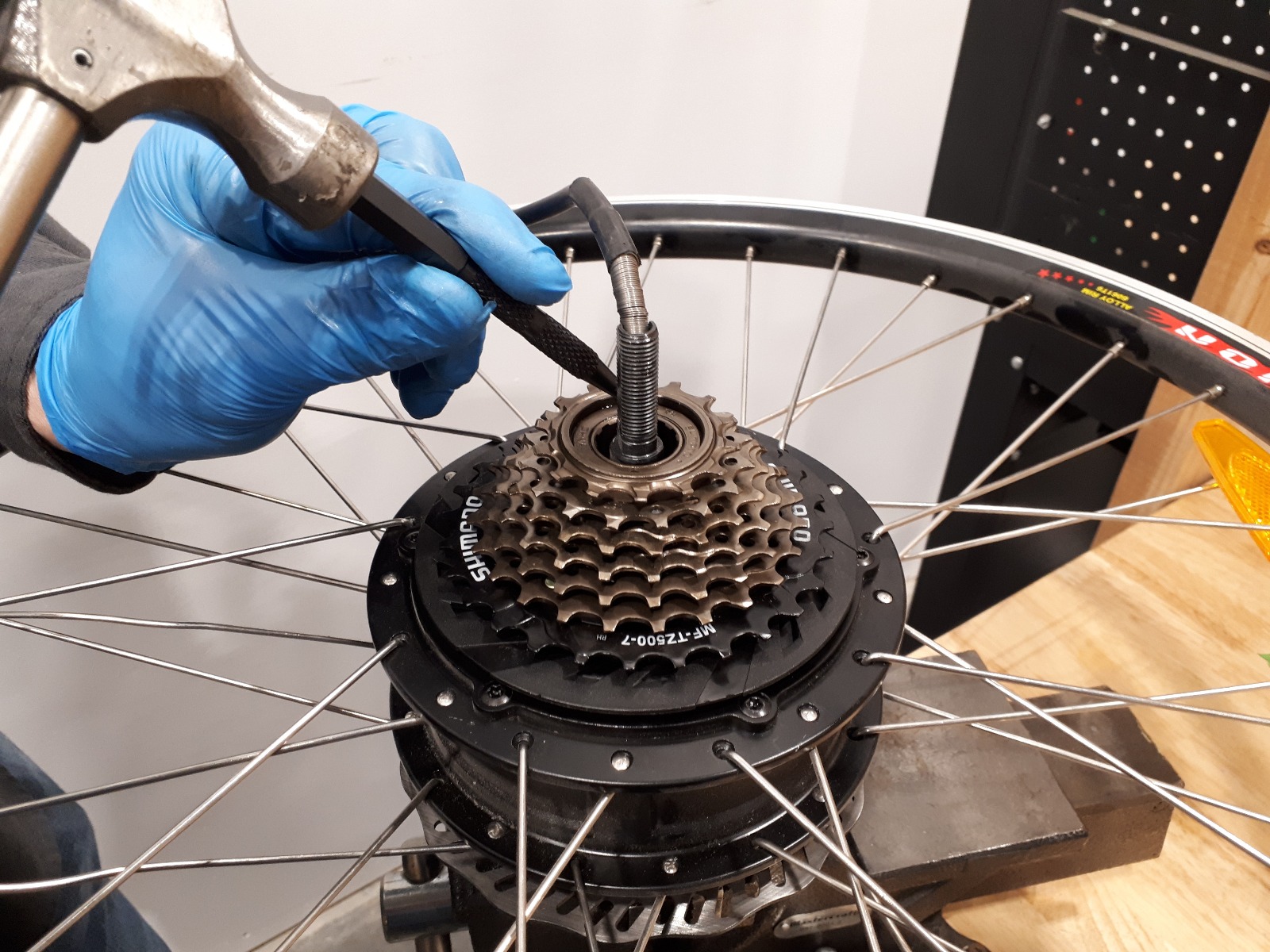

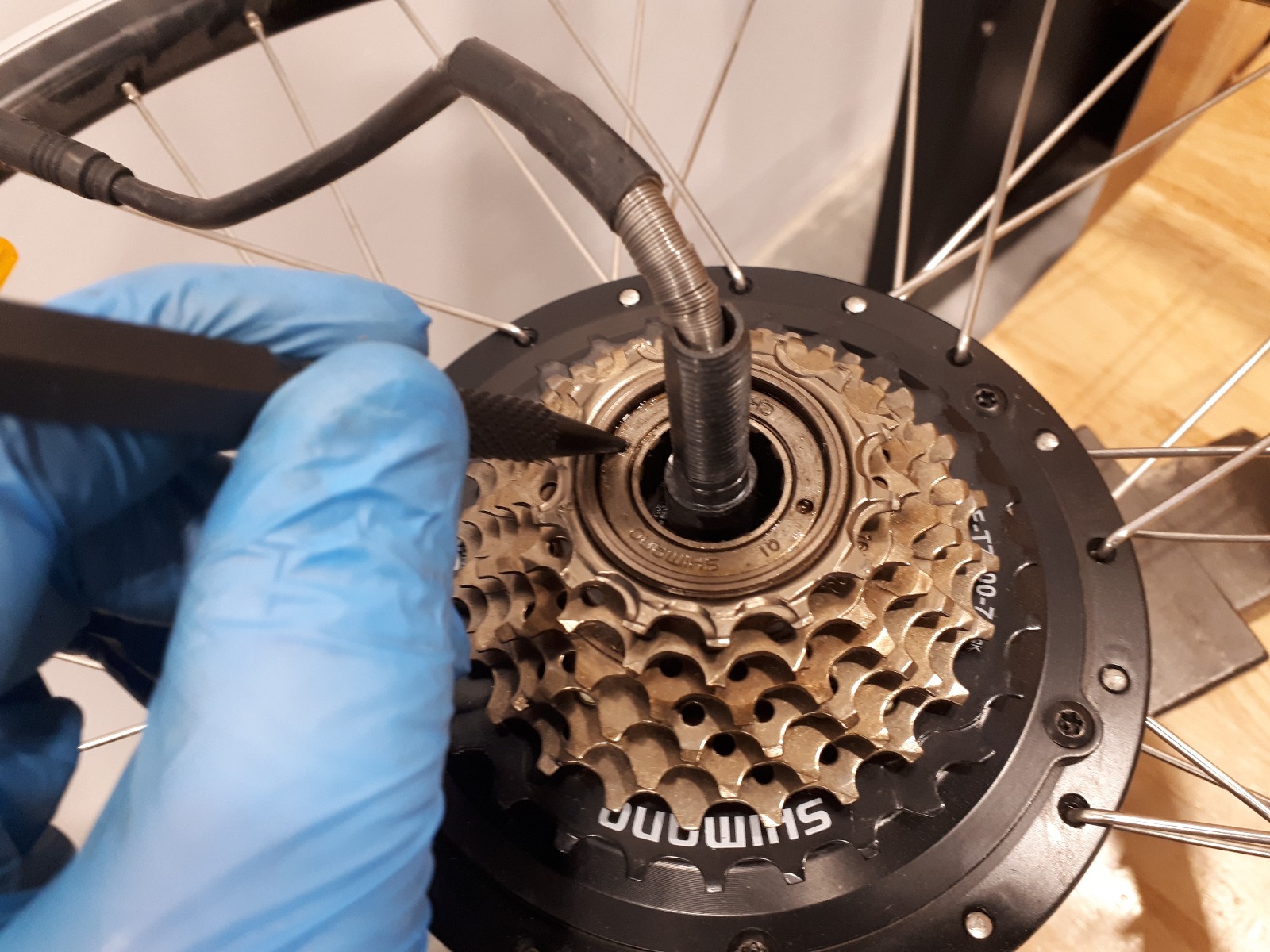

Use a metal punch and hammer to rotate the lock-ring of the freewheel assembly. Turn clockwise to loosen.

Step 2

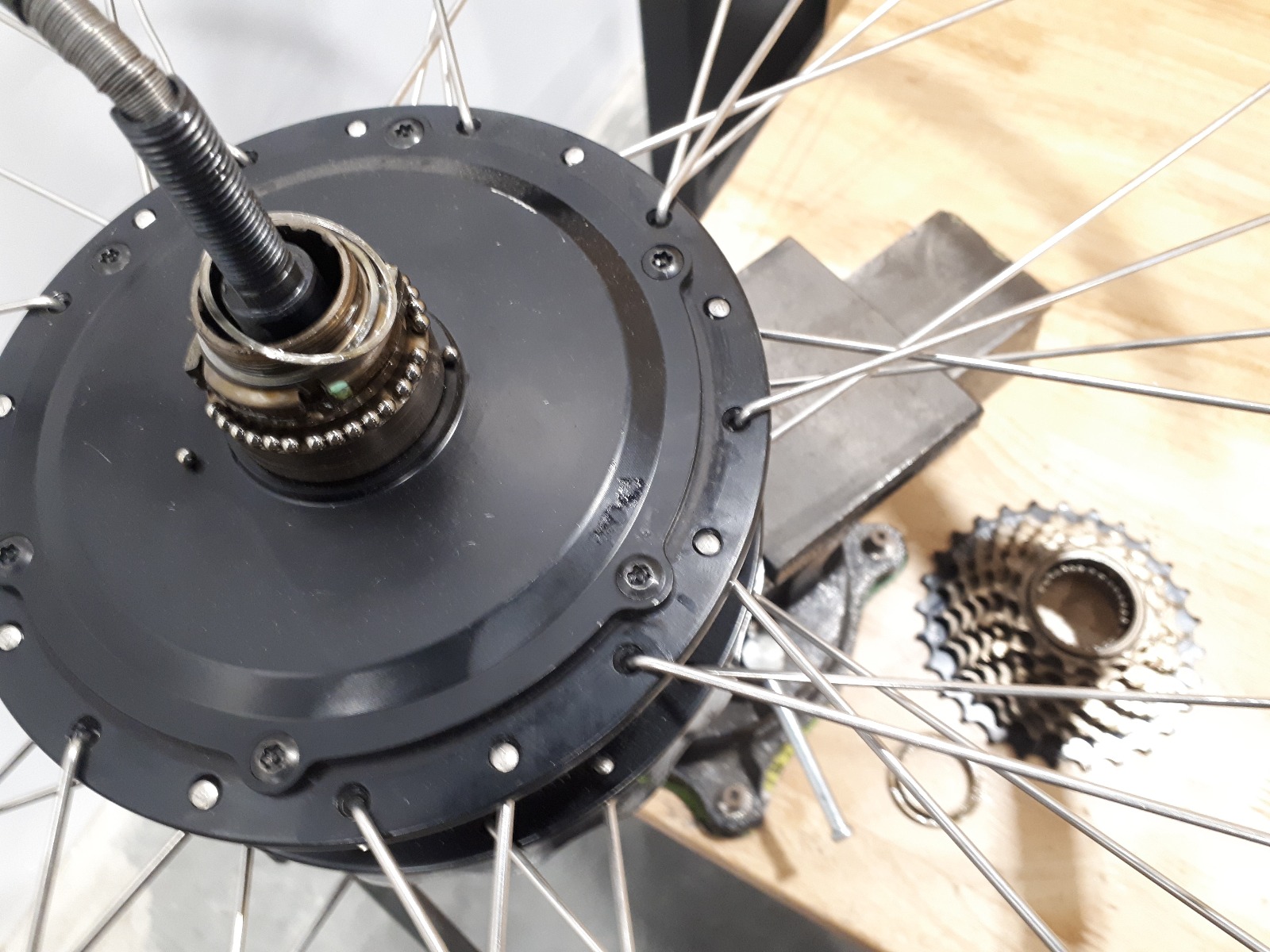

Remove the threaded lockring, pull the cogs, bearings, and spacers off the freewheel body.

Step 3

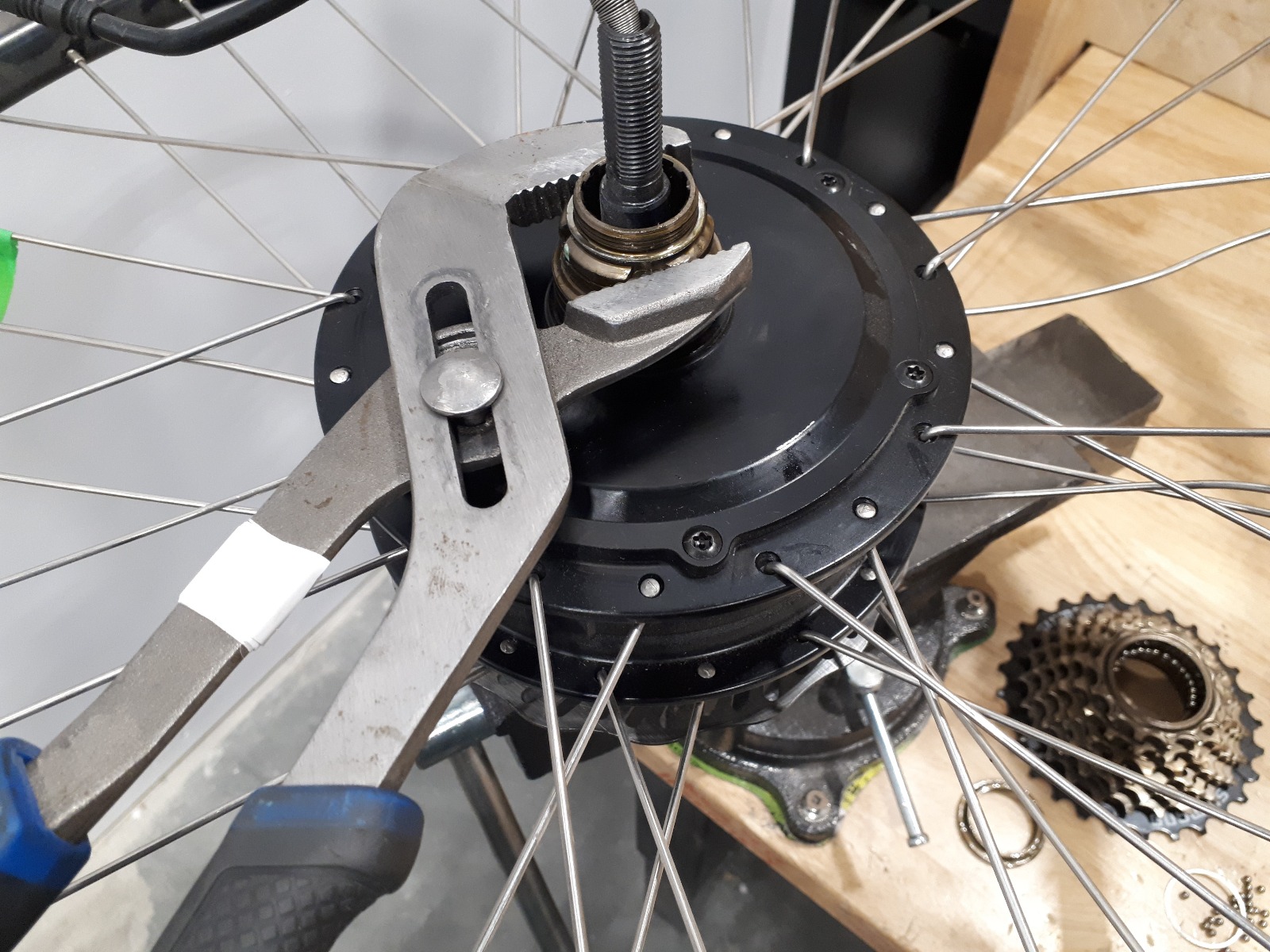

Use a bench vice (or channel lock pliers, or vice grips) to hold the freewheel body securely. Turn counter-clockwise to loosen and remove.

Step 4

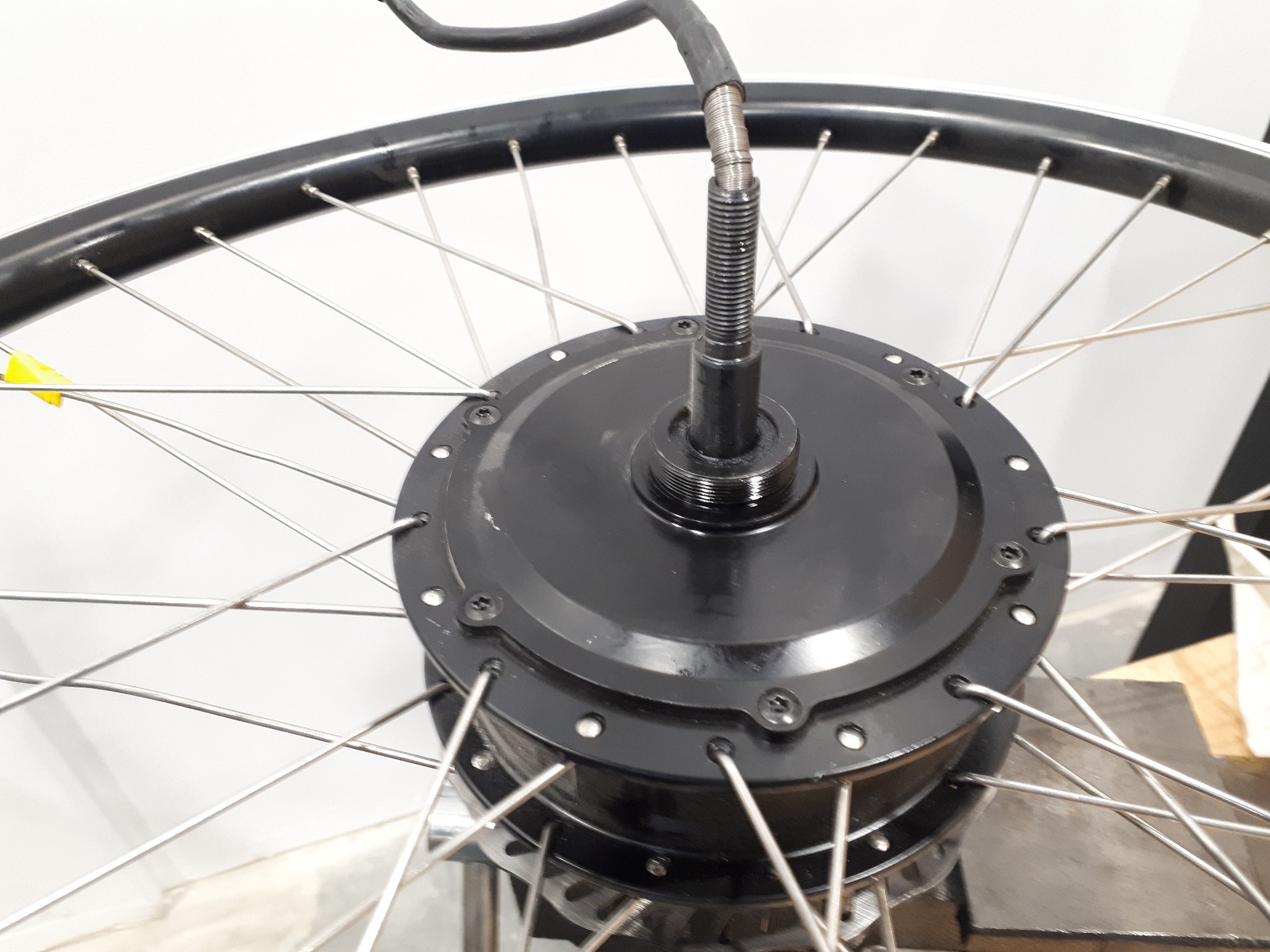

Grease the new freewheel threads, and carefully install on the hub motor cover plate. Turn clockwise firmly by hand till tight.

Step 5

Re-install rear wheel, test ride, and check shifting.
