How do I install the internal wedge mirror?

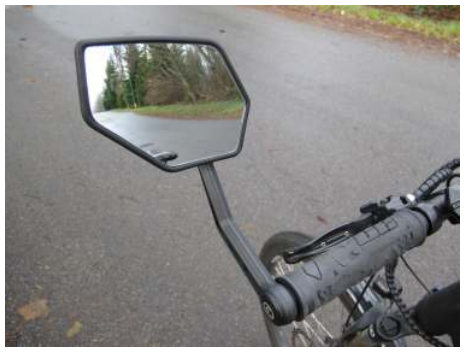

Handlebar Mirror Install: Internal Wedge mirror

Tools & Parts required:
3 mm hex key (not supplied)
mirror
end cap
M4 x 50mm - socket cap head bolt
M4 square threaded nut
small hex wedge(16mm diameter)
small nut wedge
or
large hex wedge (18mm diameter)
large nut wedge

Install:
Remove the LH side bar plug and determine the internal wedge size to use by checking the inside diameter of the handlebar.

With the end cap removed and mirror arm orientated forward, install the M4 bolt through the arm mount and the hex wedge. Ensure the hex wedge is fitted to the hex interface.

Slide the M4 square threaded nut into the slot of the plastic nut wedge.

Position the wedge, and thread it on to the bolt. Tighten the bolt so the two wedges come together.

Slide the mirror wedge assembly into the end of the handlebar.

Tighten the bolt so the wedges begin to hold inside the handlebar. Position the arm and mirror so the rider has good rear visibility. Once in the correct position, tighten the bolt and secure the mirror arm in place. The Mirror arm should be tight but still move to allow for easy adjustments.

Re-insert the end cap and test ride.
