How do I install the external clamp mirror?
Handlebar Mirror Install: External Clamp mirror

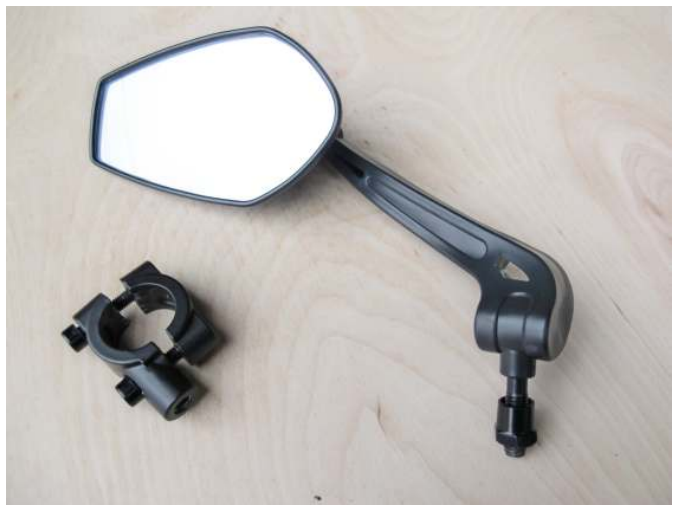

Tools & Parts required:
5mm hex key (not provided)
14mm wrench (not provided)
mirror
threaded arm nut
mounting clamp
M6 x 25mm socket cap head bolt x 2
Install:

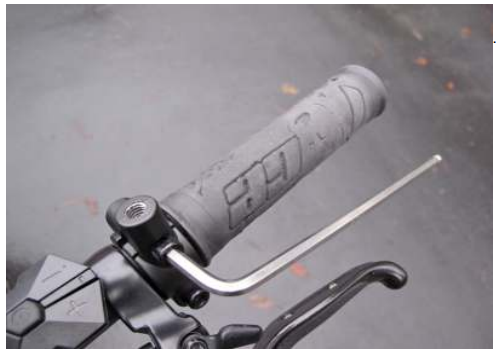

Install the mounting clamp on the handlebar. Ensure the gap between the mount and clamping plate is even on both sides

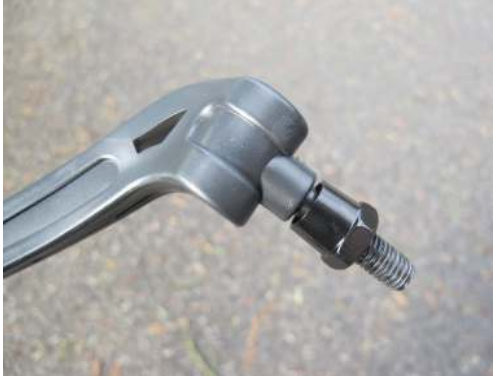

Position the threaded arm nut to have a 1-2mm gap

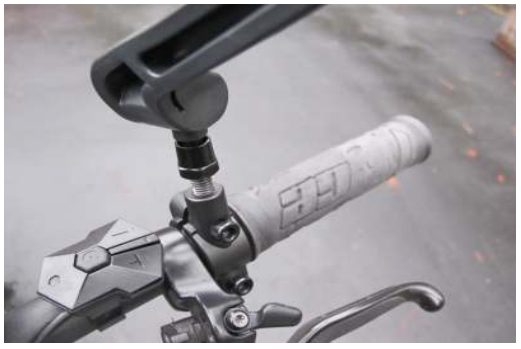

Carefully thread the mirror arm into the mounting clamp. Position the arm and mirror so the rider has good rear visibility. Tighten the two clamp mount bolts using a 5mm hex tool.

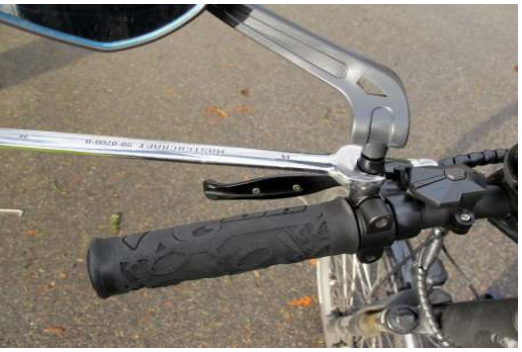

Use a 14mm wrench to tighten the arm nut and fix the mirror in place.

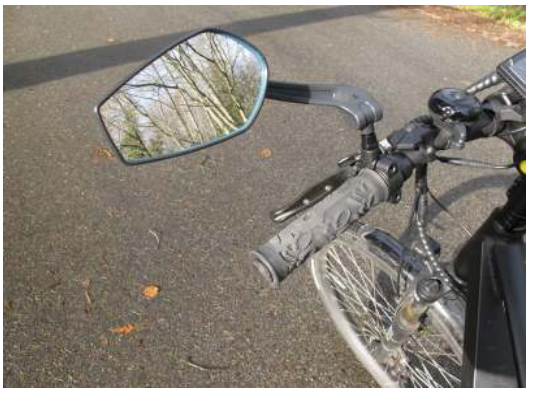

Ensure the clamp mount is secure and test ride.
Updated on 05 Apr 2024
