1 7
Power
500W
Torque
65Nm
Range
80+ km
Top Speed
32km/h
Payload
280lbs

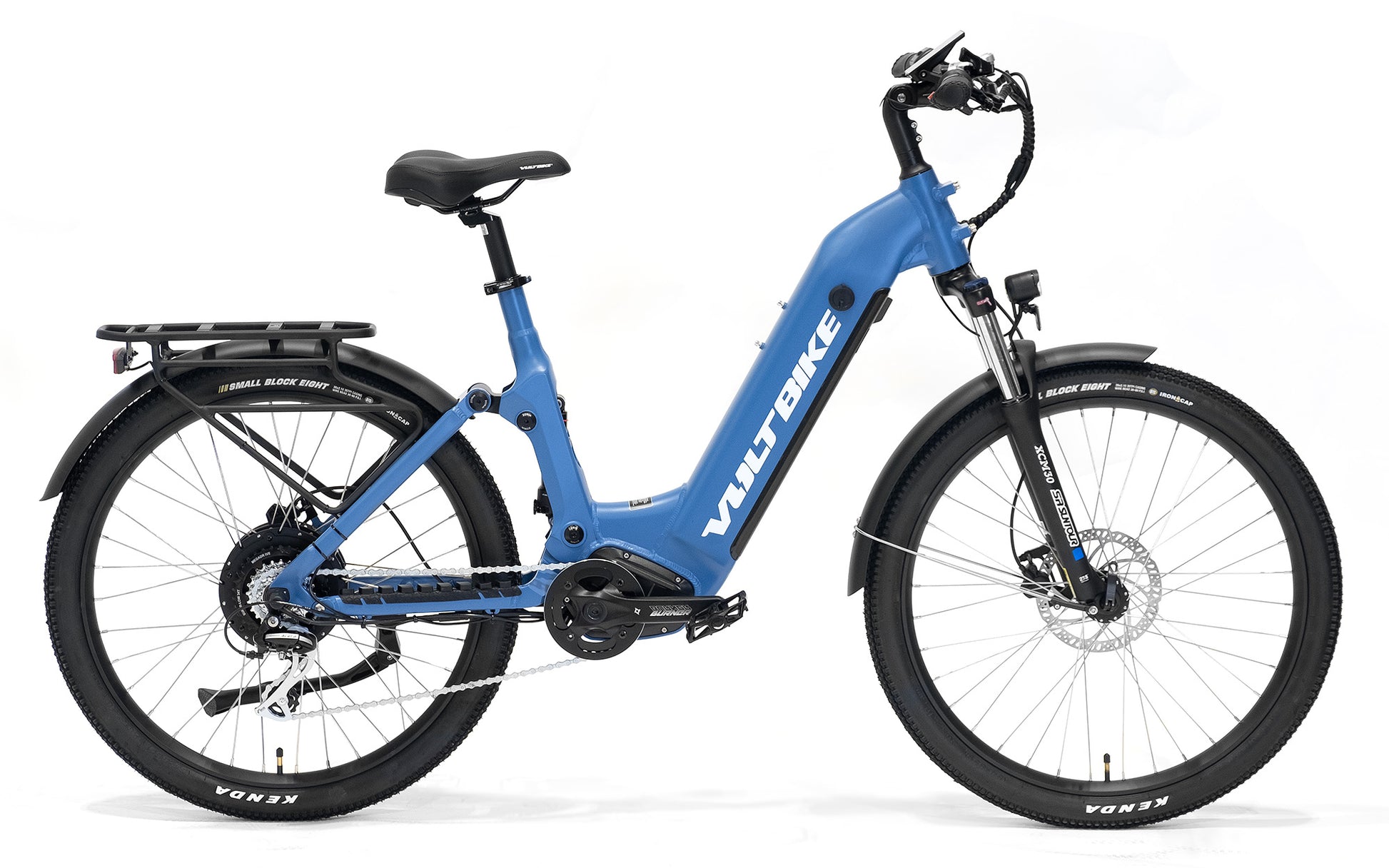

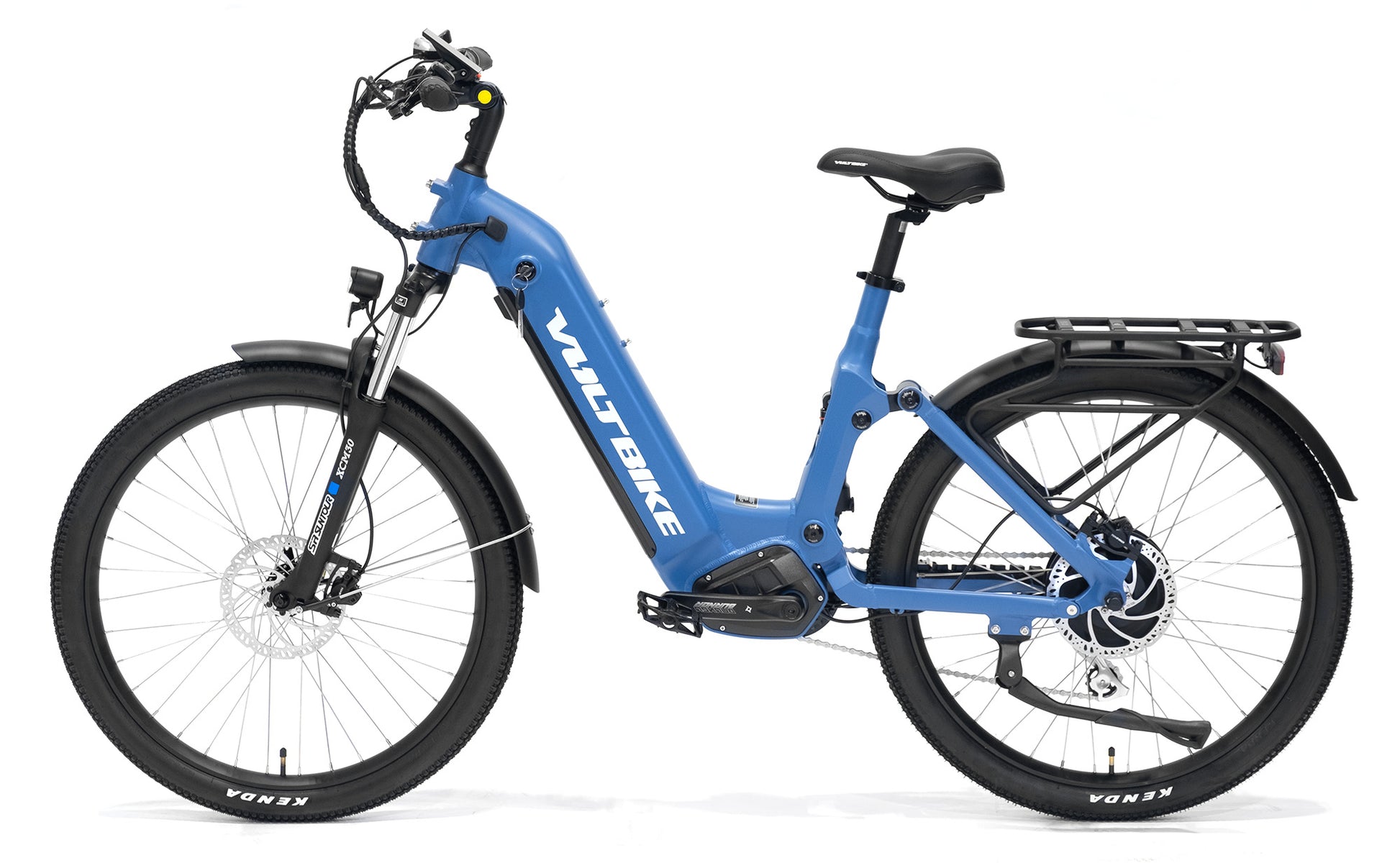

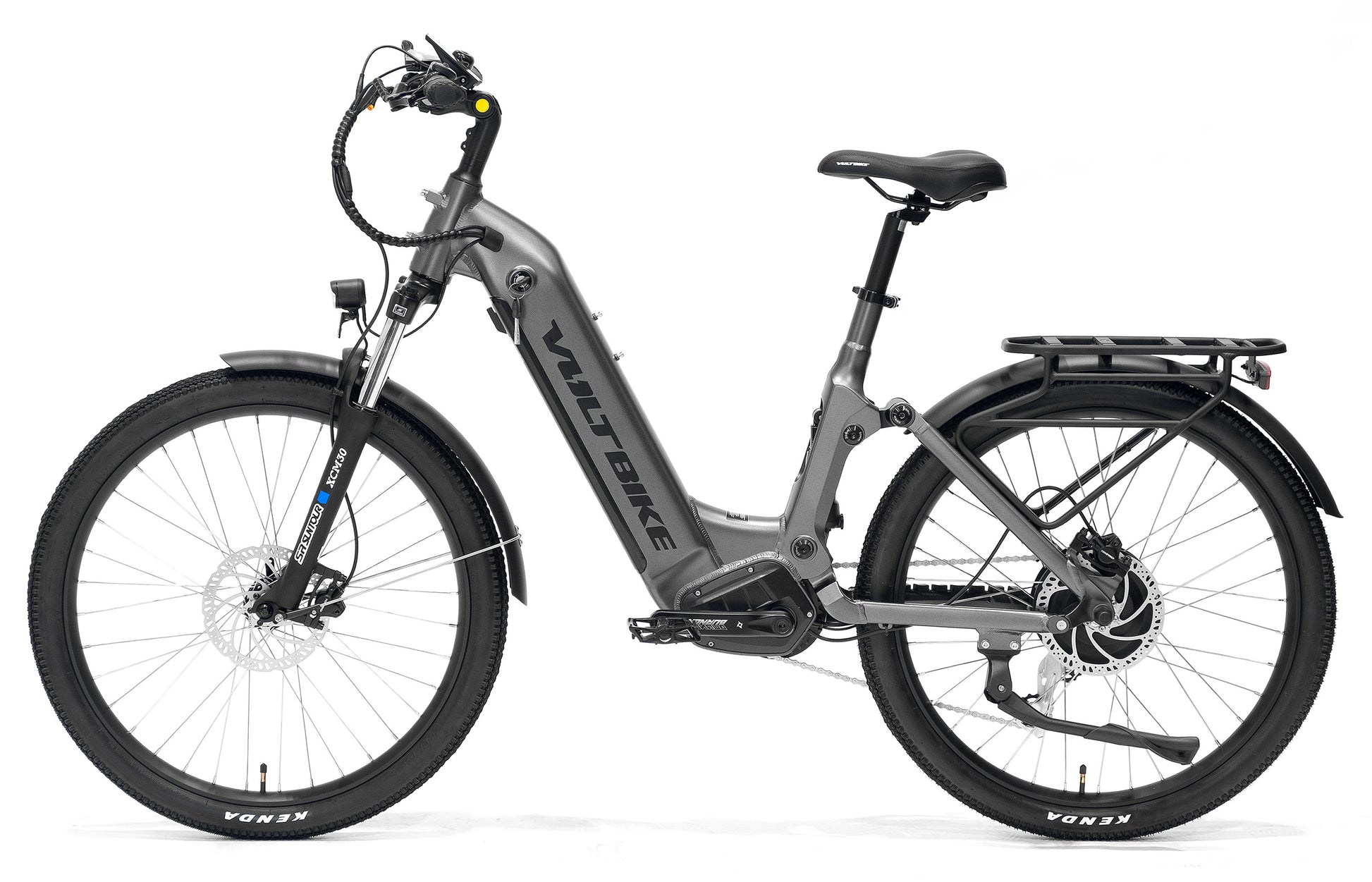

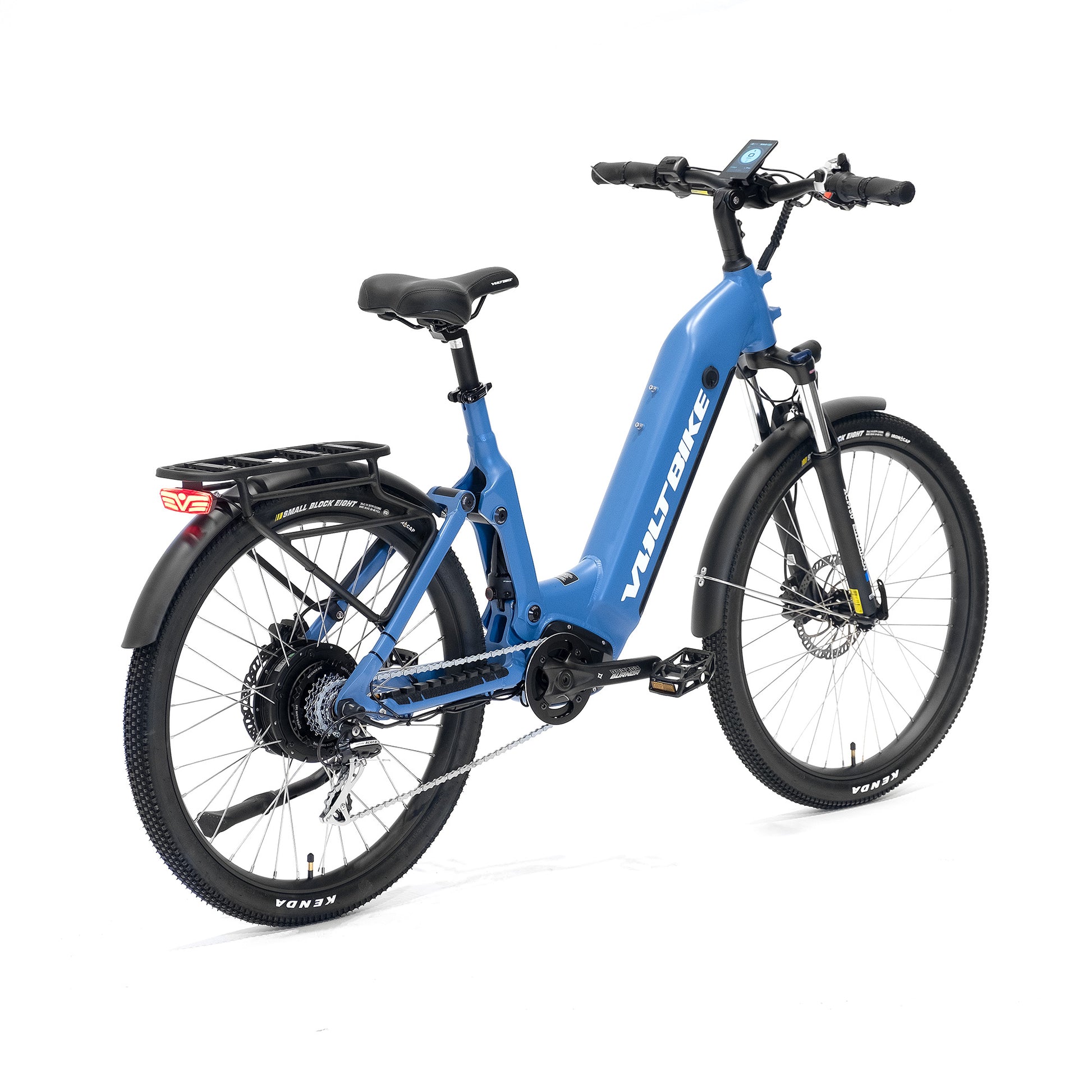

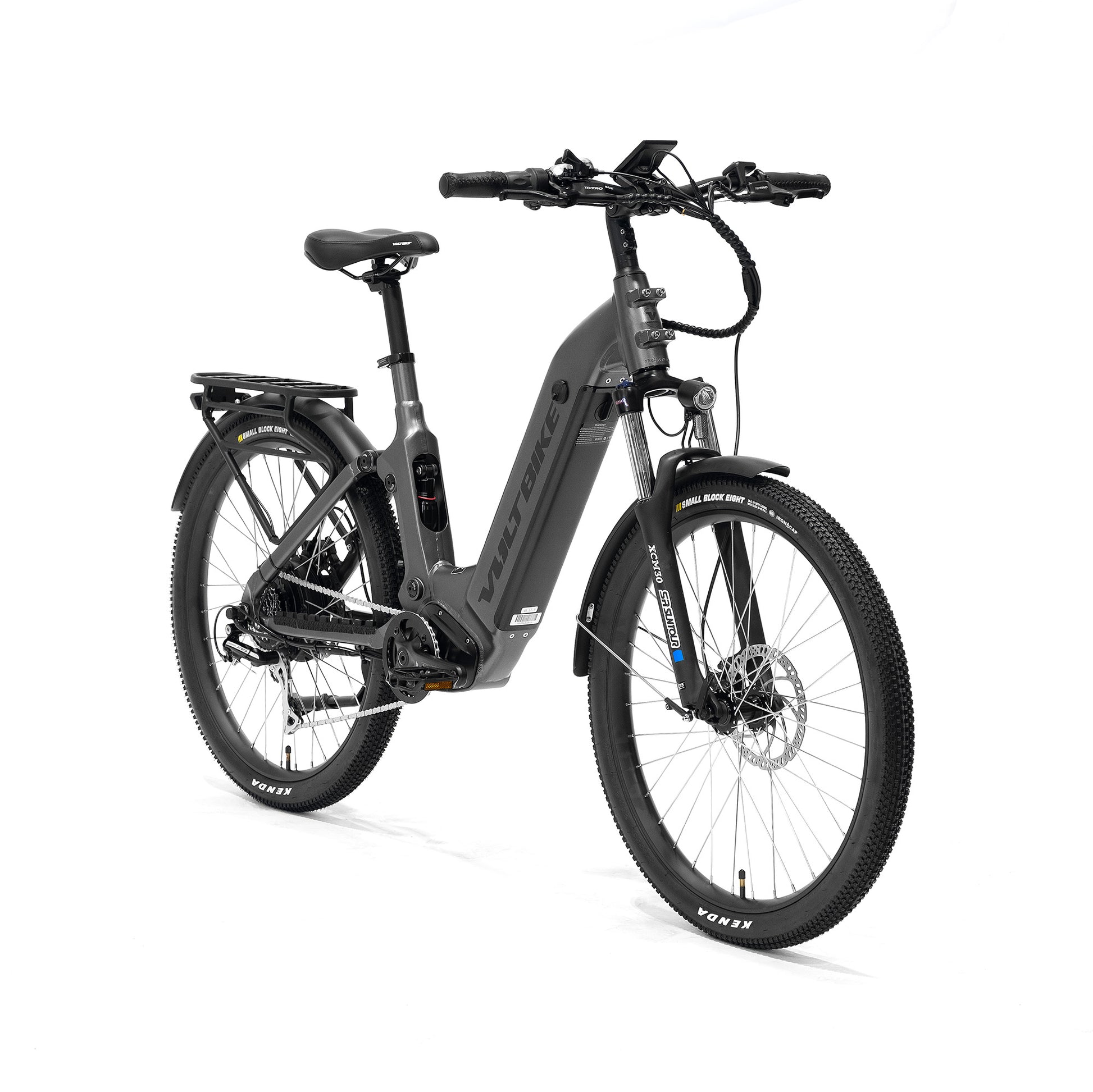

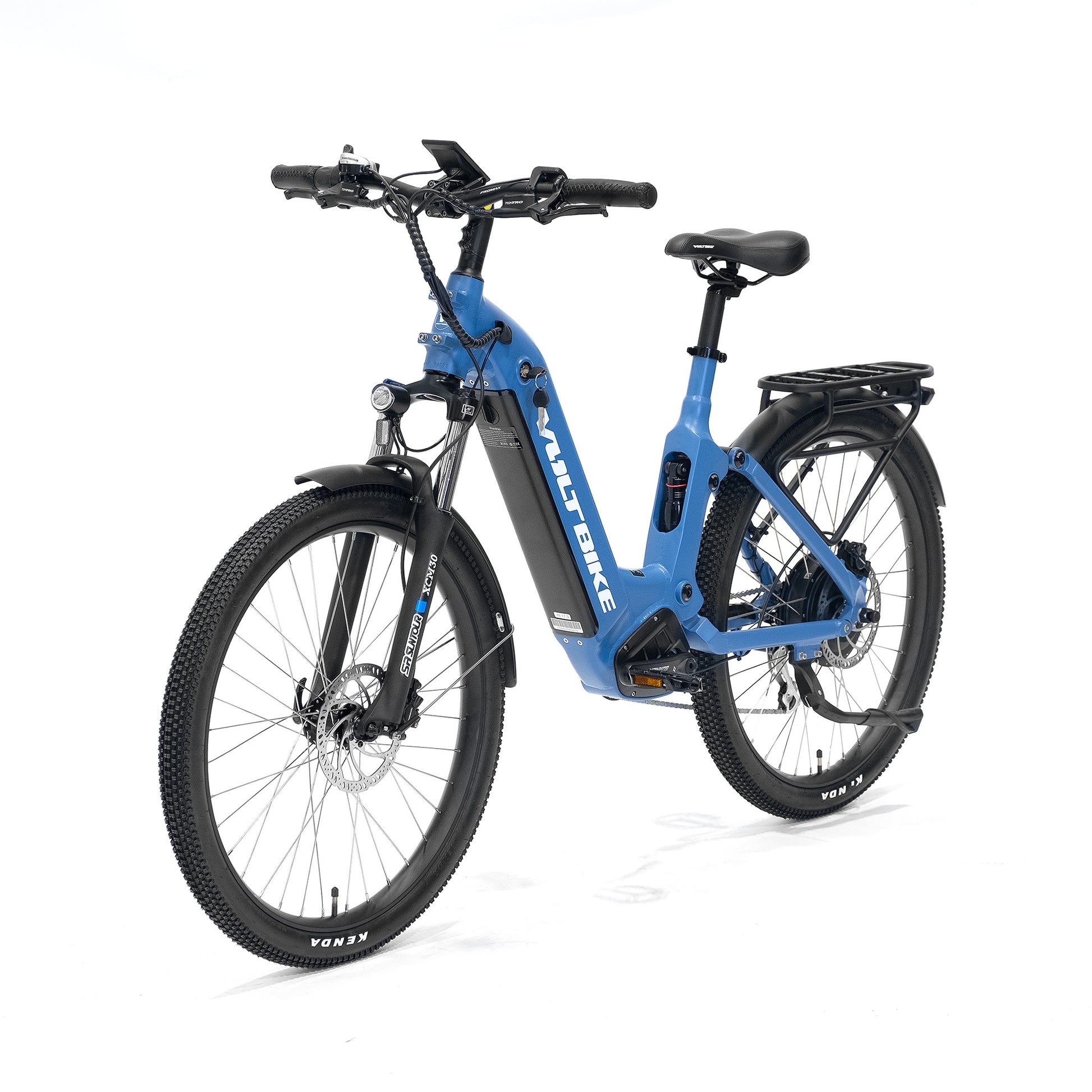

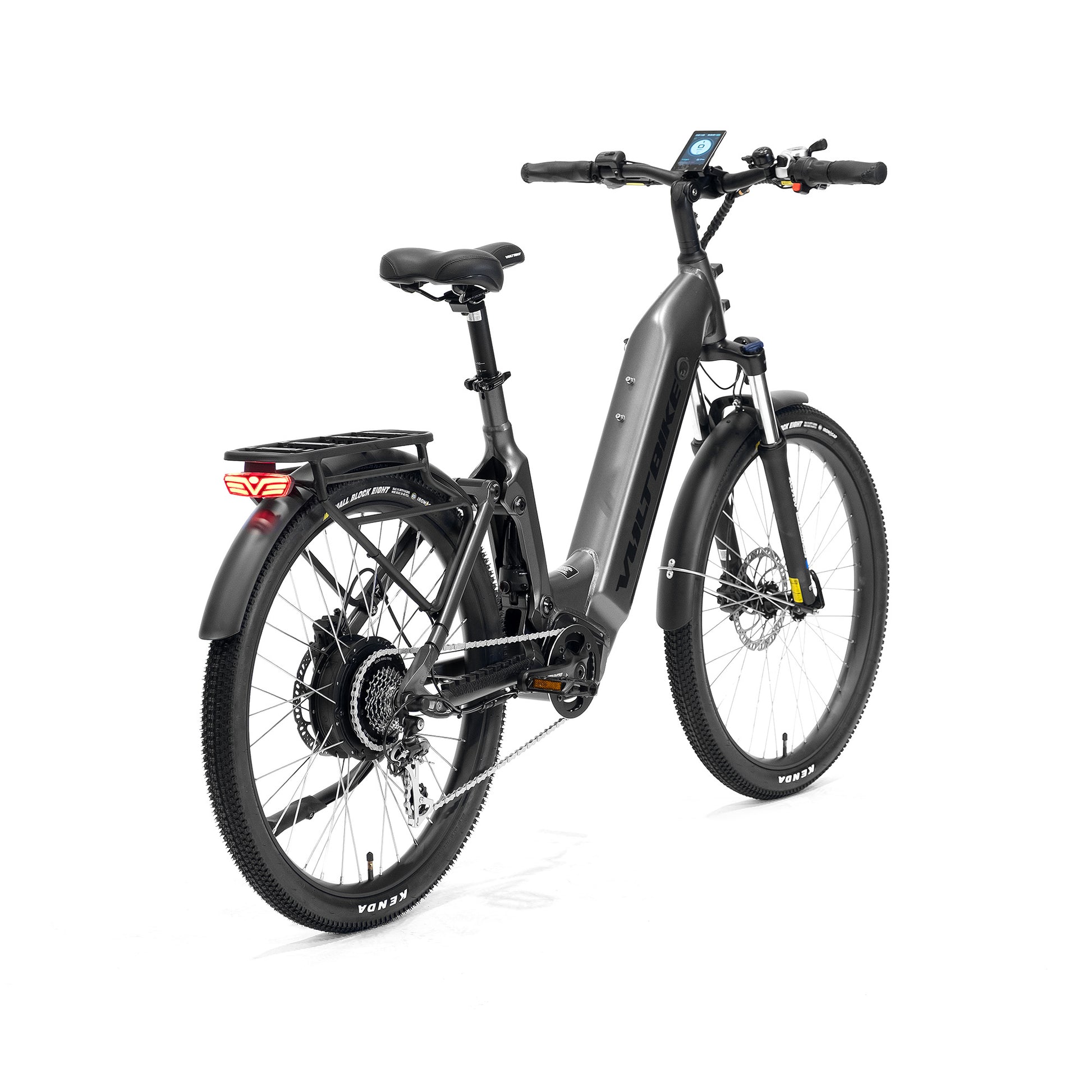

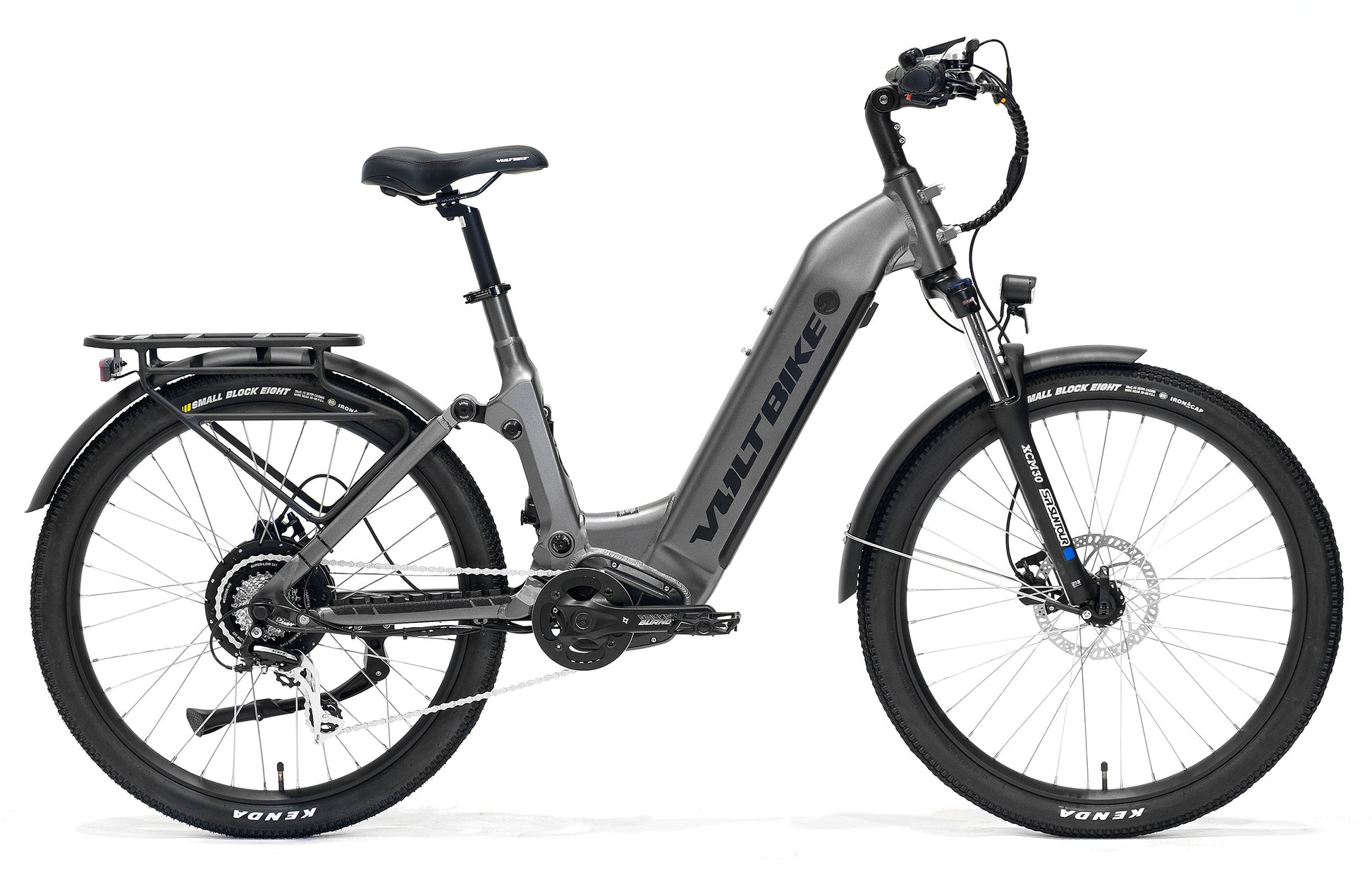

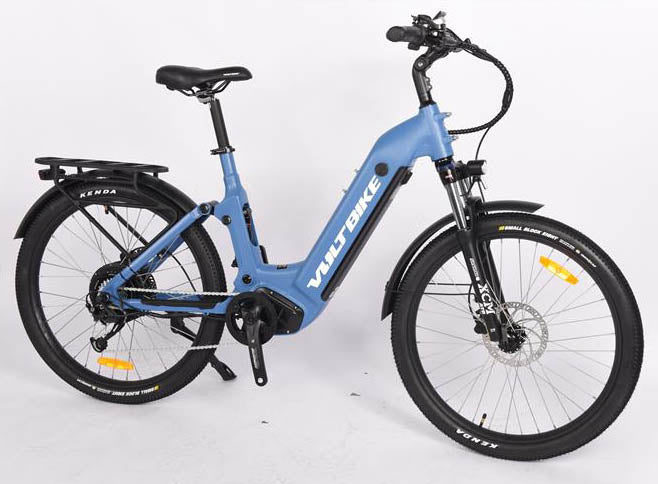

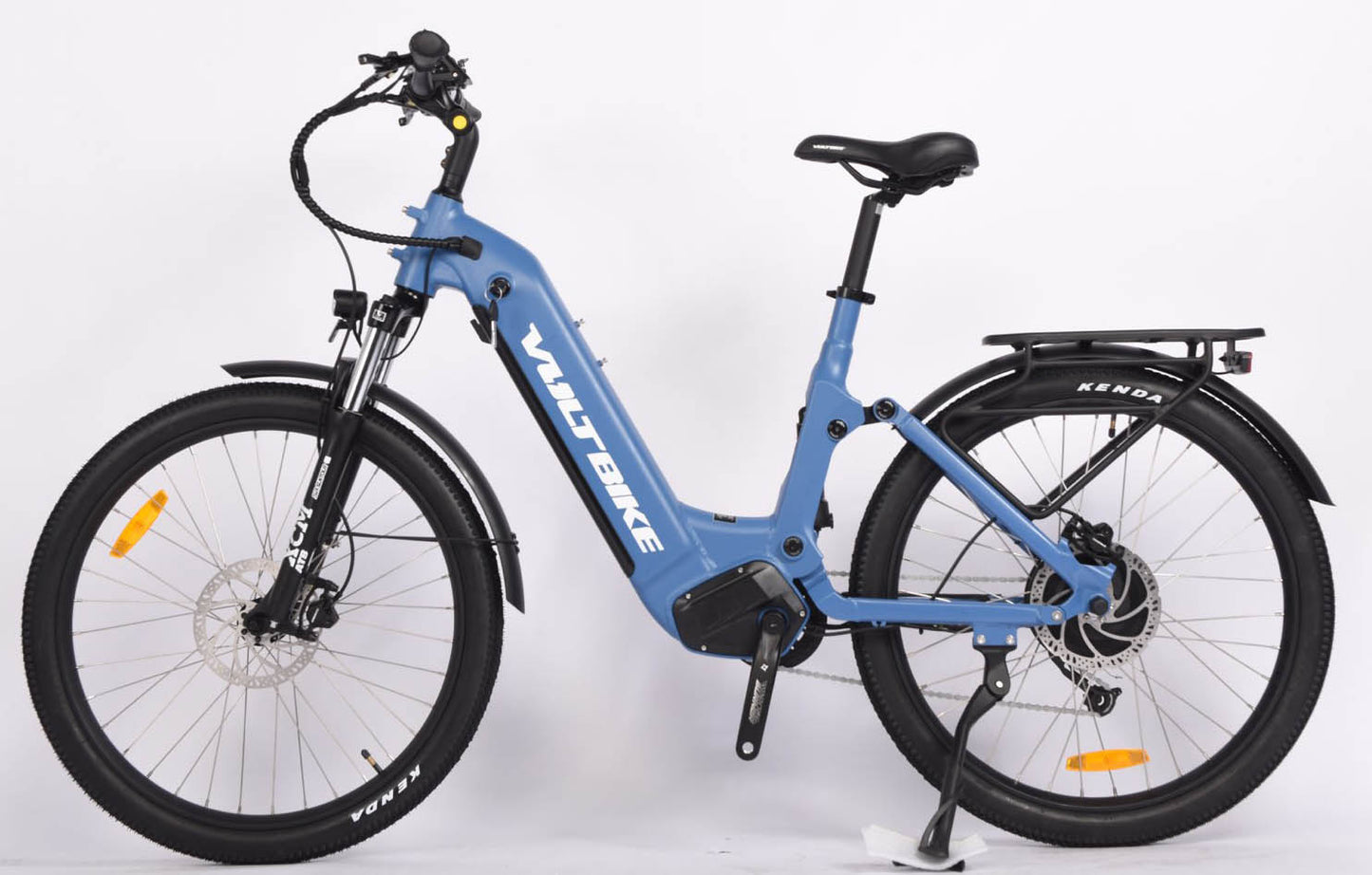

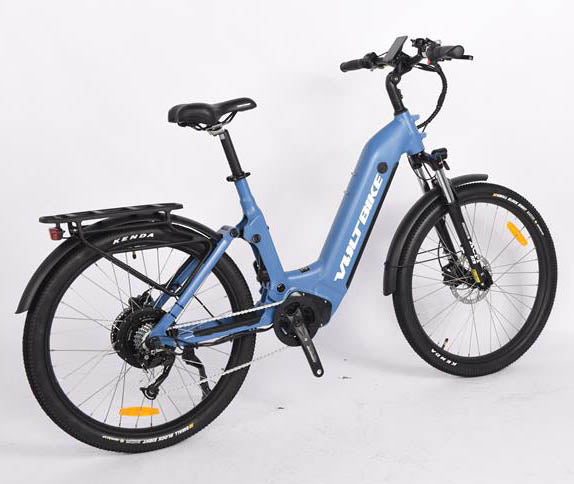

VoltBike

Royale

Royale

Introducing the ultimate urban adventure companion: a high-performance step-through e-bike designed for comfort, durability, and versatility.

Powered by a robust 500W hub motor, this e-bike delivers smooth and reliable acceleration, effortlessly tackling city streets and gentle trails alike. Its 17.5Ah (840Wh) Samsung Li-ion battery, UL 2271 certified and assembled by Phylion, ensures long-lasting power for extended rides, keeping you moving with confidence.

The lightweight yet sturdy aluminum alloy frame features a step-through design for easy mounting and dismounting, paired with a highly tunable RockShox Monarch R air shock rear suspension with DebonAir™ technology and rebound adjustment for a plush, customized ride.

In stock and ready to ship.
$2,399.00 CAD
$2,999.00 CAD $2,399.00 CAD
Sale Sold out
Color
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

500W Rated Power

The VoltBike Royale is using a Bafang G07 series geared motor which provides 65 N.m. max torque and 500w rated power. The Bafang G07 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Fully Integrated Battery

A fully integrated 48v 17.5Ah battery pack with Samsung INR18650-35E cells. The integrated frame design gives you security in various weather conditions plus offering unmatched visual appearance. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

The Royale comes standard with lockout suspension Suntour XCT DS. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

Sturdy Rear Rack

Standard for Elegant V2 is an aluminum rear rack which can fit any load with ease up to 50lbs. Mounted directly on the rack is LED rear taillight with brake light functionality.

Backlit Color Display

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

Hydraulic Stopping Power

Voltbike Elegant V2 is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Adjust Your Ride

Adjust your bike as per your need. No matter what your style of riding, VoltBike has a stem with the fit, performance and style you're looking. VoltBike is using stem Promax MA-570 with adjustable angle 35° - 145° and 108mm extension.

Simple Controls

Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 73.0 lb
  • Battery 48V 17.5Ah Li-ion (840Wh) Samsung Cells. UL 2271 certified. Assembled by Phylion.
  • Bottom Bracket Sealed cartridge Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
  • Chain KMC Rust Buster
  • Crankset Aluminum Alloy-6061 38T Crank, 170mm with Outer Guard
  • Frame Type Step-Through
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Handlebars Promax alluminum alloy 31.8mm*22.2mm*680mm, 9 degree
  • Motor 48V 500W Bafang G070 Hub Motor
  • Motor Type Hub Motor
  • Pedals Wellgo M-248DU
  • Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailler
  • Rear Suspension Air Shock RockShox Monarch R. Highly tunable DebonAir™ with rebound adjustment
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 26" with 36 spokes
  • Seat Velo Plush VL-6142
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Stem Adjustable stem Promax MA-579 with extension 110mm. Adjustable angles 90° - 160°. Aluminum alloy.
  • Tires Kenda 26"x2.1"

Sizing

  • aFrame Size: 18"
  • bStand-over Height: 26"
  • cReach: 17"
  • dTop-tube Length: 22"
  • eHandlebar Height: 41.5"-43.5"
  • fSeat Height: 32"-39"
  • gWheel Size: ⌀26"x2"
  • hWheelbase: 44.5"
  • iLength: 69"
Royale sizing chart.

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
R
Robert Wiebe
The Royale

We’ve had a couple of Voltbikes-an Elegant and a Bravo- that we liked very much for 4 years . I was looking for a step through, and purchased a Royale because it had the added advantage of full suspension. Upon receiving the Royale, I found the gearing to be very low, for my taste. The front drive sprocket is very small due to the room the suspension needs, and after consulting Voltbike, it may be possible to put on a slightly larger sprocket, but at this point, we’re not sure. O/w a nice bike, just a heads up on the gearing.
