1 7
Power
750W
Torque
80Nm
Range
60-80+ km
Top Speed
32km/h
Payload
280lbs

VOLTBIKE

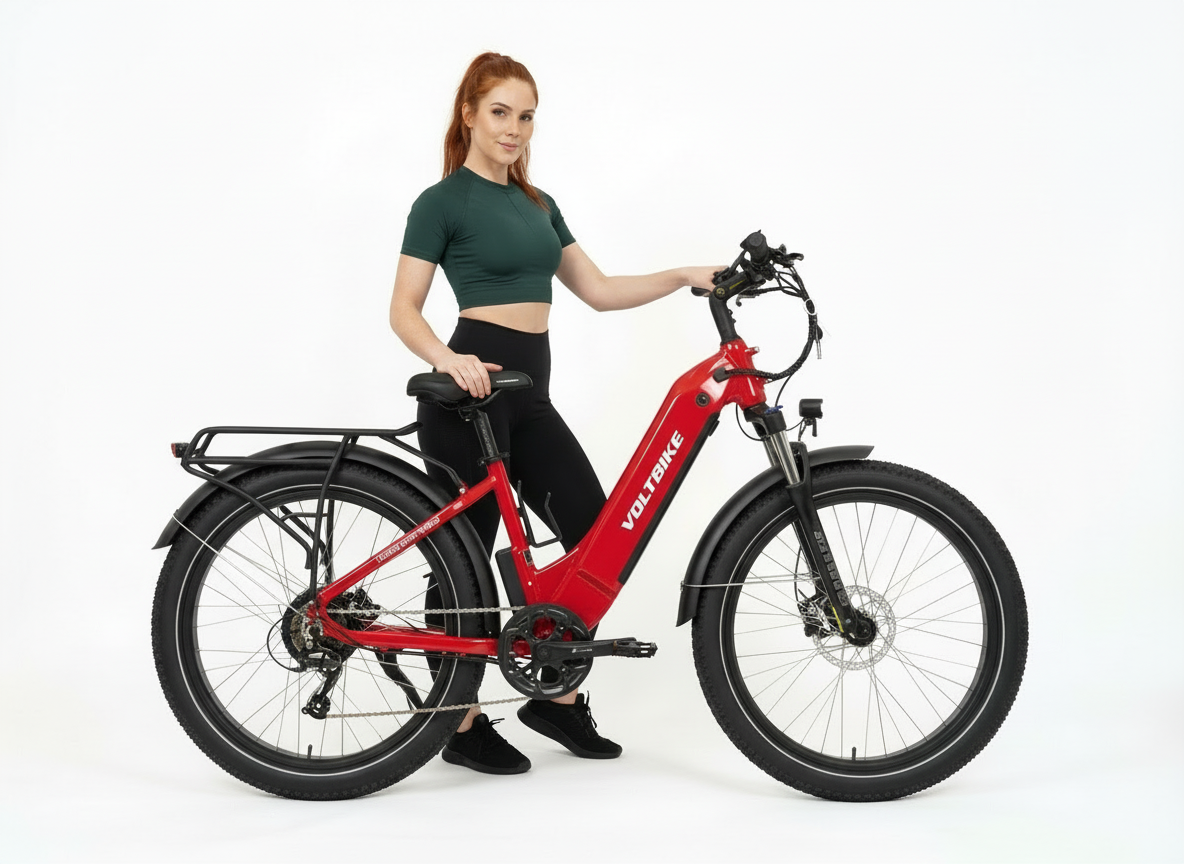

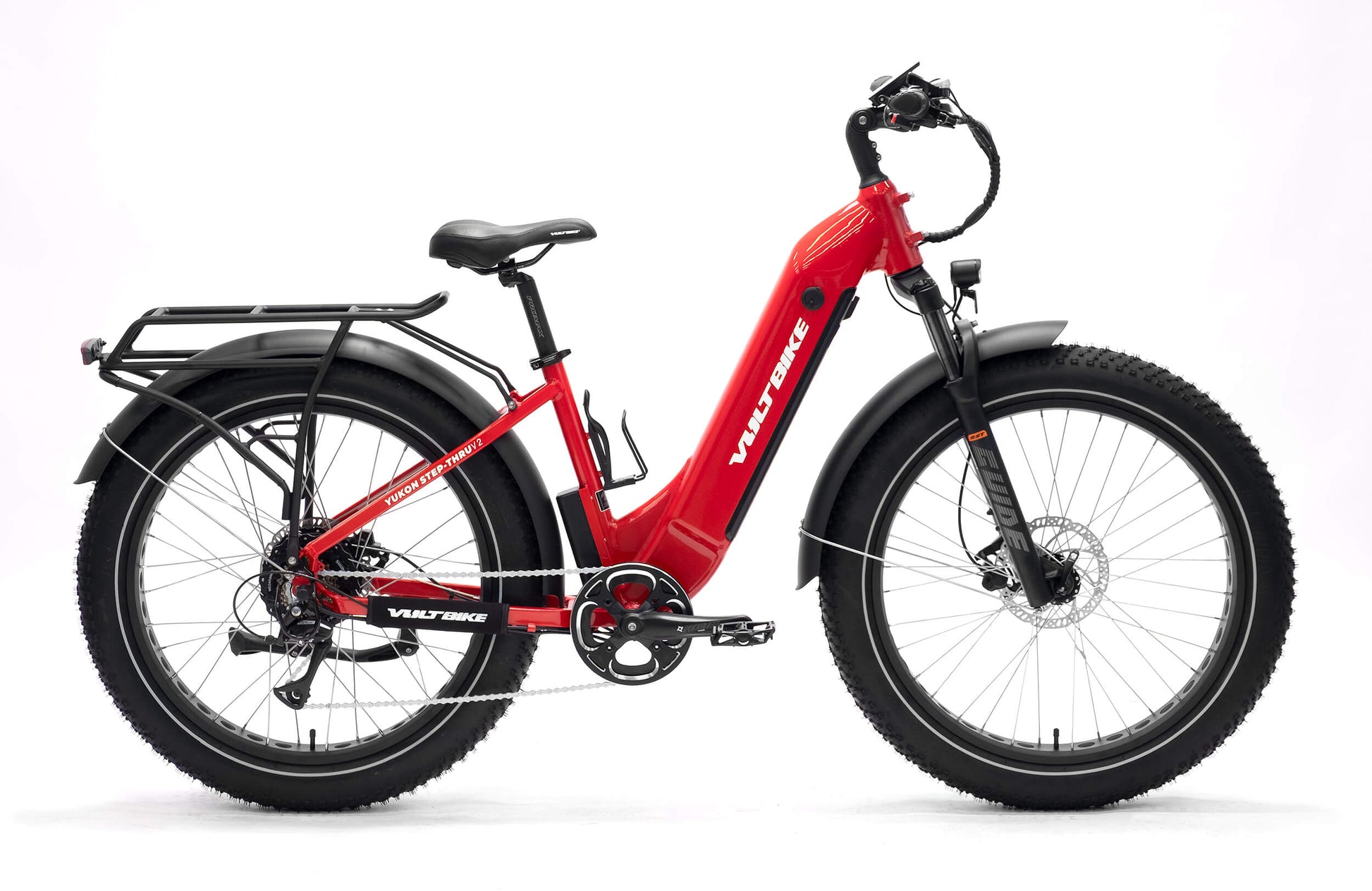

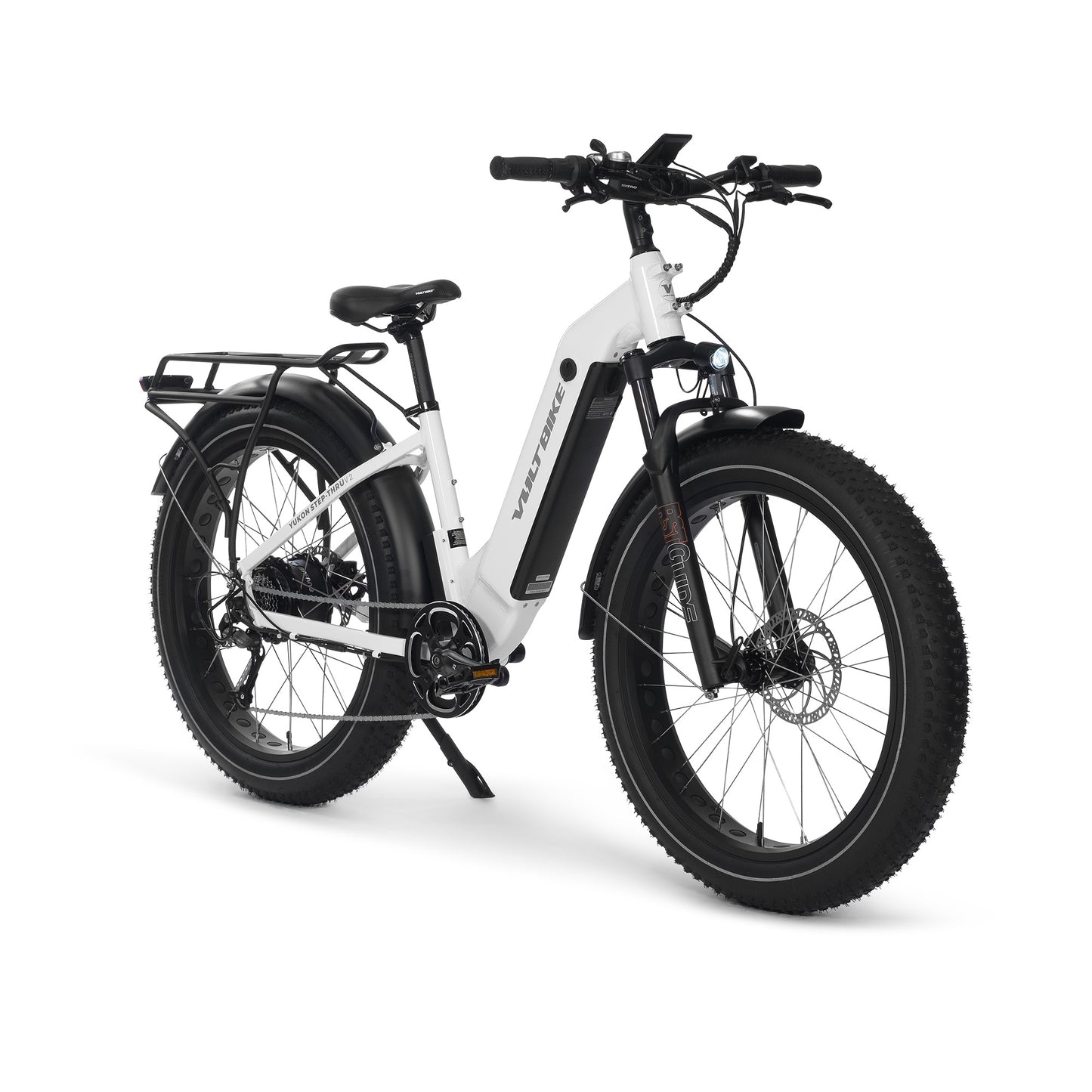

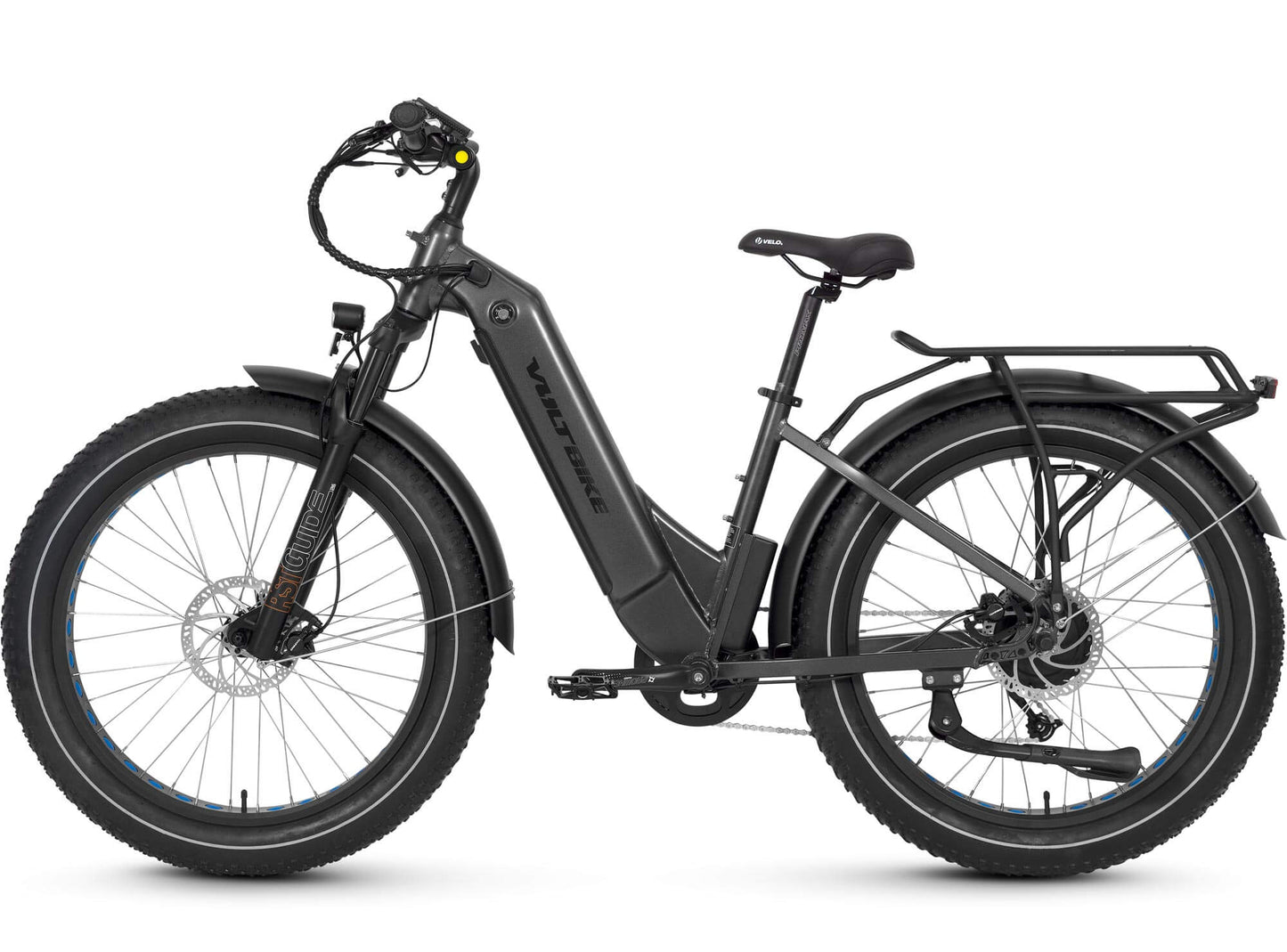

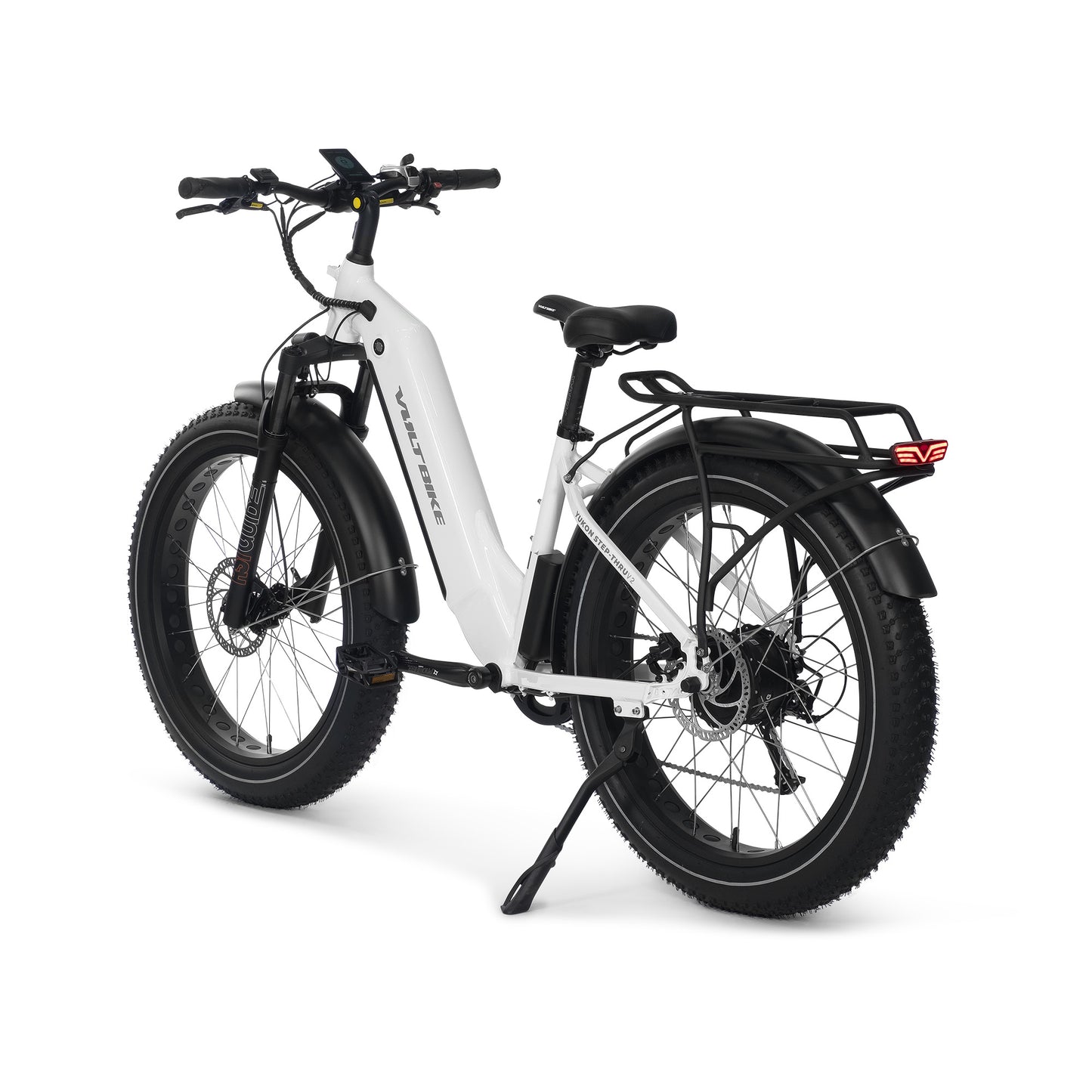

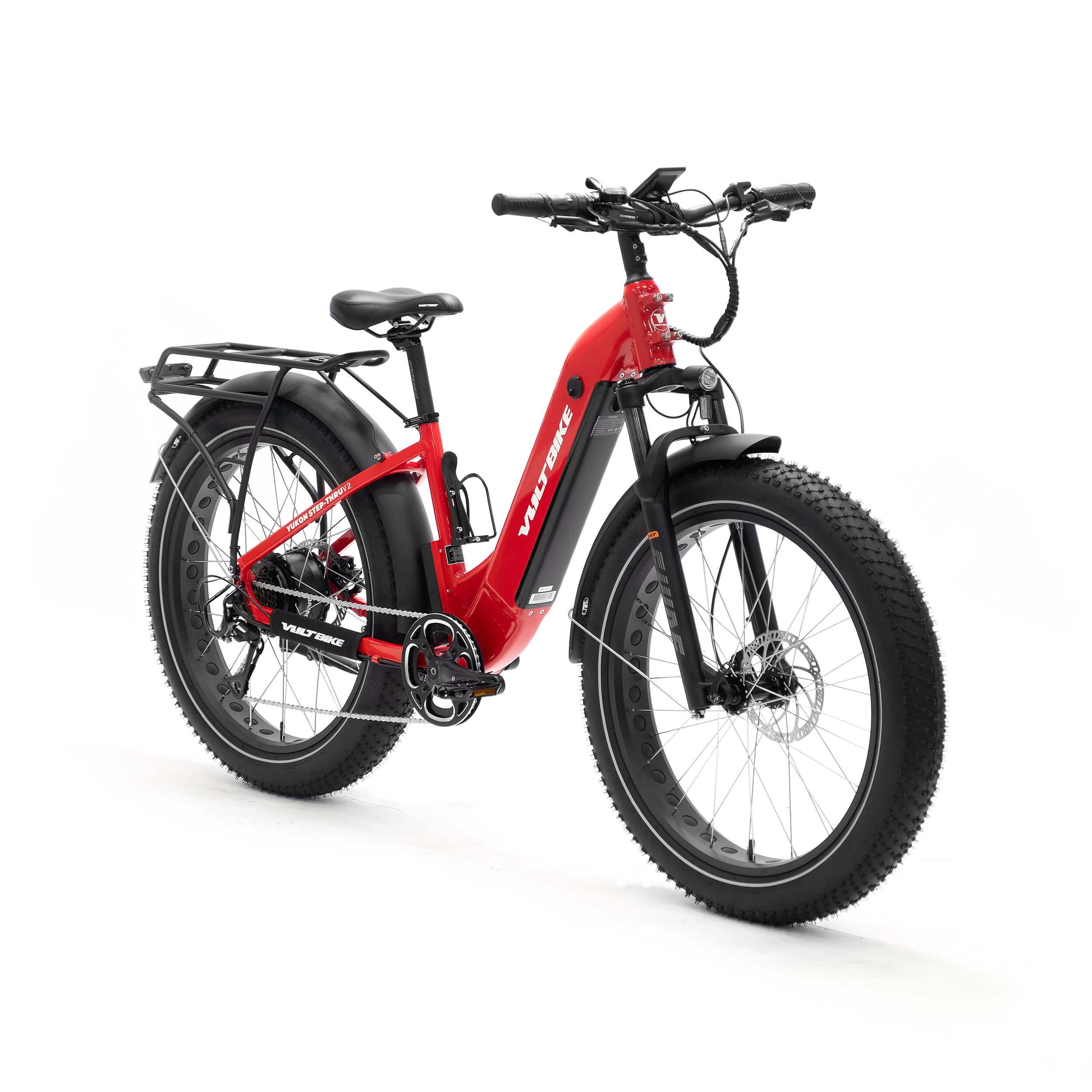

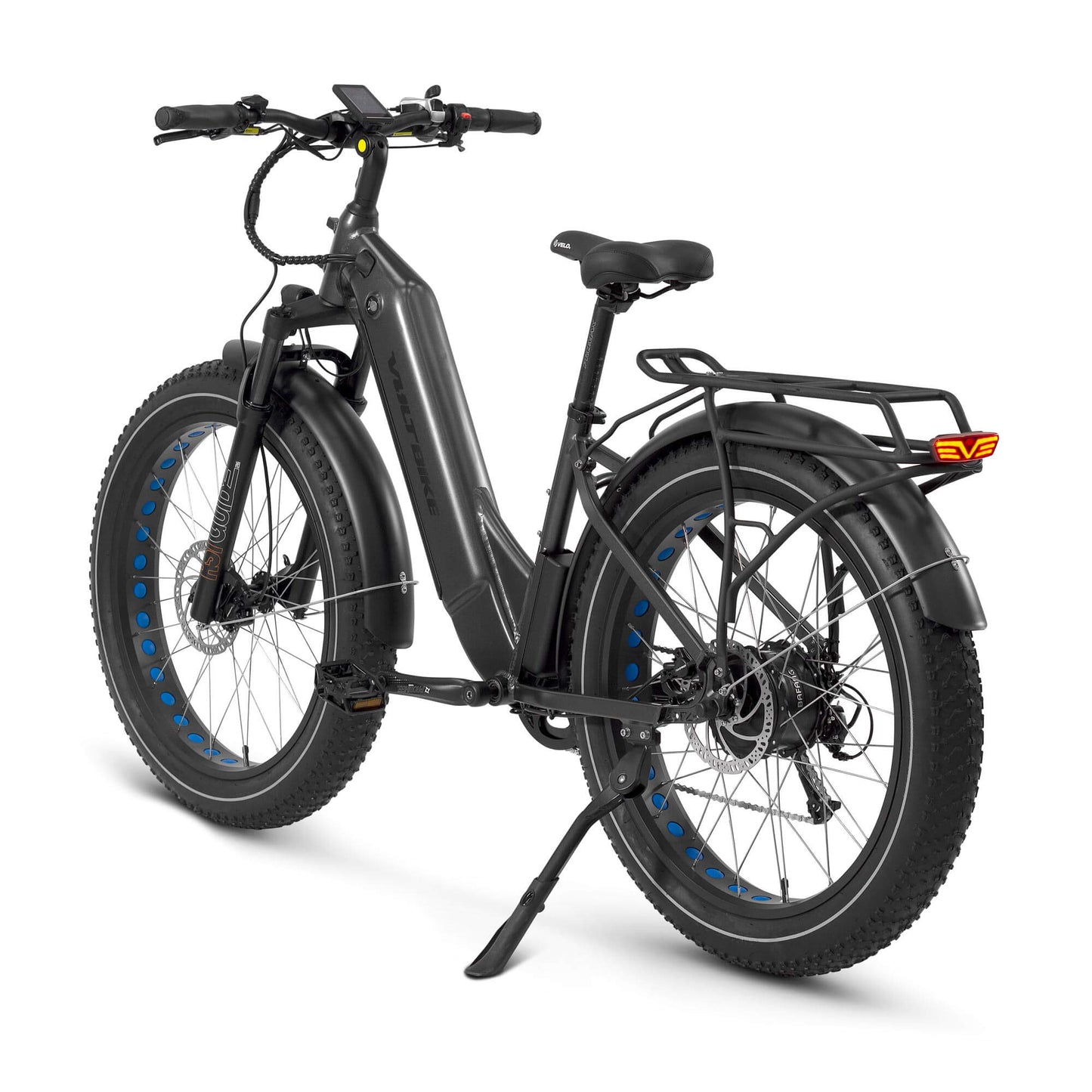

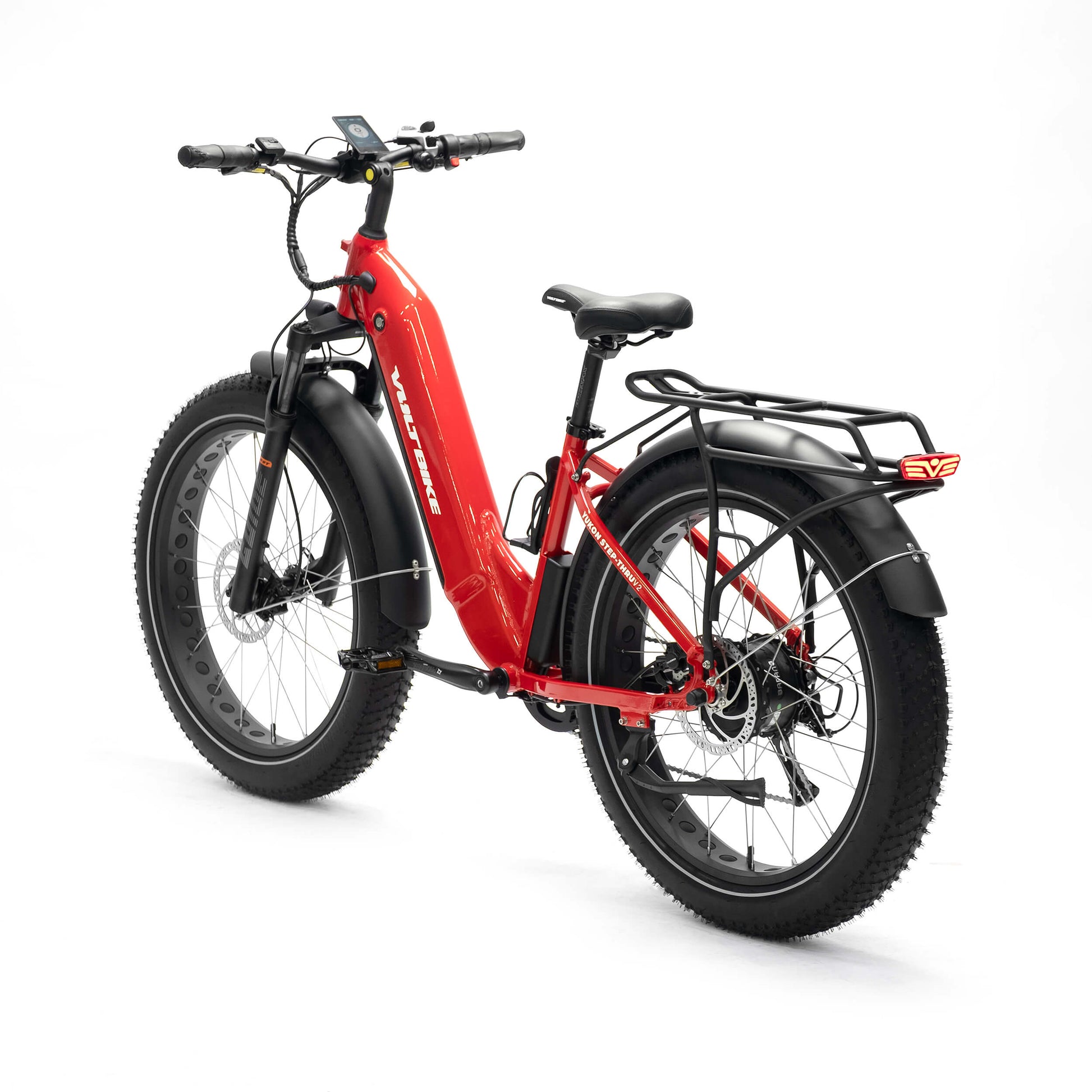

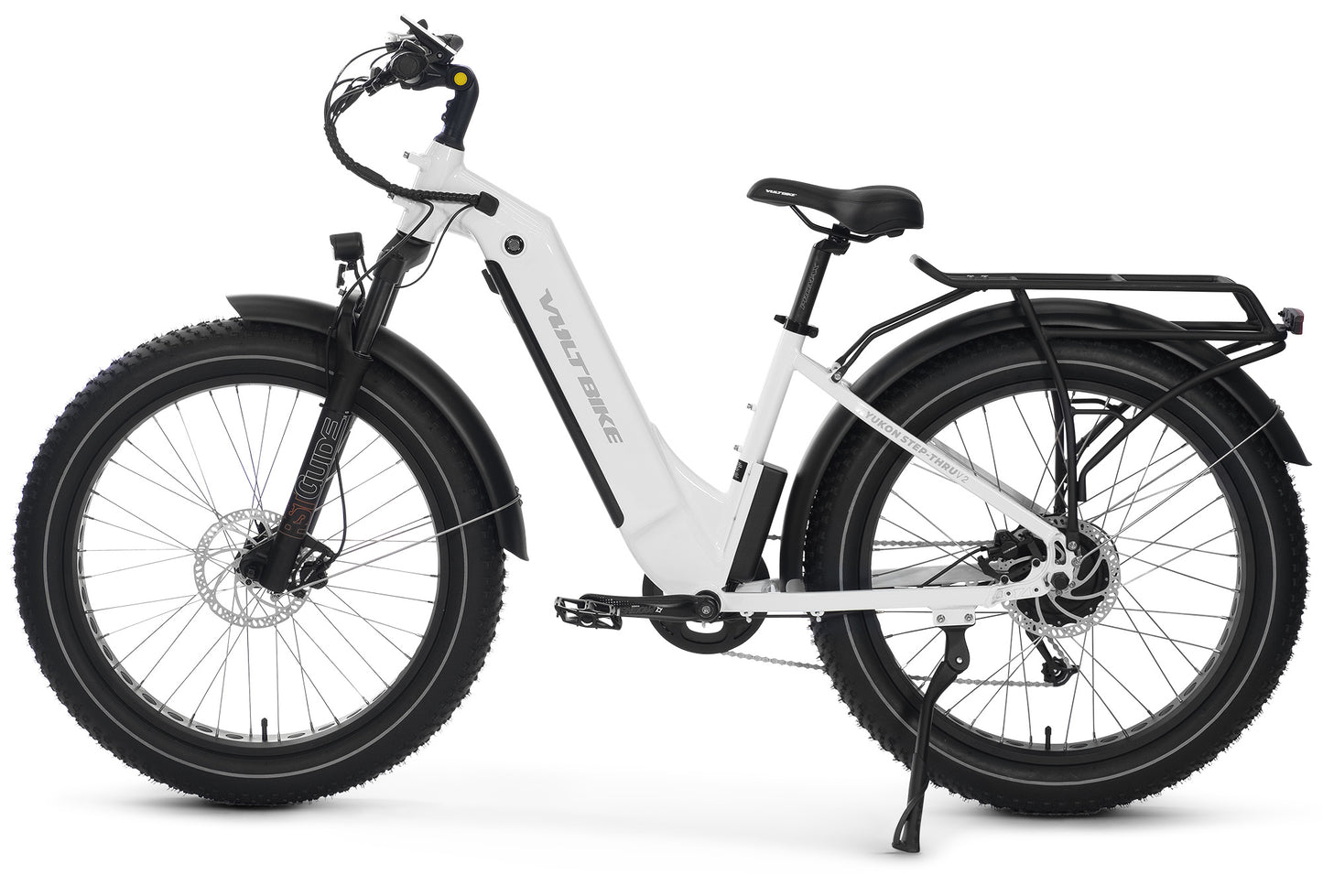

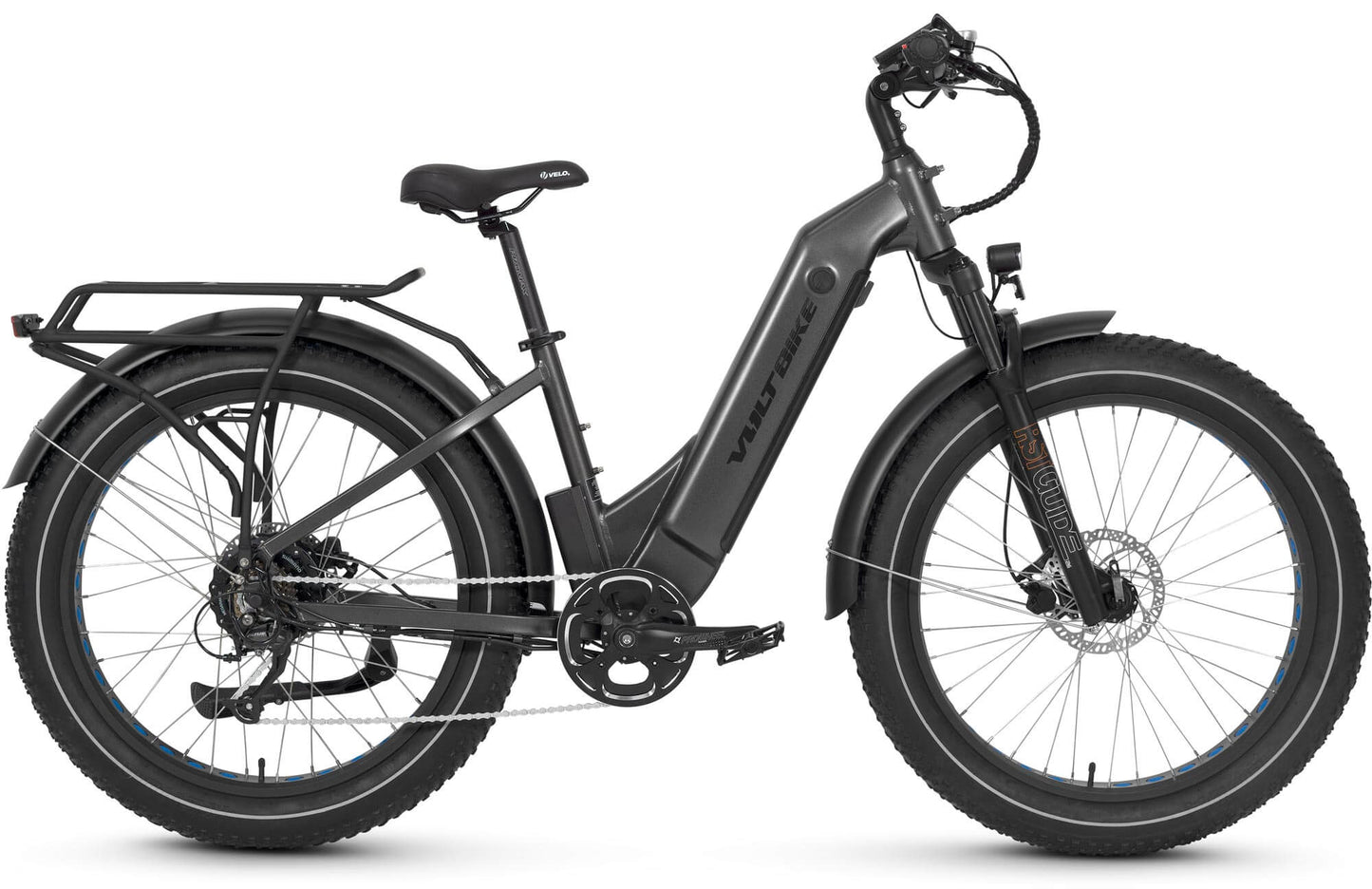

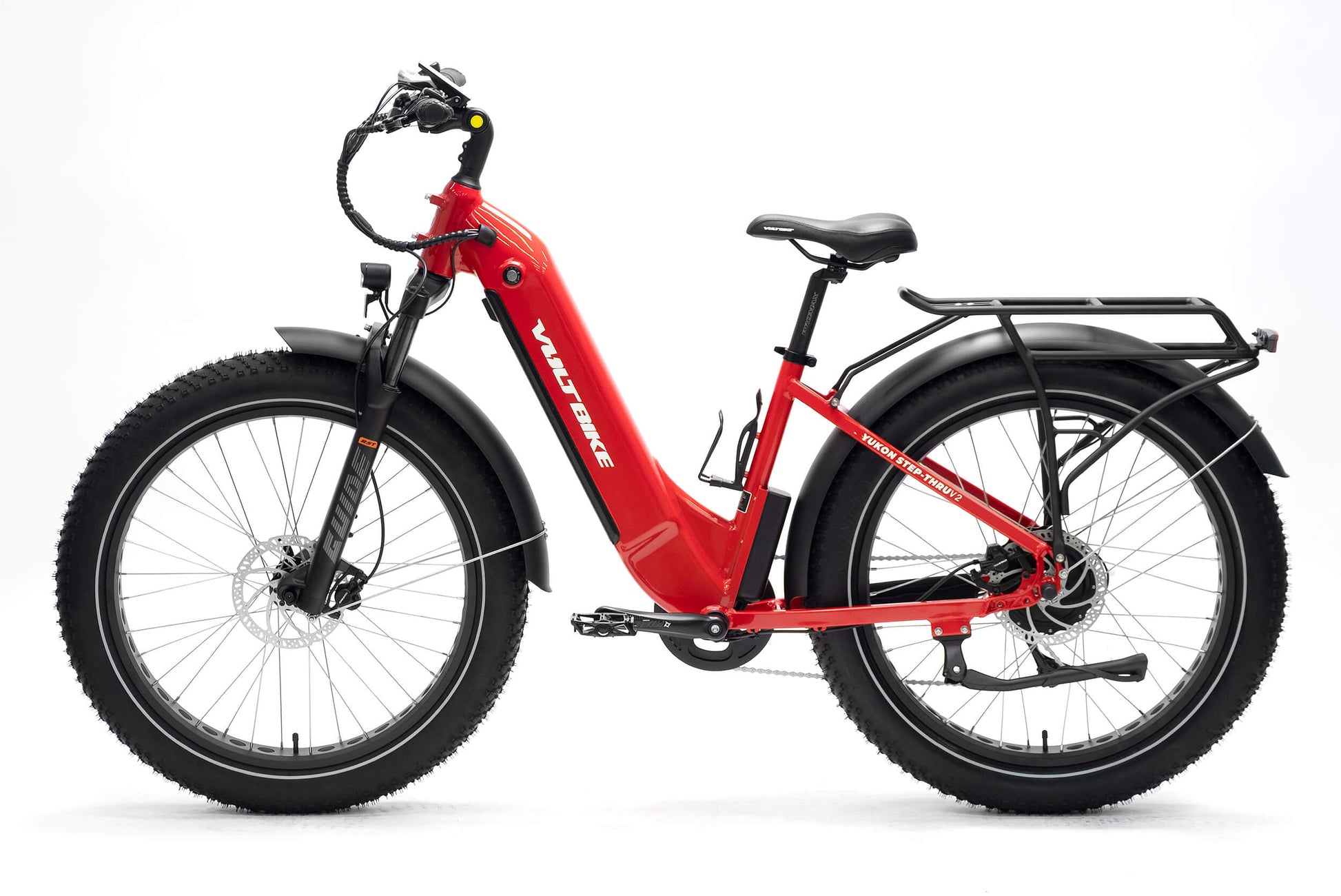

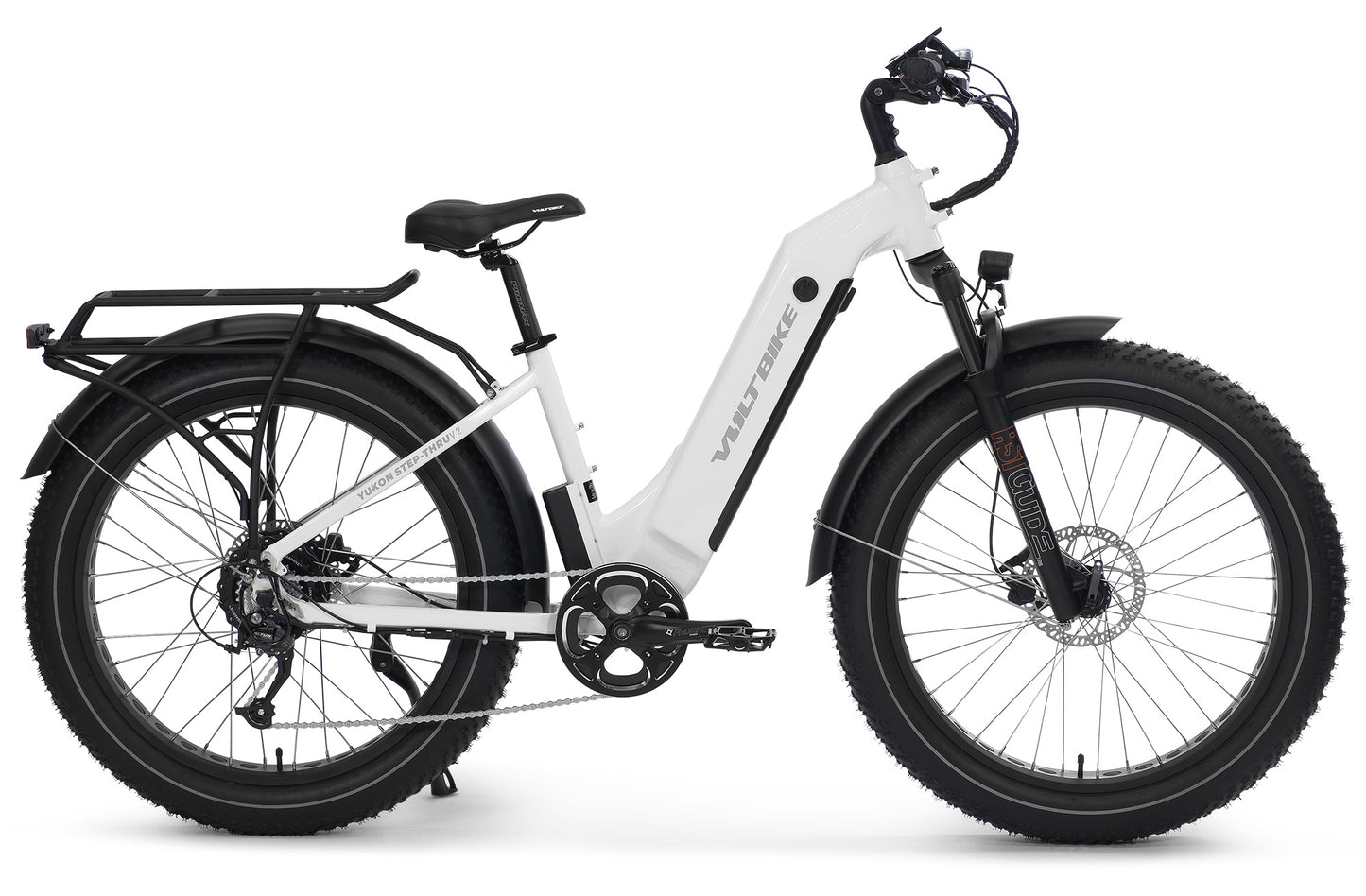

Yukon V2 Step-Thru

Yukon V2 Step-Thru

With the all-new low-entry frame, the Yukon V2 Step-Thru is a premium sport utility fat tire electric bike. Featuring fully integrated long range battery, and beautifully redesigned frame, this is the e-bike VoltBike lovers has been waiting for.

The VoltBike Yukon V2 Step-Thru comes with features like hydraulic brakes, large 17.5Ah Li-ion battery and powerful 500w (750W peak output) motor which made Yukon our best-selling bike.

Yukon V2 Step-Thru is in stock and ships on the next business day.
$1,999.00 CAD
$2,499.00 CAD $1,999.00 CAD
Sale Sold out
Bicycle Color
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

750W Peak Power

BAFANG is the world’s biggest manufacturer of hub motors for e-bikes. VoltBike Yukon Step-Thru is using Bafang G06 series geared motor which provides 80 N.m. max torque and up to 750w of peak power. The Bafang G06 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Fully Integrated Battery

Yukon V2 Step-Thru is using 48v 17.5Ah (840Wh) battery pack with Samsung INR18650-35E cells. The integrated frame design gives you security in various weather conditions plus offering unmatched visual appearance. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Yukon V2 Step-Thru comes standard with lockout suspension Mozo FatMan which can handle up to 4.8 inch tire. Designed for quick release axles and bolt on axles for ease of use. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weighing a remarkable 7 lbs., this fork is ready to tackle anything you throw at it.

Sturdy Rear Rack

Standard for Yukon V2 Step-Thru is aluminum rear rack with extra wide tubing. Rated for up to 50lbs of cargo this rack can fit any load with ease. Mounted directly on the rack is LED rear taillight with brake light functionality.

Puncture Resistant Fat Tire

Fat tire bikes provide improved grip and traction on the most troublesome terrain by adding extra contact surface. Yukon V2 Step-Thru comes with puncture resistant tires Kenda Juggernaut K-Shield which reduces the risk of flat tires and other air loss failures that result from punctures or road hazards. Reflective sidewall is adding extra visibility at night.

Hydraulic Stopping Power

Yukon V2 Step-Thru is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Backlit Color Display

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

Simple Controls

Our redesigned cockpit includes large easy to read LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Always Visible

Staying visible can significantly decrease your chances of being involved in a crash with a car. Yukon V2 Step-Thru is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. The integrated rear LED light is powered using the main battery pack. The taillight features brake light functionality that is activated any time the brakes are applied. Reflective sidewall tires ensures you are visible from the side.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 74.0 lb
  • Battery 48V 17.5Ah Li-ion (840Wh) Samsung
  • Battery Style Internal
  • Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro HD-E350
  • Brake Lever Tektro Auriga with safety power cut
  • Chain KMC Rust Buster. 12.7mm pin to pin center. 124 links. Total length 1547.8mm.
  • Crankset Aluminum Alloy-6061 44T Crank, 170mm with Outer Guard
  • Derailleur Guard Rear Metal Derailleur Guard
  • Fork RST Guide aluminum alloy suspension with lockout function. 90mm travel. 135mm dropout. 32mm stanchions.
  • Frame Type Step-Through
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Front Light Spanninga Kendo+ LED 30 Lux. Powered by the main battery and controlled from the keypad.
  • Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree
  • Hubset Alloy 6061 Electric Motor
  • Motor 500W (750W Peak) Hub Motor
  • Motor Type Hub Motor
  • Pedals Wellgo LU-313 with reflectors
  • Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailleur
  • Rear Light LED brake light. Powered by the main battery and activated any time the brakes are applied.
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 26 inch with 36 spokes
  • Seat Velo Plush VL-6142
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 30.4mm*350mm
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Spokes Front 12G, Rear 13G
  • Stem PROMAX MODEL MA-596 with adjustable angle 35° - 145°. 105mm extension with bar bore 31.8mm.
  • Tires Kenda Juggernaut 26x4 KS Shield, Wire Bead, 30 TPI casing. Puncture resistant layer.

Sizing

  • aFrame Size: 17"
  • bStand-over Height: 23"
  • cReach: 15"
  • dTop-tube Length: 21"
  • eHandlebar Height: 44.5"-46.5"
  • fSeat Height: 32.5"-39"
  • gWheel Size: ⌀26"x4"
  • hWheelbase: 47.5"
  • iLength: 75"
Yukon V2 Step-Thru sizing chart.

Related Blog Posts

Jul 17, 24

Get Moving, Stay Young: How Ebikes are the Fountain of Youth

Get Moving, Stay Young: How Ebikes are the Fountain of Youth

Sometimes, the best stories aren't written; they're told right in our showroo...

Read Post
Jan 21, 24

What is the difference between the original VoltBike electric bike and Version 2?

VoltBike Electric Bike with Integrated Battery

Having a great selection of Ebikes is something we’re proud of here at Vol...

Read Post
Dec 30, 23

The benefits of a step-through ebike

Electric Step-Thru Bike Voltbike Yukon

VoltBike's Step-Through collection is more popular than ever, with shipmen...

Read Post

Customer Reviews

Based on 27 reviews
89%
(24)
11%
(3)
0%
(0)
0%
(0)
0%
(0)
100.0
D
Debb Cain

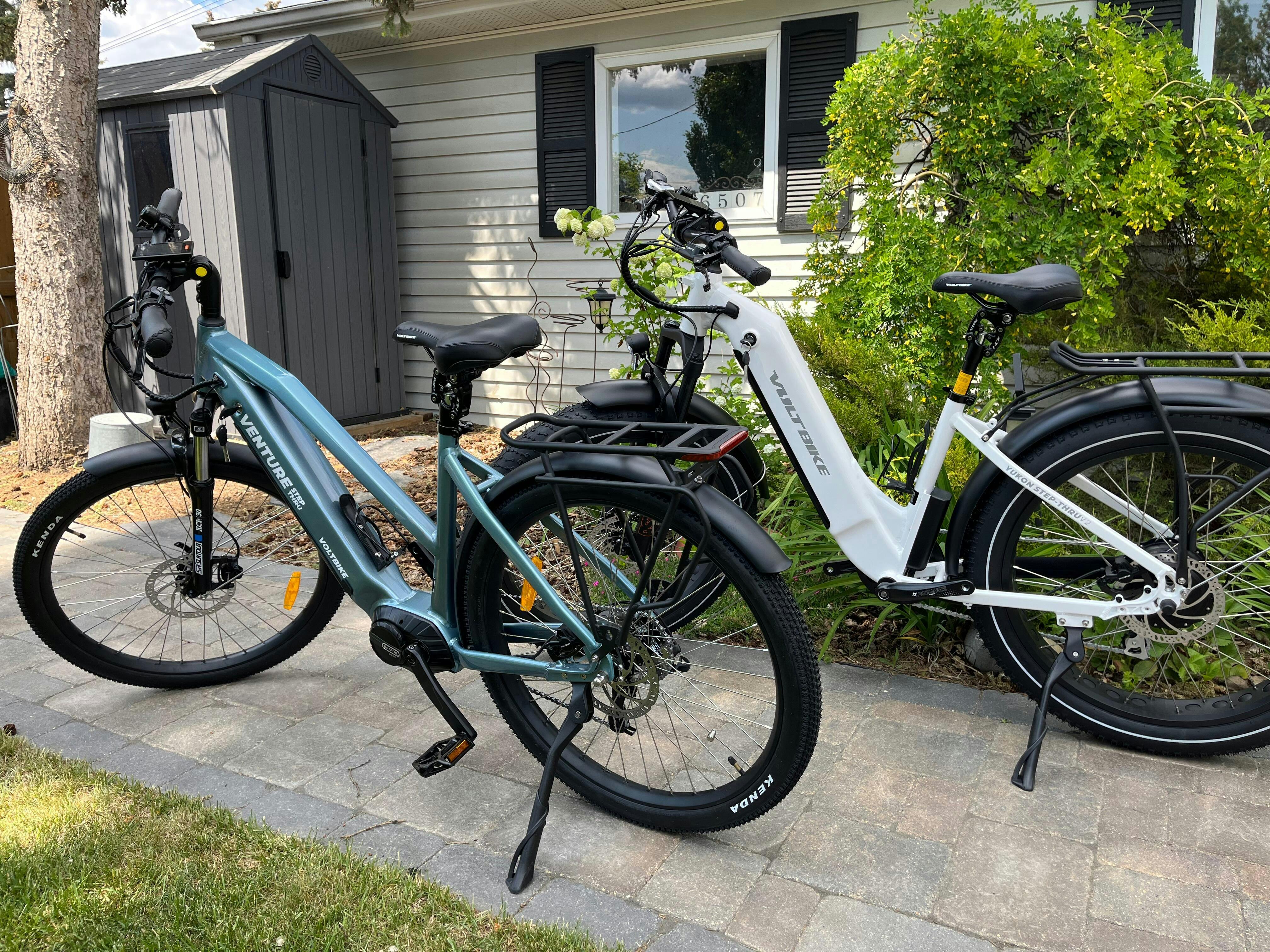

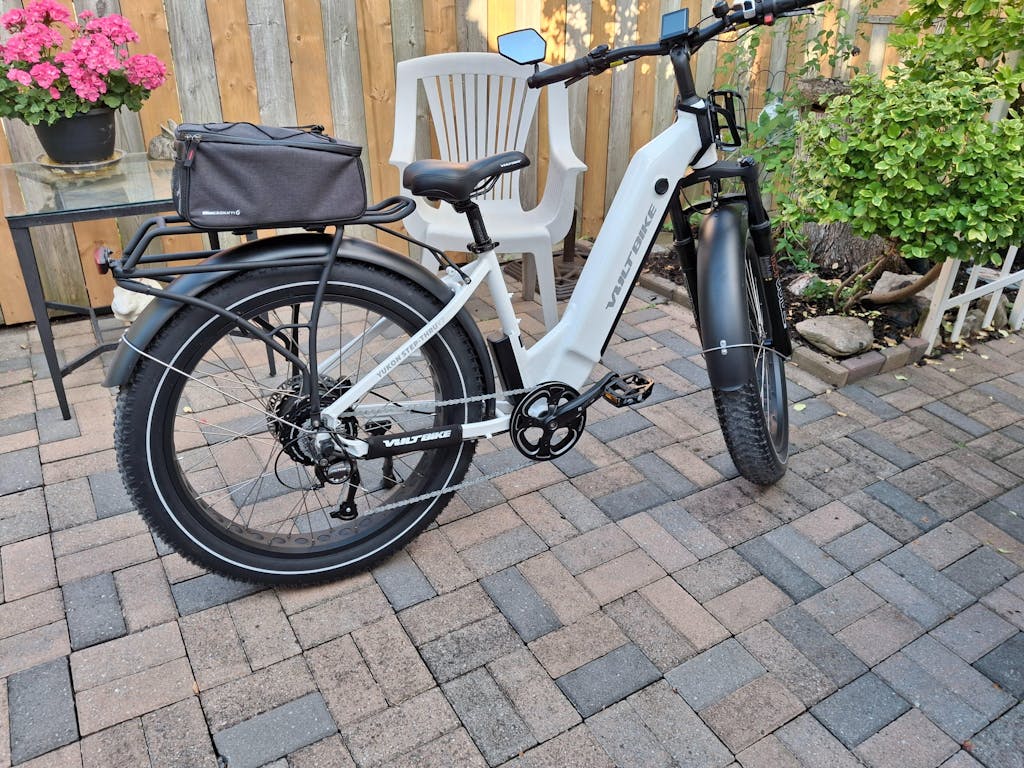

New Owner Yukon V2

I was amazed at the entire process to purchase the bikes how helpful Volt staff were right through to the moment our bikes arrived . My Yukon V2 is white with retro white wall tires and it looks amazing. The bike to ride was easy to learn and I know we will be using the bikes on many travels . We highly recommend this company .

M
Matthew Huzevka
Love the step thru

I just replaced my 2020 Yukon 750 with the Yukon V2 step thru. Same handling but the step-thru is much easier! Other upgrades:
-longer battery life.
-larger and colour screen.
However, if you use the water bottle holder at the "V", it defeats the purpose of the step-thru so I mounted the water bottle holder to where the front rack would have went and bingo!

s
sylvain gaudreau
Yukon V2 Step-Thru

Je cherchais un vélo Fat Bike électrique facile a enjamber en tout temps. J'ai choisi le Yukon V2 Step-Thru. Le cadre Step Thru me permet d'enjamber facilement le vélo avec un minimum d'effort. Son gros cadre V2, renforci, cache la batterie et lui donne un look costaux. Équipé d'un moteur de 750 Watt et une batterie de 48 Volt /17,4 Ampère, cette combinaison pousse avec puissance ce monstre de la route. Les pneu Fat Bike 28" de diamètre par 4" de large vous transporte tout en douceur. Pour un confort suprême, j'ai dernièrement ajouté le pole a suspension SR SUNTOUR, je vous le recommande fortement. Après 5 promenades et 212 km au compteur, je suis très satisfait de mes choix. Que du plaisir.

B
B.H.
Excellent Commuter

Avid cyclist, but new to e-bikes. Bought this as a commuter and was pleasantly surprised by the level of assist on low-angle and rolling hills. I still need to pedal, but can maintain astonishing speed uphill with an easy "spin" at the crank.

I did expect a bit more oomph on steeper grades, but as I said I am new to the game. Slight changes in my route selection to maintain lower grade climbs have me rocketing to work almost as fast as by car.

Entry level components perform as expected at this price point, but can be easily upgraded later as they wear out.

Overall, extremely satisfied with build quality and performance as a low-angle commuter.

B
Brian Miles
Voltbike Calgary (Wired Bike)

Just had a VERY tough problem fixed by Wired Bike (Calgary's Voltbike Dealer/Repair shop). Ali at Wired Bike - (with awesome assistance by Jason at Voltbike) resolved the problem - same day and at a VERY reasonable ( I thought TOO LITTLE) price. Great teamwork guys! Awesome service! I highly recommend Voltbike - and Wired Bike.
6 stars (out of 5)!
