VOLTBIKE

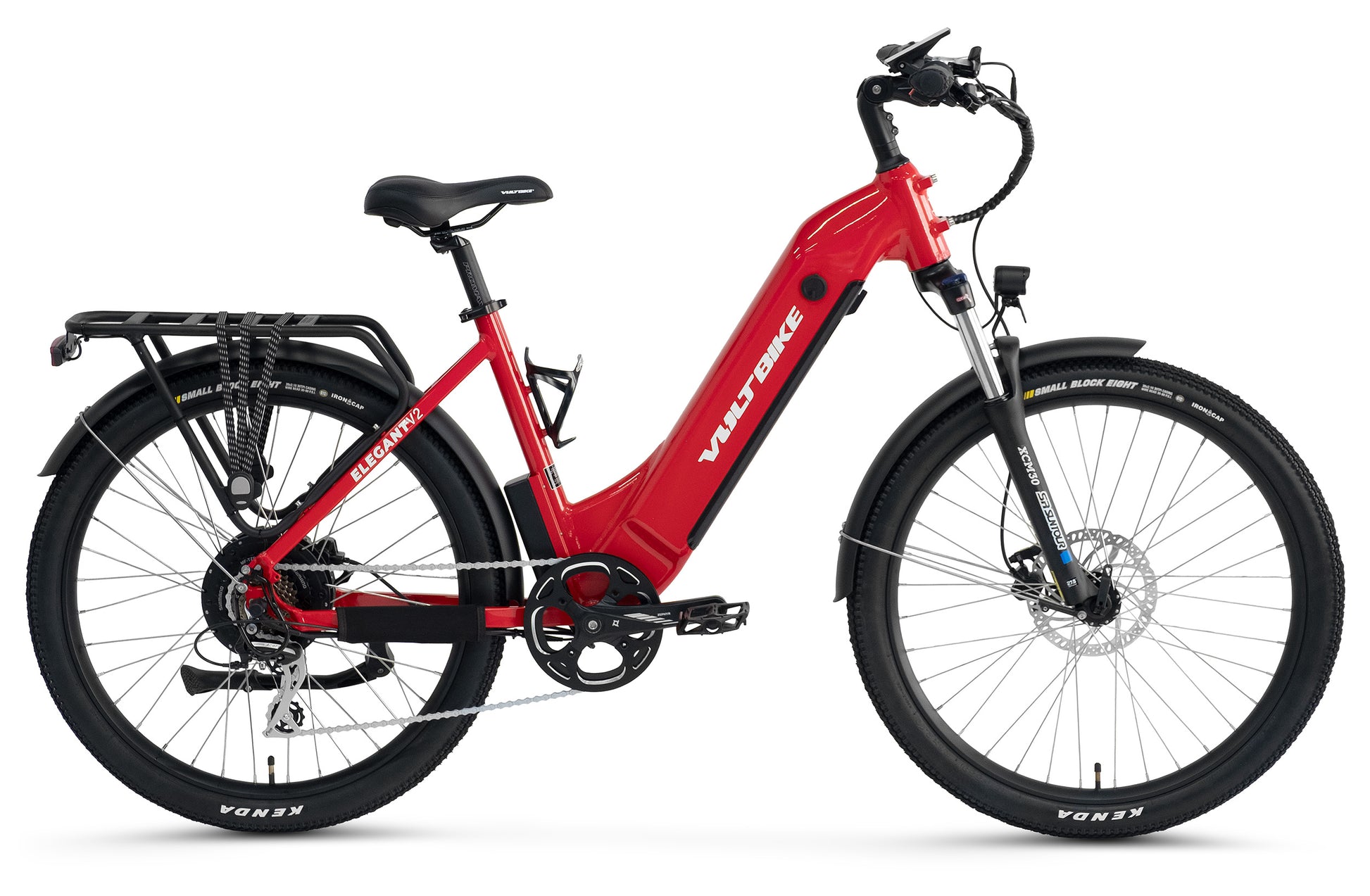

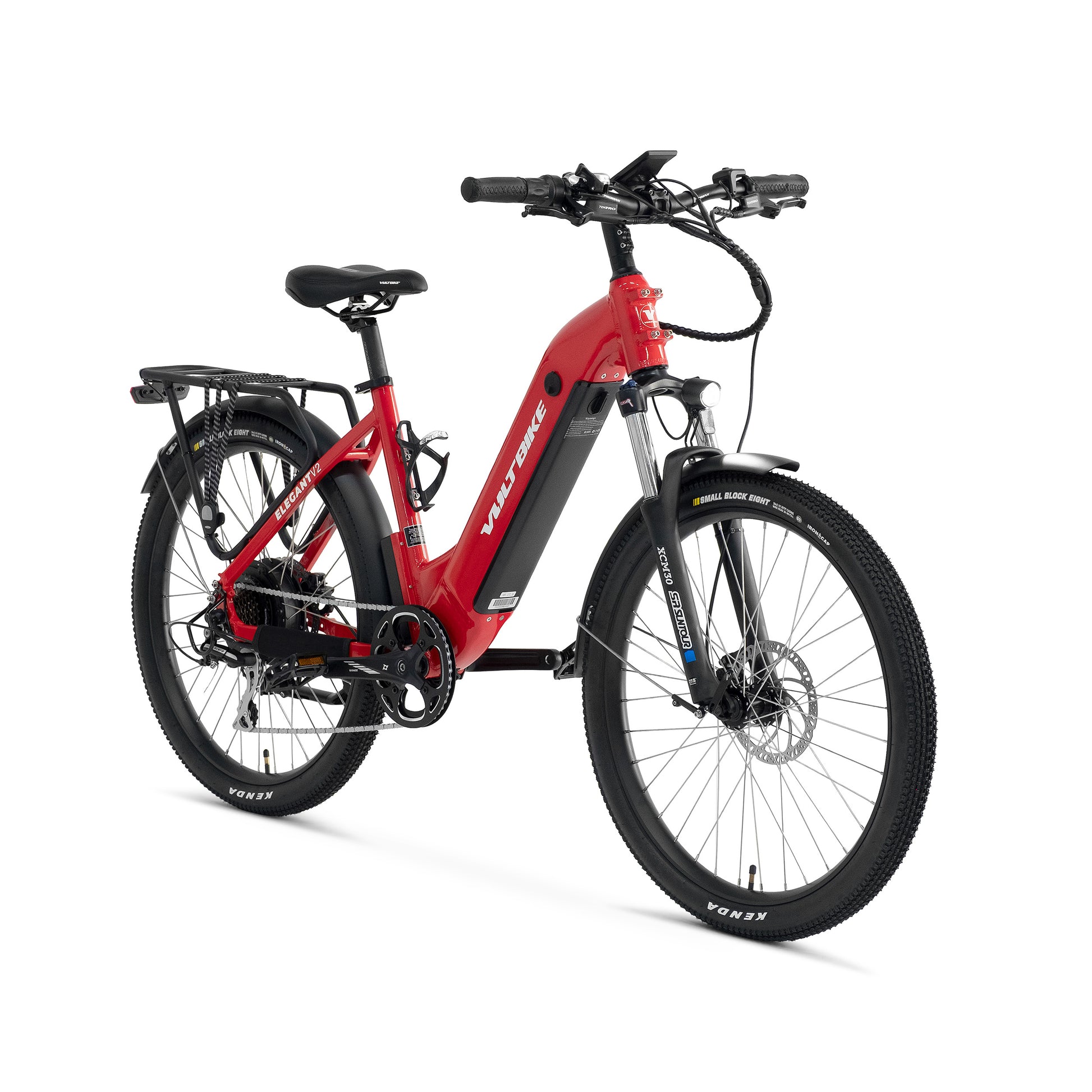

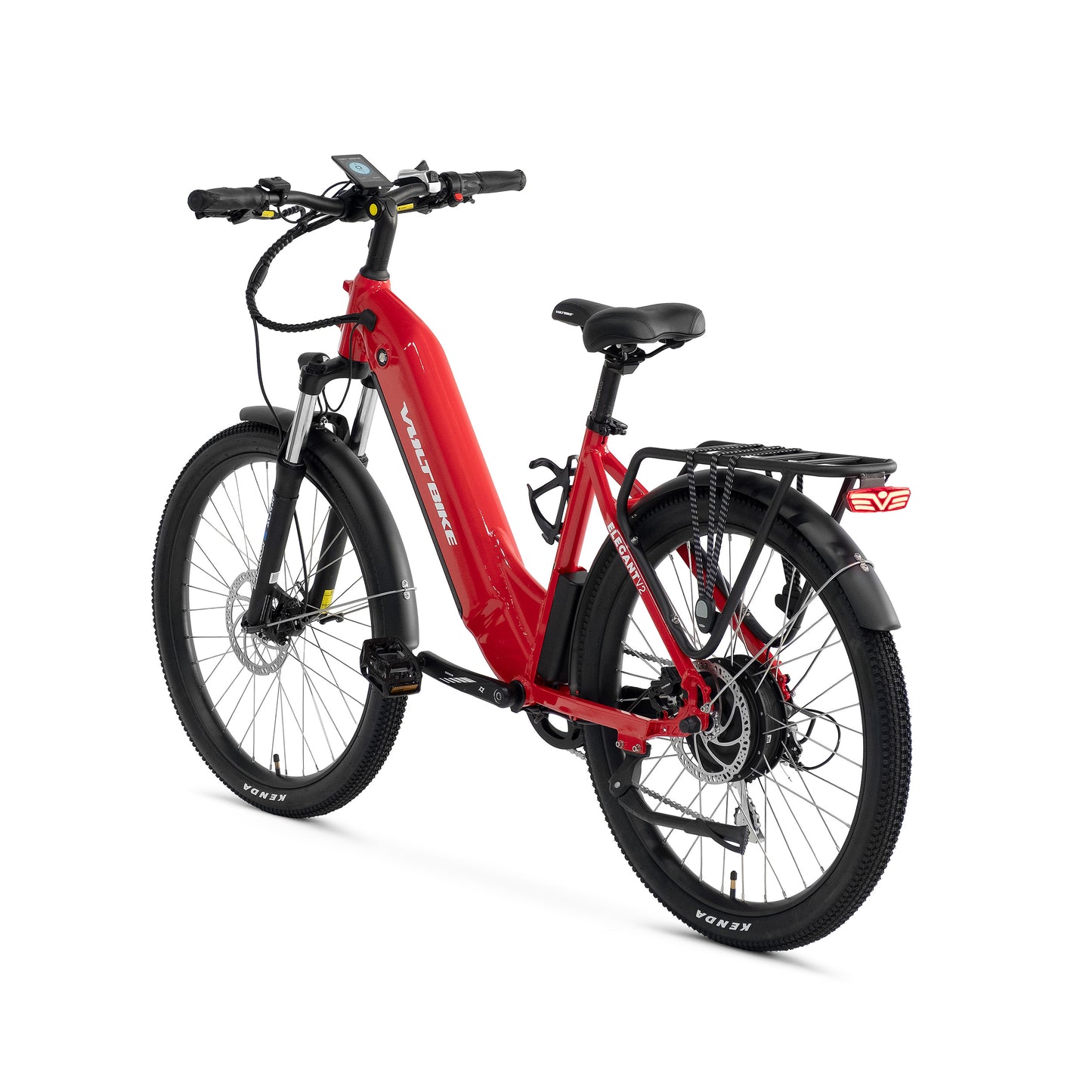

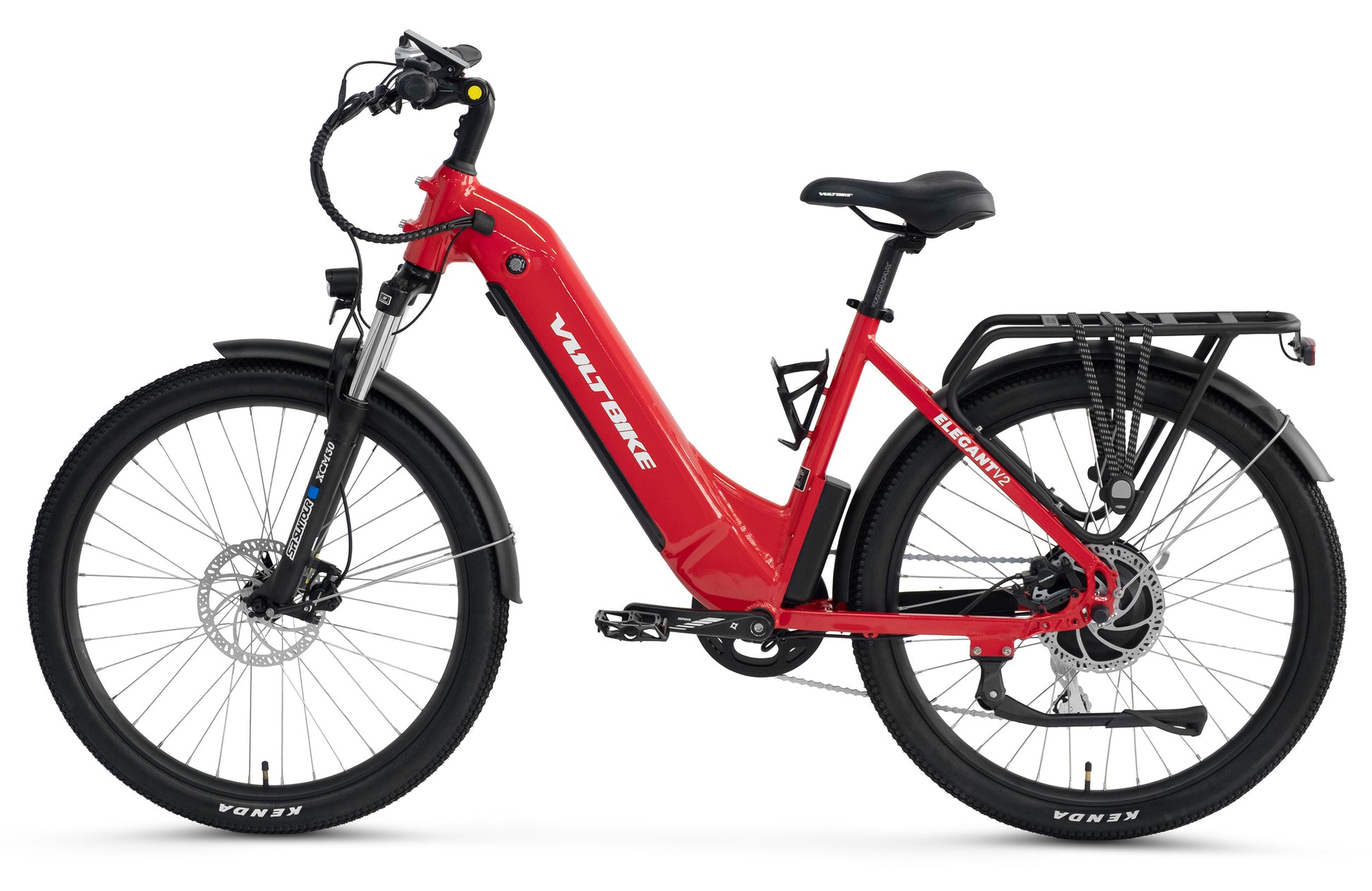

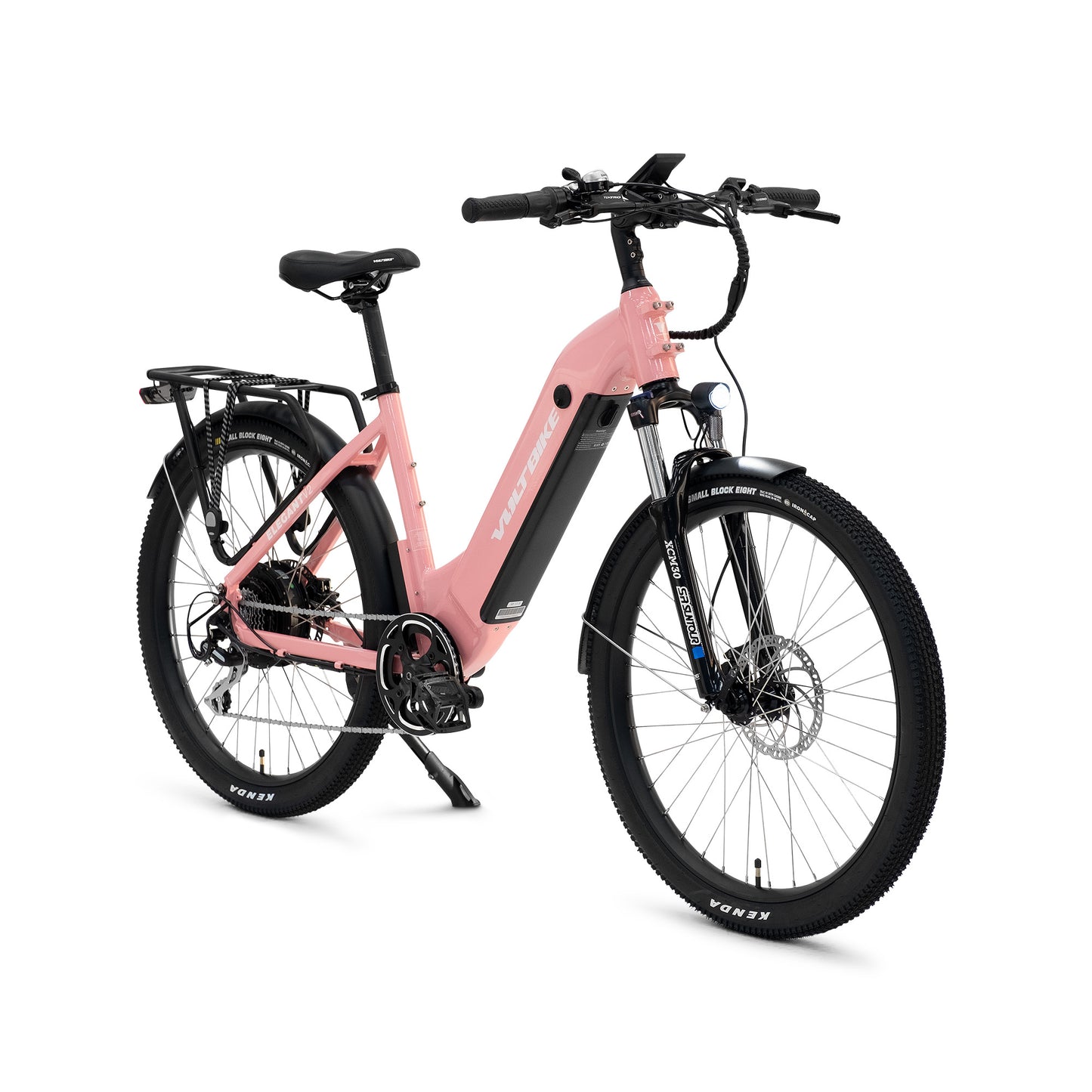

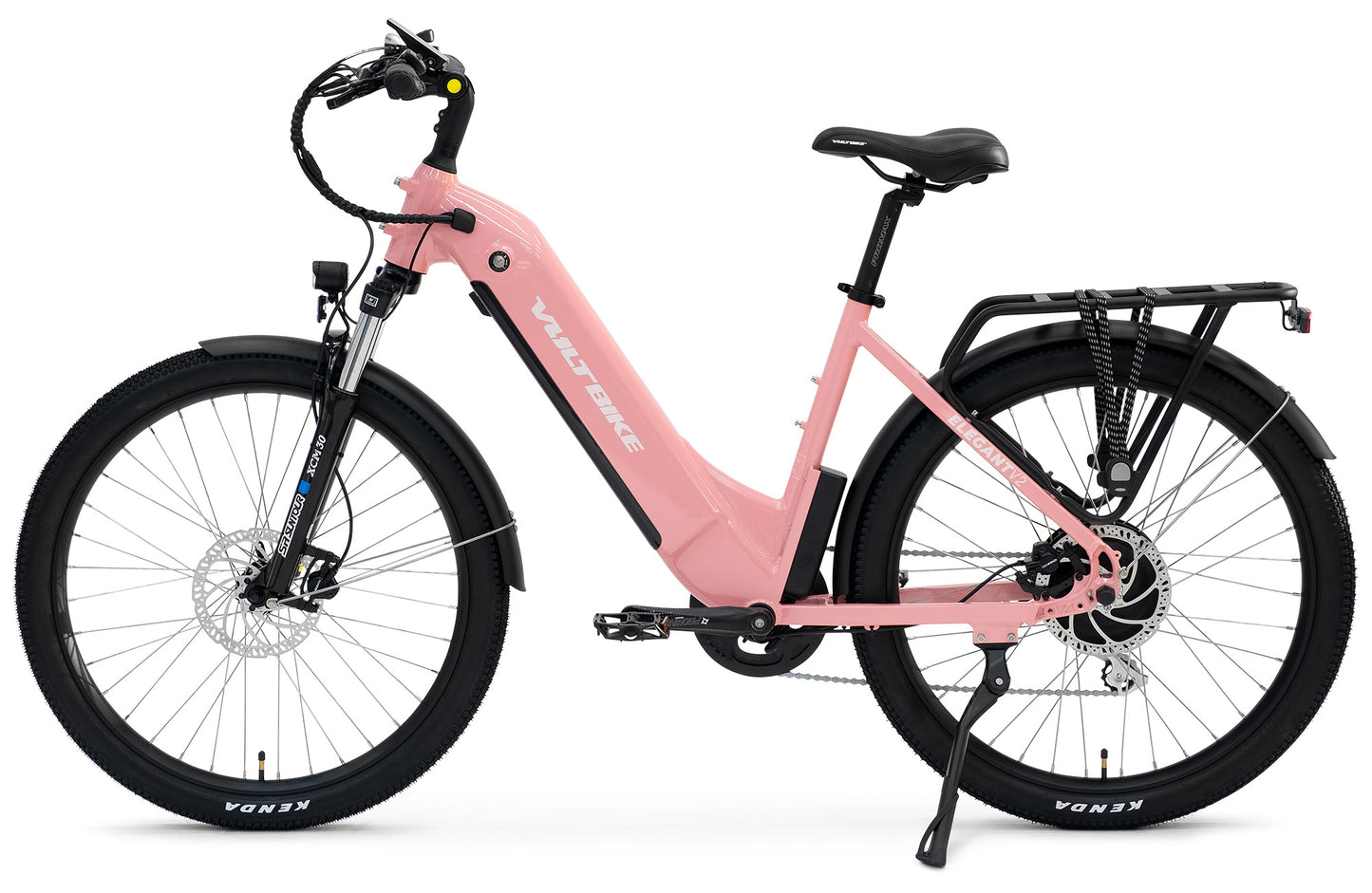

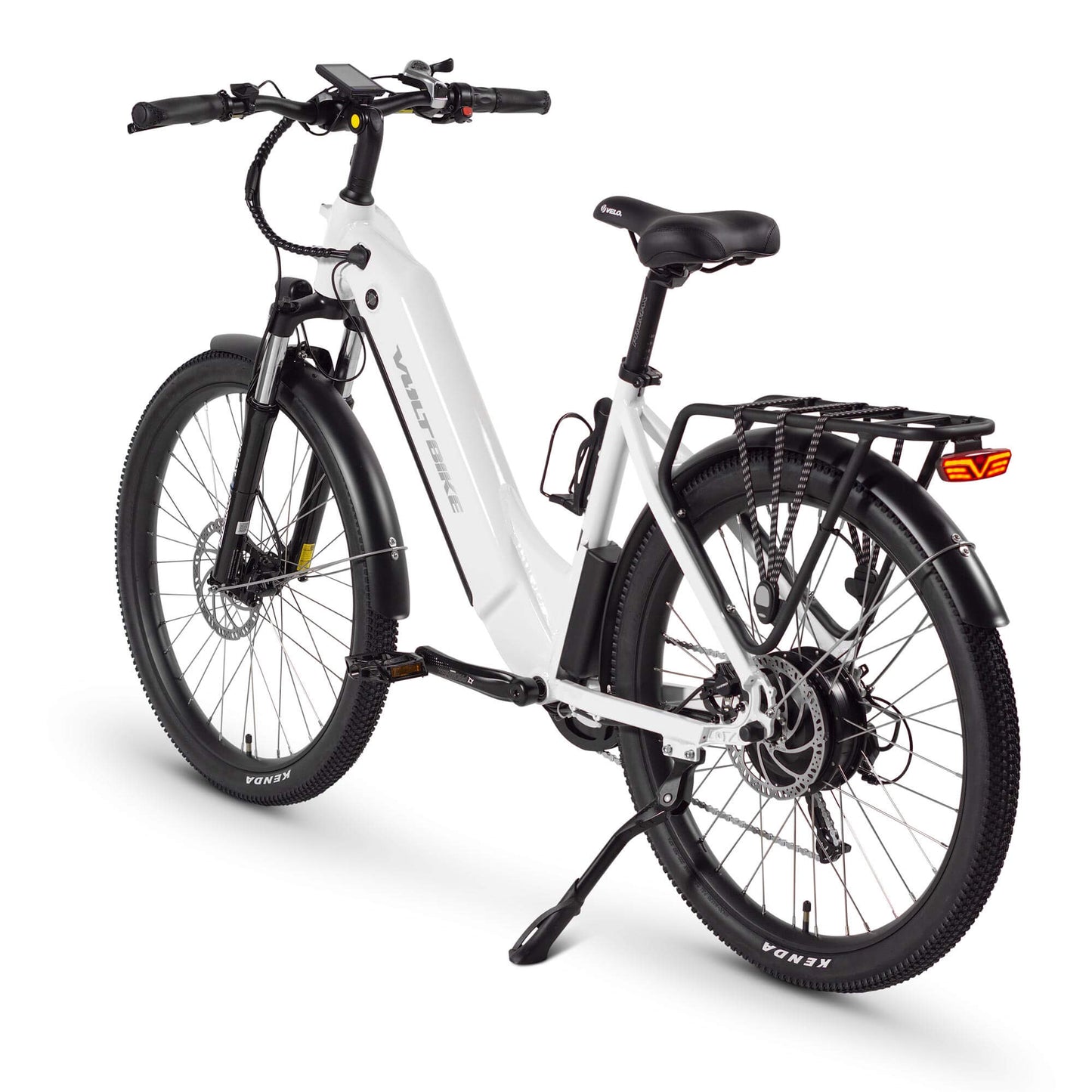

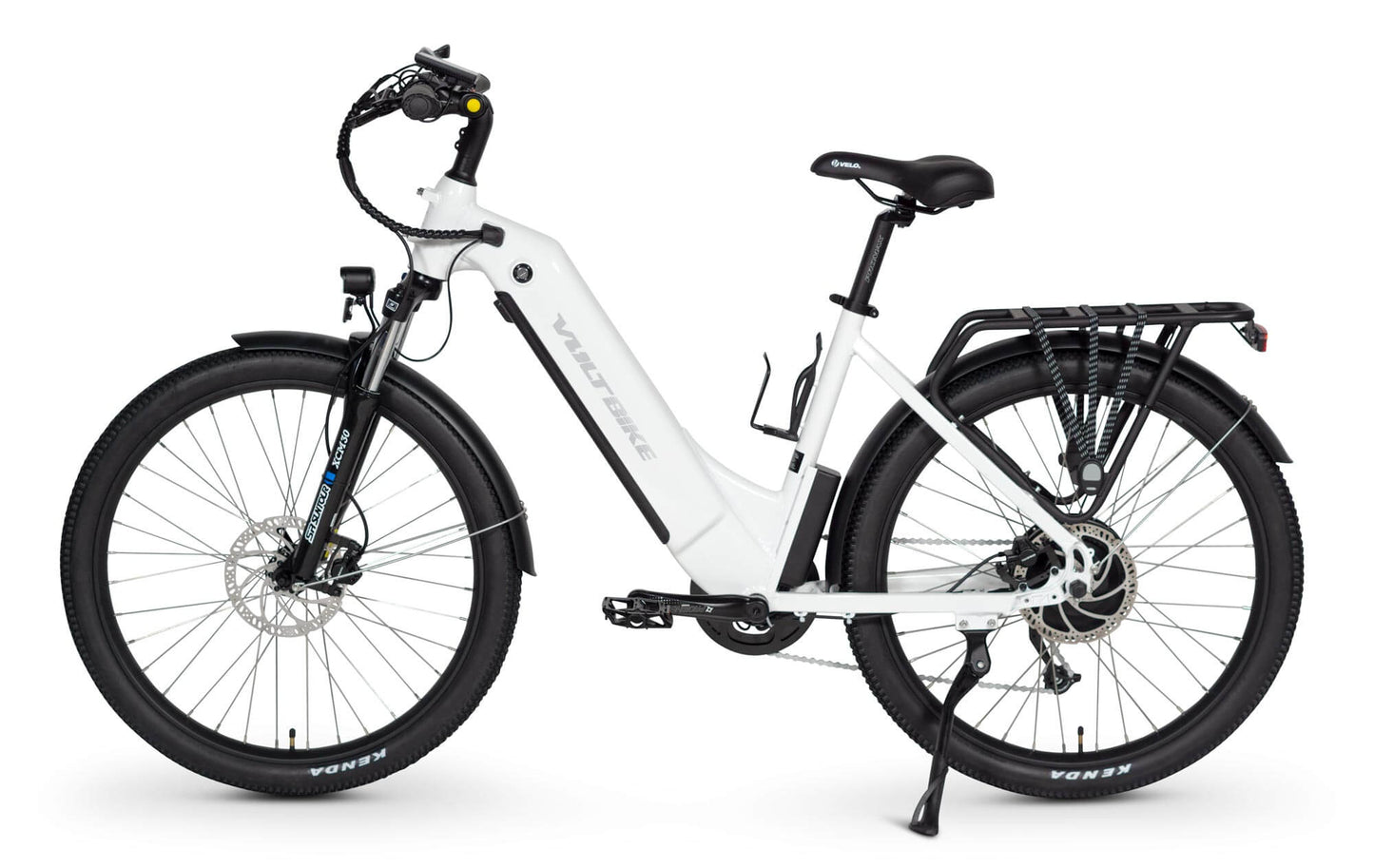

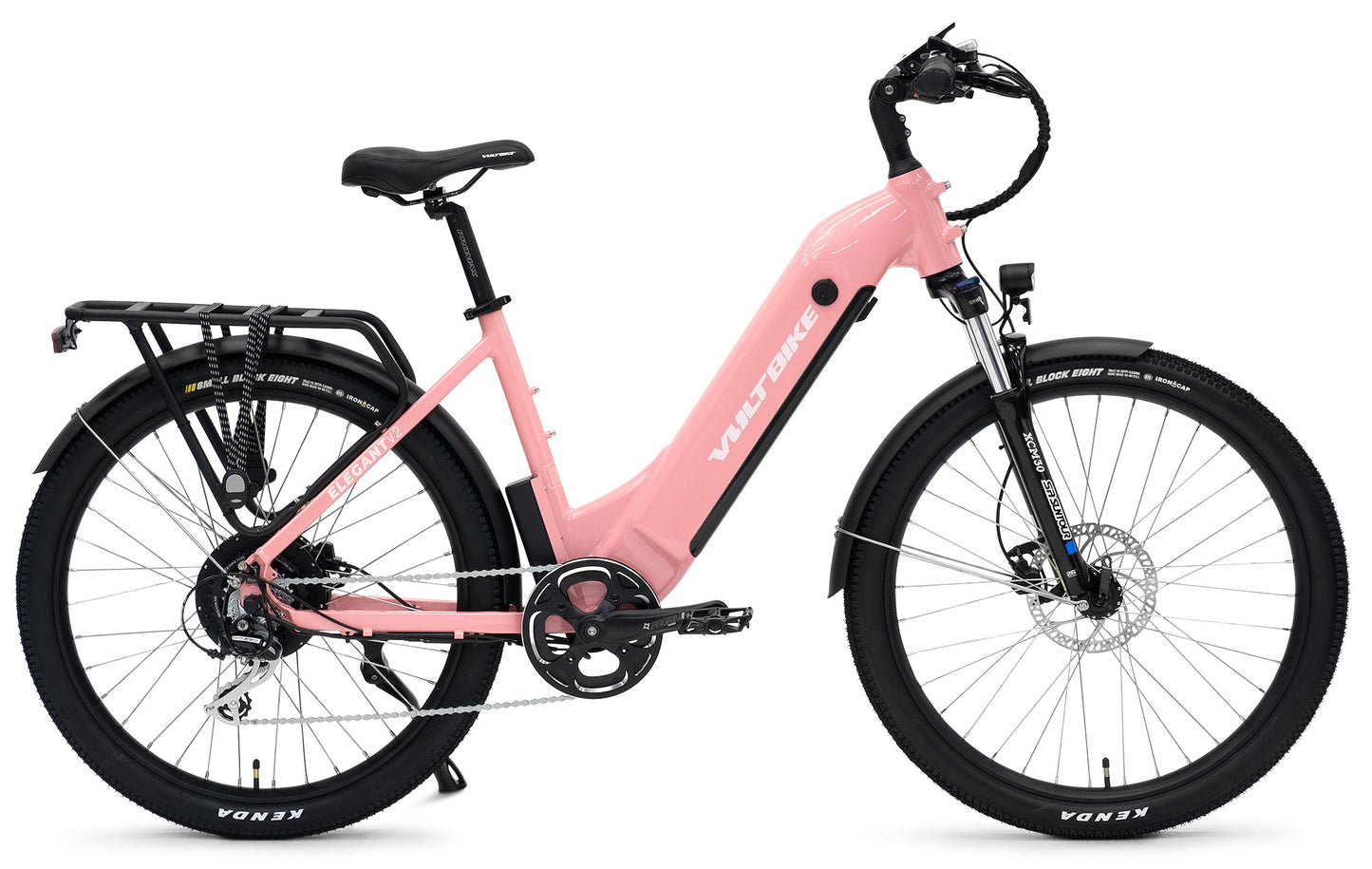

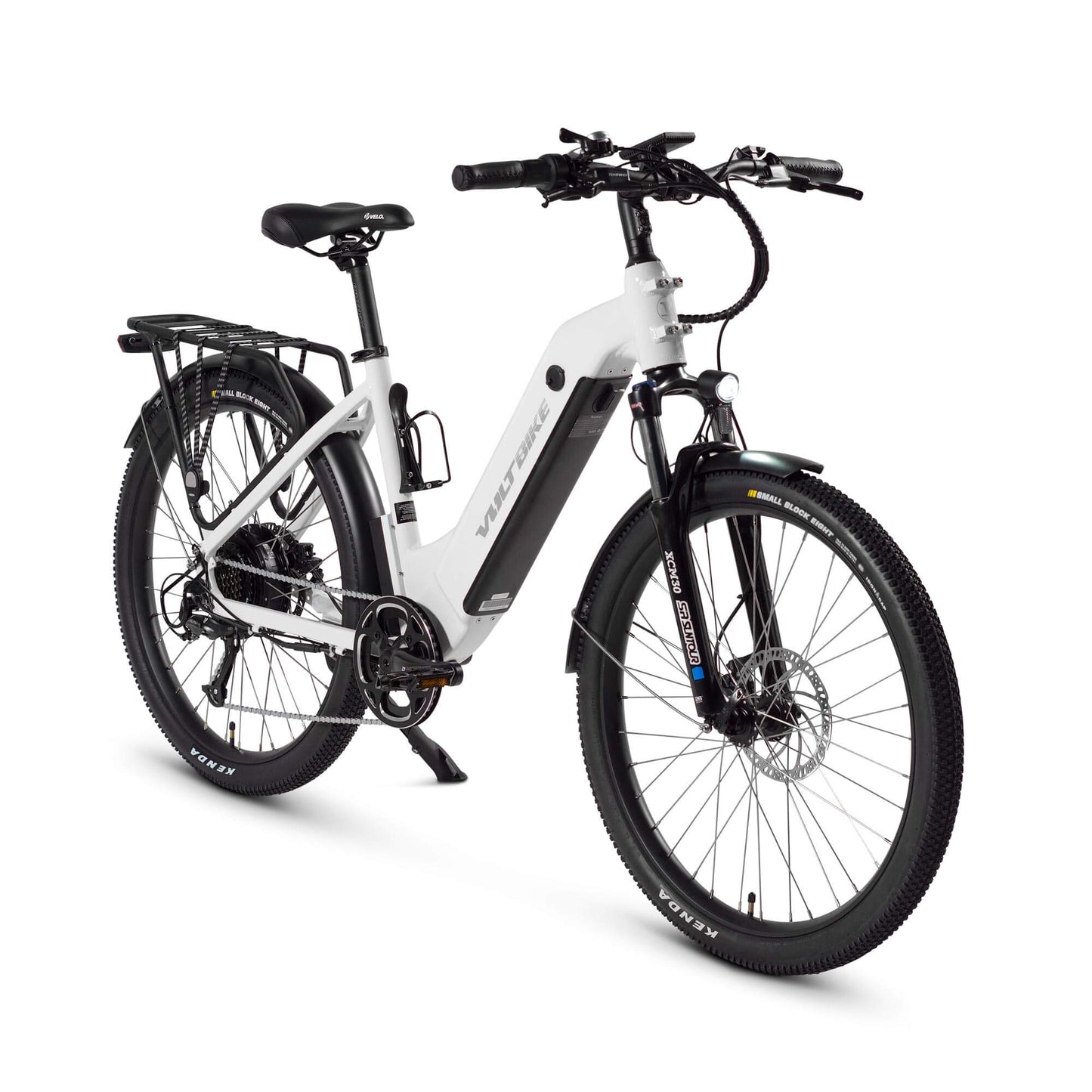

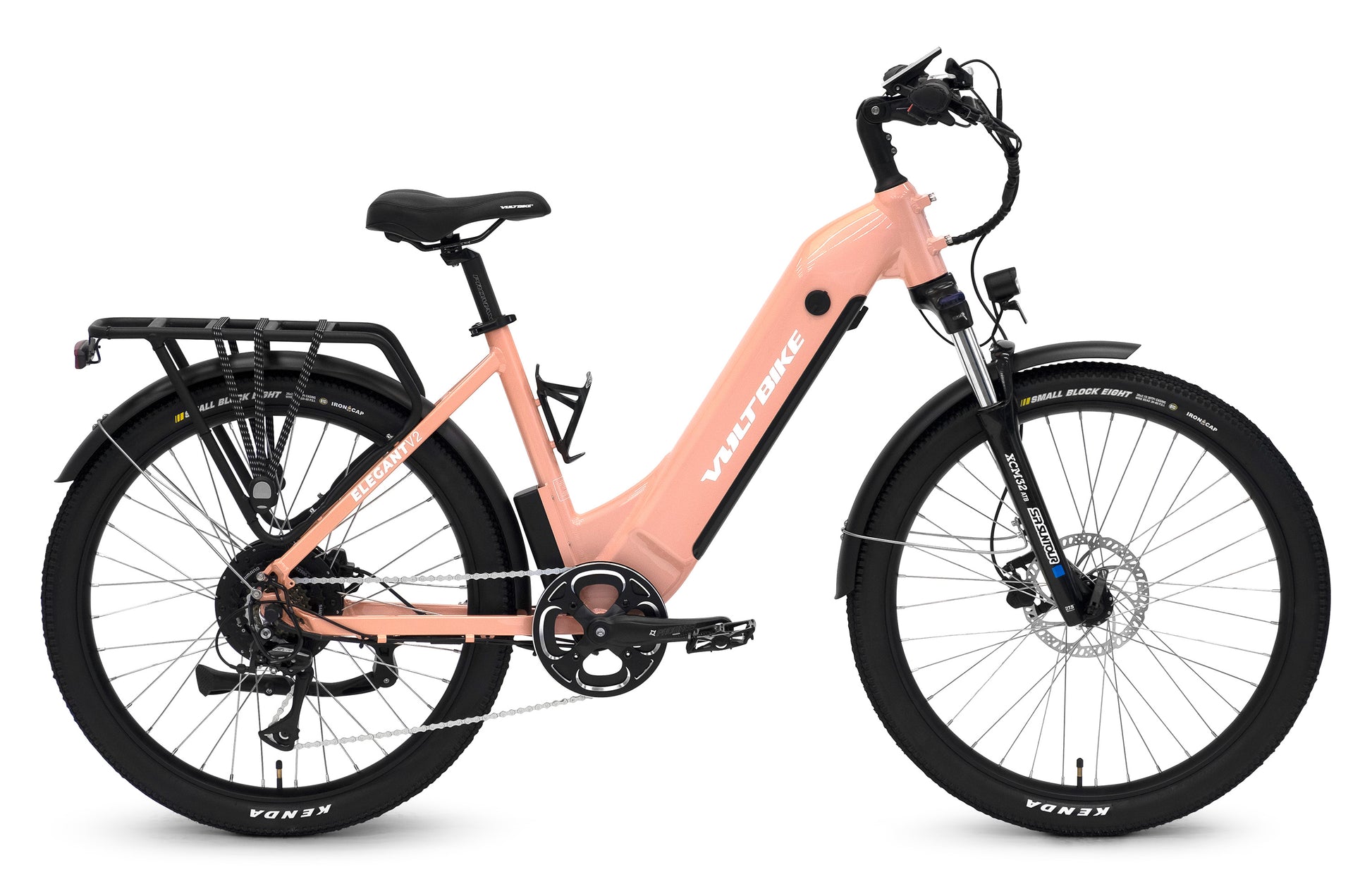

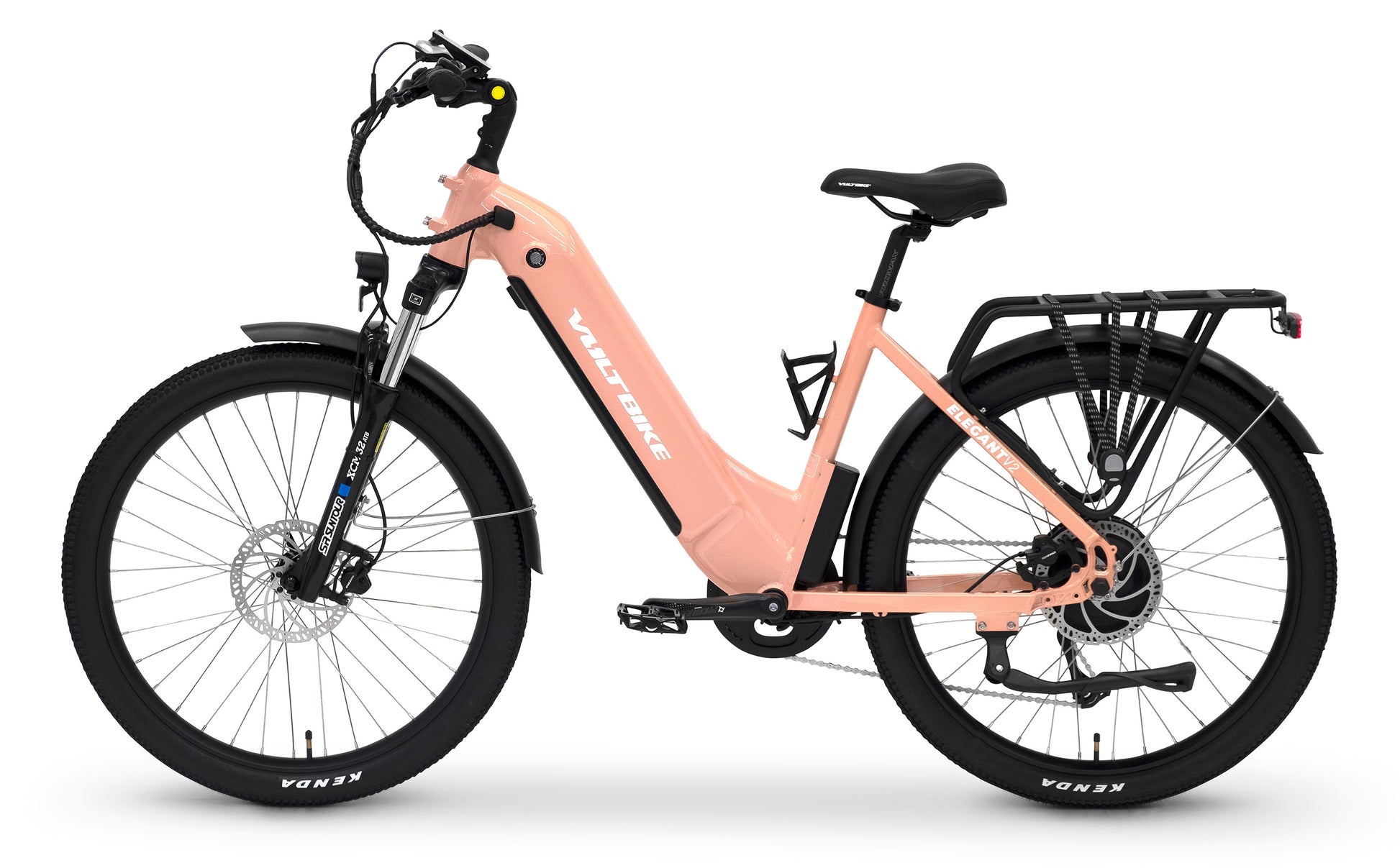

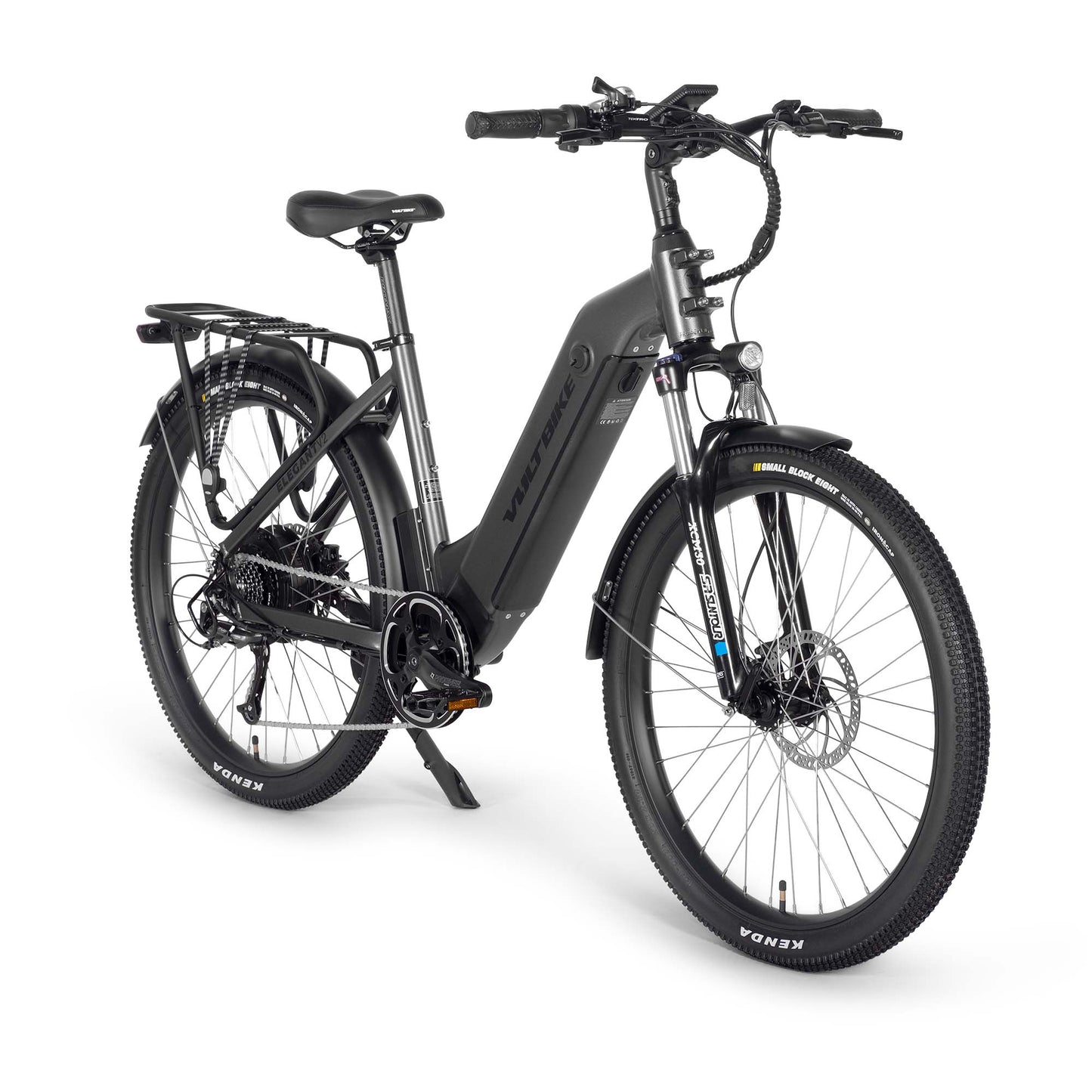

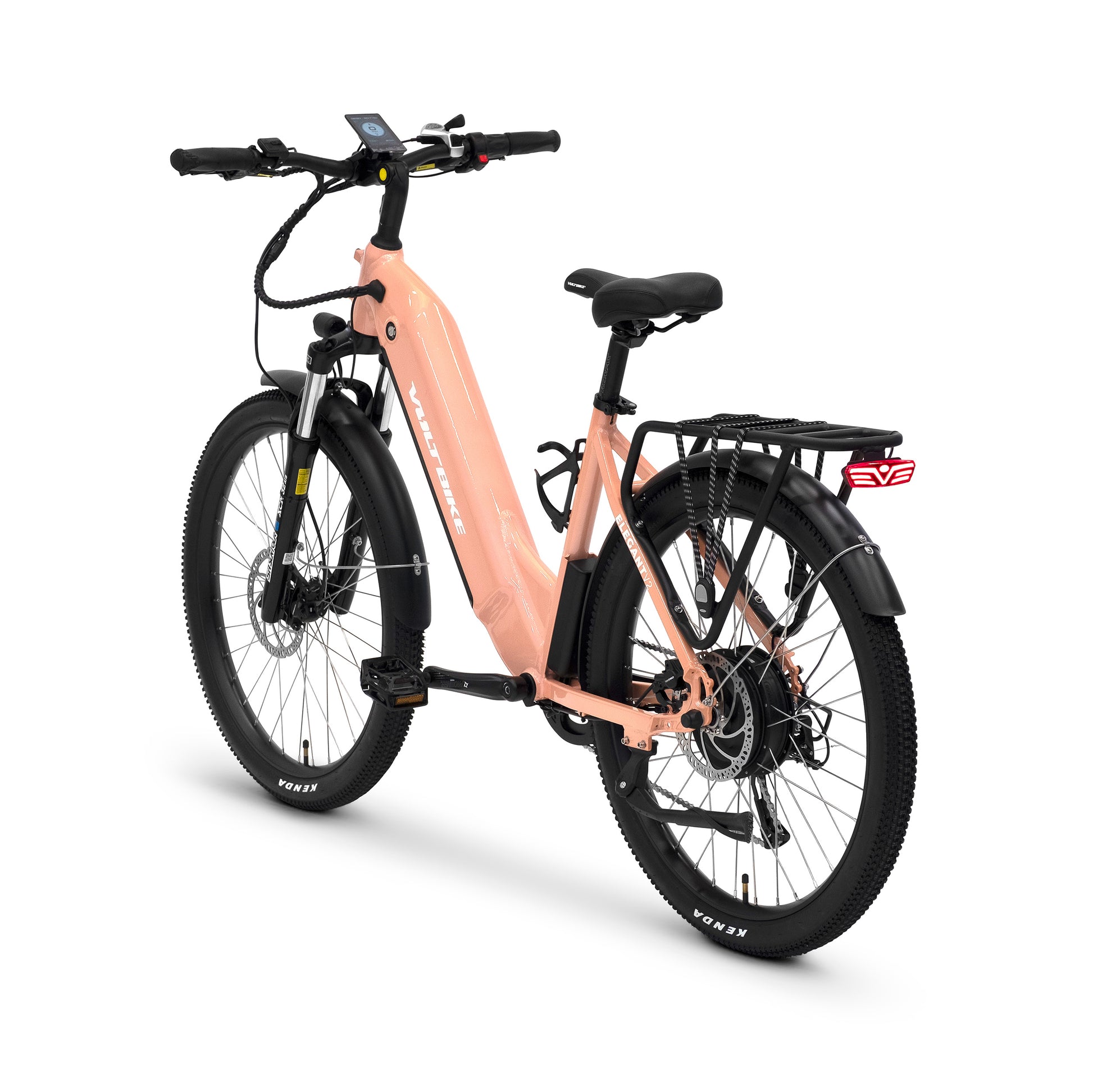

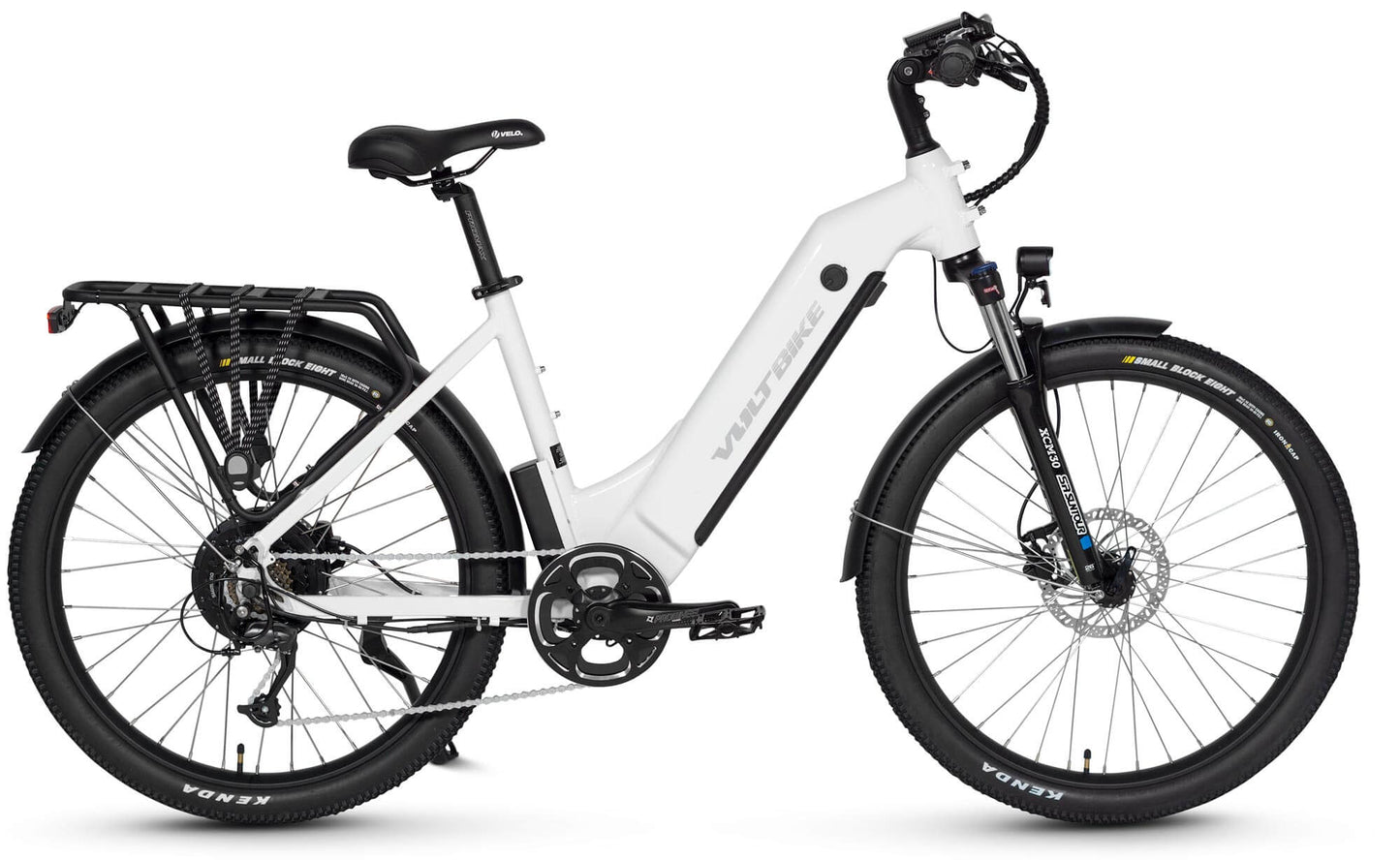

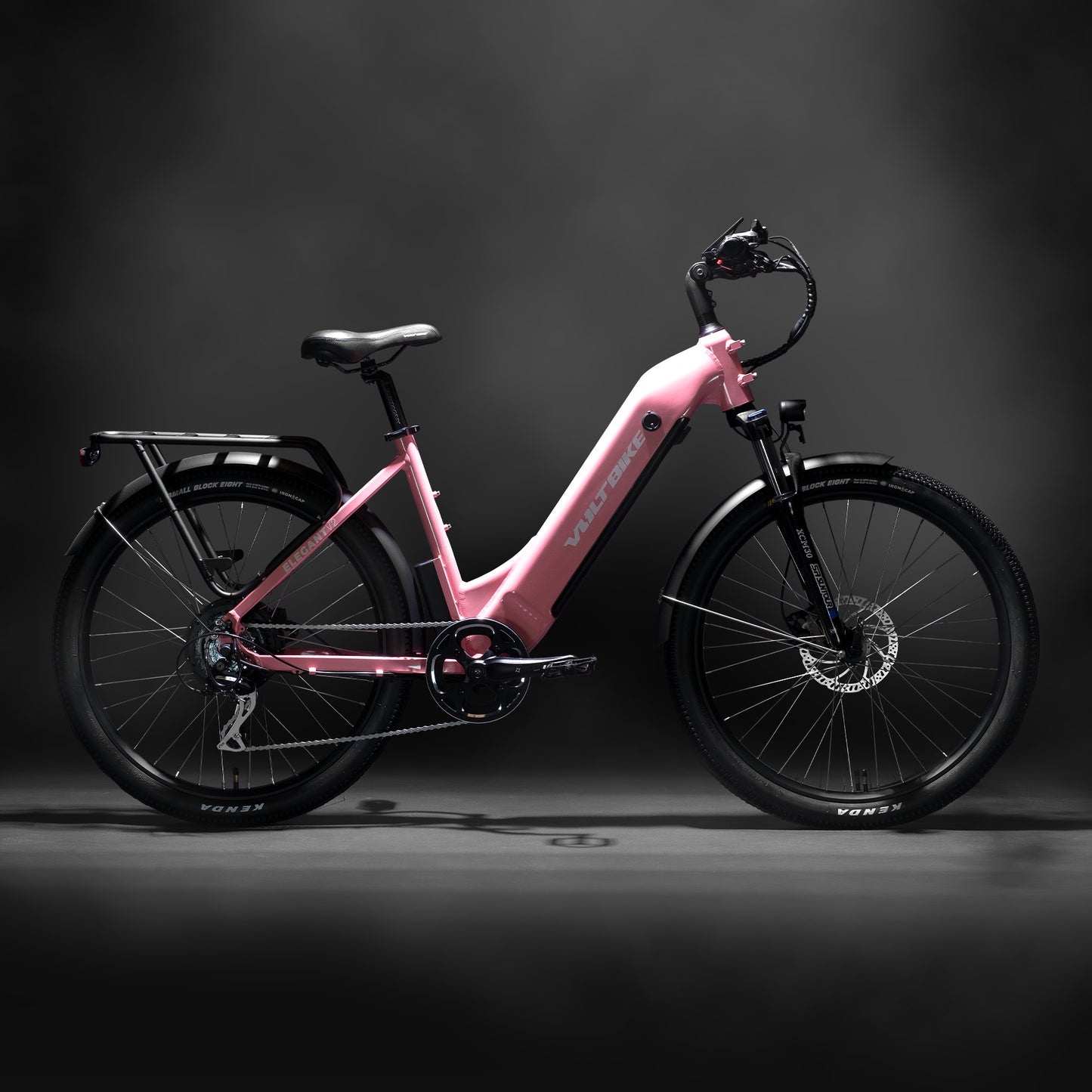

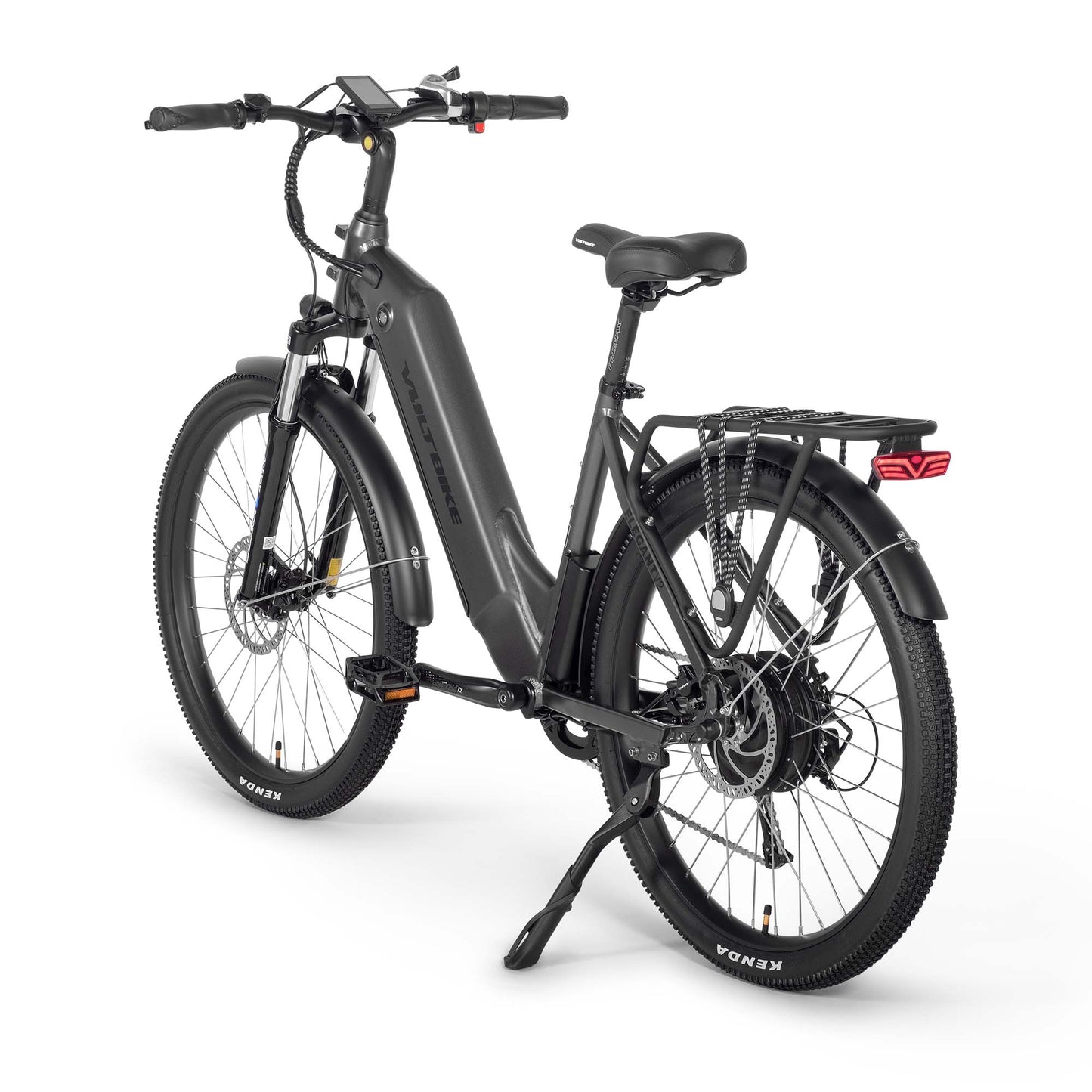

Elegant V2

Elegant V2

Elegant V2 has the head turning design with fully integrated battery and effortless step through frame. Thoughtfully designed with optimal beauty and selection of premium components. Offering a long range UL-certified battery and powerful rear-hub motor.

This model has all the great features of the Elegant but with a stylish redesigned frame which features a larger step-thru area for easier mounting.

For more info on our V2 Bikes and how they vary from the Classic models, see our Blog Post about the VoltBike V2 models.

In-stock and ships on the next day.

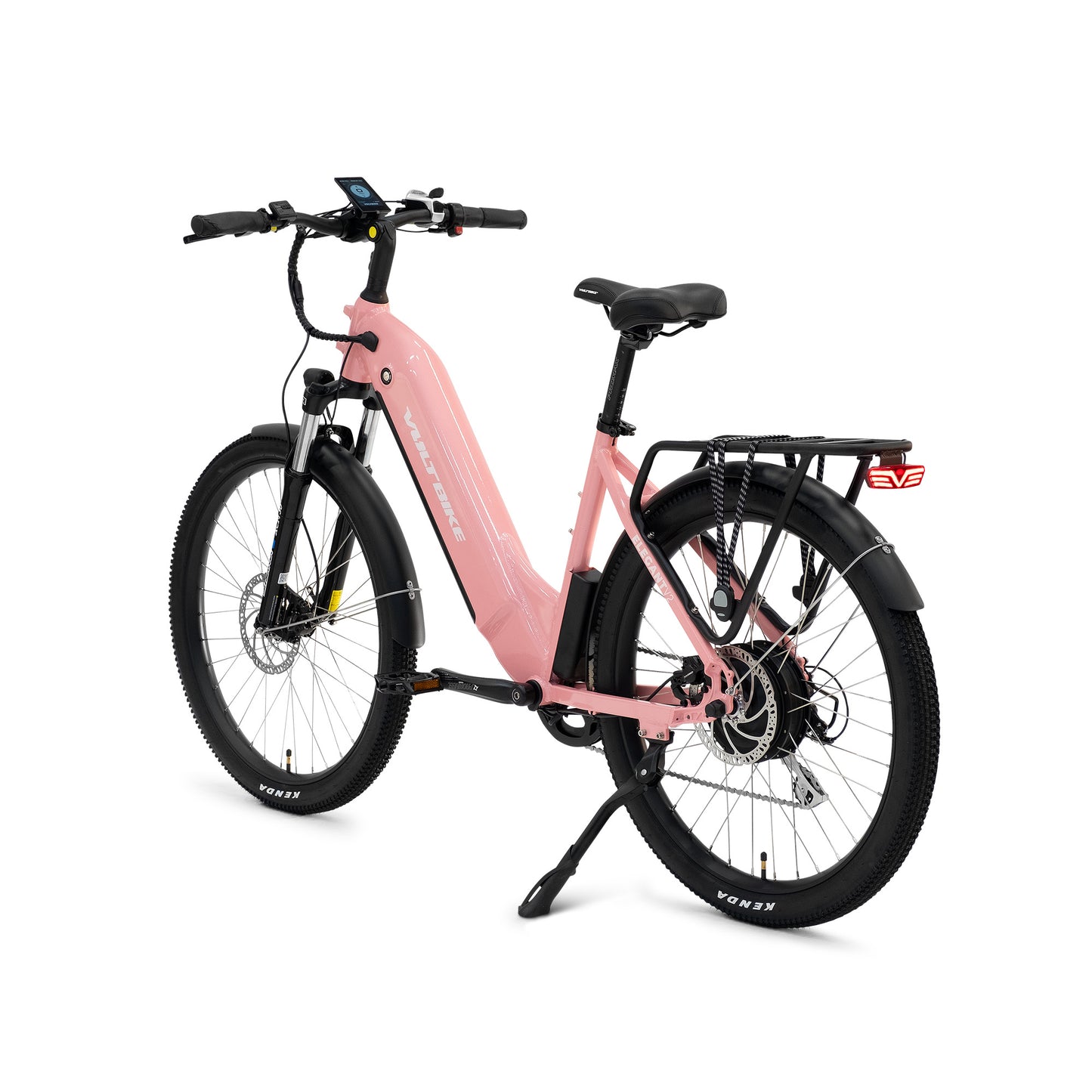

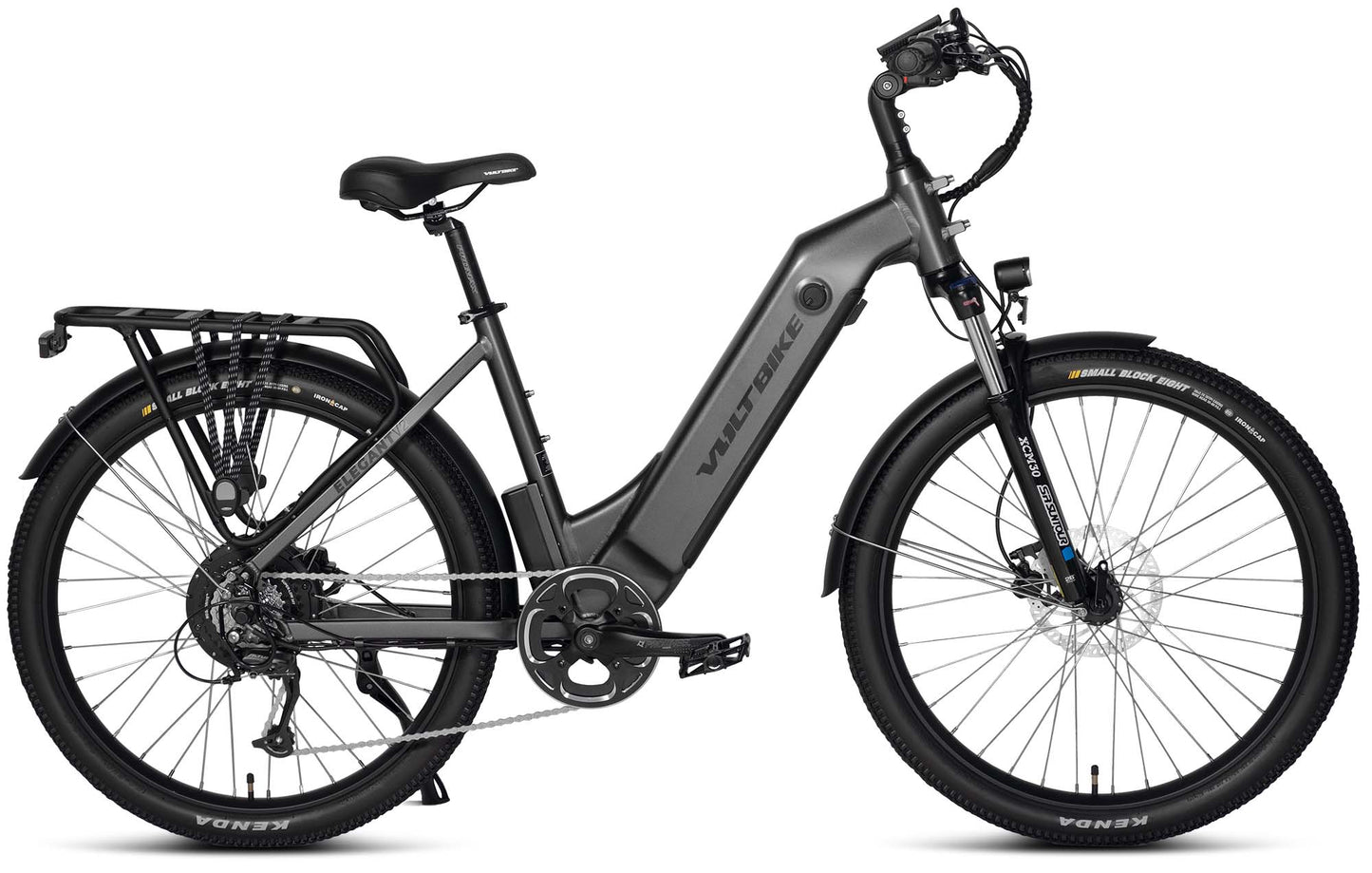

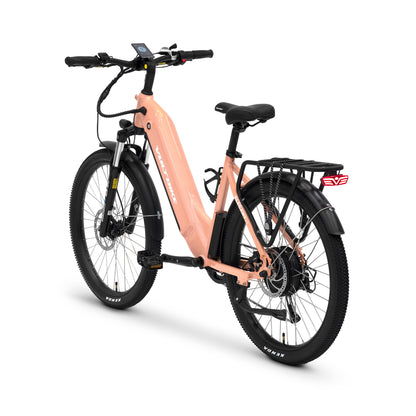

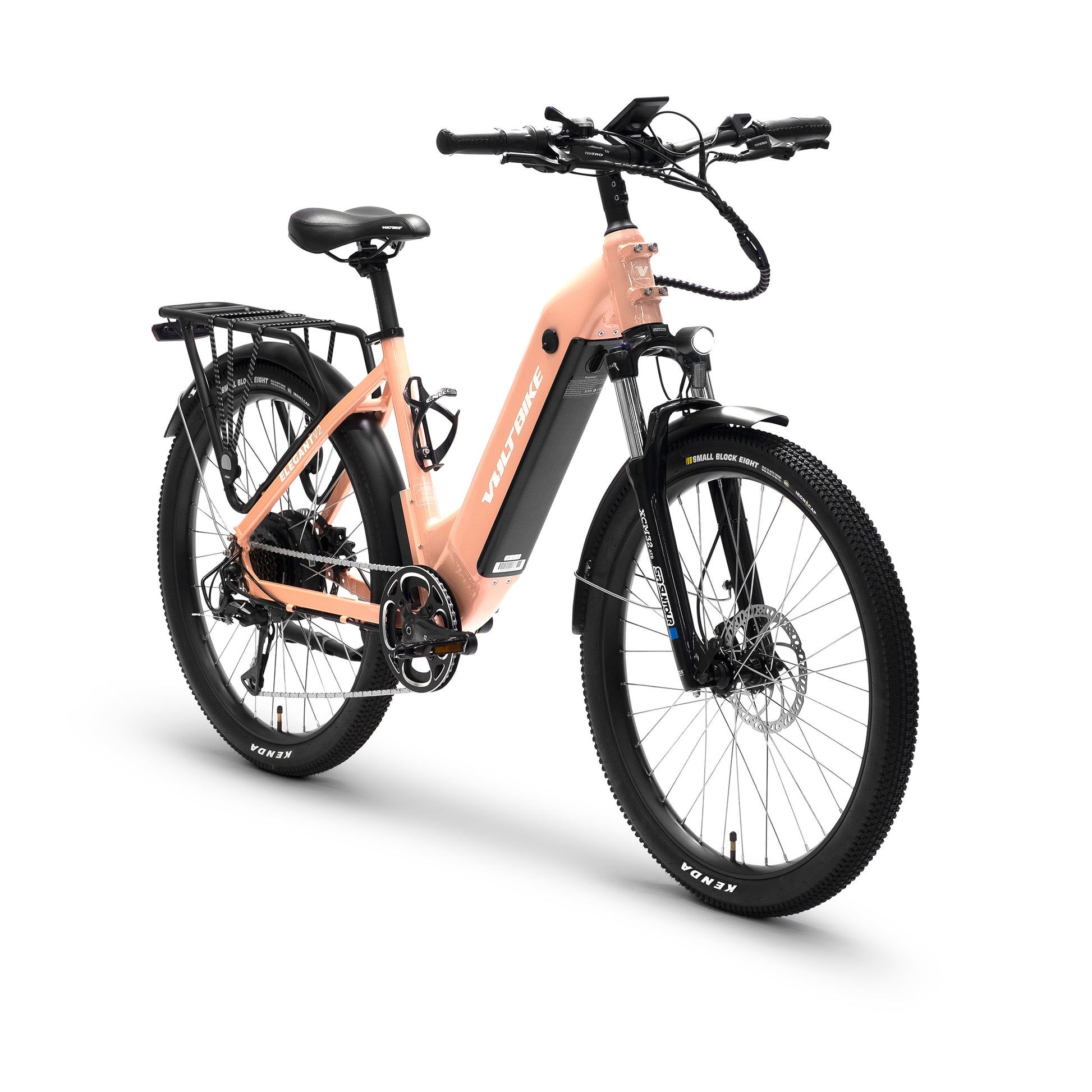

Elegant V2 in Grey, Peach & Red are out of stock. Restocking late October.
Regular price $1,949.00 CAD
Regular price $2,449.00 CAD Sale price $1,949.00 CAD
Sale Sold out
Bicycle Color
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

500W Rated Power

The Elegant V2 is using a Bafang G07 series geared motor which provides 65 N.m. max torque and 500w rated power. The Bafang G07 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Fully Integrated Battery

The Elegant V2 is using 48v 17.5Ah fully integrated battery pack with Samsung INR18650-35E cells and certified to UL 2271 safety standards. The integrated frame design gives you security in various weather conditions plus offering unmatched visual appearance. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Voltbike Elegant V2 comes standard with lockout suspension Suntour XCT DS. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

Sturdy Rear Rack

Standard for Elegant V2 is an aluminum rear rack which can fit any load with ease up to 50lbs. Mounted directly on the rack is LED rear taillight with brake light functionality.

Backlit Color Display

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

Hydraulic Stopping Power

Voltbike Elegant V2 is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Adjust Your Ride

Adjust your bike as per your need. No matter what your style of riding, VoltBike has a stem with the fit, performance and style you're looking. VoltBike is using stem Promax MA-570 with adjustable angle 35° - 145° and 108mm extension.

Simple Controls

Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 61.0 lb
  • Battery 48V Li-ion 17.5Ah (840Wh) Samsung cells. UL 2271 certified.
  • Battery Style Internal
  • Bottom Bracket Sealed cartridge Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
  • Brake Lever Tektro with integrated bell
  • Chain KMC Rust Buster
  • Crankset Aluminum Alloy-6061 38T Crank, 170mm with Outer Guard
  • Derailleur Guard Rear Metal Derailleur Guard
  • Fork Suntour XCT DS suspension fork with preload adjuster
  • Frame Type Step-Through
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree
  • Hubset Alloy 6061 Electric Motor
  • Motor 48V 500W Bafang G070 Hub Motor
  • Motor Type Hub Motor
  • Pedals Wellgo M-248DU
  • Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailleur
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 26" with 36 spokes
  • Seat Velo Plush VL-6142
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 30.4mm*350mm
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Spokes Rear 12G, Front 13G
  • Stem Adjustable stem Promax MA-579 with extension 110mm. Adjustable angles 90° - 160°. Aluminum alloy.
  • Tires Kenda 26"x2.1"
  • Fit Guidelines

    Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.

    Suitable inseam range:

    < 25"     64cm
    26" 66cm
    28" 71cm
    41" 104cm
    43" 109cm
    > 44" 112cm

    Great fit with plenty of room for seat height adjustment.

    Good fit but potentially limited seat height adjustment or top tube clearence.

    Poor fit, frame is either too big or too small.

  • Sizing

    • aFrame Size: 18"
    • bStand-over Height: 22"
    • cReach: 17"
    • dTop-tube Length: 22"
    • eHandlebar Height: 41.5"-43.5"
    • fSeat Height: 32"-39"
    • gWheel Size: ⌀26"x2"
    • hWheelbase: 44.5"
    • iLength: 69"

Frequently asked questions

Some questions and answers are automatically generated.

Can I put the front rack you sell on the Elegant model bike?
The VoltBike Elegant does not have the front headset bosses needed to mount a front rack, so the front rack cannot be installed on this model. This front rack is compatible only with the VoltBike Mariner and VoltBike Yukon.
What is the size of the frame and what is the recommended rider height for this bike?
The VoltBike Elegant has a 17" step-through frame and is recommended for riders 5'5" and above. The 26" tires make the bike easy to approach.
What is the average distance on a full charge for VoltBike Elegant?
The VoltBike Elegant V2 comes with a 17.5Ah Li-ion battery that provides between 70 to 90km range on a full charge when using pedal assist.
How do I turn the lights on?
Press and hold the + symbol on the keypad for a few seconds to turn the lights on or off. This works on all Voltbike models.
Is the battery and casing proprietary? Is it easy to replace?
The battery design we use is also adopted by other ebike manufacturers in North America. The factory that produces the battery is called Reention. You can purchase this battery from third party websites such as Amazon or eBay, or you can check the batteries we offer at the following link.
Is the pedal assist sensor a cadence sensor or a torque sensor?
Our hub drive electric bikes use a cadence sensor, while our mid drive ebikes use torque sensors instead.
Is the front headlight powered by the main bike battery or by external batteries?
The headlight on all of our electric bike models is powered by the main battery. On the Voltbike Elegant, the tail light is also powered by the main battery and serves as a brake light, activating whenever the brakes are engaged.
What e-bike class are your bikes?
Our bikes are Class two, motorized pedal assist with throttle.
Can this bike be used for off road?
Yes, absolutely. While we have some models that are more purpose-built for off-roading, such as the Yukon, Enduro, and Outback, the Bravo and Elegant will work off-road as well.
How many Pedal Assist (PAS) gears the Elegant has?
The Elegant has 9 levels of pedal assist. It also has 7 speed shift gearing.
Is the step-through frame easy to mount and dismount?
Yes. Many reviewers, particularly older riders and those with mobility concerns, specifically praise the step-through design for making it easier to get on and off without lifting a leg over the seat, and for allowing them to stand upright at stops.
How long does the battery last on a ride?
Most reviewers report excellent battery performance. One customer noted that after a 40 km ride with pedal assist, the battery was still nearly full; another reported 80% charge remaining after 15+ km rides. Several mention the battery lasting through daily commutes and multi-day trips.
Is the bike suitable for hilly terrain?
Yes. Reviewers regularly report using the bike to climb steep hills with pedal assist levels 4–5, and one noted it handles 25–65 km daily rides in a hilly area. One reviewer stated it "gets up quite steep hills without any problems."
How responsive is the pedal assist?
Reviewers describe the pedal assist as smooth and responsive. One customer compared it to a previous model and noted the updated version has "much smoother" pedal assist. Another called it "very reactive" and quick when pedaling.
Is the bike comfortable for longer rides?
Most reviewers report comfort on extended rides. One noted the seat was comfortable enough for a 40 km ride with no soreness afterward. The ergonomic handlebars are mentioned as a comfort feature, and many describe the overall ride as smooth and enjoyable.
Does the integrated battery design affect step-through access?
No. Reviewers explicitly note that the integrated battery in the frame provides a sleek look and actually makes the step-through easier because there is no exposed battery to accidentally kick when mounting or dismounting.
How stable is the bike on different terrain?
Reviewers report the bike is stable and performs well across pavement, trails, and gravel. One customer completed a trip from Swartz Bay to Victoria on mixed terrain and found "no difference in the comfort or performance of the bike" across surface types.
Is assembly straightforward?
Yes. Multiple reviewers report that assembly was very easy, quick (under 30 minutes), and required minimal work—most often just attaching pedals and the steering column. Many note the bike arrived 95% assembled.
Does the bike feel well-built and high quality?
Yes. Reviewers consistently describe the frame as solid and well-built, with high-quality finish and engineering. Several compare it favorably to more expensive competitor models and note it represents strong value for the price.
How well does the LCD display work?
Reviewers praise the updated LCD display as an improvement over the original Elegant, noting it is easy to read and navigate. One customer mentioned it may be difficult to read when wearing polarized sunglasses, and another wished it were in color rather than monochrome.
