1 7
Power
500W
Torque
120Nm
Range
60-70+ km
Top Speed
32km/h
Payload
280lbs

VOLTBIKE

Venture Step-Thru

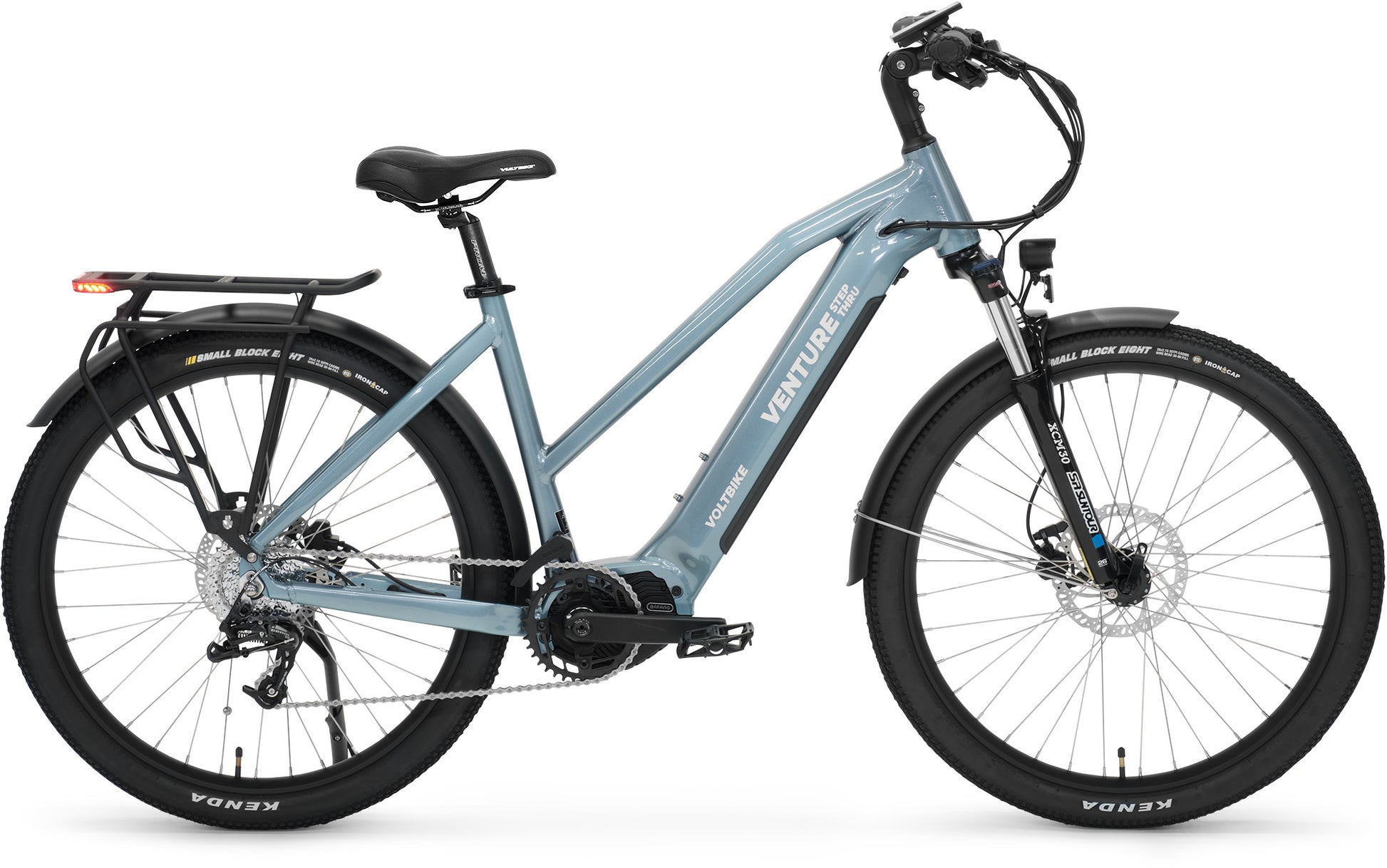

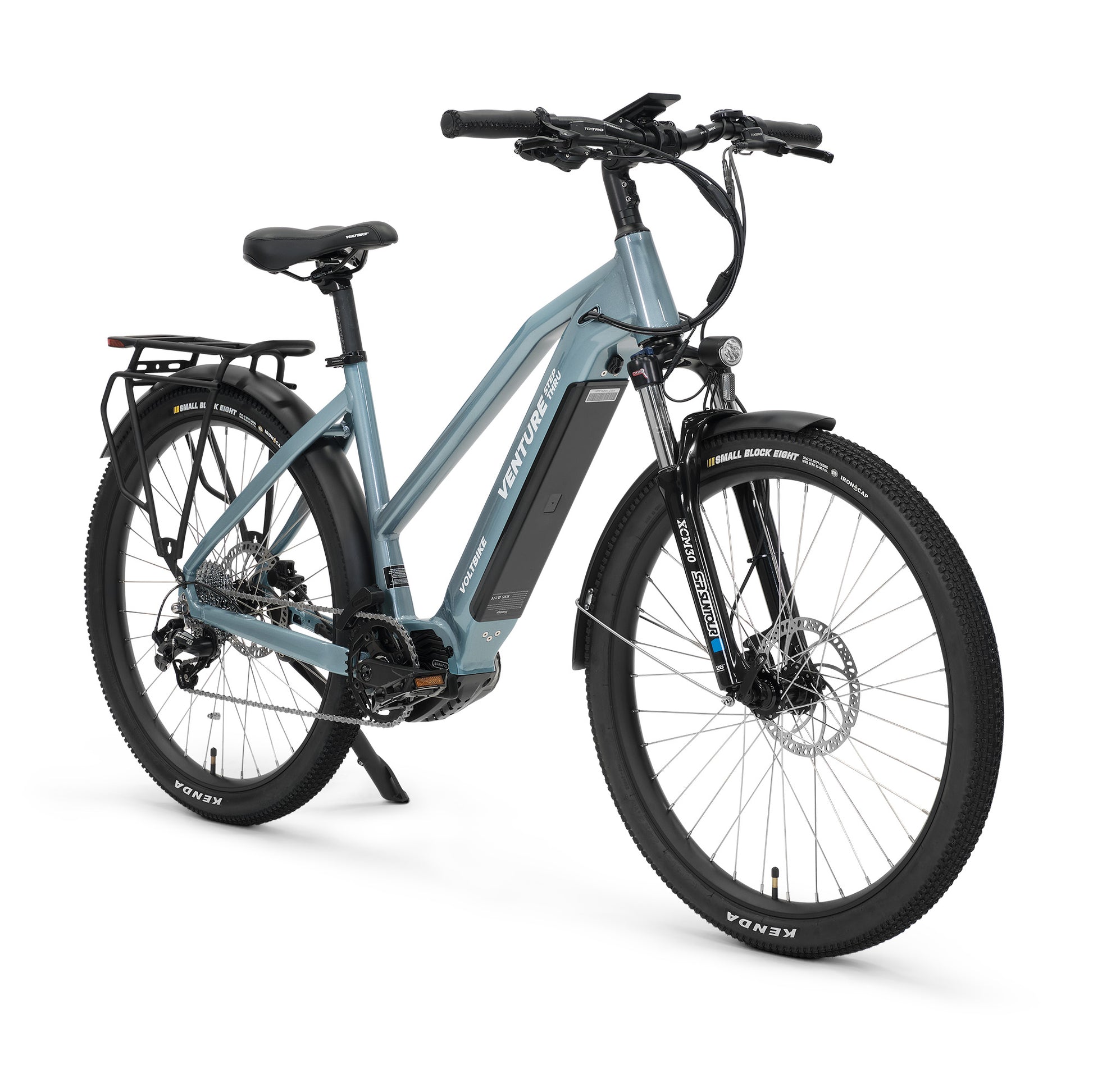

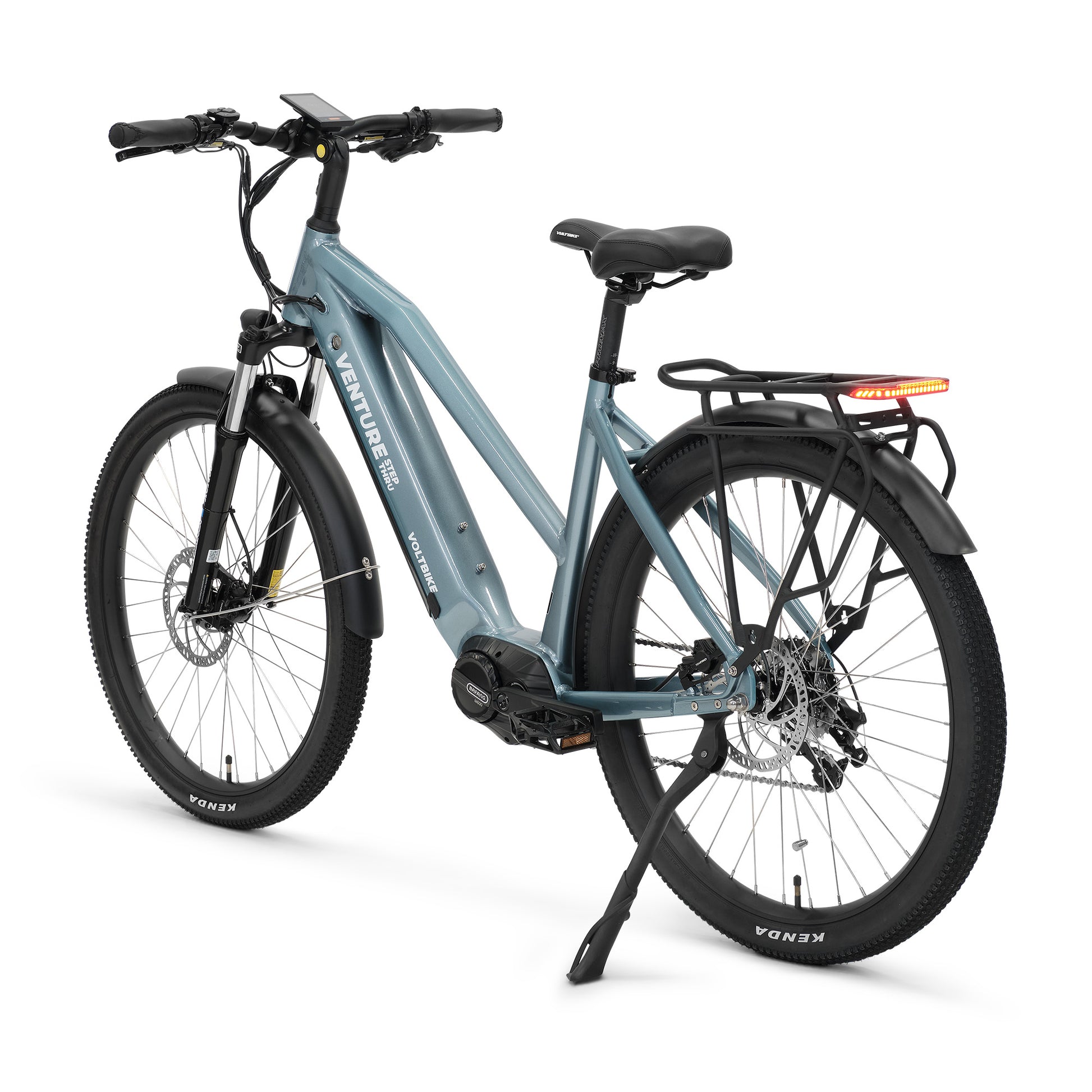

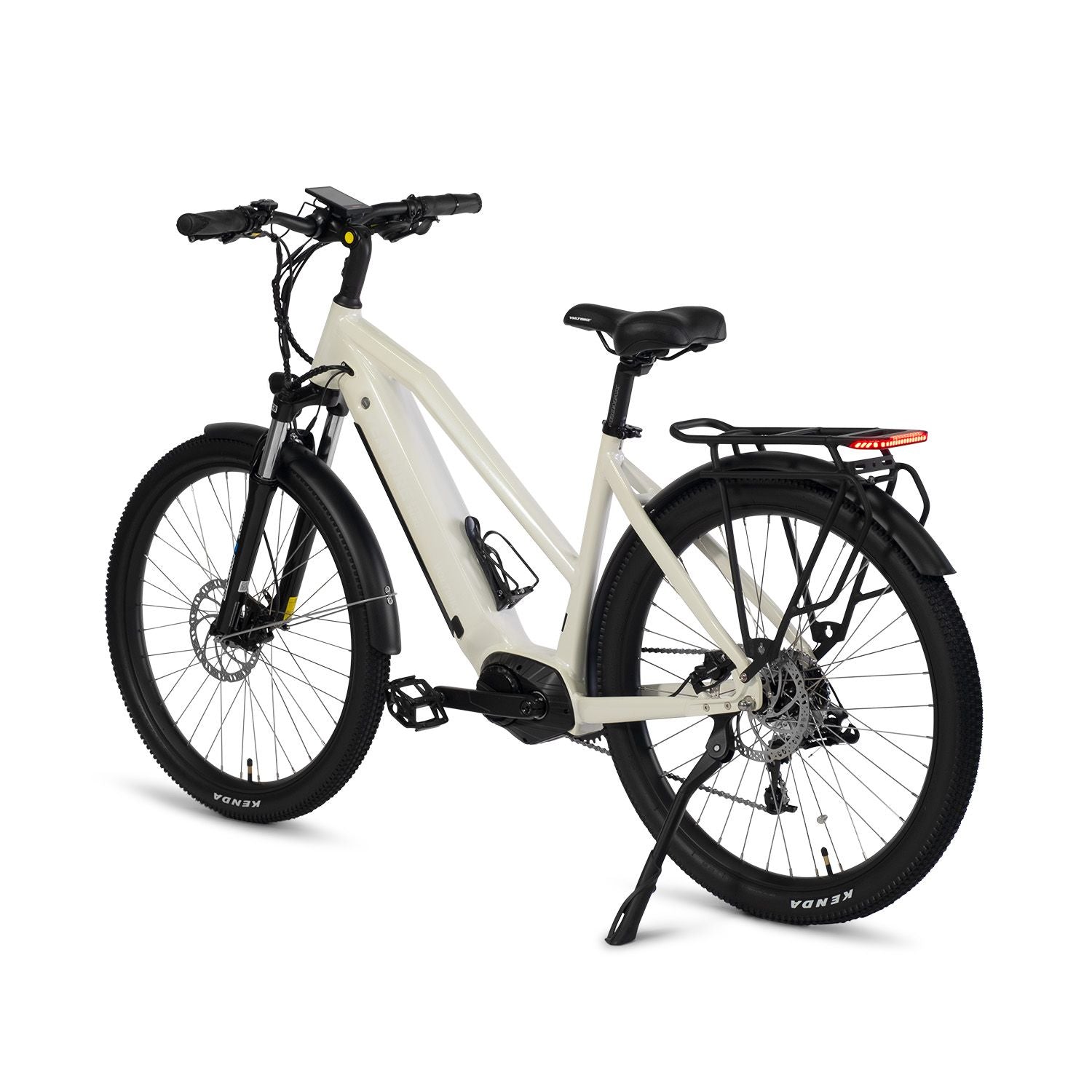

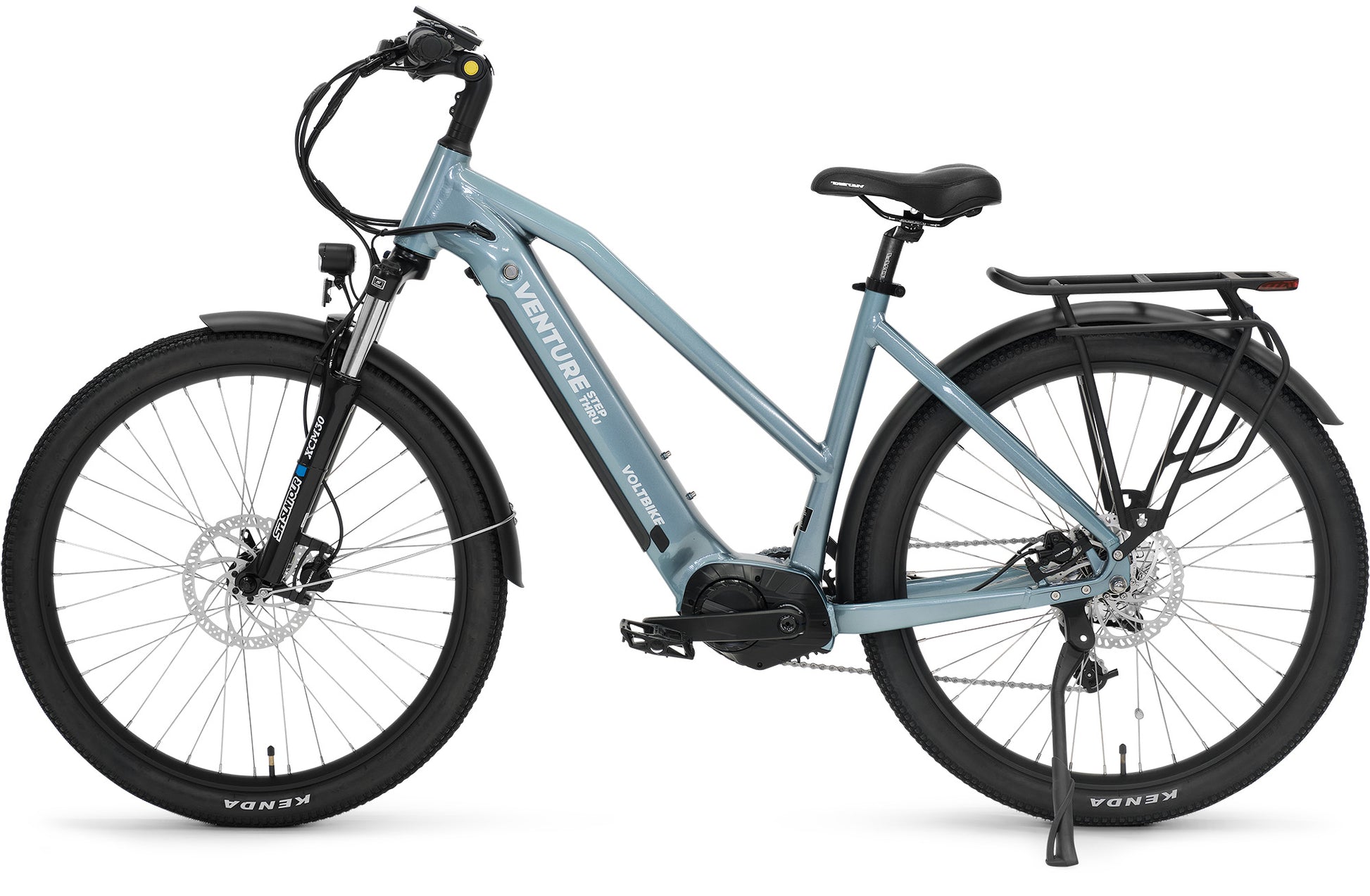

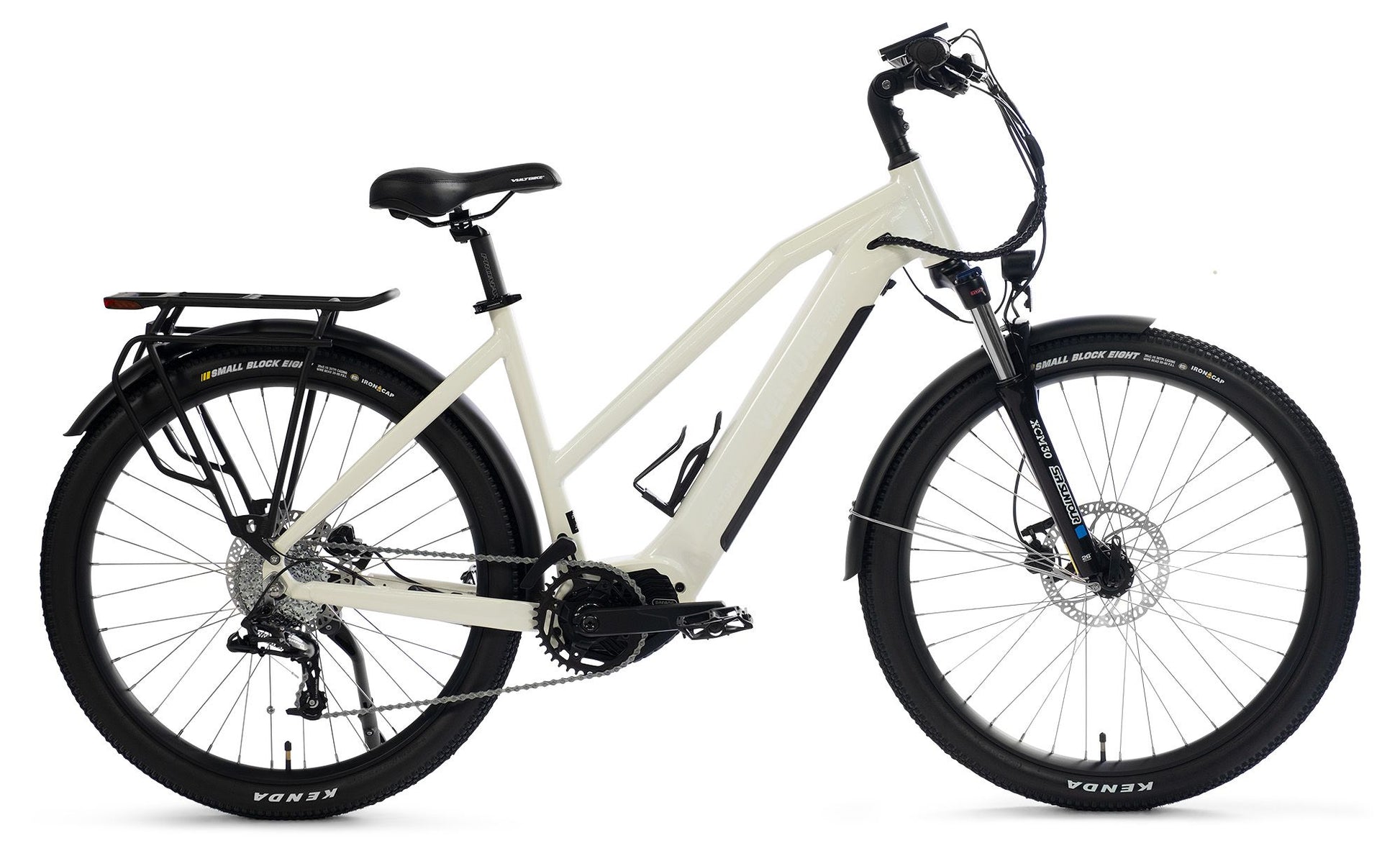

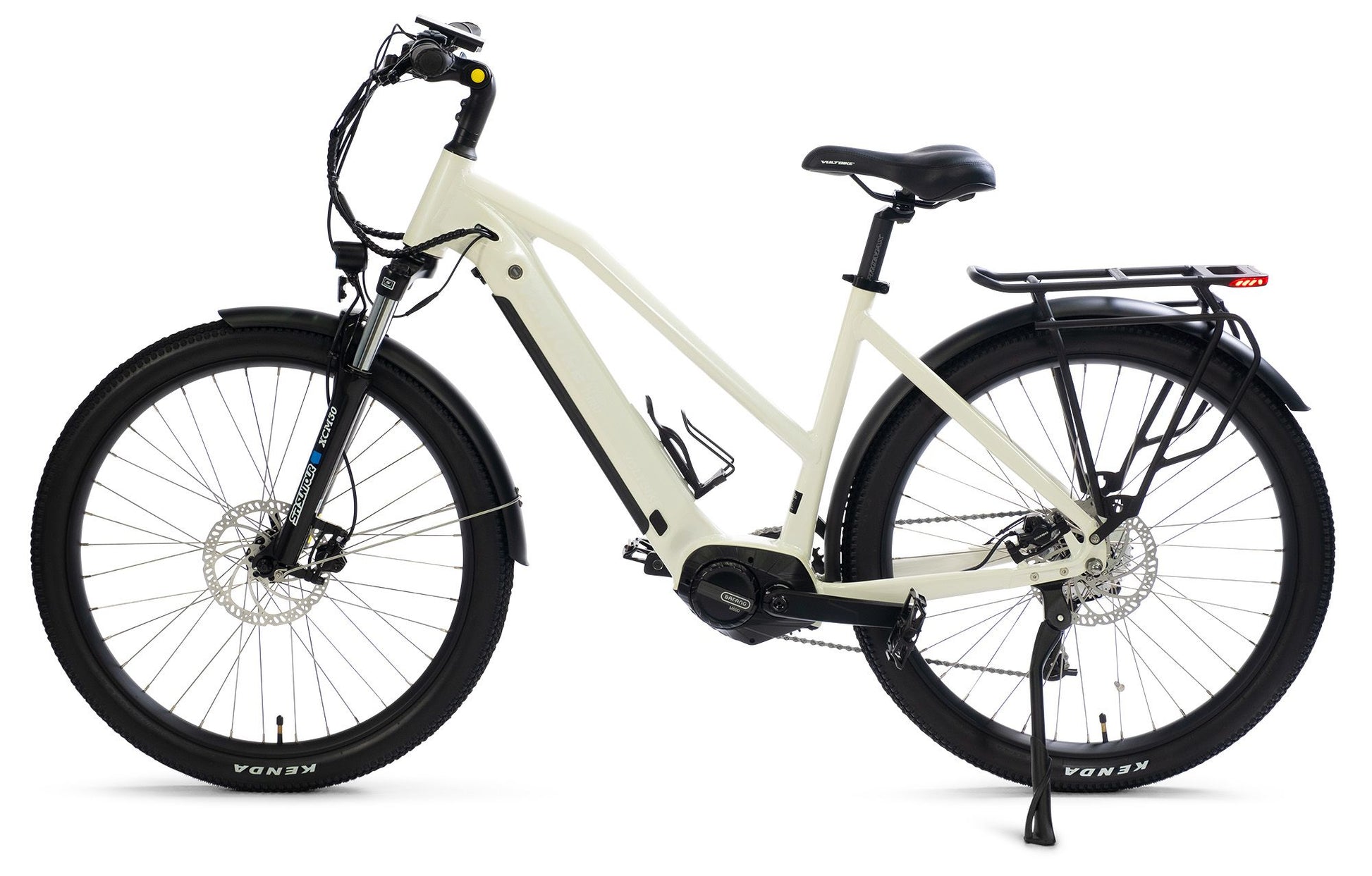

Venture Step-Thru

The Venture Step-Thru upholds the esteemed legacy of its predecessor, the original Venture, securing its place as one of the most aesthetically pleasing electric mid-drive bikes available.
With a user friendly low step-thru design, it integrates the powerful Bafang M600 mid-drive motor for efficient performance, complemented by torque and pedal assist sensors that enhance your pedaling experience, providing a natural and responsive feel. The addition of a integrated rear brake light adds a modern flair to this exceptional electric bike.
In stock and ships within 2 business days.
Blue colour is out of stock.
$2,699.00 CAD
$3,149.00 CAD $2,699.00 CAD
Sale Sold out
Color
Additional Battery (14Ah)
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

500W Power / 120Nm Torque

Would you like a little more? The M600 motor with 500 watts rated power, 120Nm of torque, just 3.7kg - always delivers top performance and is the first choice for modern eMTBs. With its triple sensor system (1 torque, 2 speed sensors) it reacts with lightning speed to your pedal-power input and delivers impressive support at all times. Voltbike Venture Step-Thru is using mid-drive motor Bafang M600 48v 500w.

Fully Integrated Battery

VoltBike Venture Step-Thru is using 48v 14Ah (672Wh) fully integrated battery pack with Samsung INR18650-35E cells. The integrated frame design gives you security in various weather conditions plus offering unmatched visual appearance. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Voltbike Venture Step-Thru comes standard with lockout suspension SR Suntour XCM. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

Rear Rack with Integrated Tail Light

This year, an exciting addition is the rear rack featuring an integrated rear LED light. This tail light is seamlessly built into the rear rack, boasting brake light capabilities and exceptional brightness. The rear rack can support a maximum cargo load of 25kg.

Hydraulic Stopping Power

Voltbike Venture is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

LCD Screen

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

SRAM X5 9 Speed

The SRAM X5 rear derailleur provides incredible shifting speed and precision EXACT ACTUATION™ technology eliminates slop and shifting variation. The actuation remains accurate and smooth, effortlessly navigating through mud, rebounding off rocks, no matter where you are or what conditions you encounter.

Simple Controls

Our redesigned cockpit includes large easy to read LCD screen which shows all the important information like speed, battery level and current load. Access immediate power with the integrated thumb throttle, engaging when the speed reaches 8km/h or above.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 64.0 lb
  • Battery 14Ah 48V Li-ion Samsung (672Wh)
  • Battery Style Internal
  • Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
  • Chain KMC Rust Buster 126 links
  • Crankset Aluminum Alloy-6061 44T Crank, 170mm with Outer Guard
  • Fork SR Suntour XCM
  • Frame Size 17"
  • Frame Type Step-Through
  • Freewheel Cassette SRAM PG-1130 11-42t 9 speed
  • Handlebars Promax Alluminum Alloy 31.8mm*22.2mm*680mm, 9 degree
  • Motor Bafang M600 Mid-Drive 120Nm Torque
  • Motor Type Mid-Drive
  • Pedals Wellgo LU-313 w/ reflectors
  • Rear Derailleur SRAM X5 9 speed rear derailleur
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 26", 36 spokes
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 31.6mm*350mm
  • Shifter Type SRAM X5 trigger shifter
  • Tires Kenda Small Block Eight 26" x 2.1"

Fit & Size

  • Fit Guidelines

    Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.

    Suitable inseam range:

    < 22"     56cm
    23" 58cm
    25" 64cm
    42" 107cm
    44" 112cm
    > 45" 114cm

    Great fit with plenty of room for seat height adjustment.

    Good fit but potentially limited seat height adjustment or top tube clearence.

    Poor fit, frame is either too big or too small.

  • Sizing

    • aFrame Size: 17"
    • bStand-over Height: 25"
    • cReach: 20"
    • dTop-tube Length: 24"
    • eHandlebar Height: 40"-46"
    • fSeat Height: 29"-40"
    • gWheel Size: ⌀26"x2"
    • hWheelbase: 46"
    • iLength: 68"
    • jRear-Rack Dimensions: L15"xW5"
