1 10
Power
500W
Torque
80Nm
Range
50-60+ km
Top Speed
32km/h
Payload
280lbs

VOLTBIKE

Mariner V2

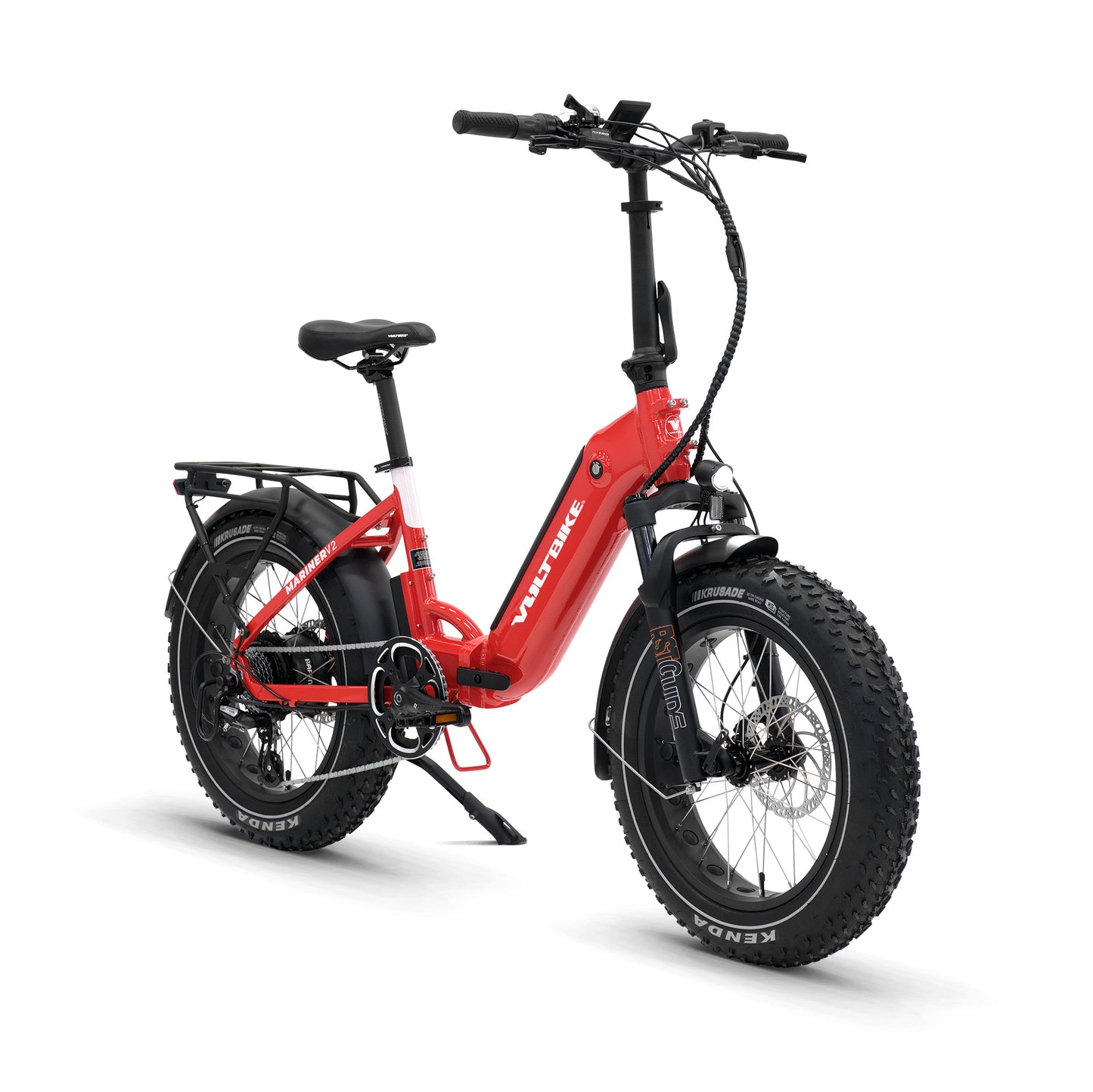

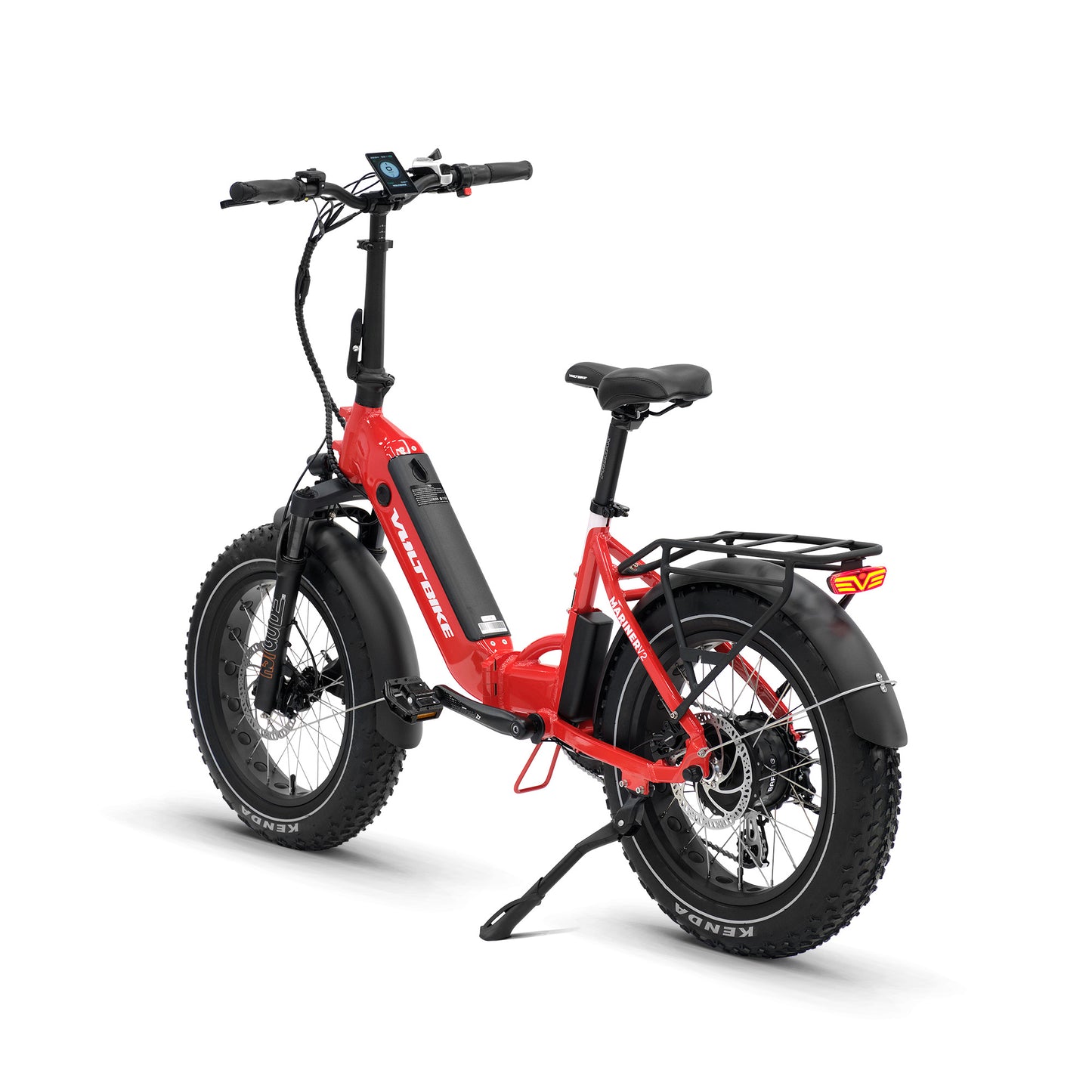

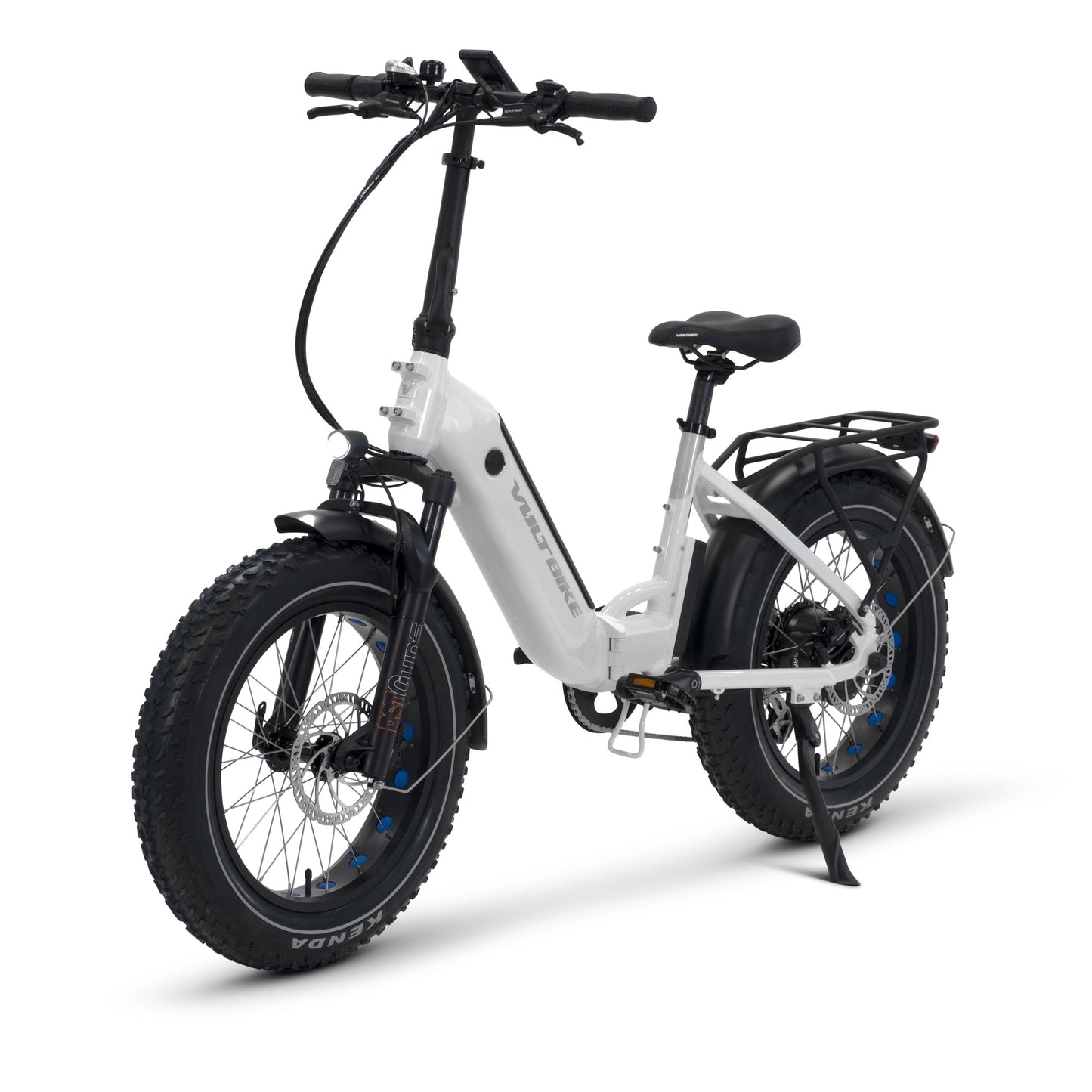

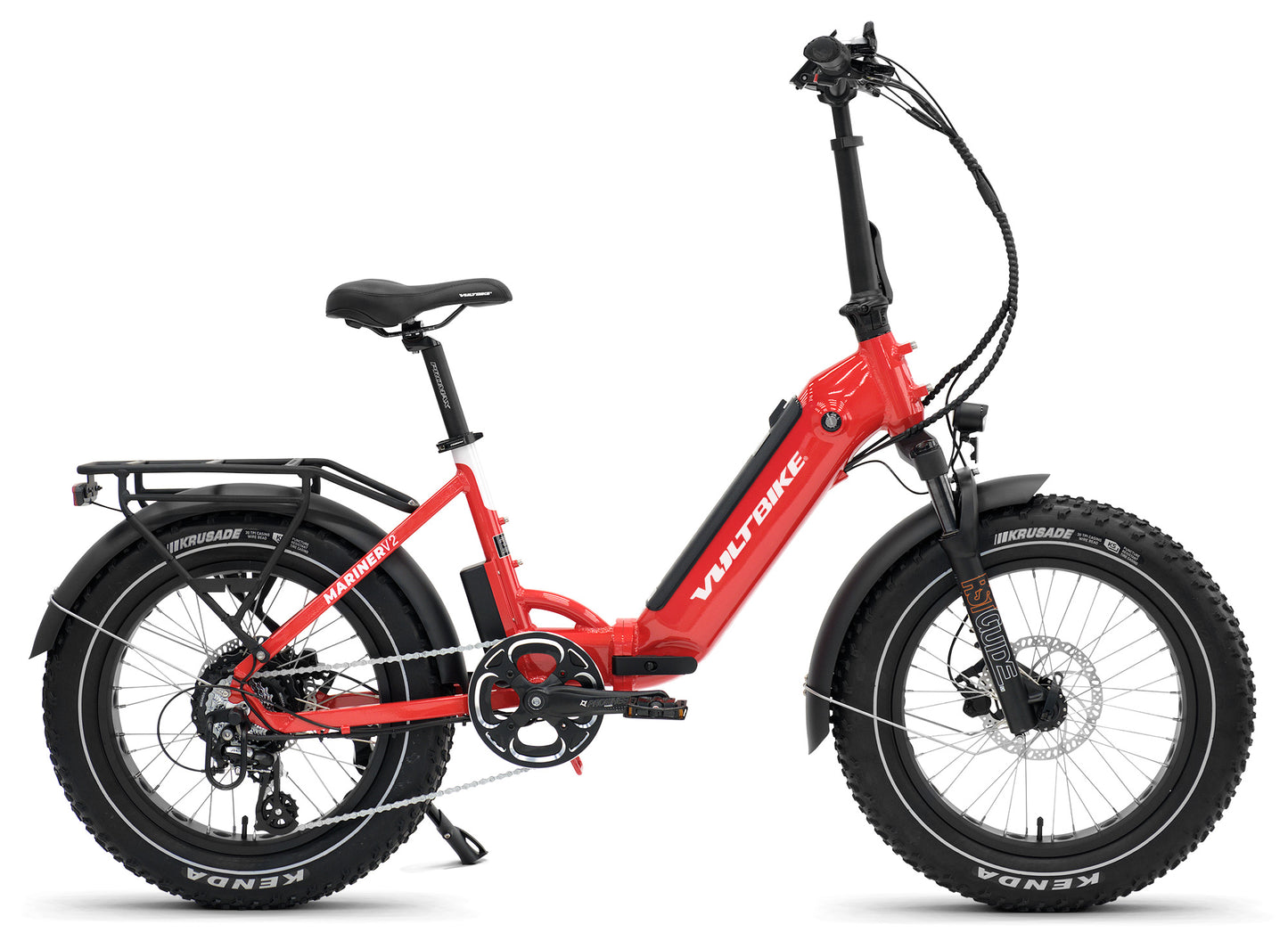

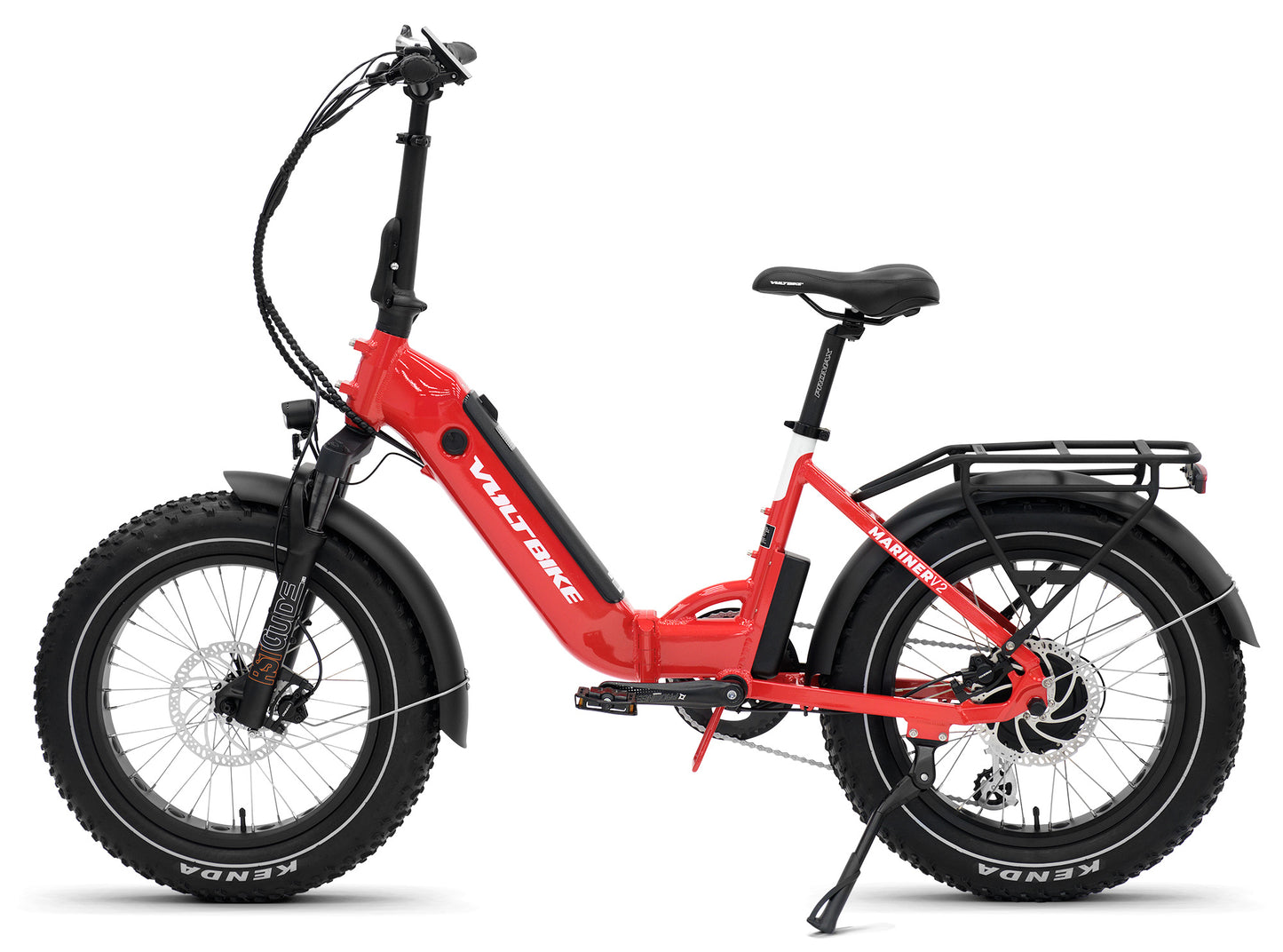

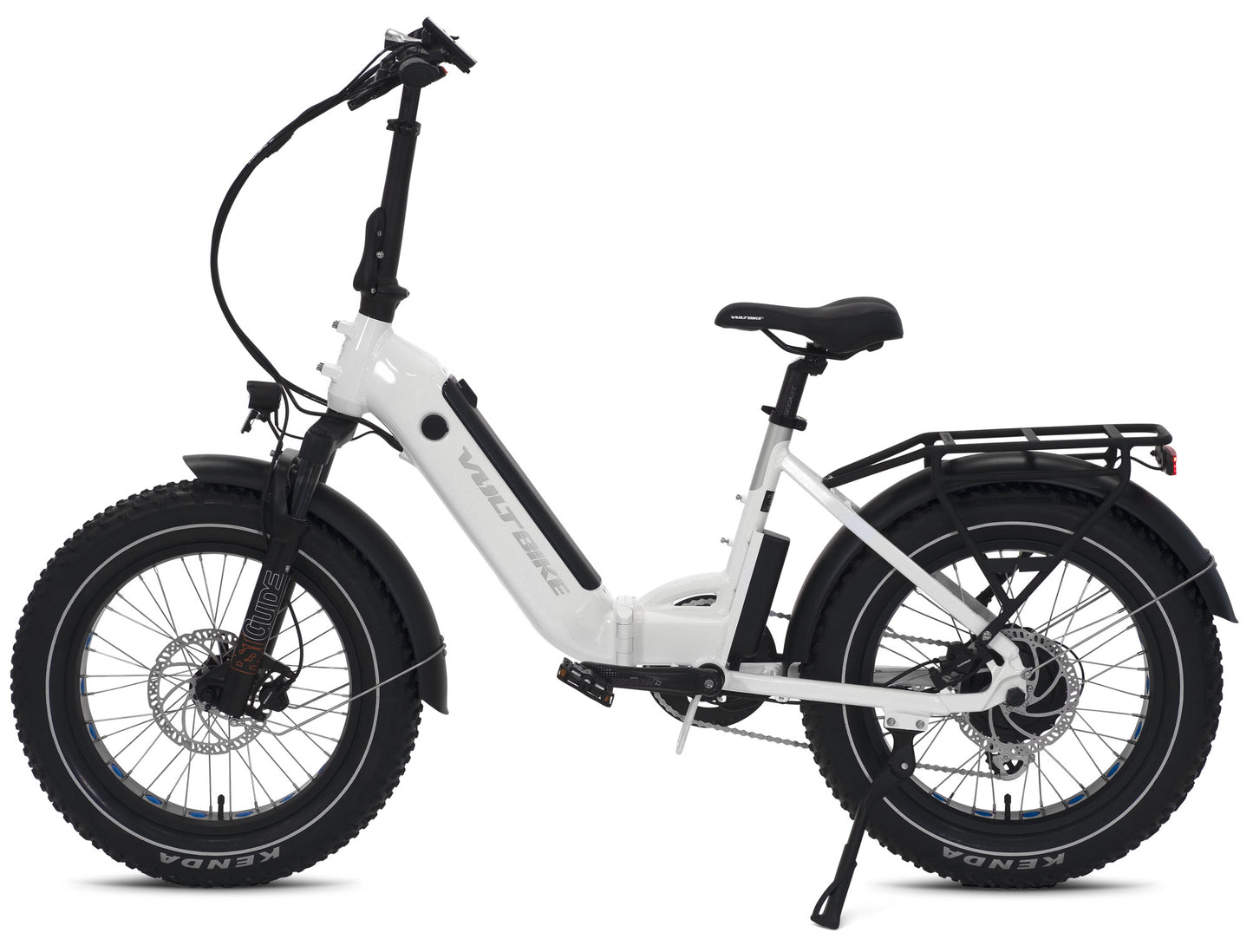

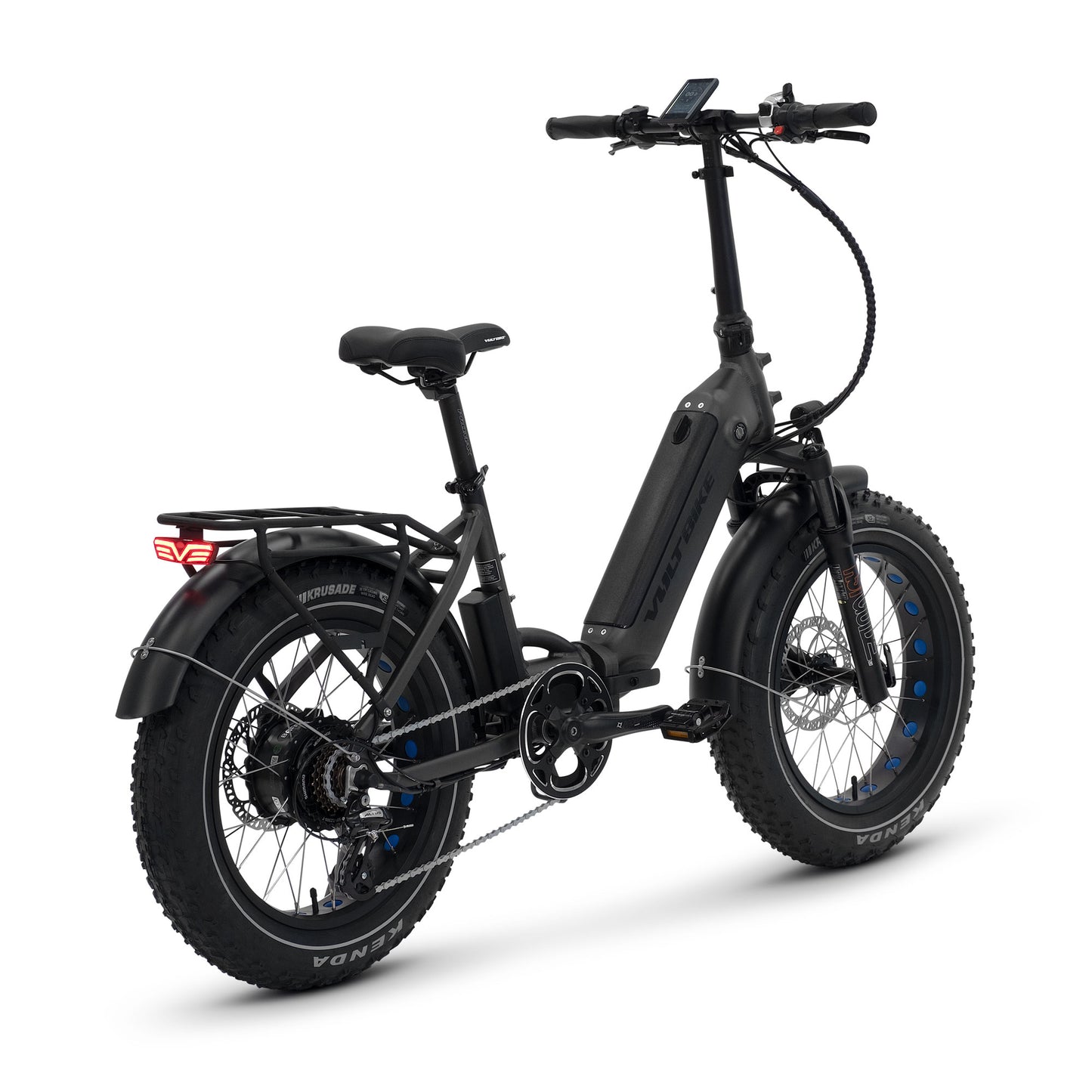

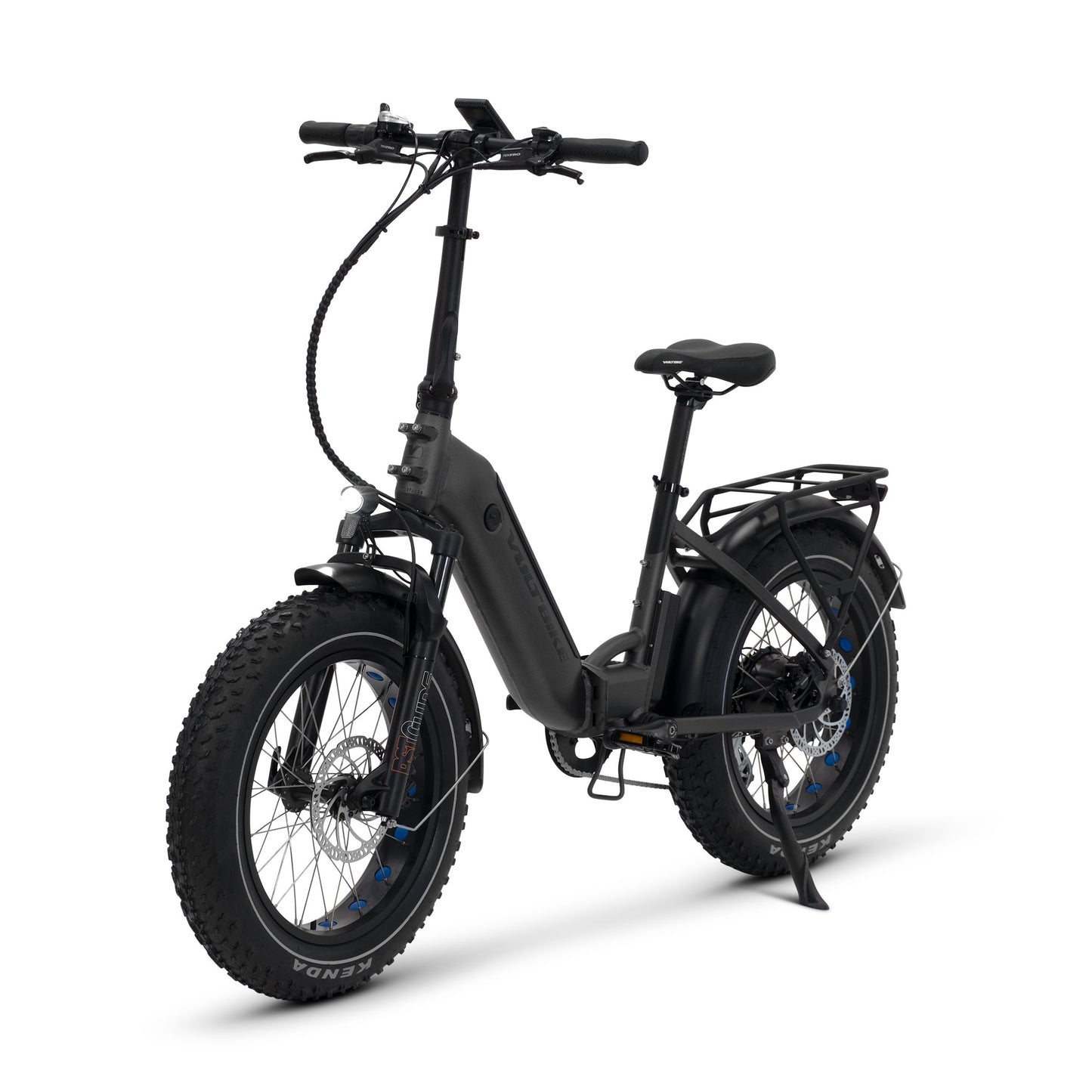

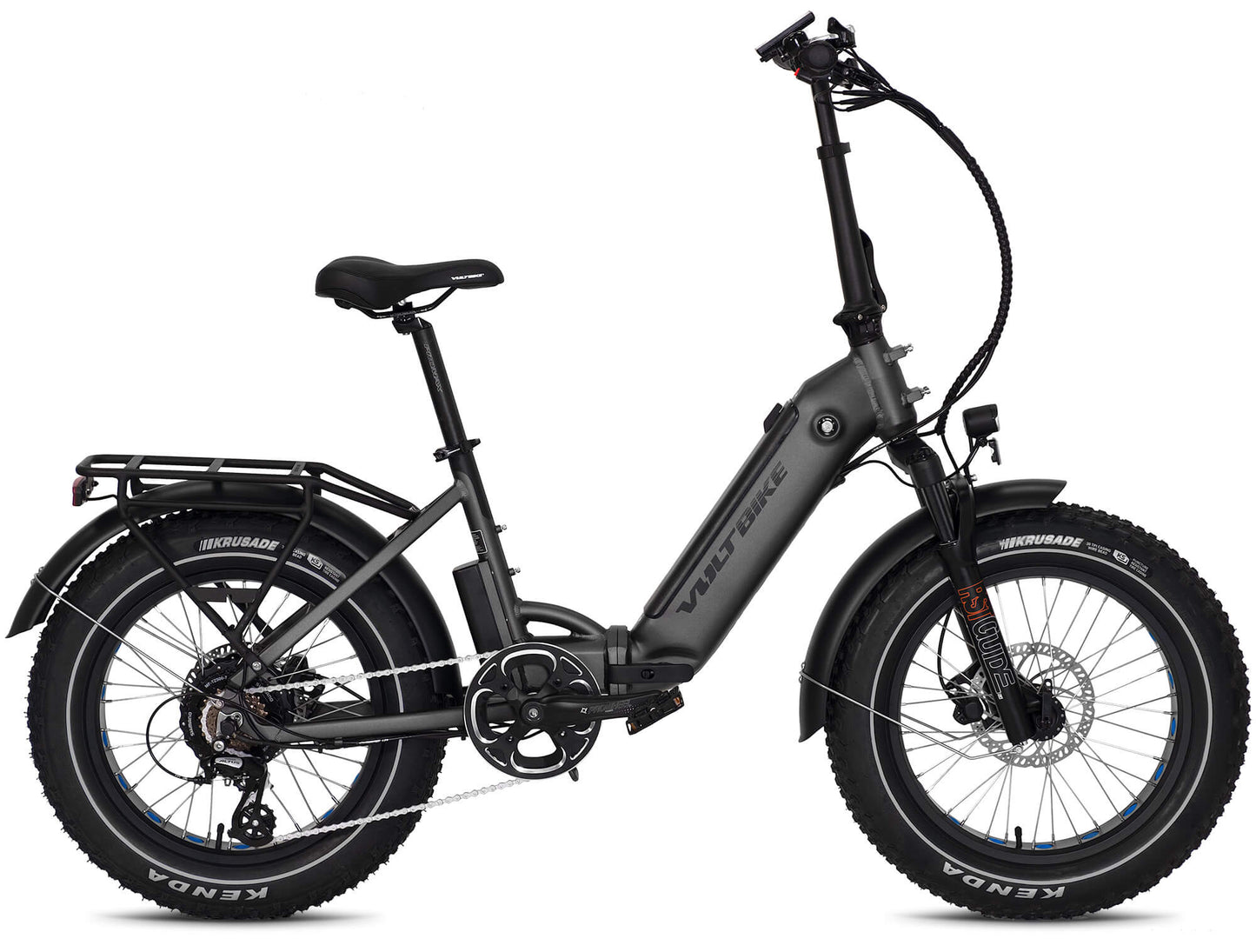

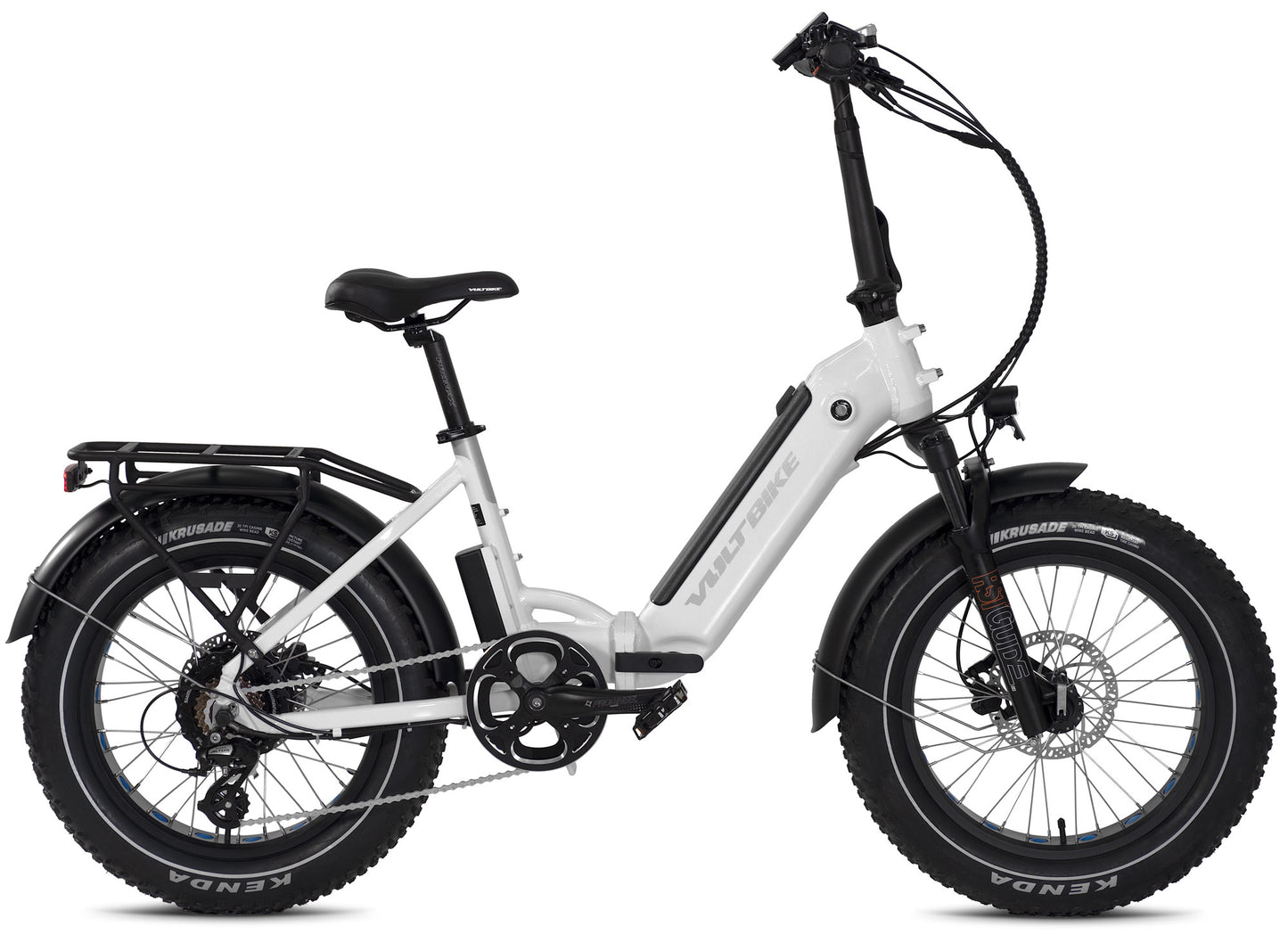

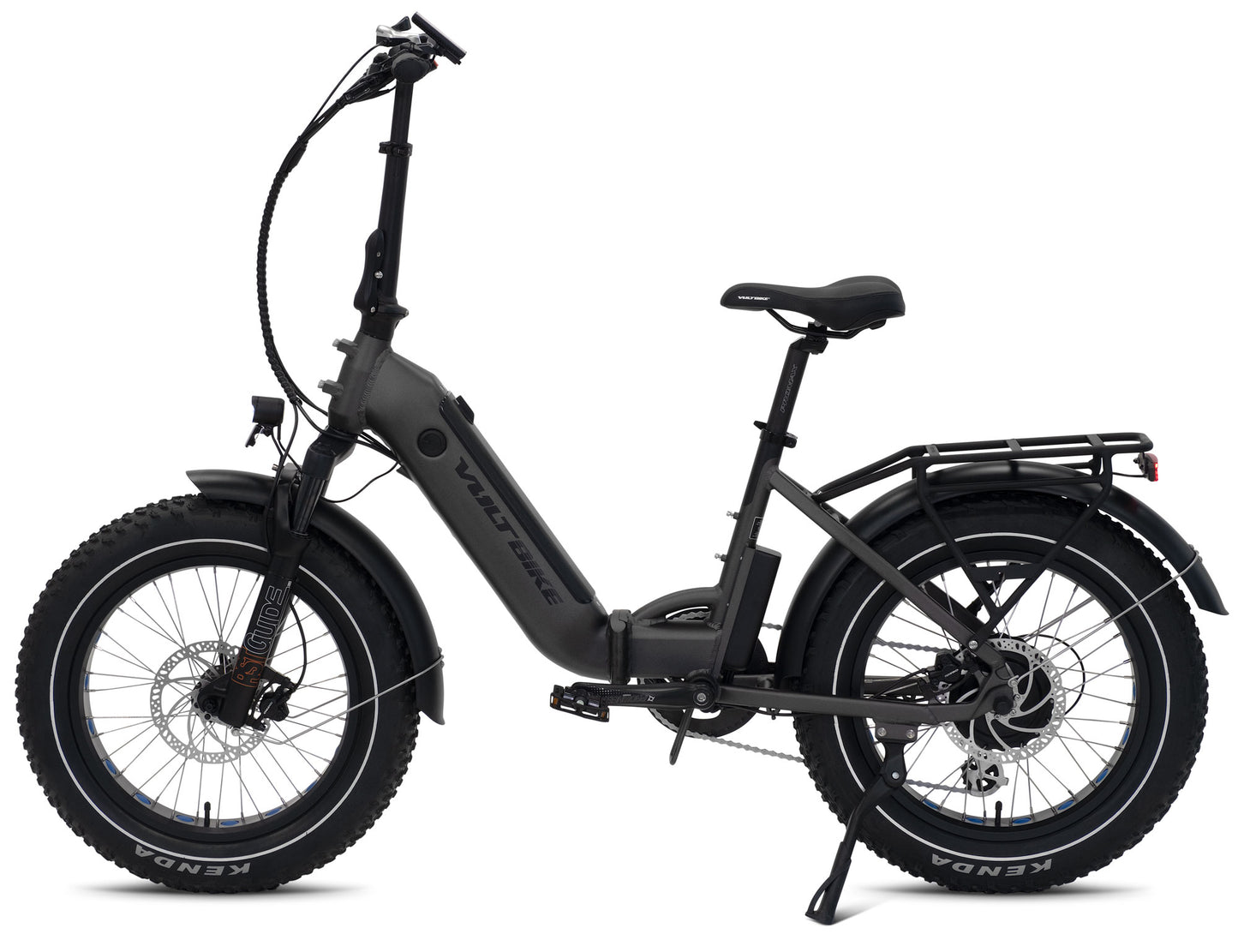

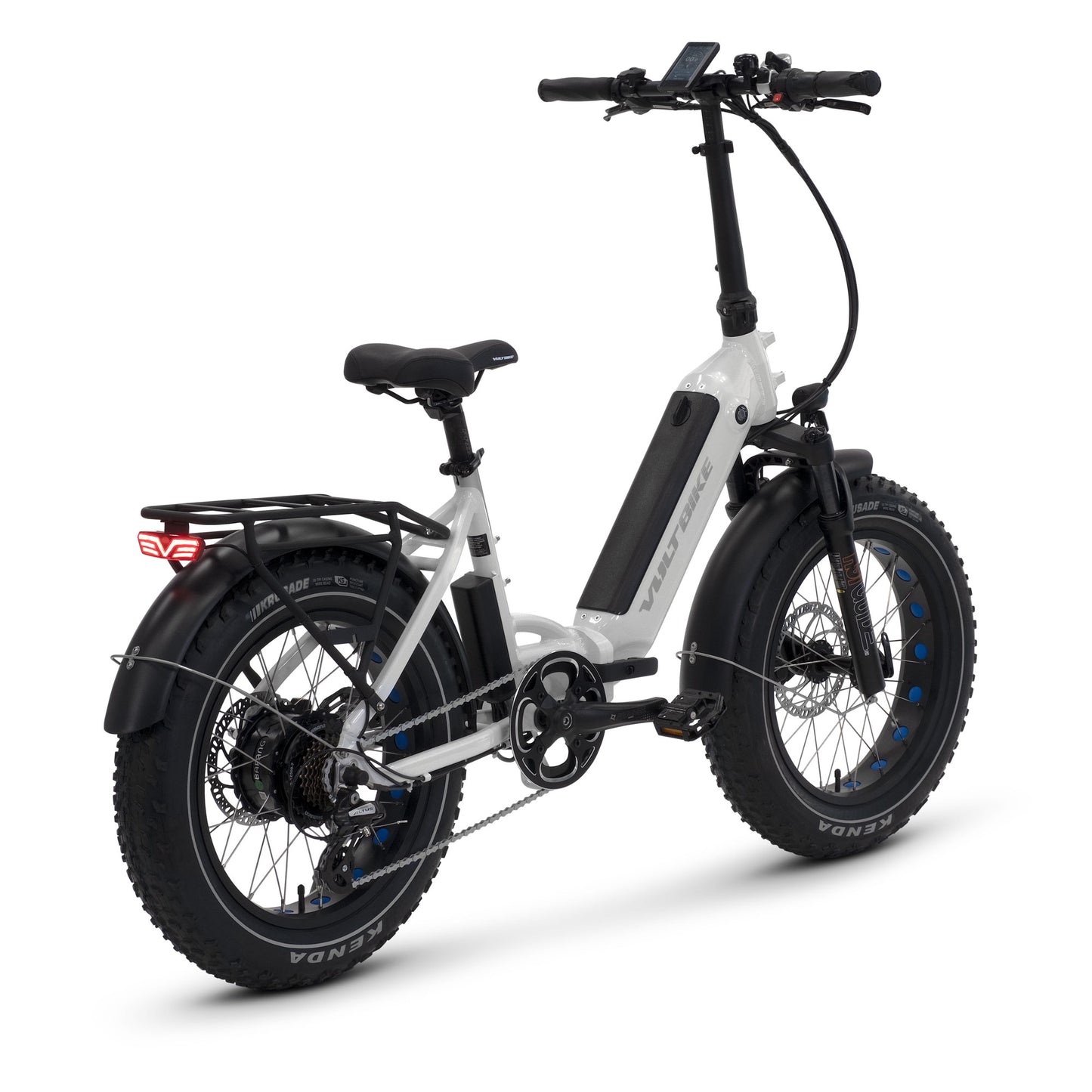

Mariner V2

The Mariner V2 is our latest foldable eBike, featuring premium components such as hydraulic brakes, a powerful 500W (750W peak) motor, and standard Color LCD display with a USB charge port.

If you want the fun and power of the Yukon V2 in a smaller package, the Mariner V2 is perfect for you. It features the same powerful motor as the Yukon V2 but in a lighter frame with smaller, 20” diameter, 4” wide wheels. Ideal for trails, off-road adventures, and city trips, the motor offers 9 levels of pedal assist to help you conquer hills effortlessly.

This comfortable ride suits individuals 5’2” and taller, supporting up to 280 lbs. The strong frame and sturdy wheels are complemented by a 14Ah battery, offering a range of 50 to 60km on easy terrain.

In stock and ships within 2 business days.
$1,899.00 CAD
$2,349.00 CAD $1,899.00 CAD
Sale Sold out
Bicycle Color
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

500W Pure Power

BAFANG is the world’s biggest manufacturer of hub motors for e-bikes. VoltBike Mariner V2 is using Bafang G06 series geared motor which provides 80 N.m. max torque and up to 750w of peak power. The Bafang G06 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Fully Integrated Battery

Mariner V2 is using 48v 14Ah battery pack with Samsung NCR18650B cells. Samsung SDI’s superb cell balance technology contributes to the uniform quality of the packs and driving units. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Mariner V2 comes standard with lockout suspension Mozo FatMan-20 which can handle up to 5.2 inches wide tire. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

Sturdy Rear Rack and Mudguards

Mariner V2 comes standard with rigid metal fenders which can sustain the highest abuse on the trail. Also comes with rear rack which features extra wide tubing so you can carry more load compared to our rivals. Mounted directly on the rack is LED rear taillight with brake light functionality.

Puncture Resistant Fat Tire

Fat tire bikes provide improved grip and traction on the most troublesome terrain by adding extra contact surface. Voltbike Mariner V2 comes with puncture resistant tires Kenda Juggernaut K-Shield. Reflective liners are adding extra visibility at night.

Hydraulic Stopping Power

Voltbike Mariner V2 is equipped with Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Always Visible

Mariner is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. Rear LED light powered using the main battery pack. Features brake light functionality that is activated any time the brakes are applied. Reflective tire liner ensures you are visible from the side.

Simple Controls

Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Easy to Fold

Mariner V2 can be easily folded to fit anywhere and also saves space at home wherever you choose to store it! When folded it measures at only 45"x26"x19" (length x height x width).

Extremely Customizable

Customize your Mariner with over 20 VoltBike certified accessories. Choose a top tube bag to carry your cell phone or pannier bag to carry bigger cargo. Add front rack on your bike to carry even more load.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 65.0 lb
  • Battery 48V 14Ah Samsung Li-ion
  • Battery Style Internal
  • Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
  • Brake Lever Wuxing 108PDD+BS108 with safety power cut
  • Chain KMC Rust Buster
  • Crankset Aluminum Alloy-6061 44T Crank, 165mm with Outer Guard
  • Fork Mozo Fatman-20 with 80-120mm travel
  • Frame Type Step-Through
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Hubset Alloy 6061 Electric Motor
  • Motor 48v 500W (750W Peak) Bafang G06 Hub Motor
  • Motor Type Hub Motor
  • Pedals Wellgo F-265T Folding Pedals
  • Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailler
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 20 inch with 36 spokes
  • Seat Velo VL-8020E
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 31.6mm*350mm
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Stem Aluminum Alloy SVMONO SM-A150-8R, diameter 28.6mm, bore: 25.4mm, weight: 520g
  • Tires Kenda Krusade K1188 20x4", Wire Bead

Fit & Size

  • Fit Guidelines

    Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.

    Suitable inseam range:

    < 23"     58cm
    24" 61cm
    26" 66cm
    41" 104cm
    43" 109cm
    > 44" 112cm

    Great fit with plenty of room for seat height adjustment.

    Good fit but potentially limited seat height adjustment or top tube clearence.

    Poor fit, frame is either too big or too small.

  • Sizing

    • aFrame Size: 16"
    • bStand-over Height: 16"
    • cReach: 20"
    • dTop-tube Length: 23.5"
    • eHandlebar Height: 44"-50"
    • fSeat Height: 30"-39"
    • gWheel Size: ⌀20"x4"
    • hWheelbase: 44"
    • iLength: 69"
    • jRear-Rack Dimensions: L13"xW6"
    • kFolded Dimensions: L38"xW24"xH31"

Related Blog Posts

Nov 20, 24

Freedom Through Folding: Exploring VoltBike's Foldable eBikes

Best Folding Electric Bikes Canada

In today's fast-paced world, where convenience, efficiency, and eco-conscious...

Read Post
Nov 26, 24

Ride Your Style: VoltBike's Picks for Teens

Ride Your Style: VoltBike's Picks for Teens

Alright, let's dive into the world of VoltBike and find the sickest rides for...

Read Post
Sep 03, 24

Discovering Gibsons, BC on the VoltBike Mariner: An Electric Folding Bike Adventure

Discovering Gibsons, BC on the VoltBike Mariner: An Electric Folding Bike Adventure

Unleash Your Inner Explorer with the VoltBike Mariner in Gibsons, BC The char...

Read Post
Jul 17, 24

Get Moving, Stay Young: How Ebikes are the Fountain of Youth

Get Moving, Stay Young: How Ebikes are the Fountain of Youth

Sometimes, the best stories aren't written; they're told right in our showroo...

Read Post
Jan 21, 24

What is the difference between the original VoltBike electric bike and Version 2?

VoltBike Electric Bike with Integrated Battery

Having a great selection of Ebikes is something we’re proud of here at Vol...

Read Post
Jan 02, 24

Electric Bike Hub Motors vs Mid-Drive Motors

Electric Fat Bike with Hub Motor

VoltBike is pleased to offer a range of electric bikes, giving you many mo...

Read Post
Dec 30, 23

The benefits of a step-through ebike

Electric Step-Thru Bike Voltbike Yukon

VoltBike's Step-Through collection is more popular than ever, with shipmen...

Read Post

Customer Reviews

Based on 48 reviews
88%
(42)
10%
(5)
2%
(1)
0%
(0)
0%
(0)
100.0
M
Michael Paterson

Love the bike.

B
Barb Saavedra

My second Volt bike and I am happy with the service and how quickly it was delivered!

L
Lucie Hausner
Great bike

Totally enjoying our new electric bikes, smooth riding all around. Great service from VoltBike

G
Gordon Talbot
Mariner V2

Very fun and easy to ride, haven’t had the bike for very long so my review is my initial reaction. The only draw back is its weight, but that is very common for electric bikes in general. I will review again after I have used it for a few months.

I
Ian Enright
Great value and exceptionally happy with the experience!

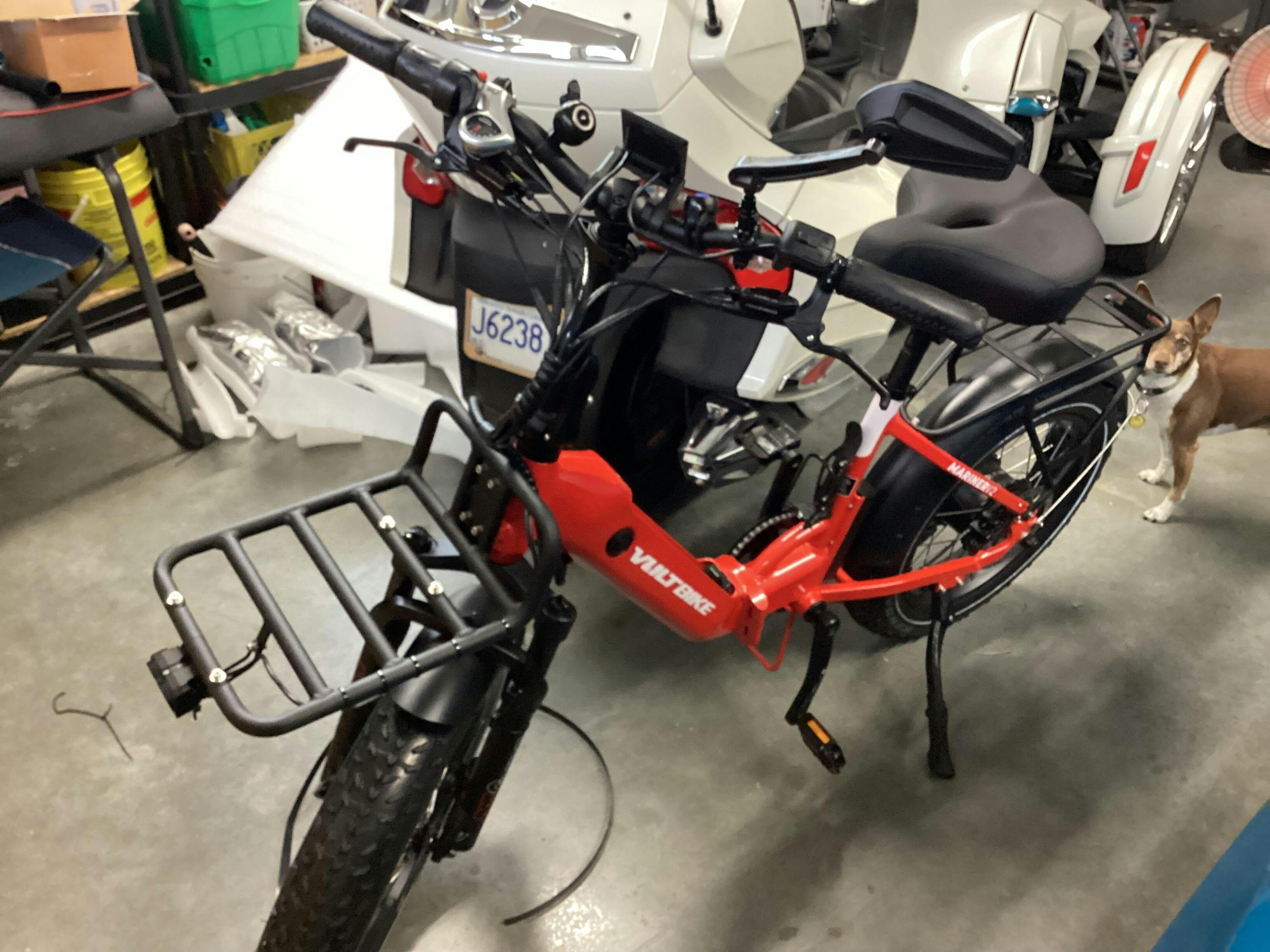

We ordered two Volt Mariner V2s during the Black Friday sale. They arrived here in Calgary a few days later in perfect condition; love how the bikes are shipped largely assembled with all the accessories we ordered already installed and tested!! Fantastic! Most companies would just throw the purchases (extra bright headlights, comfort seats, suspension seat posts, front racks, etc) in the box for you to figure out! It’s still snowy here so haven’t put many kilometres on the bikes yet but have ridden them a bit. Extremely happy with the purchase! Great value for money.
