• Elegant V2 Lite blue and white advertisement
1 10
Power
500W
Torque
65Nm
Range
80+ km
Top Speed
32km/h
Payload
280lbs

VOLTBIKE

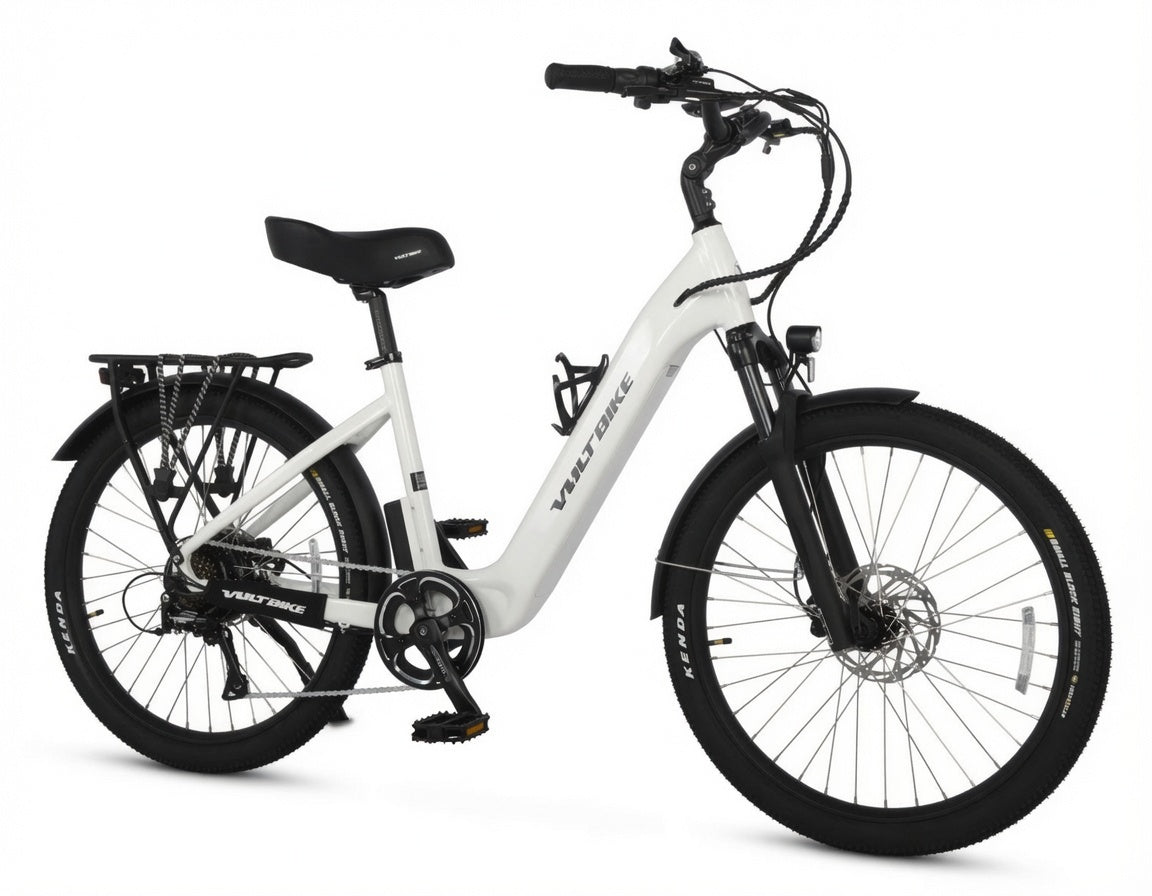

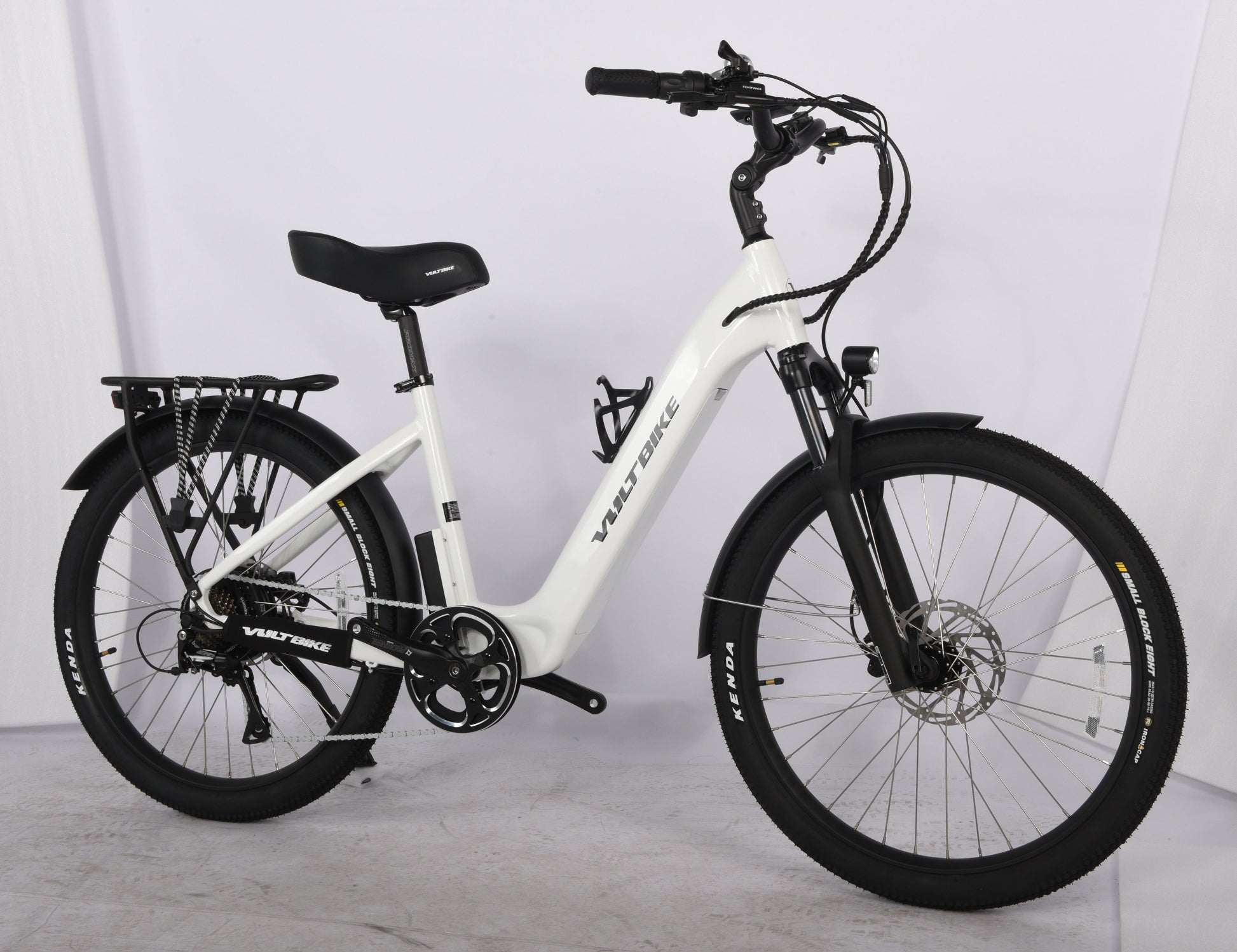

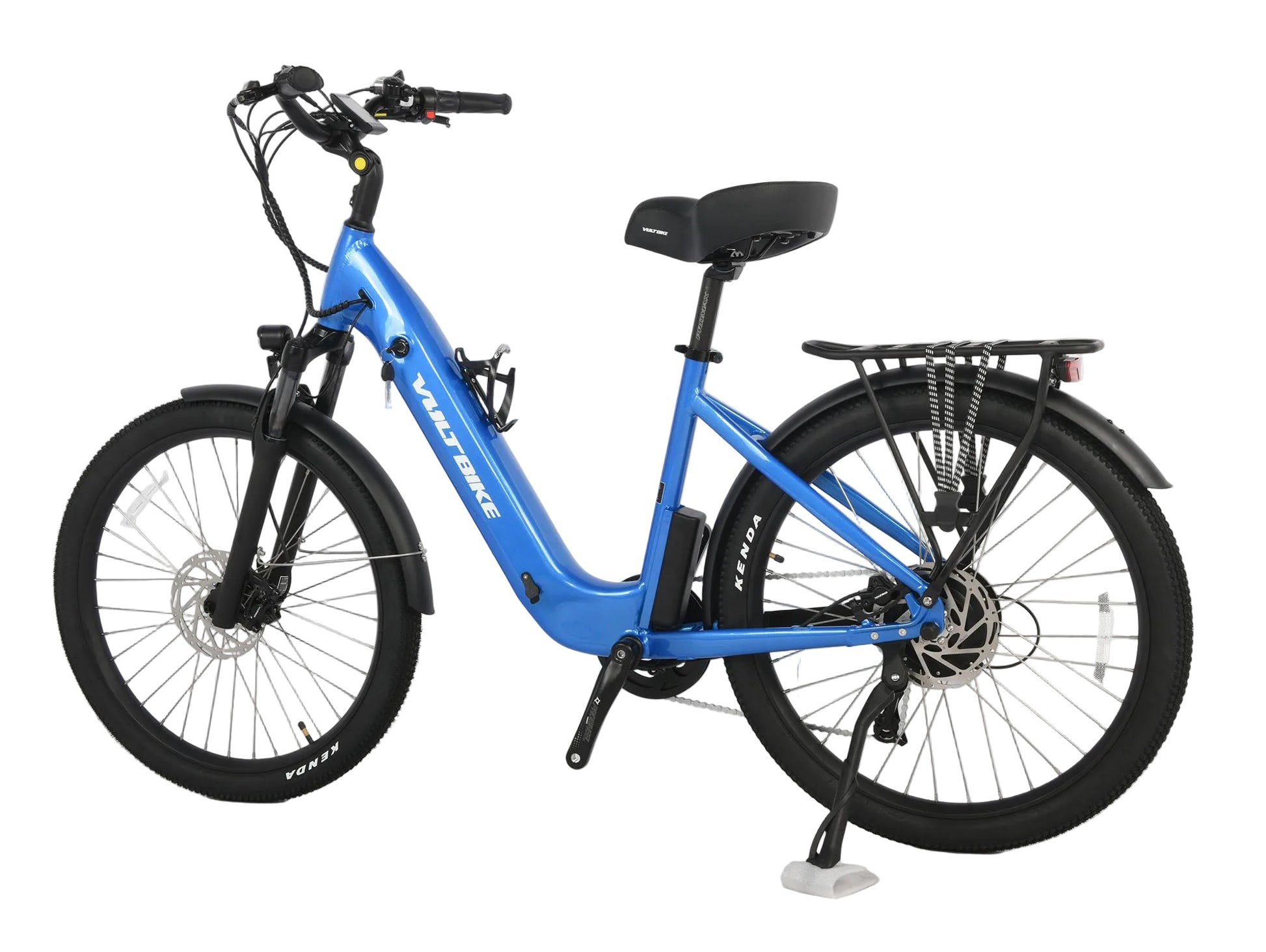

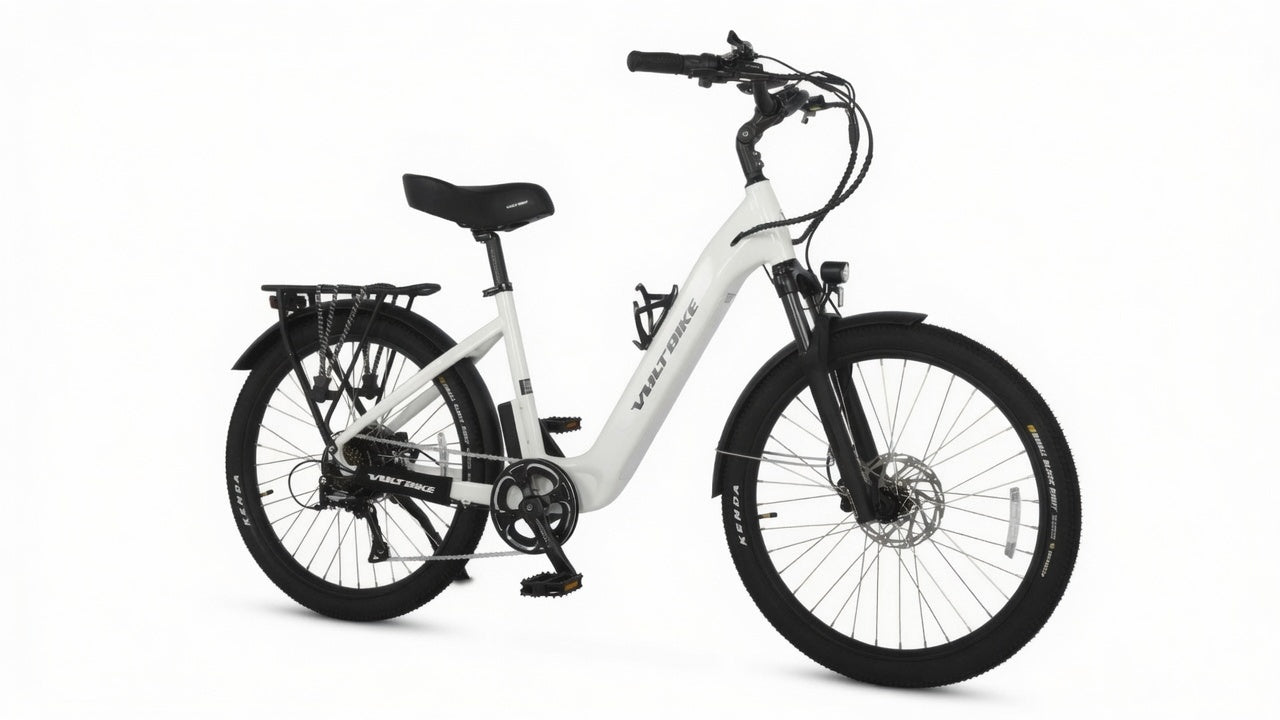

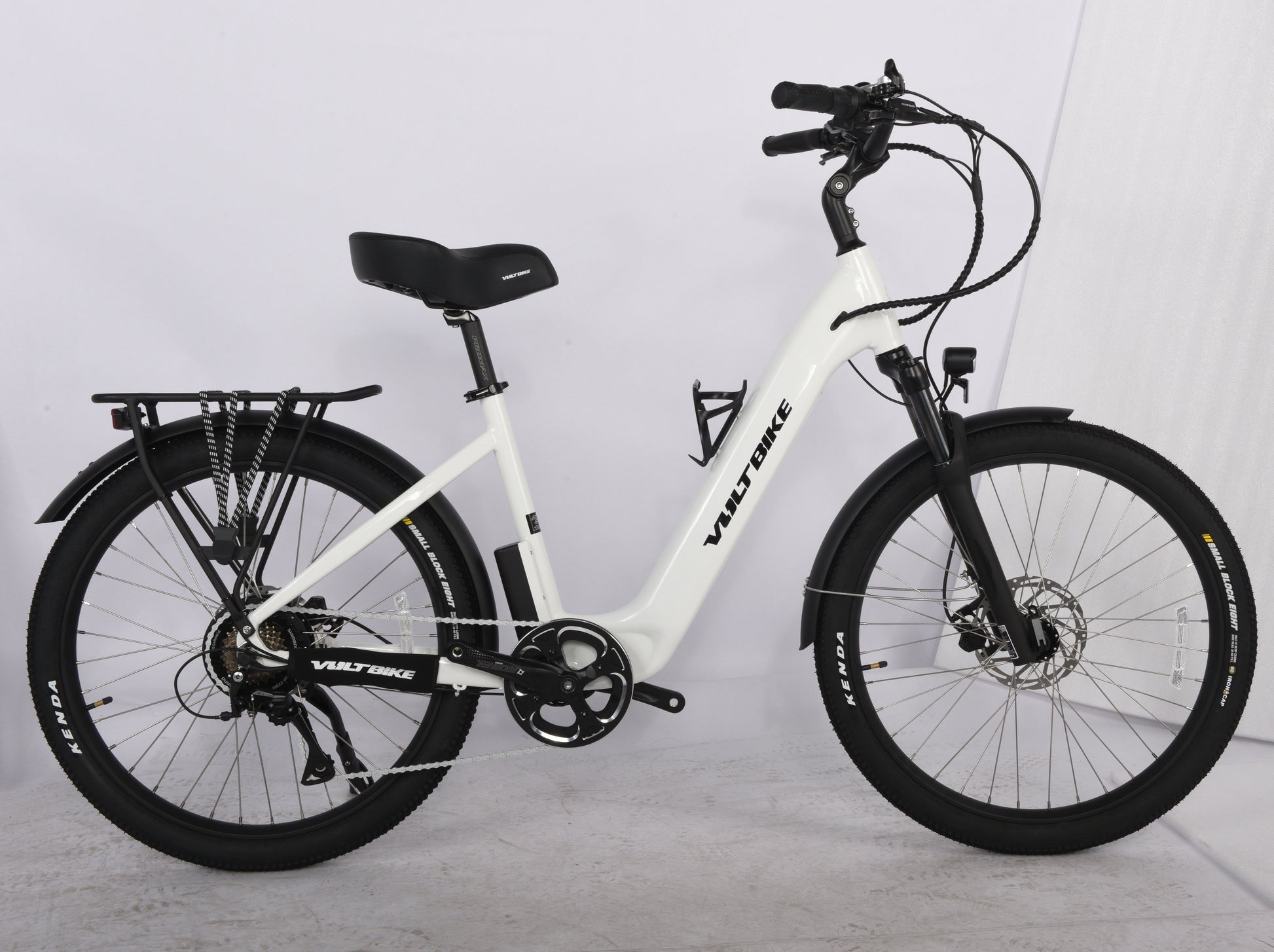

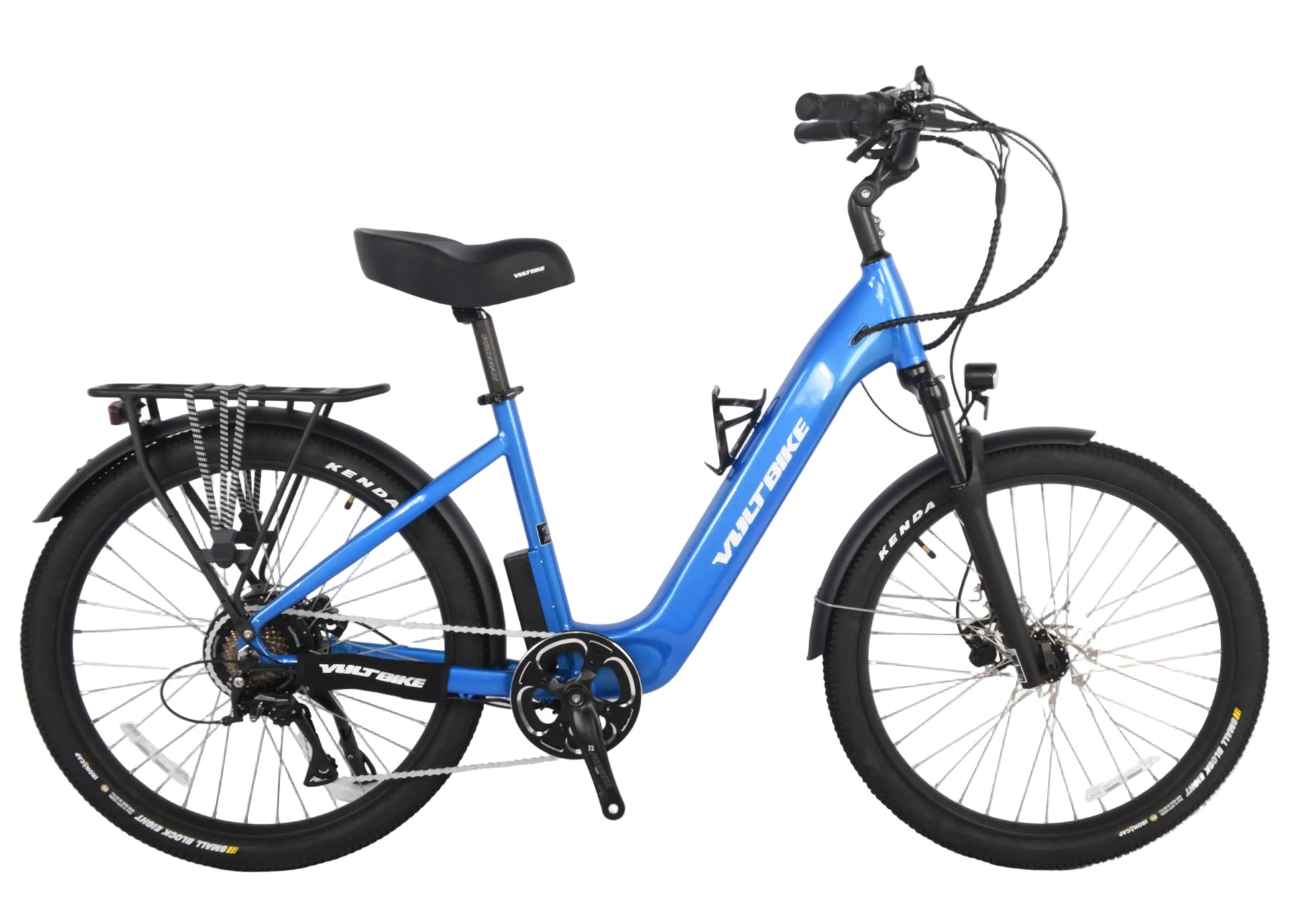

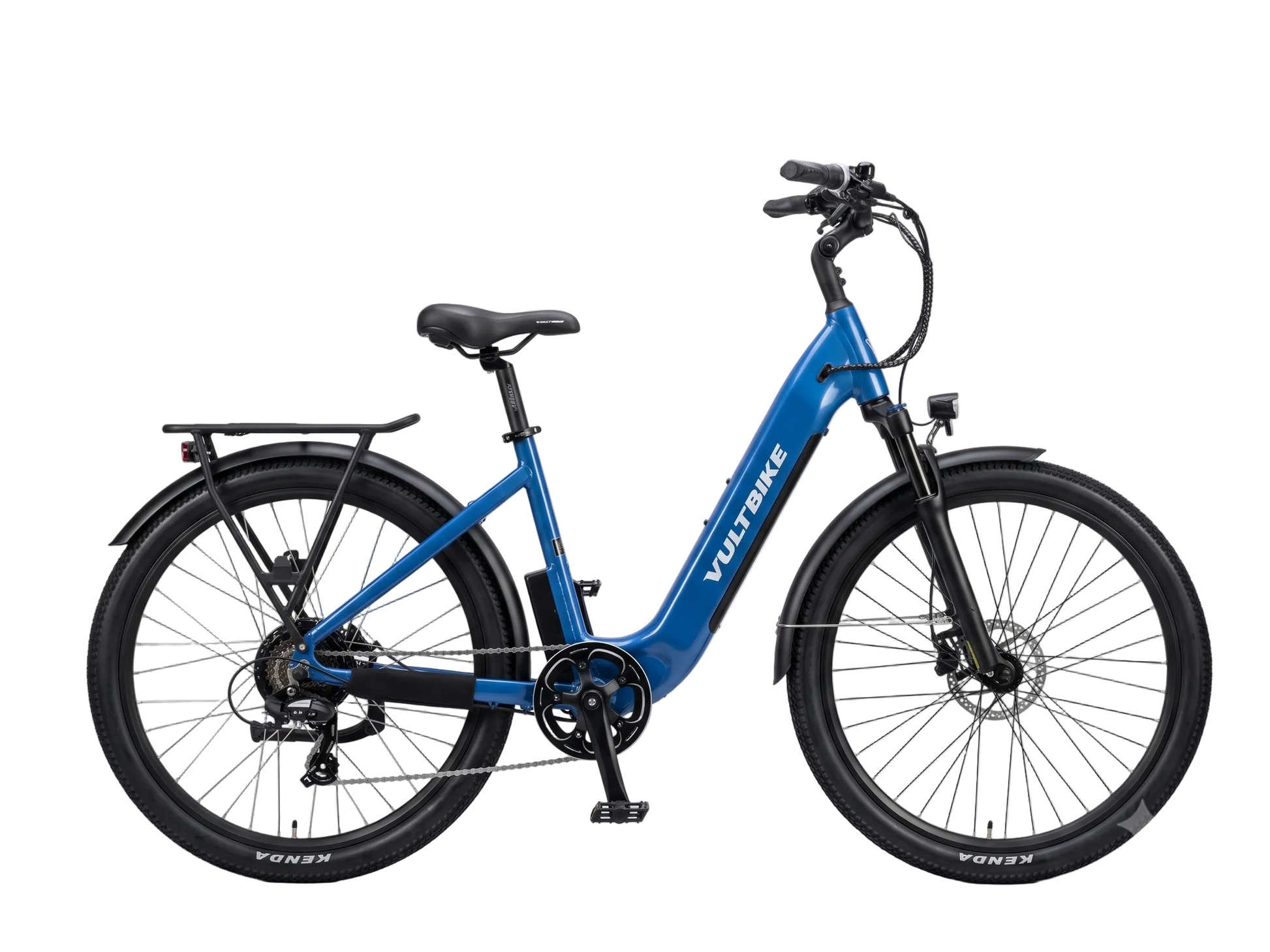

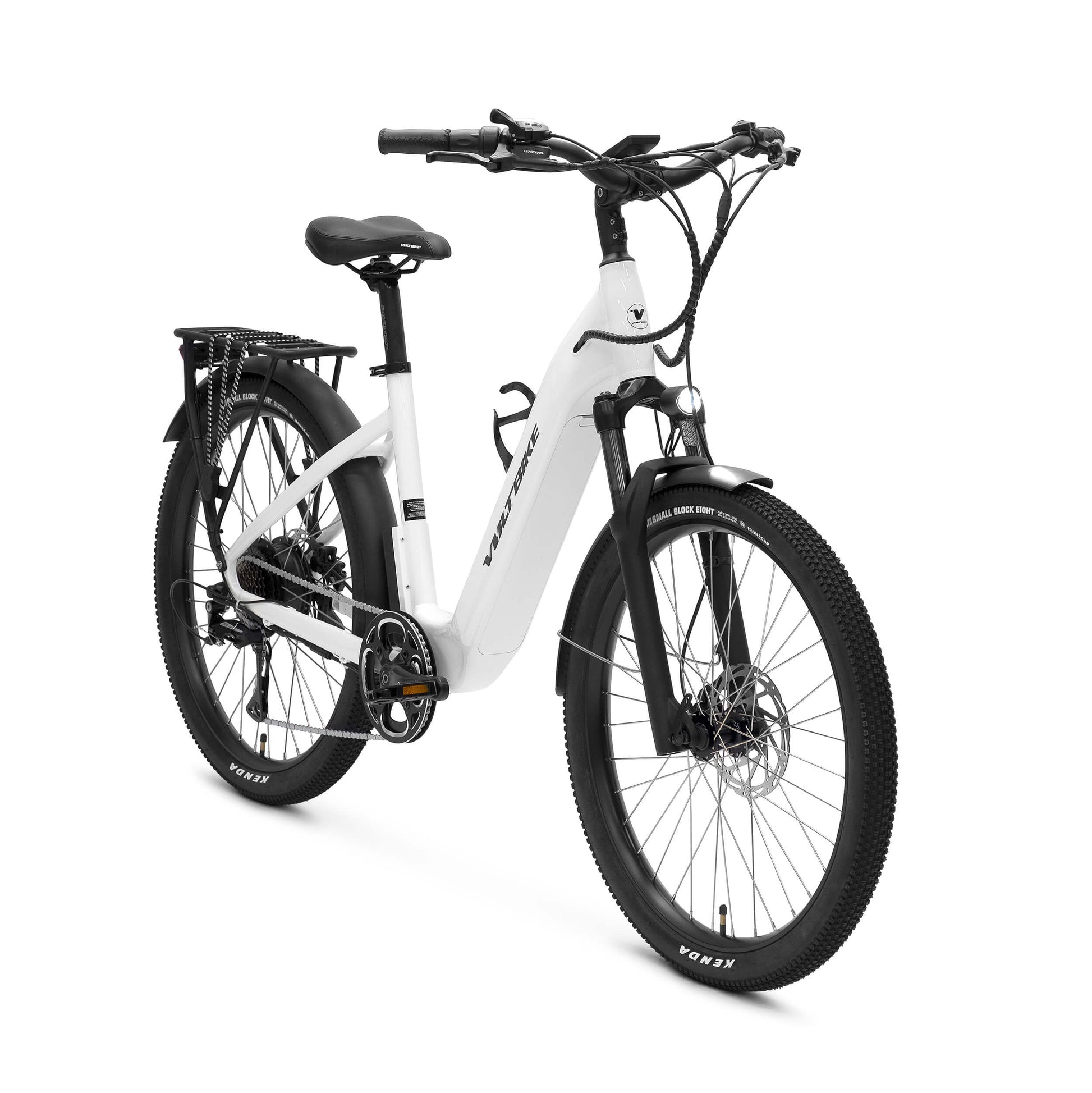

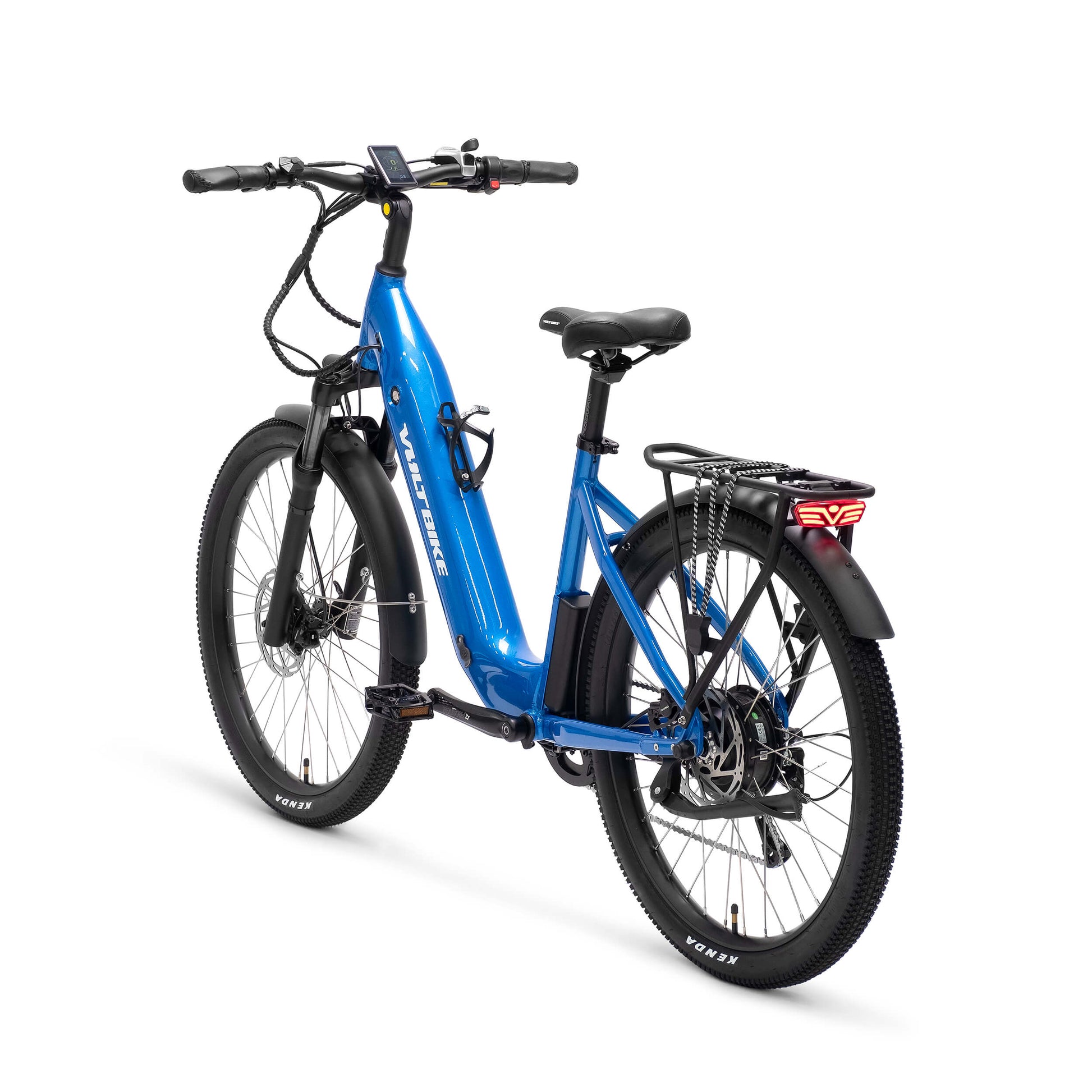

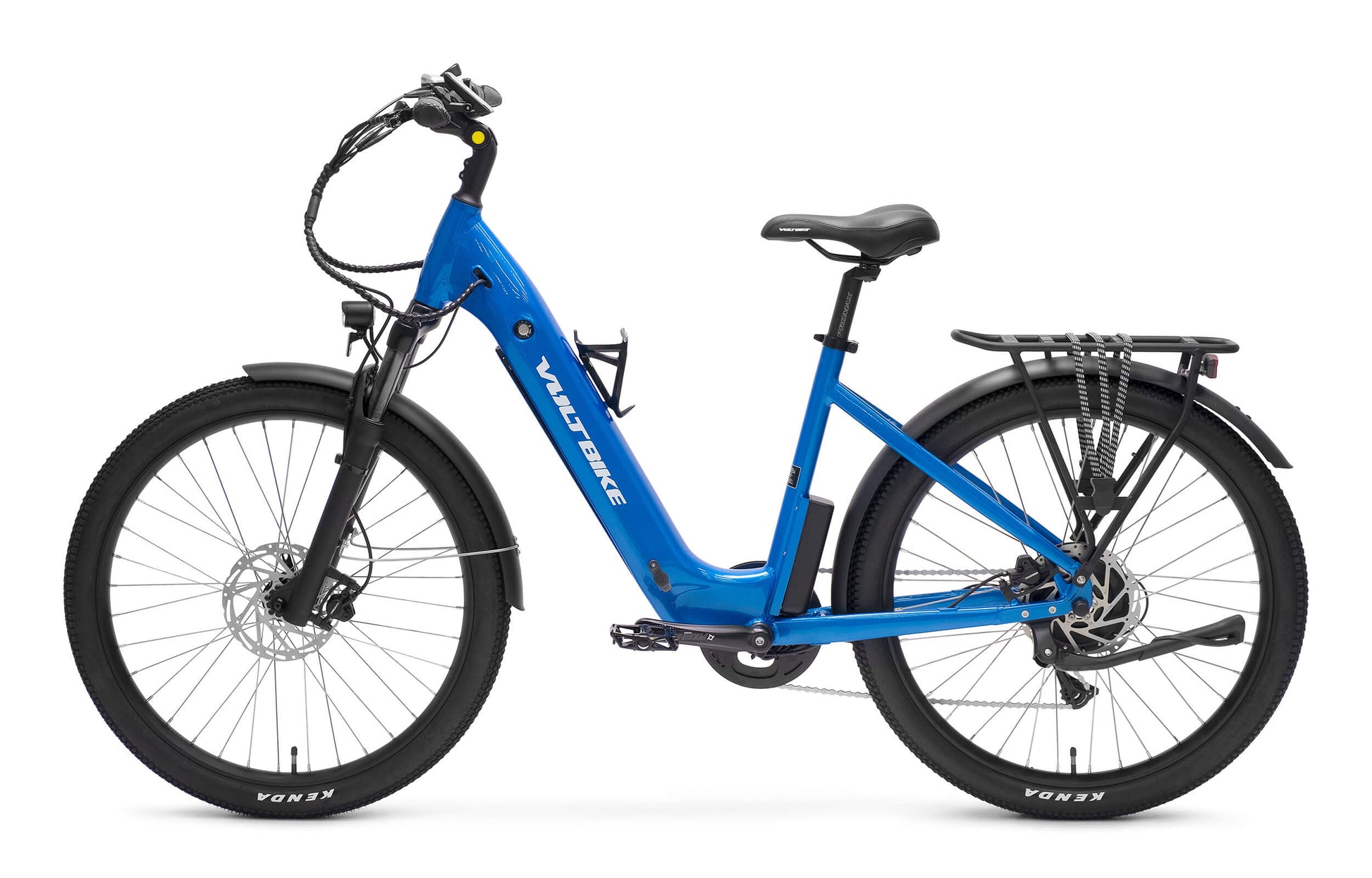

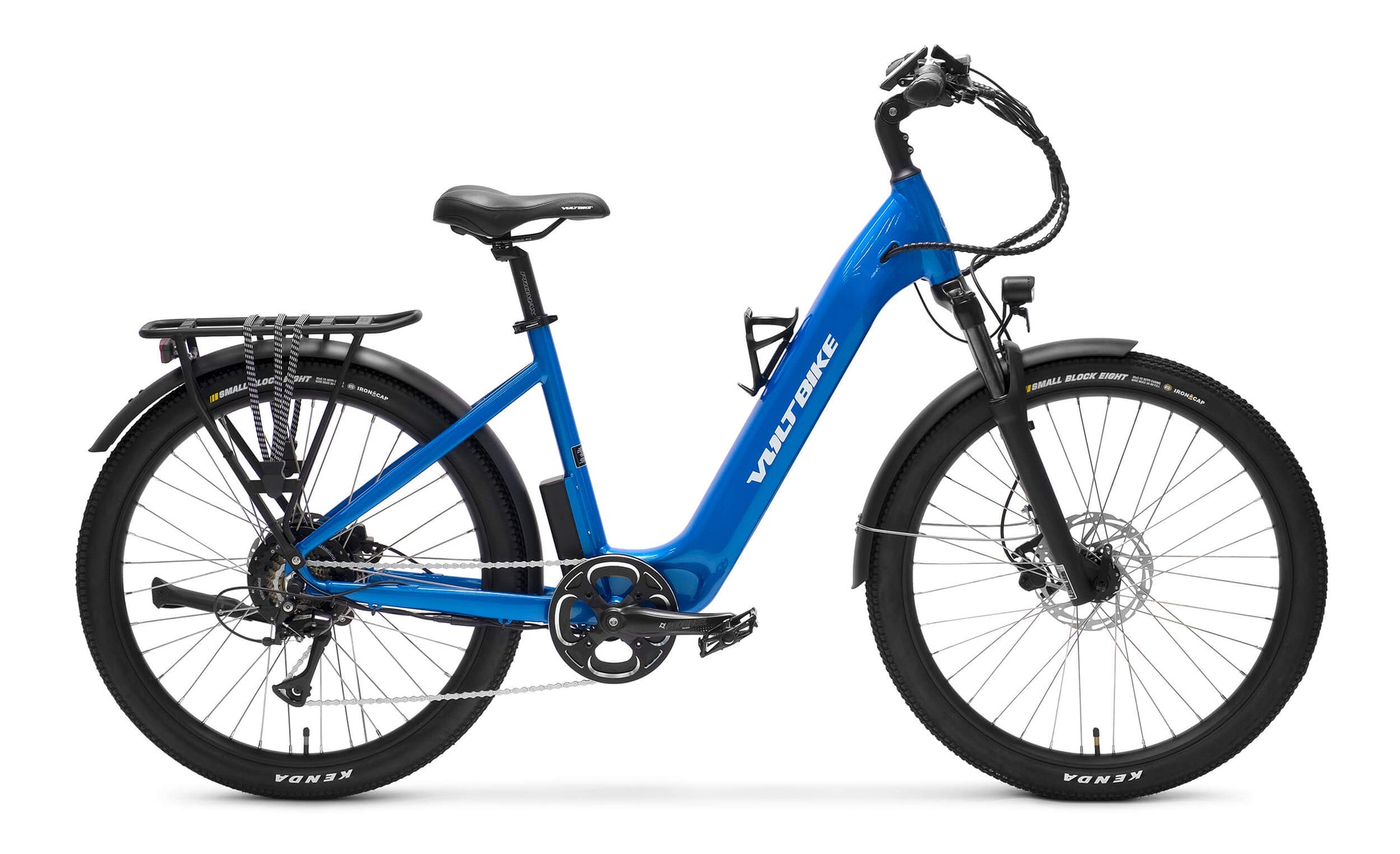

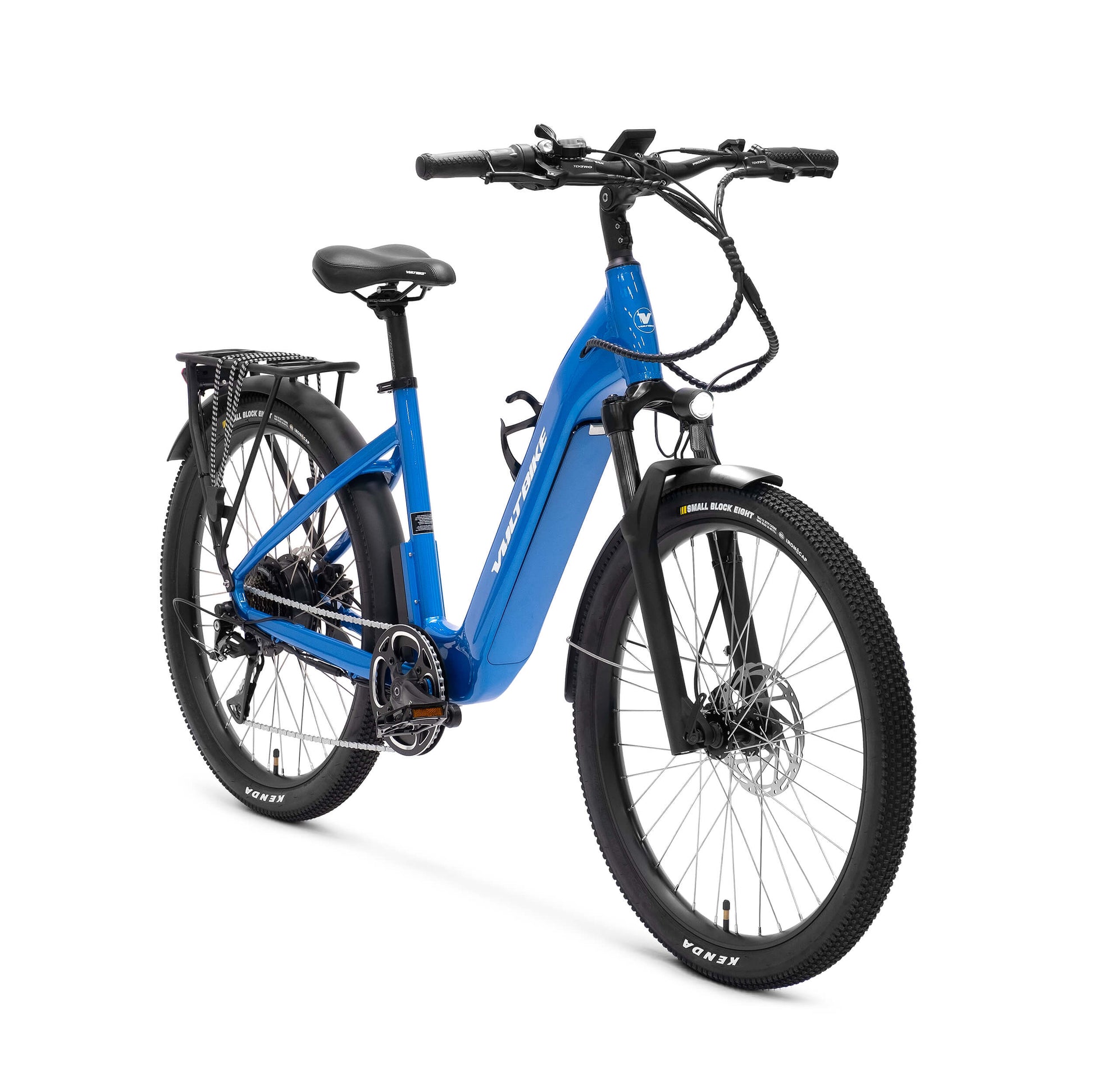

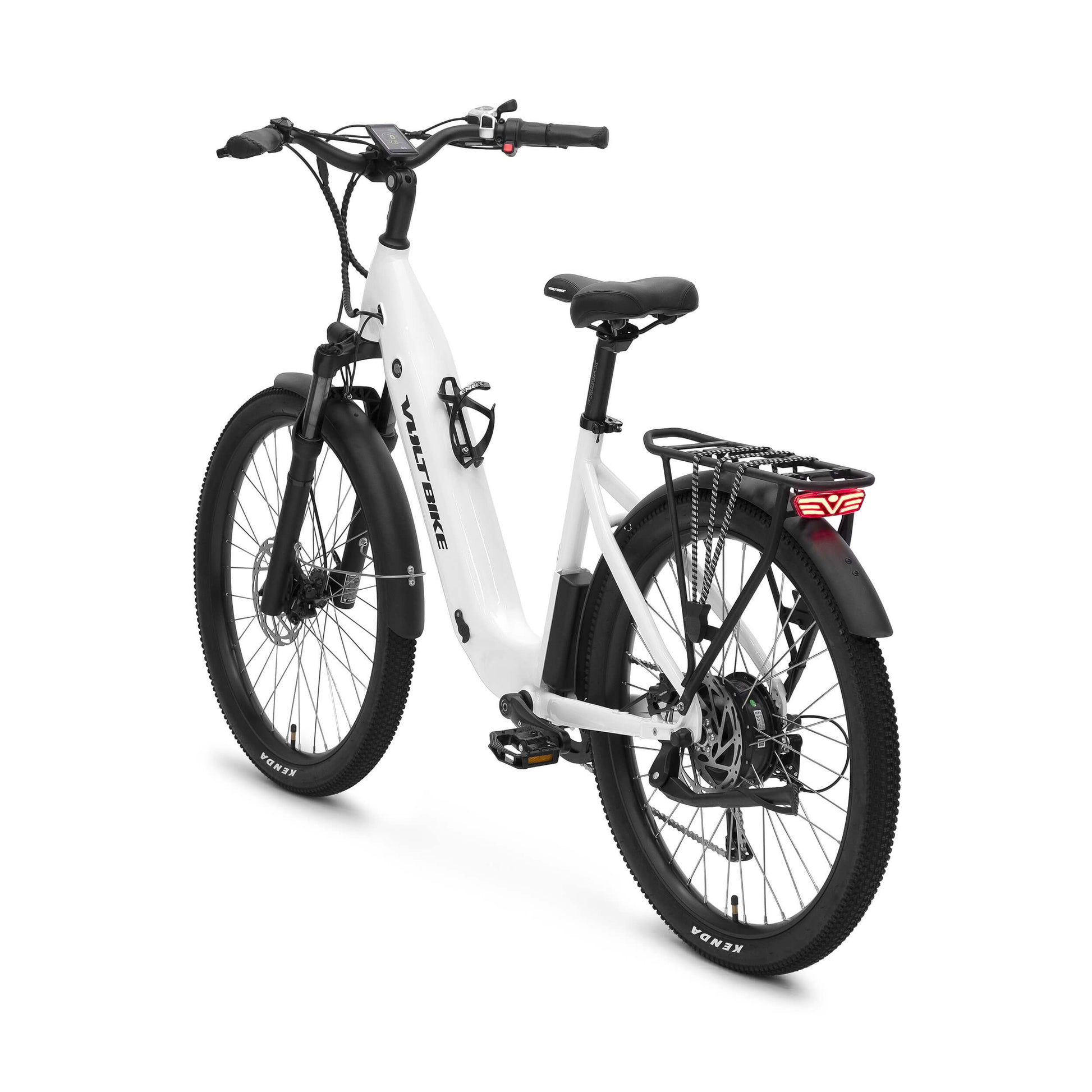

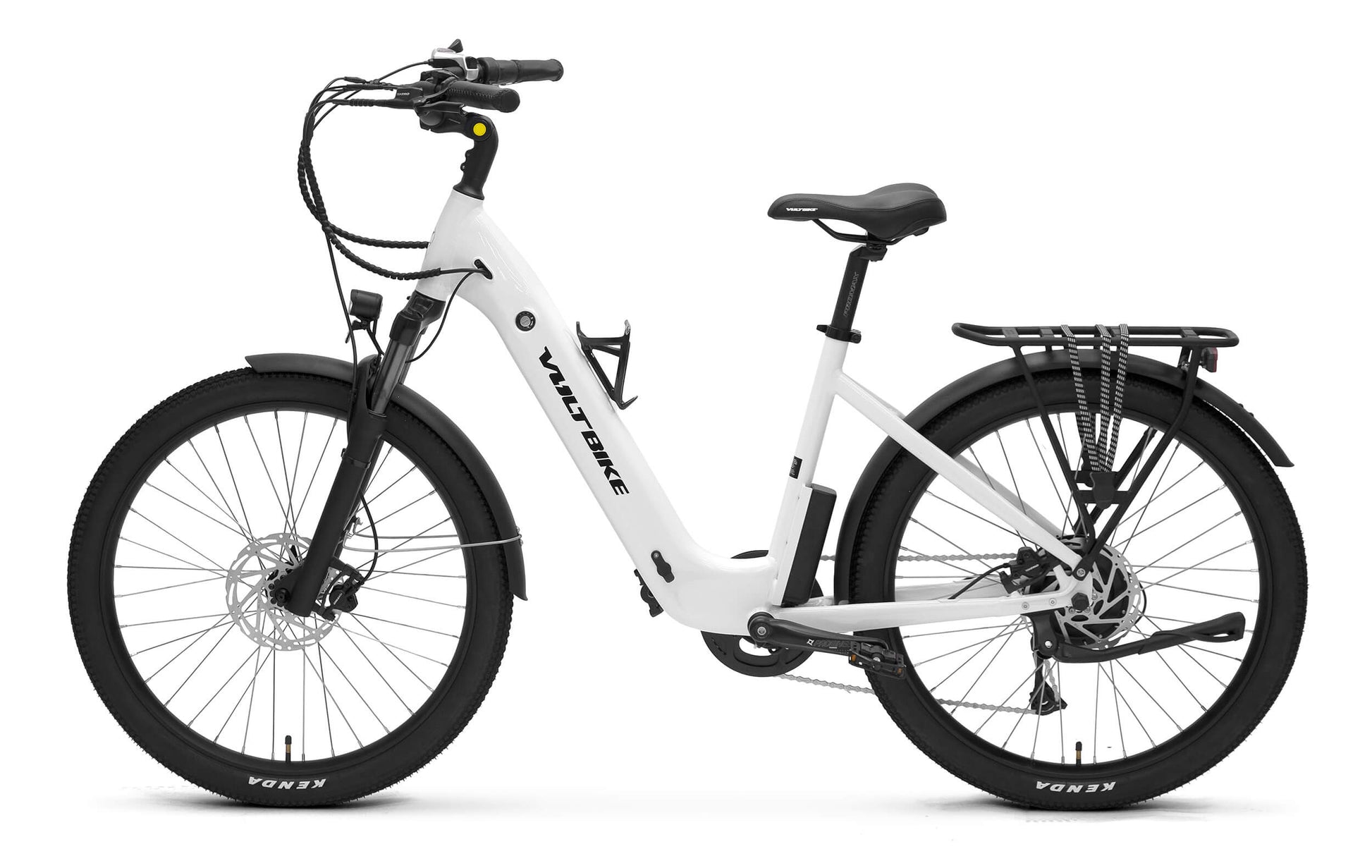

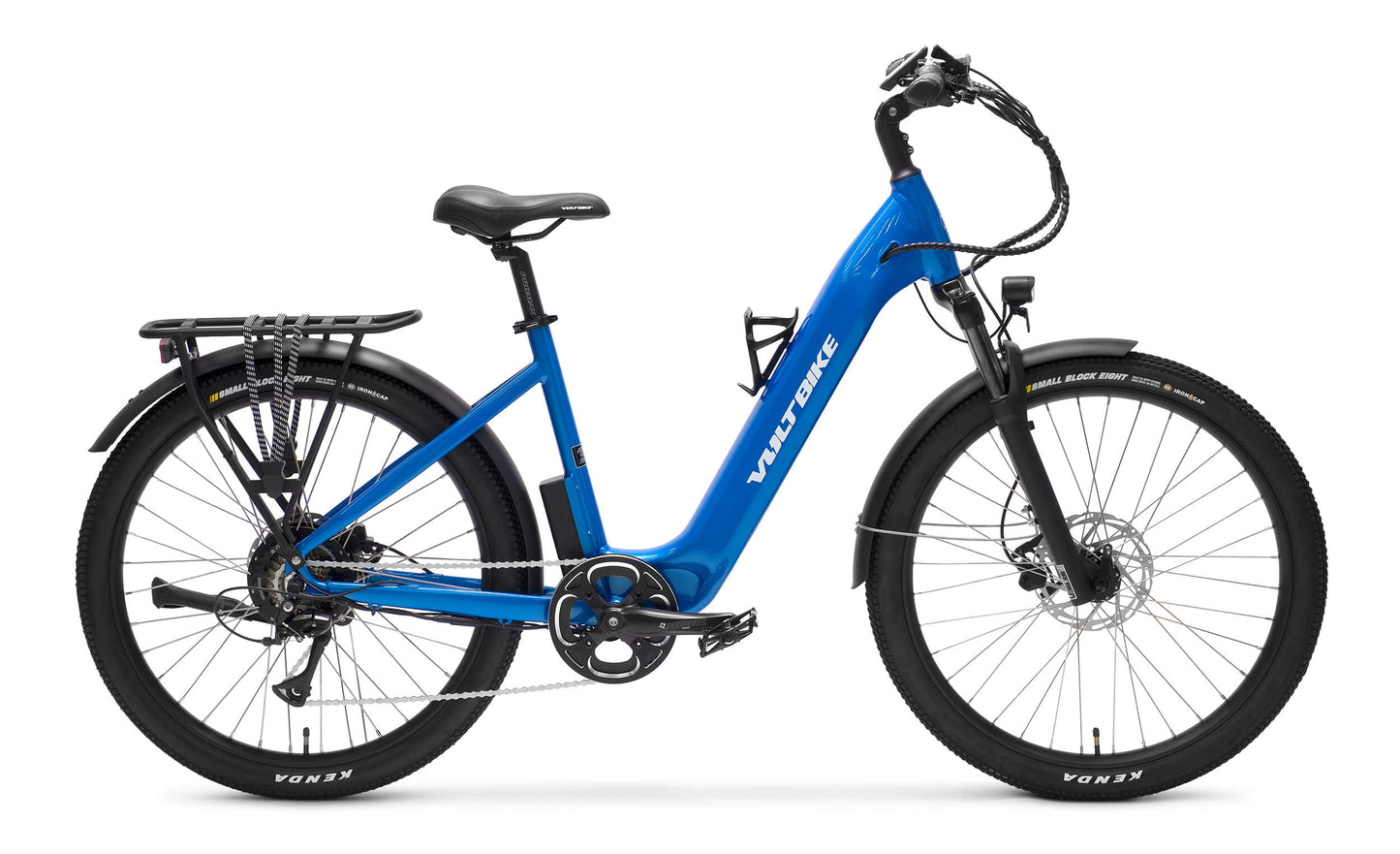

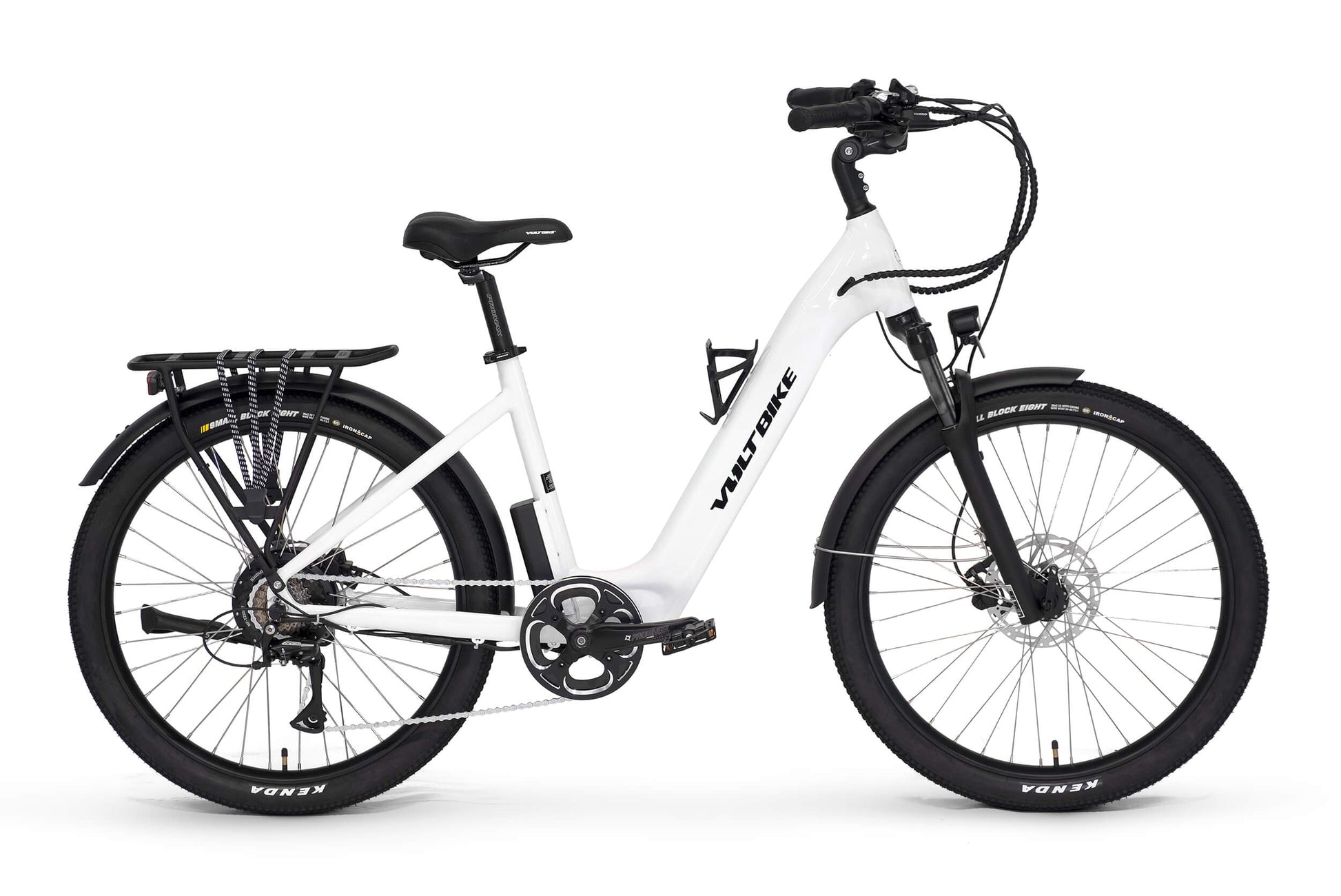

Elegant V2 Lite

Elegant V2 Lite

The Elegant V2 Lite is our newest cruiser style VoltBike model. It features an easy to mount, lightweight aluminum frame, and a powerful 500W motor. Perfect for leisurely rides around town and through the trails. The integrated and removable 48v 15Ah Samsung Li-ion battery is tucked into the frame, giving this bike a sleek and very elegant look.

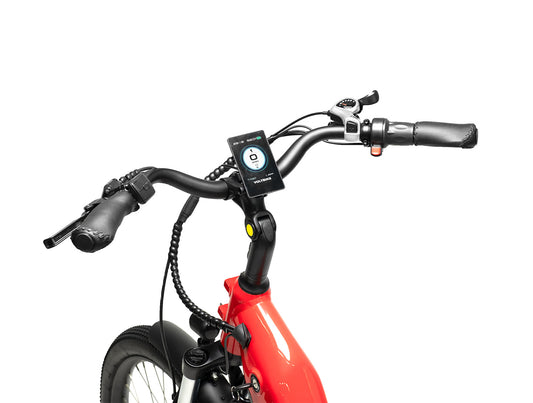

Available with the Curved Handlebars and upgraded Comfort Seat, this bike is perfect for the casual rider looking for an entry-level model without all the bells and whistles of the Elegant V2 model.

Arriving July 10.
$1,799.00 CAD
$2,299.00 CAD $1,799.00 CAD
Sale Sold out
Bicycle Color
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

500W Rated Power

The Elegant is using a Bafang G07 series geared motor which provides 65 N.m. max torque and 500w rated power. The Bafang G07 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears. Read more about Bafang motors here.

Long Range Battery

VoltBike Elegant is using 48v 19.6Ah battery pack with Samsung INR18650-35E cells. The battery pack holds UL 2271 safety certification. Assembled by Phylion which is one of the largest battery manufacturers for ebike batteries with facilities in China, Europe and India. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Voltbike Elegant comes standard with lockout suspension Suntour XCT DS. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

Sturdy Rear Rack

Standard for Elegant is an aluminum rear rack which can fit any load with ease up to 50lbs. Mounted directly on the rack is LED rear taillight with brake light functionality.

Backlit Color Display

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

Hydraulic Stopping Power

Voltbike Elegant is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Adjust Your Ride

Adjust your bike as per your need. No matter what your style of riding, VoltBike has a stem with the fit, performance and style you're looking. VoltBike is using stem Promax MA-570 with adjustable angle 35° - 145° and 108mm extension.

Simple Controls

Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Always Visible

Yukon is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. Rear LED light powered using the main battery pack. Features brake light functionality that is activated any time the brakes are applied.

Extremely Customizable

Customize your Elegant with over 20 VoltBike certified accessories. Choose a top tube bag to carry your cell phone or pannier bag to carry bigger cargo. Add front rack on your bike to carry even more load.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 61.0 lb
  • Battery 48V 15Ah Li-ion (720Wh) Samsung Cells. Assembled by Phylion.
  • Battery Style Clip-on
  • Bottom Bracket Sealed cartridge Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro HD-E3120
  • Brake Lever Tektro
  • Chain KMC Rust Buster
  • Crankset Aluminum Alloy-6061 38T Crank, 170mm with Outer Guard
  • Derailleur Guard Rear Metal Derailleur Guard
  • Fork Suntour XCT DS suspension fork with preload adjuster
  • Frame Type Step-Through
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree
  • Hubset Alloy 6061 Electric Motor
  • Motor 48V 500W Bafang G070 Hub Motor
  • Motor Type Hub Motor
  • Pedals Wellgo M-248DU
  • Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailler
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 26" with 36 spokes
  • Seat Velo Plush VL-6142
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 30.4mm*350mm
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Spokes Rear 12G, Front 13G
  • Stem Adjustable stem Promax MA-579 with extension 110mm. Adjustable angles 90° - 160°. Aluminum alloy.
  • Tires Kenda 26"x2.1"

Fit & Size

  • Fit Guidelines

    Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.

    Suitable inseam range:

    < 25"     64cm
    26" 66cm
    28" 71cm
    41" 104cm
    43" 109cm
    > 44" 112cm

    Great fit with plenty of room for seat height adjustment.

    Good fit but potentially limited seat height adjustment or top tube clearence.

    Poor fit, frame is either too big or too small.

  • Sizing

    • aFrame Size: 18"
    • bStand-over Height: 26"
    • cReach: 17"
    • dTop-tube Length: 22"
    • eHandlebar Height: 41.5"-43.5"
    • fSeat Height: 32"-39"
    • gWheel Size: ⌀26"x2"
    • hWheelbase: 44.5"
    • iLength: 69"
