Overview
500W Rated Power
The Elegant is using a Bafang G07 series geared motor which provides 65 N.m. max torque and 500w rated power. The Bafang G07 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears. Read more about Bafang motors here.
Long Range Battery
VoltBike Elegant is using 48v 17.5Ah battery pack with Samsung INR18650-35E cells. The battery pack is assembled by Phylion which is one of the largest battery manufacturers for ebike batteries with facilities in China, Europe and India. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.
Extra Smooth Ride
Voltbike Elegant comes standard with lockout suspension Suntour XCT DS. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.
Sturdy Rear Rack
Standard for Elegant is an aluminum rear rack which can fit any load with ease up to 50lbs. Mounted directly on the rack is LED rear taillight with brake light functionality.
Backlit Color Display
Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

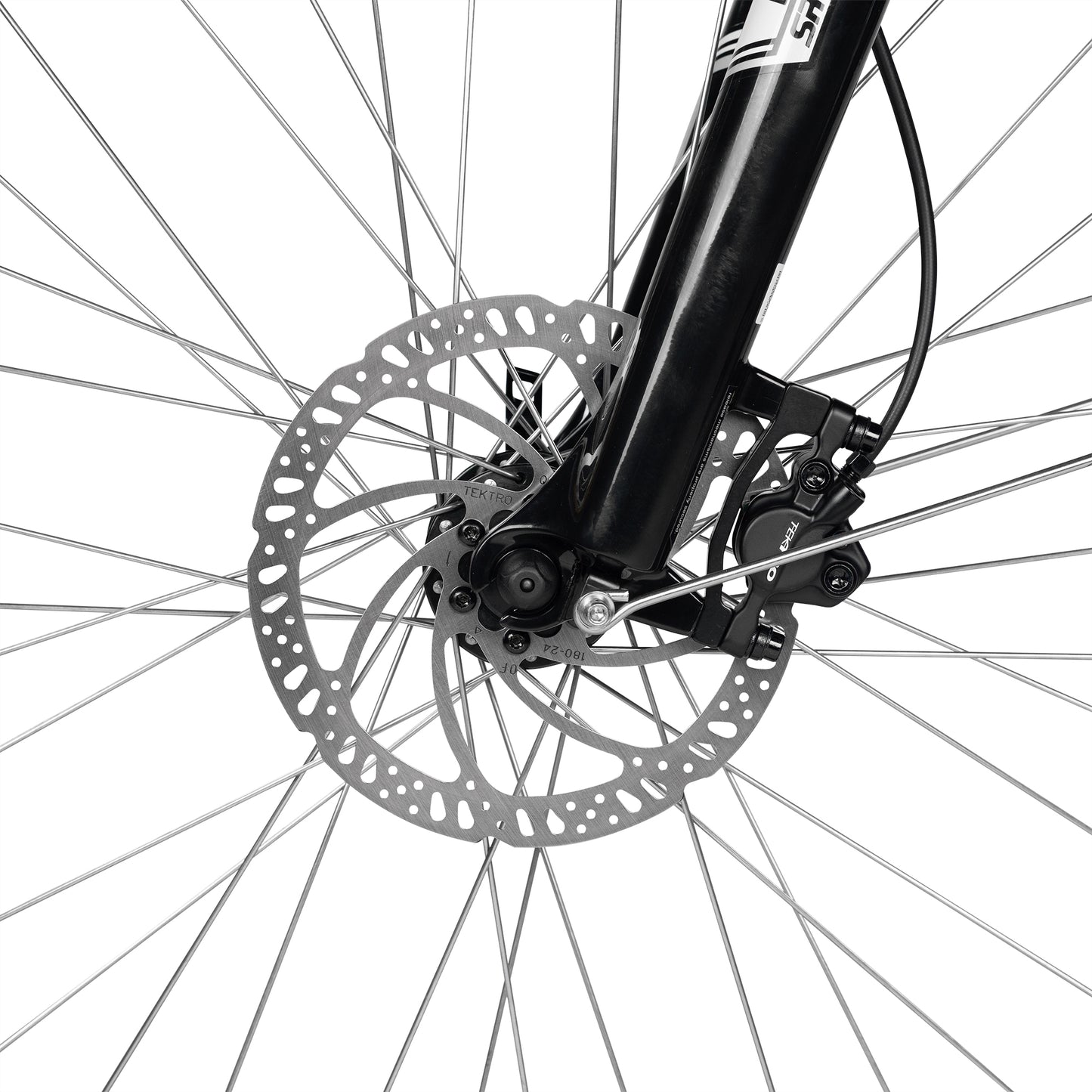

Hydraulic Stopping Power
Voltbike Elegant is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.
Adjust Your Ride
Adjust your bike as per your need. No matter what your style of riding, VoltBike has a stem with the fit, performance and style you're looking. VoltBike is using stem Promax MA-570 with adjustable angle 35° - 145° and 108mm extension.
Simple Controls
Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.
Always Visible
Yukon is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. Rear LED light powered using the main battery pack. Features brake light functionality that is activated any time the brakes are applied.
Extremely Customizable
Customize your Elegant with over 20 VoltBike certified accessories. Choose a top tube bag to carry your cell phone or pannier bag to carry bigger cargo. Add front rack on your bike to carry even more load.
Parts Included
Our bikes ship 95% assembled with everything you’ll need to get up and running, including:
Specifications
- Weight 61.0 lb
- Battery 48V Li-ion 17.5Ah Samsung (840Wh)
- Battery Style Clip-on
- Bottom Bracket Sealed cartridge Neco 910, 23.5mm + 120mm + 23.5mm
- Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
- Brake Lever Tektro with integrated bell
- Chain KMC Rust Buster
- Crankset Aluminum Alloy-6061 38T Crank, 170mm with Outer Guard
- Derailleur Guard Rear Metal Derailleur Guard
- Fork Suntour XCT DS suspension fork with preload adjuster
- Frame Type Step-Through

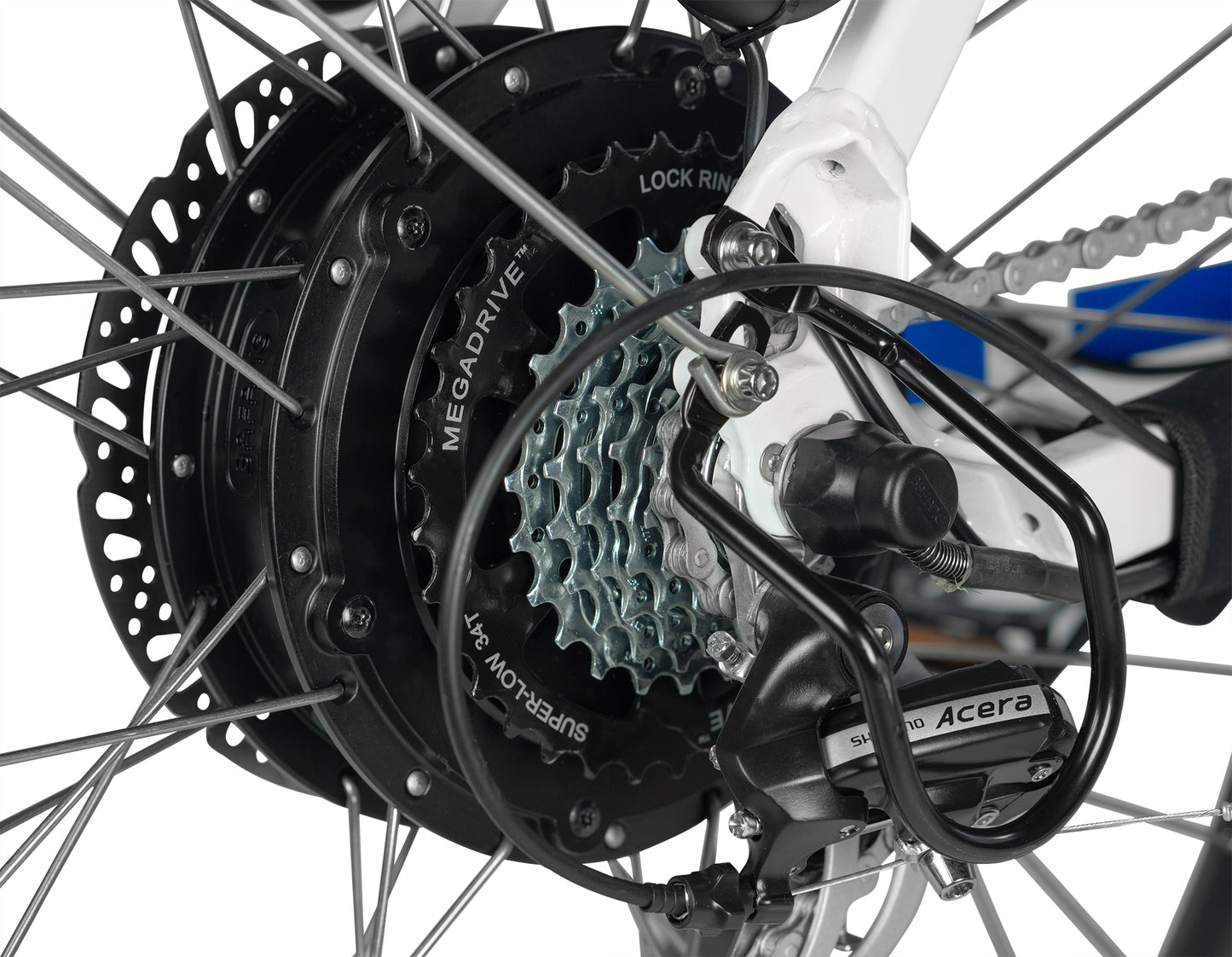

- Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
- Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree
- Hubset Alloy 6061 Electric Motor
- Motor 48V 500W Bafang G070 Hub Motor
- Motor Type Hub Motor
- Pedals Wellgo M-248DU
- Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailler
- Rider Max Weight {"value":280.0,"unit":"lb"}
- Rims 26" with 36 spokes
- Seat Velo Plush VL-6142
- Seat Post Promax SP-252 Aluminum 6061 Alloy, 30.4mm*350mm
- Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
- Spokes Rear 13G, Front 13G
- Stem Adjustable stem Promax MA-579 with extension 110mm. Adjustable angles 90° - 160°. Aluminum alloy.
- Tires Kenda 26"x2.1"
Fit & Size
-
Fit Guidelines
Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.
Suitable inseam range:
< 30" 76cm31" 79cm33" 84cm41" 104cm43" 109cm> 44" 112cmGreat fit with plenty of room for seat height adjustment.
Good fit but potentially limited seat height adjustment or top tube clearence.
Poor fit, frame is either too big or too small.
-
Sizing
- aFrame Size: 18"
- bStand-over Height: 26"
- cReach: 17"
- dTop-tube Length: 22"
- eHandlebar Height: 41.5"-43.5"
- fSeat Height: 32"-39"
- gWheel Size: ⌀26"x2"
- hWheelbase: 44.5"
- iLength: 69"

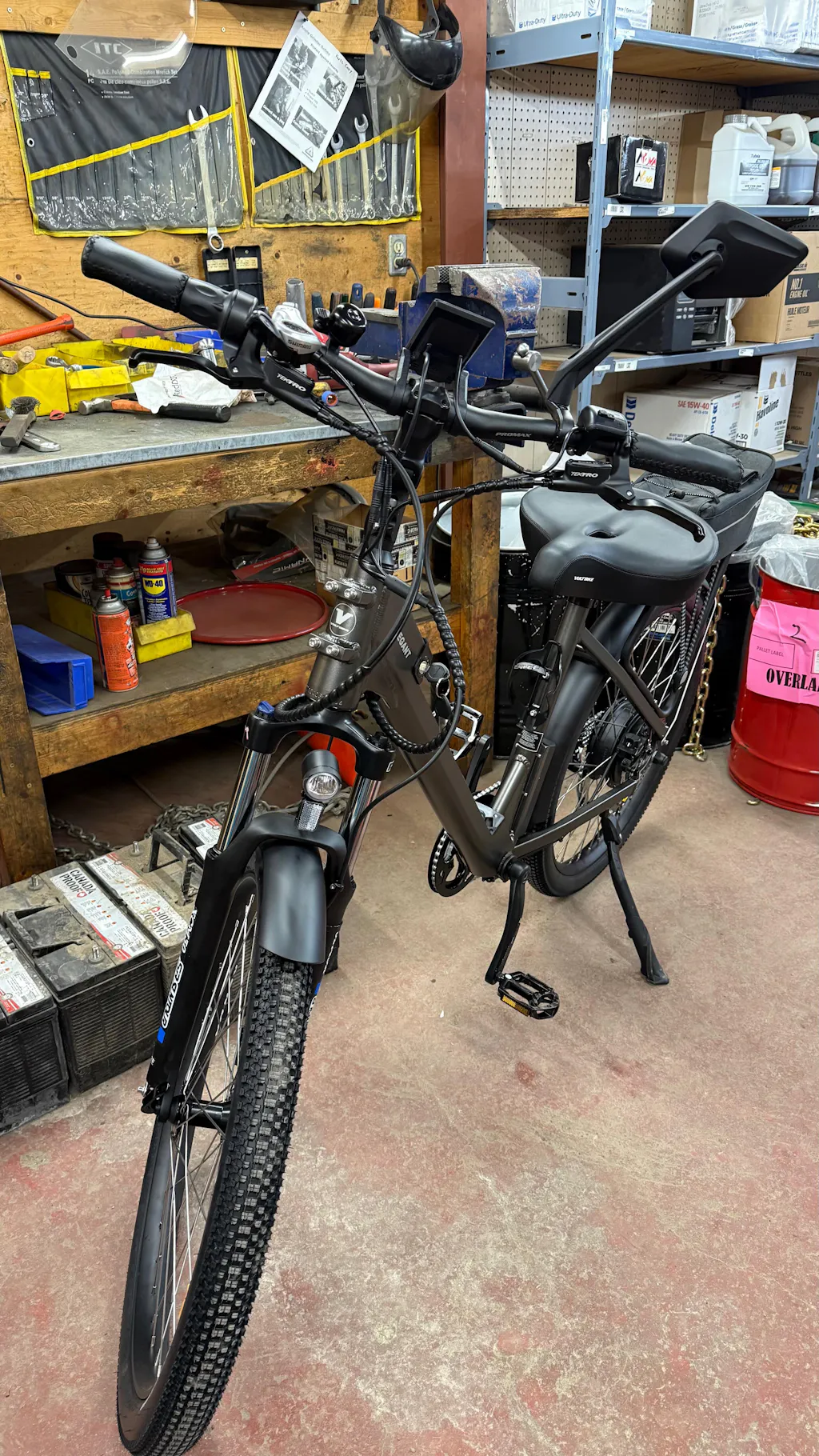

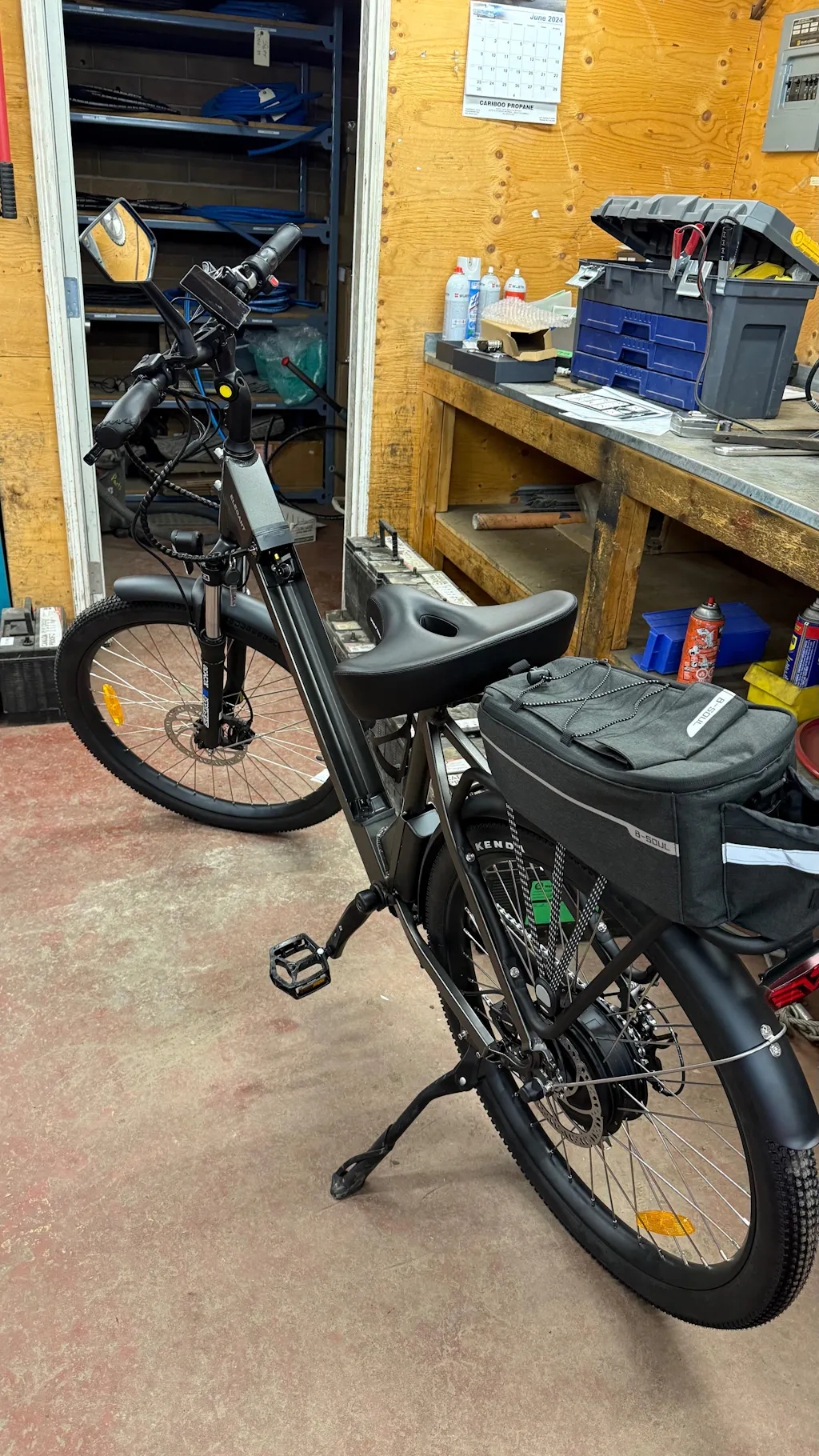

Customer Photos
