1 13
Power
500W
Torque
80Nm
Range
60-80+ km
Top Speed
32km/h
Payload
280lbs

VOLTBIKE

Mariner Step-Thru

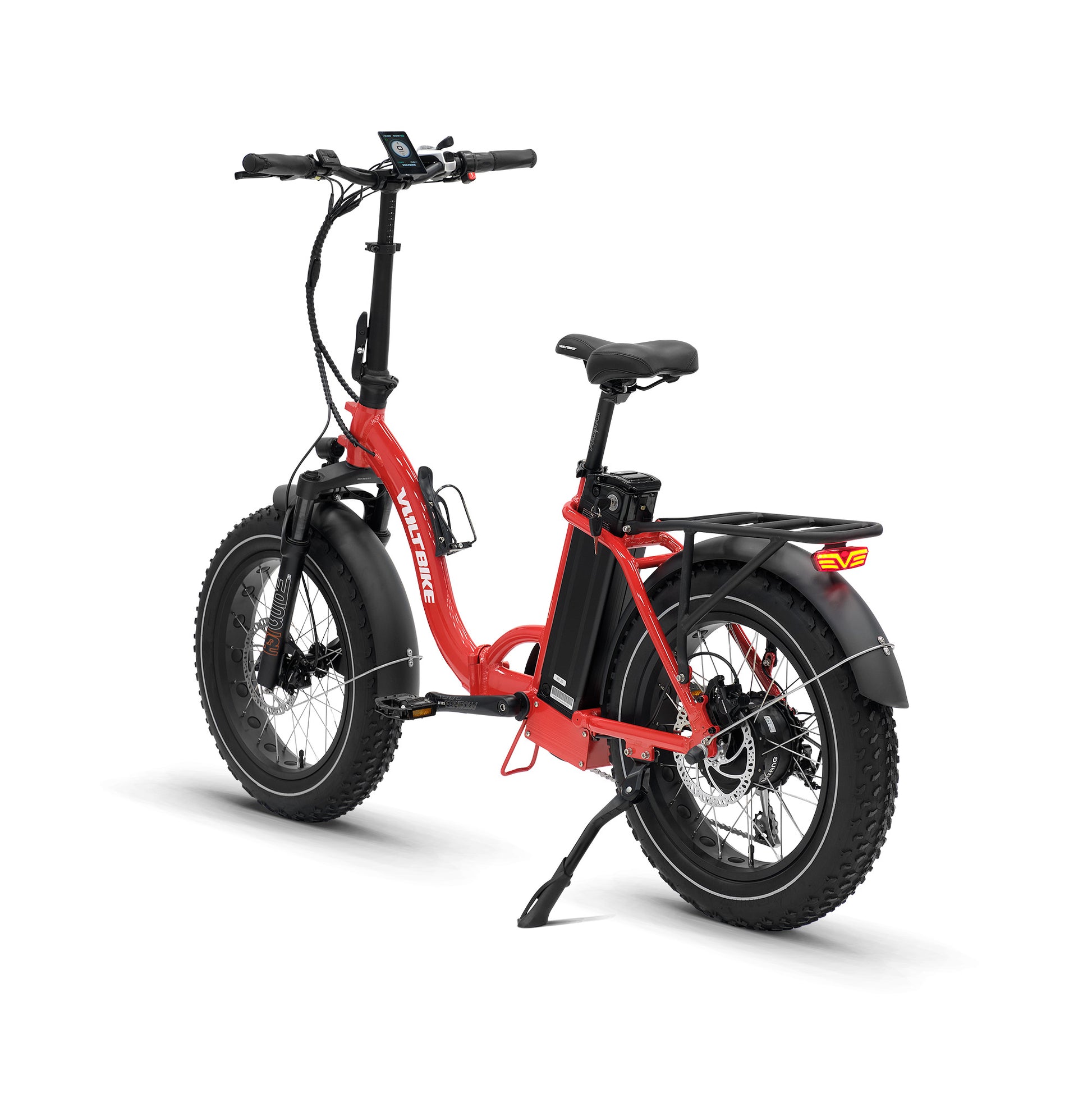

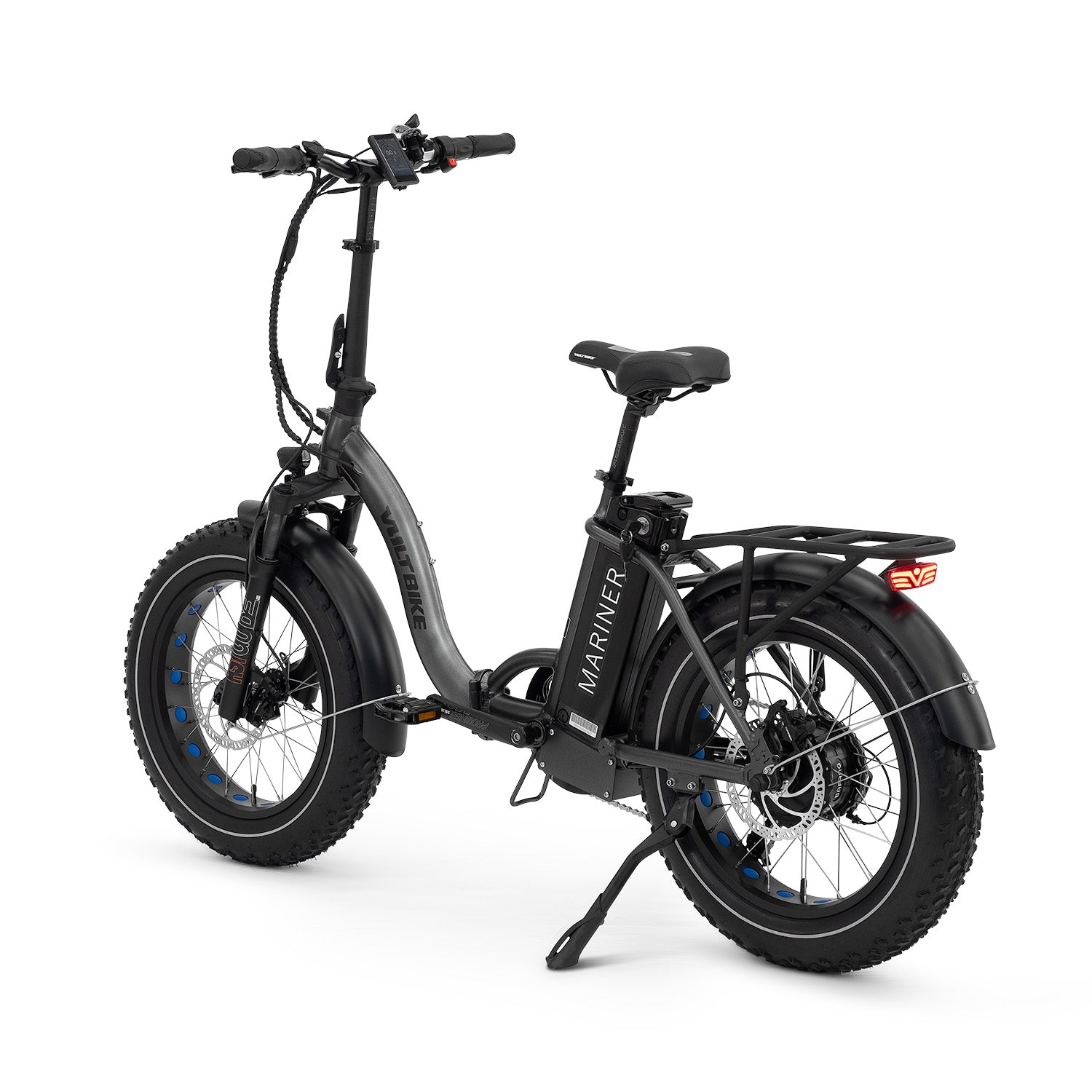

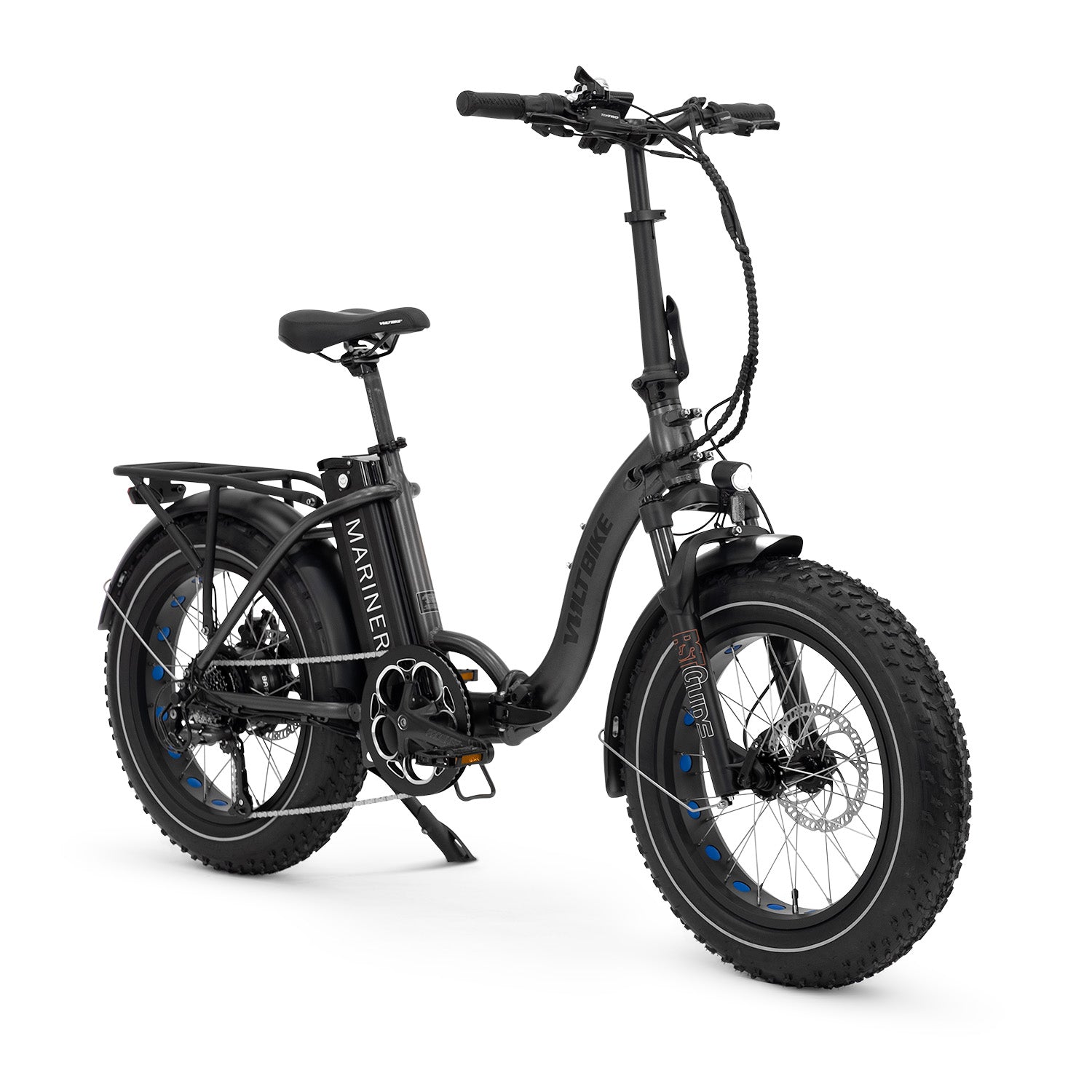

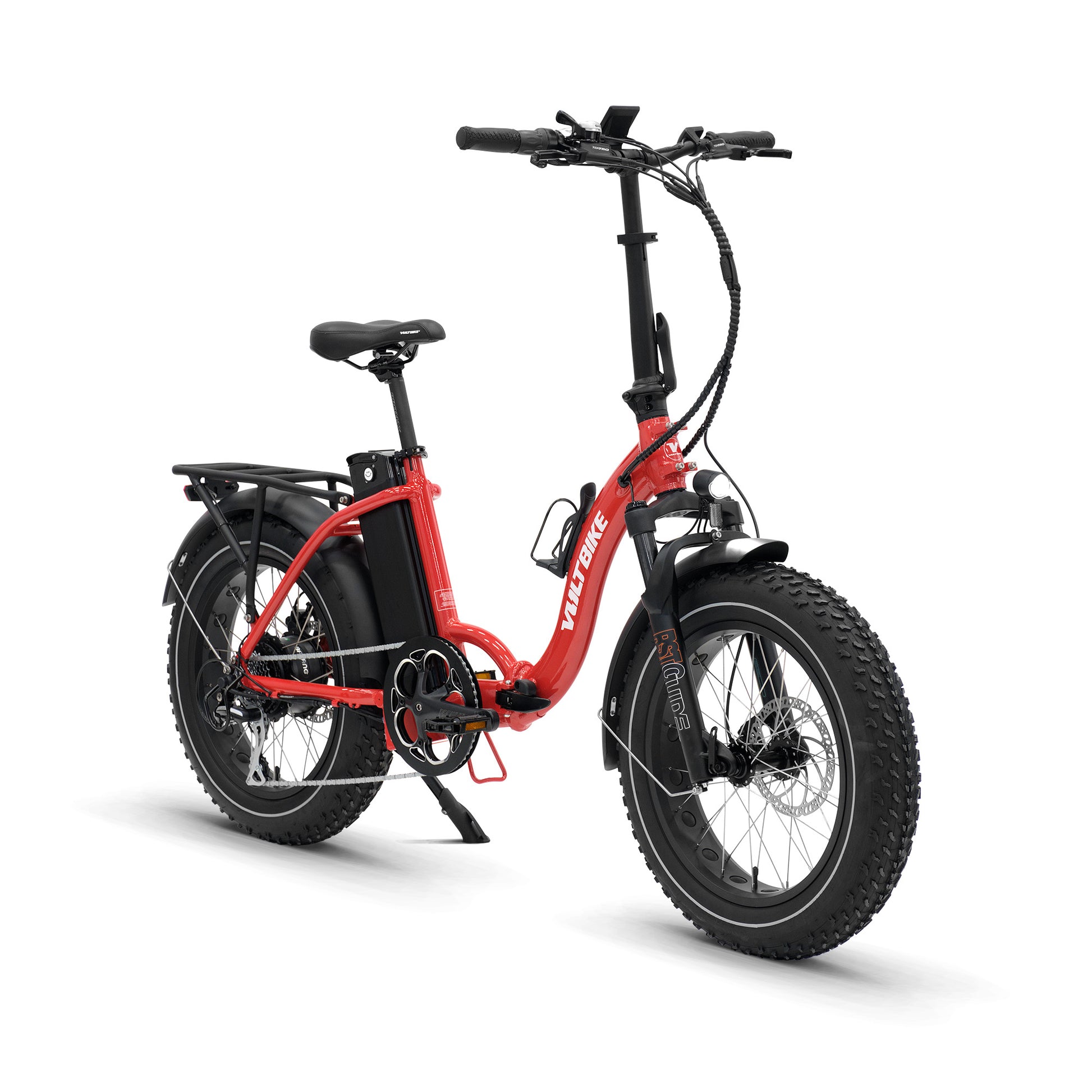

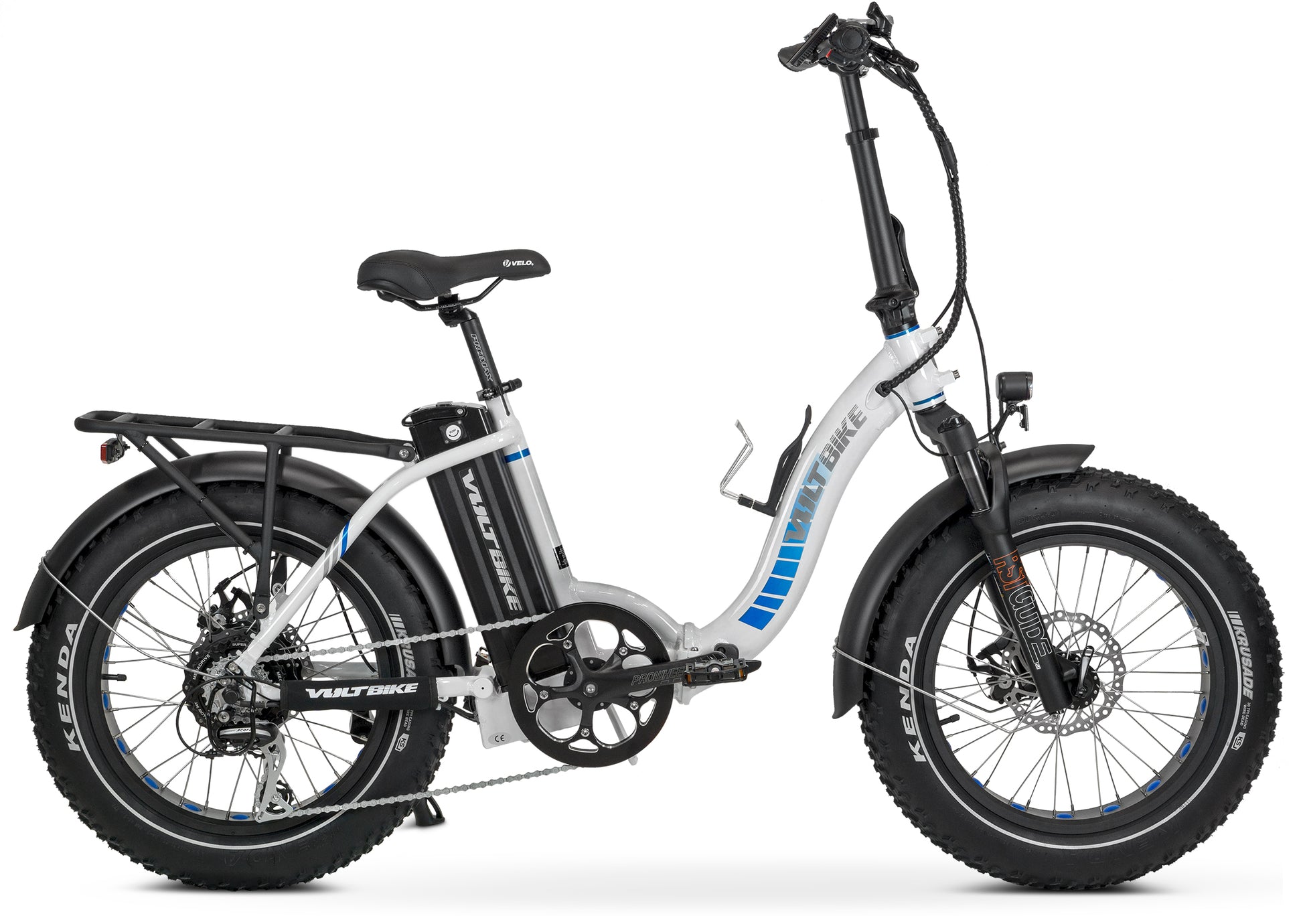

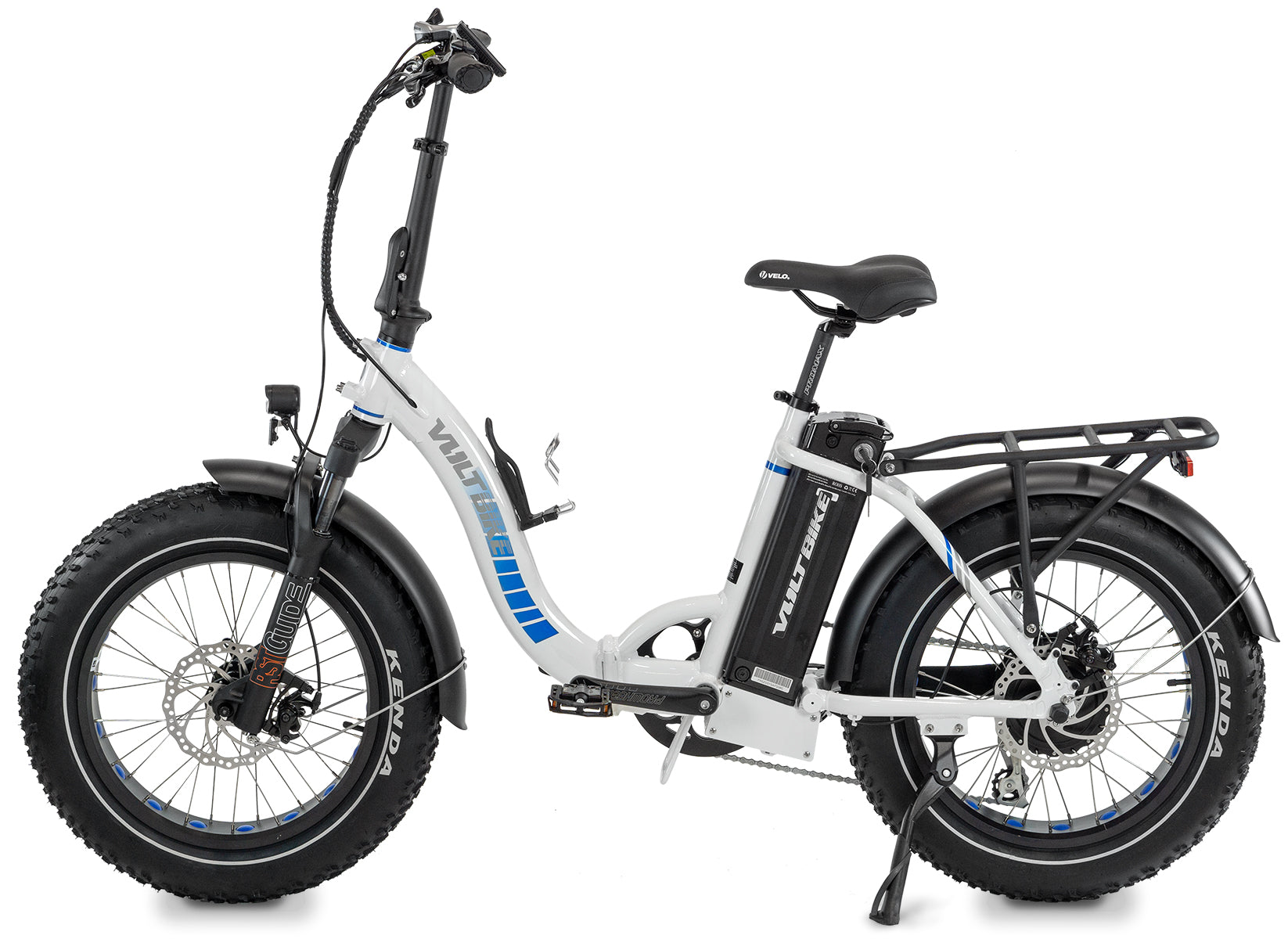

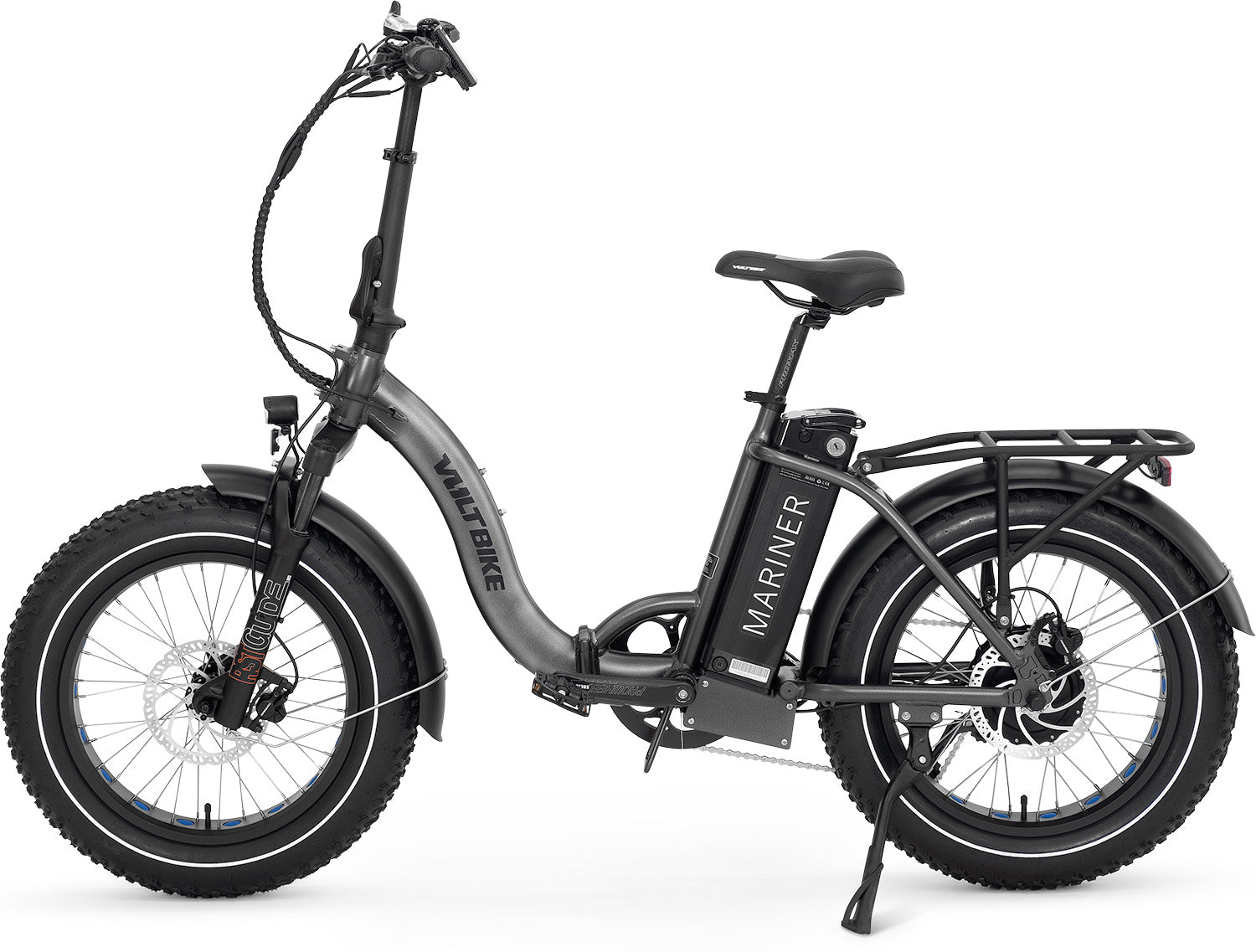

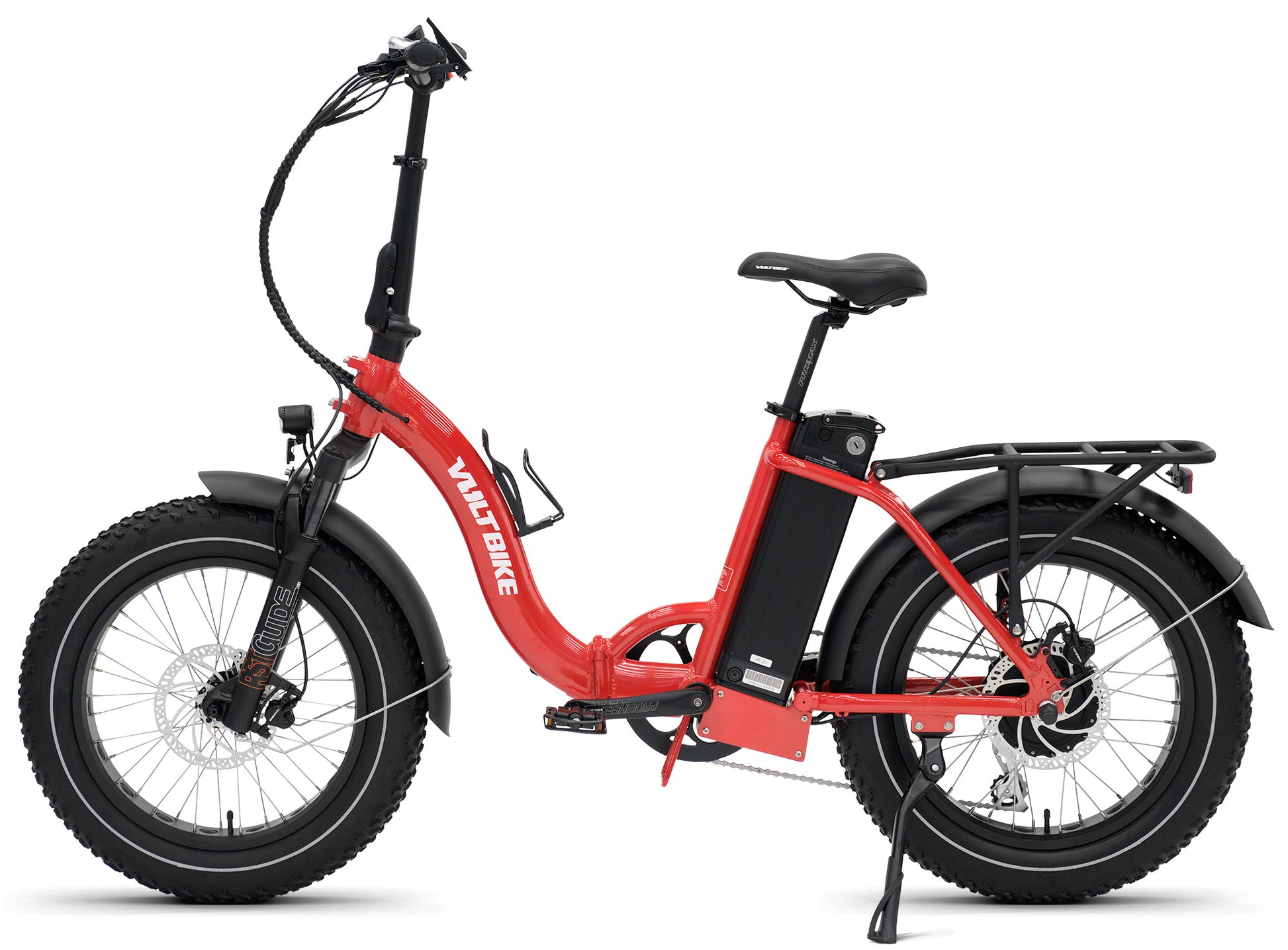

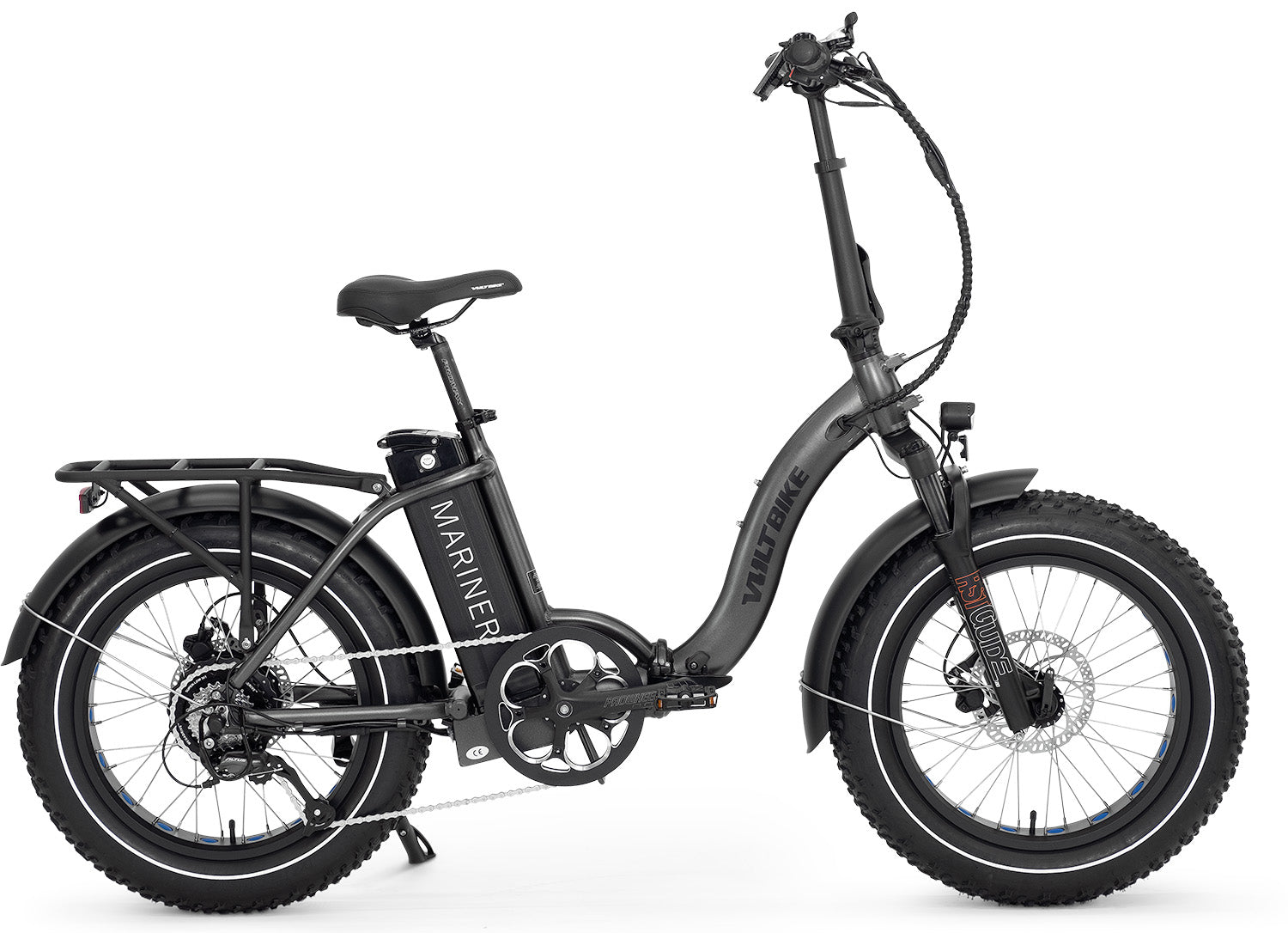

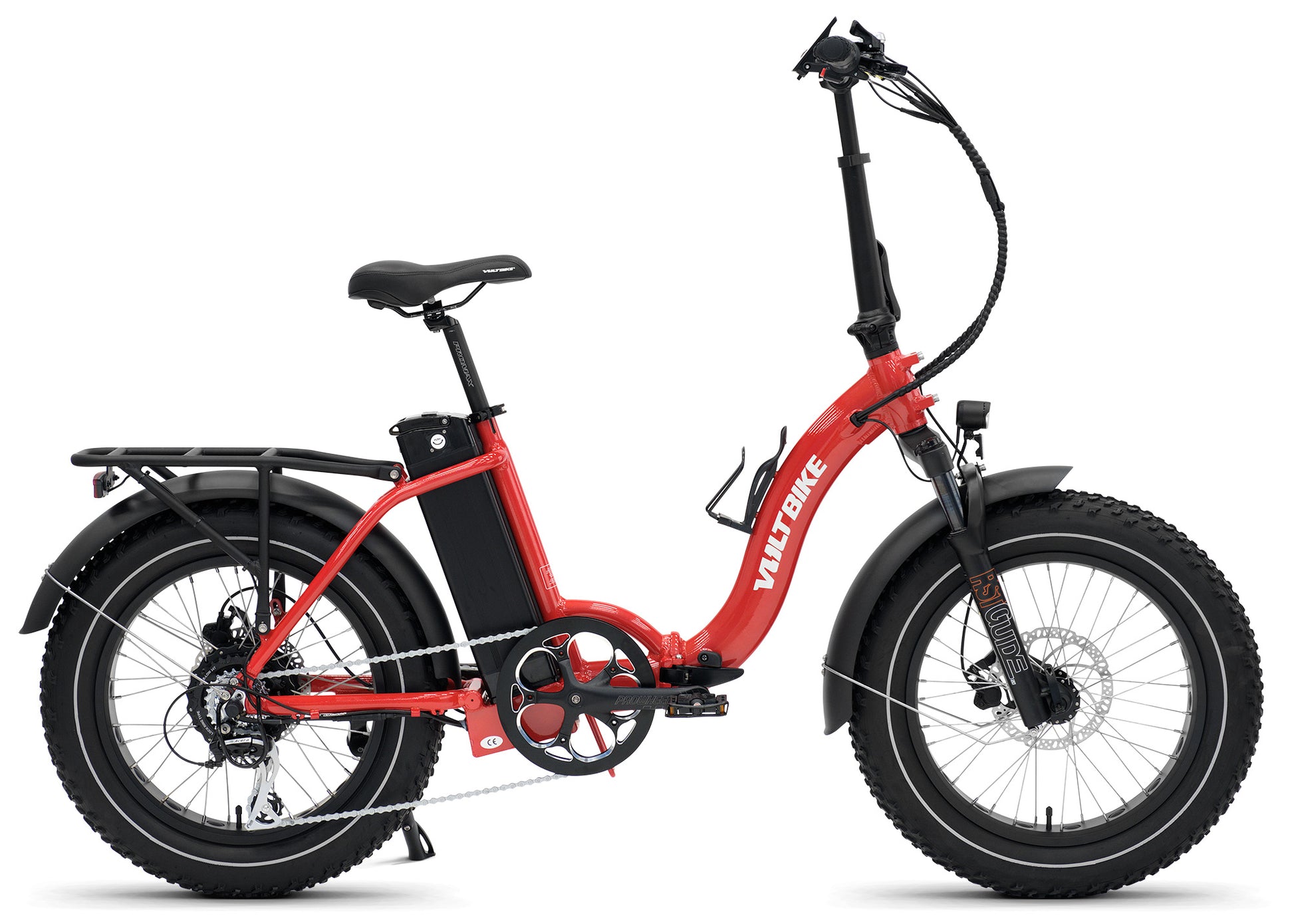

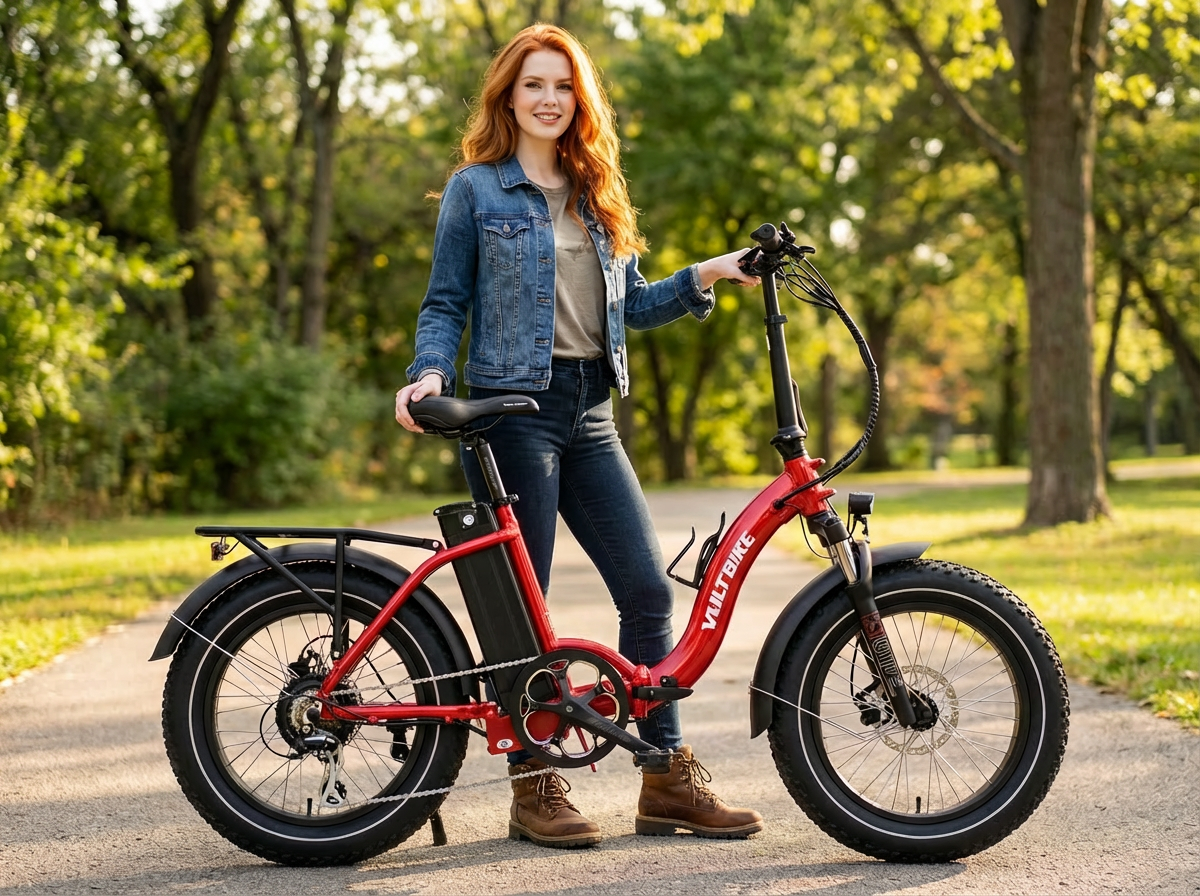

Mariner Step-Thru

Experience a seamless and enjoyable ride with the Mariner Step-Thru. Designed with a convenient step-through frame and a sleek, foldable design, this bike offers effortless manoeuvrability. This bike is propelled by a powerful 500w (750W peak) motor.

The latest version features a powerful 17.5 amp hour (with optional 20ah upgrade) Samsung Li-ion battery and comes equipped with metal fenders and a sturdy rear rack. All the fun of the Yukon 750 but in a smaller, foldable frame.

In stock and ships on the next business day.
Mariner-Step Thru in grey color is out of stock.
$1,749.00 CAD
$2,199.00 CAD $1,749.00 CAD
Sale Sold out
LCD Screen Upgrade
Bicycle Color
Battery Size
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

500W Pure Power

BAFANG is the world’s biggest manufacturer of hub motors for e-bikes. VoltBike Mariner is using Bafang G06 series geared motor which provides 80 N.m. max torque and up to 750w of peak power. The Bafang G06 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Long Range Battery

VoltBike Mariner is using 48v 17.5Ah (840Wh) battery pack with Samsung INR18650-35E cells. The battery pack is assembled by Phylion which is one of the largest battery manufacturers for eBike batteries with facilities in China, Europe and India.

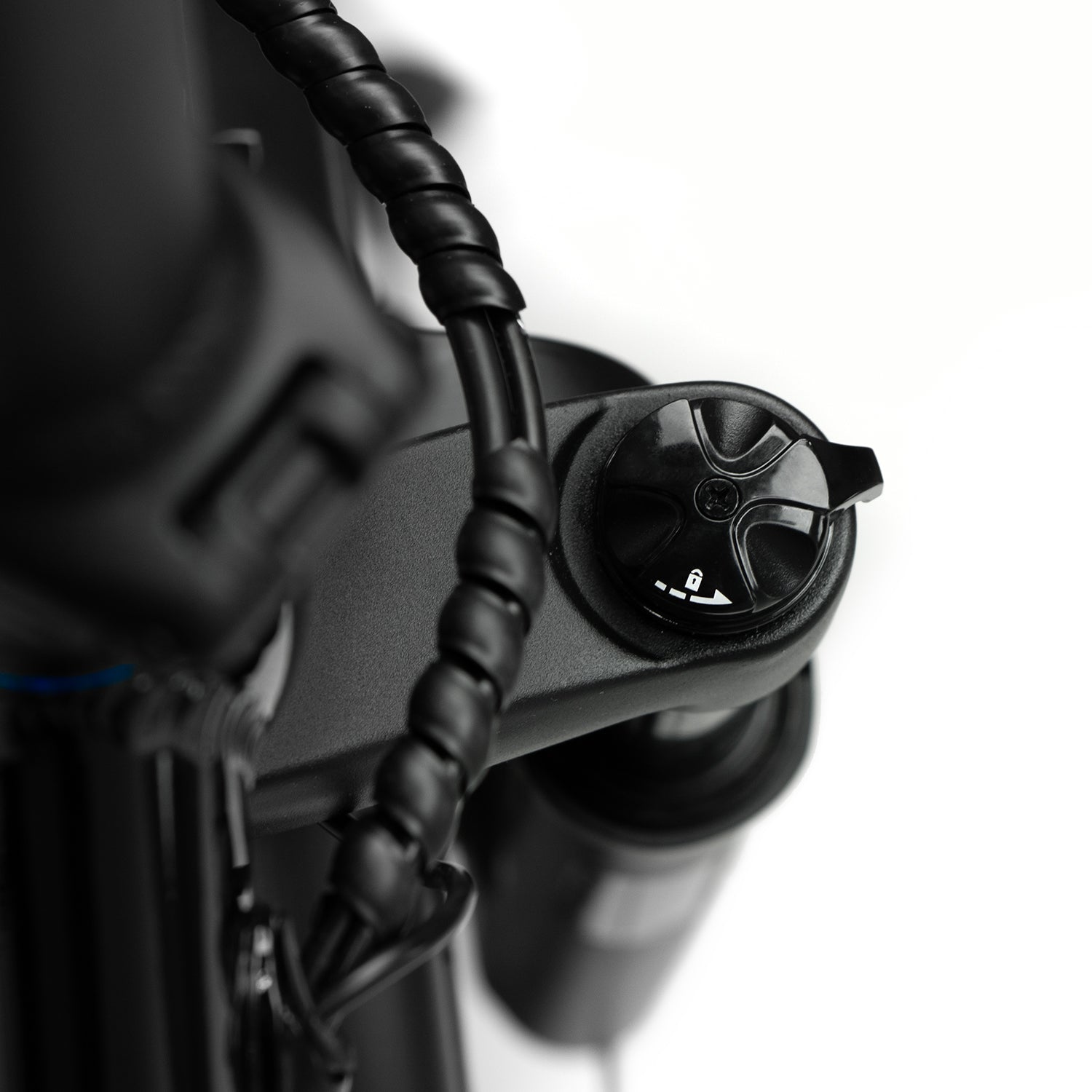

Extra Smooth Ride

Voltbike Mariner comes standard with lockout suspension Mozo FatMan-20 which can handle up to 5.2 inches wide tire. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

Sturdy Rear Rack and Mudguards

VoltBike Mariner comes standard with rigid metal fenders which can sustain the highest abuse on the trail. Also comes with rear rack which features extra wide tubing so you can carry more load compared to our rivals.

Puncture Resistant Fat Tire

Fat tire bikes provide improved grip and traction on the most troublesome terrain by adding extra contact surface. Voltbike Mariner comes with puncture resistant tires Kenda Juggernaut K-Shield. Reflective liners are adding extra visibility at night.

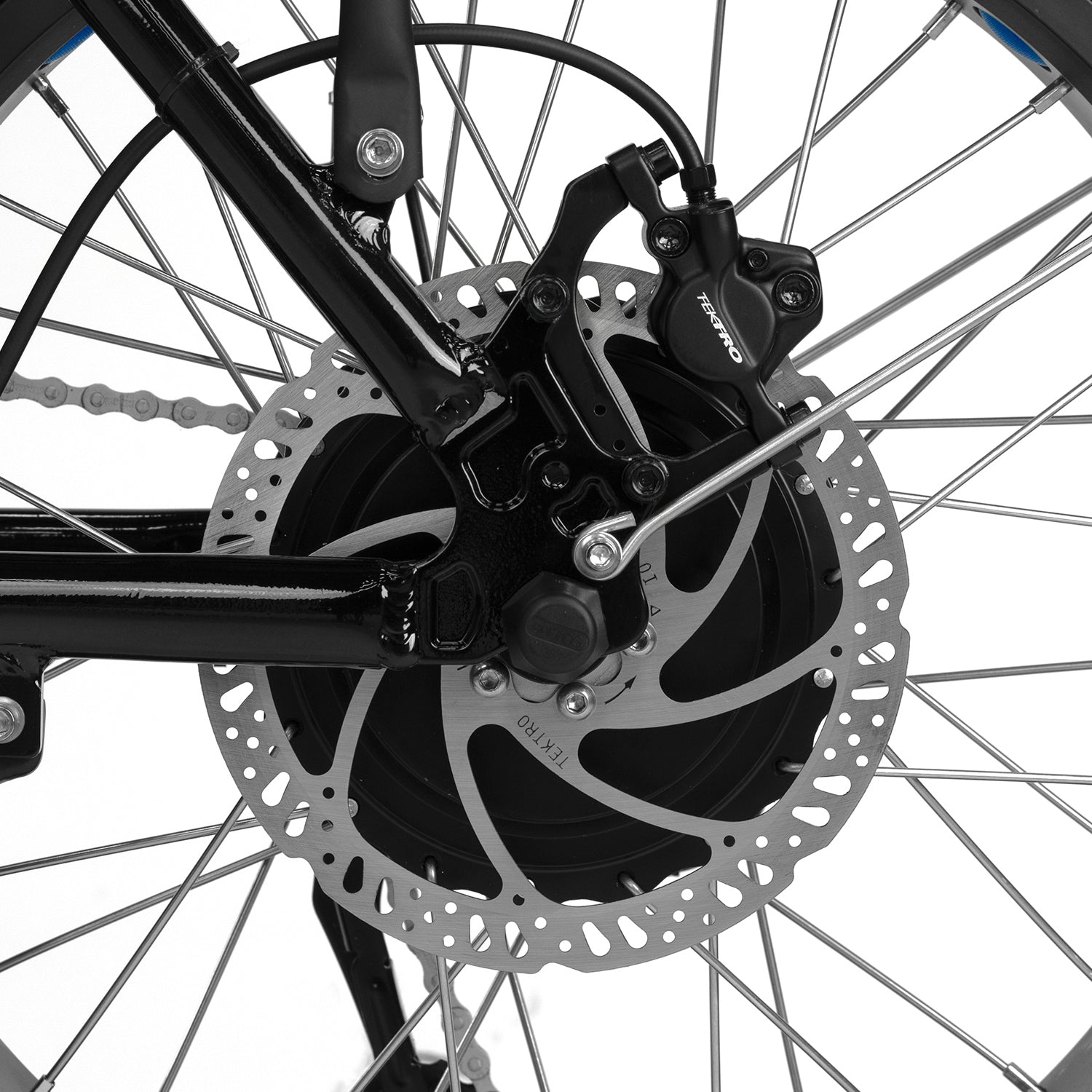

Hydraulic Stopping Power

Voltbike Mariner is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Always Visible

Mariner is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. Rear LED light powered using the main battery pack. Features brake light functionality that is activated any time the brakes are applied. Reflective tire liner ensures you are visible from the side.

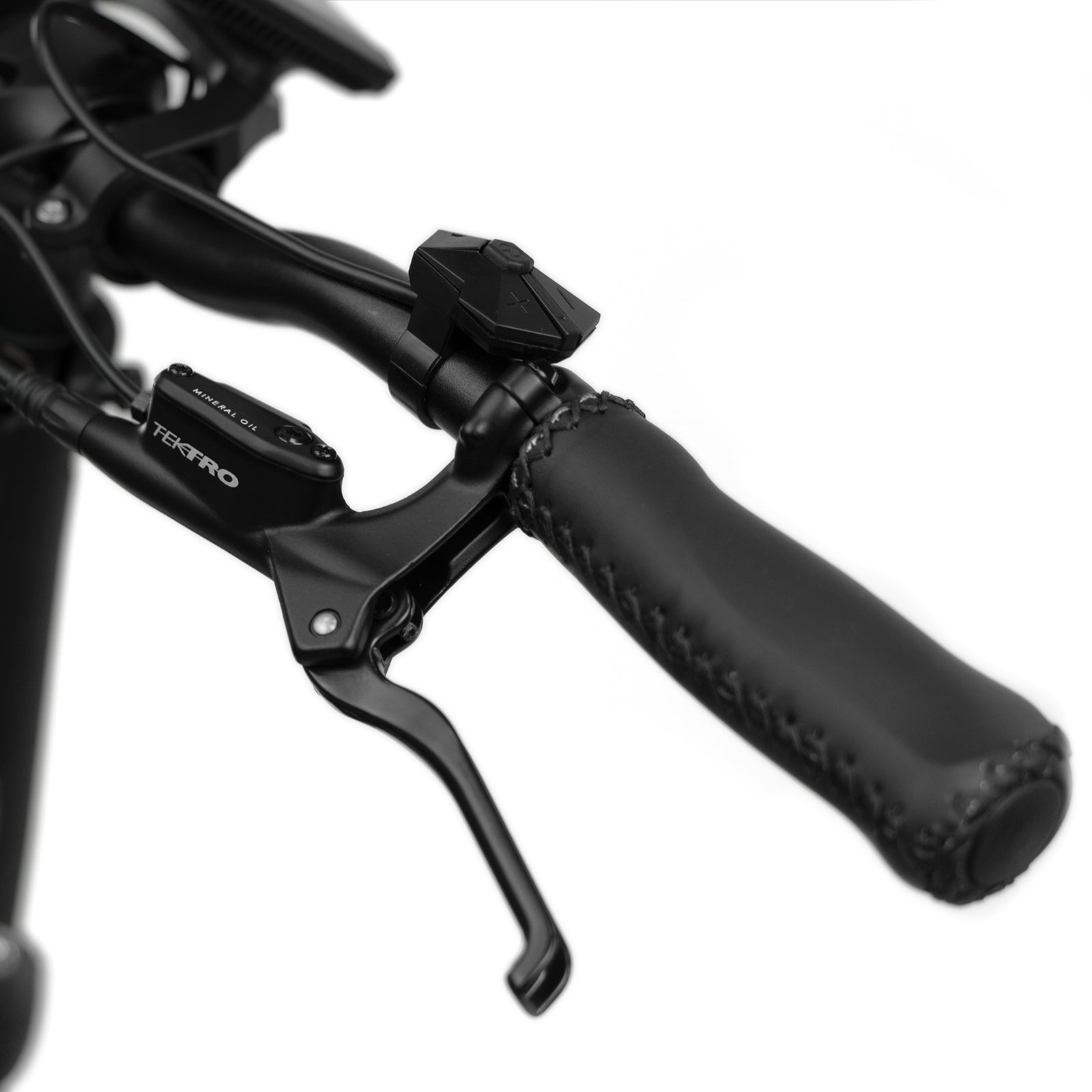

Simple Controls

Our redesigned cockpit includes large easy to read LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Easy to Fold

Mariner can be easily folded to fit anywhere and also saves space at home wherever you choose to store it! When folded it measures at only 45"x26"x19" (length x height x width).

Extremely Customizable

Customize your Mariner with over 20 VoltBike certified accessories. Choose a top tube bag to carry your cell phone or pannier bag to carry bigger cargo. Add front rack on your bike to carry even more load.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 68.0 lb
  • Battery 48V 17.5Ah (840Wh) Samsung Li-ion
  • Battery Style Slide-on
  • Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
  • Brake Lever Wuxing 108PDD+BS108 with safety power cut
  • Chain KMC Rust Buster
  • Crankset Aluminum Alloy-6061 52T Crank, 165mm with Outer Guard
  • Derailleur Guard Rear Metal Derailleur Guard
  • Fork Mozo Fatman-20 with 80-120mm travel
  • Frame Type Step-Through
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Hubset Alloy 6061 Electric Motor
  • Motor 48v 500W Hub Motor Bafang
  • Motor Type Hub Motor
  • Pedals Wellgo F-265T Folding Pedals
  • Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailler
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 20 inch with 36 spokes
  • Seat Velo VL-8020E
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 27.2mm*350mm
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Stem Aluminum Alloy SVMONO SM-A150-8R, diameter 28.6mm, bore: 25.4mm, weight: 520g
  • Tires Kenda Krusade K1188 20x4, Wire Bead

Fit & Size

  • Fit Guidelines

    Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.

    Suitable inseam range:

    < 25"     64cm
    26" 66cm
    28" 71cm
    42" 107cm
    44" 112cm
    > 45" 114cm

    Great fit with plenty of room for seat height adjustment.

    Good fit but potentially limited seat height adjustment or top tube clearence.

    Poor fit, frame is either too big or too small.

  • Sizing

    • aFrame Size: 17"
    • bStand-over Height: 15"
    • cReach: 18"
    • dTop-tube Length: 22"
    • eHandlebar Height: 43.5"-49"
    • fSeat Height: 31.5"-40"
    • gWheel Size: ⌀20"x4"
    • hWheelbase: 45.5"
    • iLength: 69.5"
    • jRear-Rack Dimensions: L13"xW6"
    • kFolded Dimensions: L38"xW24"xH29"
