Power
750W
Torque
80Nm
Range
80-100+ km
Top Speed
32km/h
Payload
320lbs

VOLTBIKE

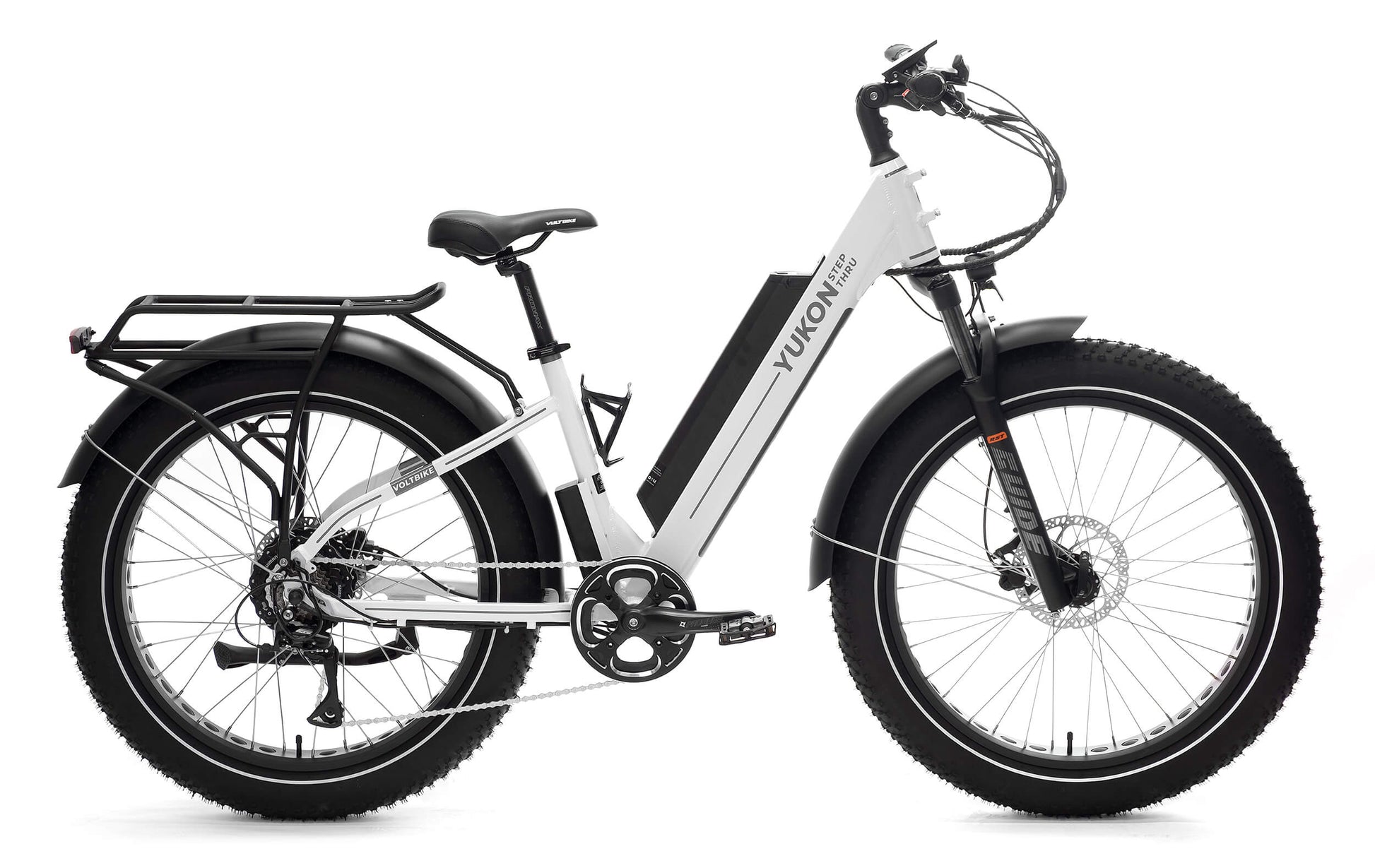

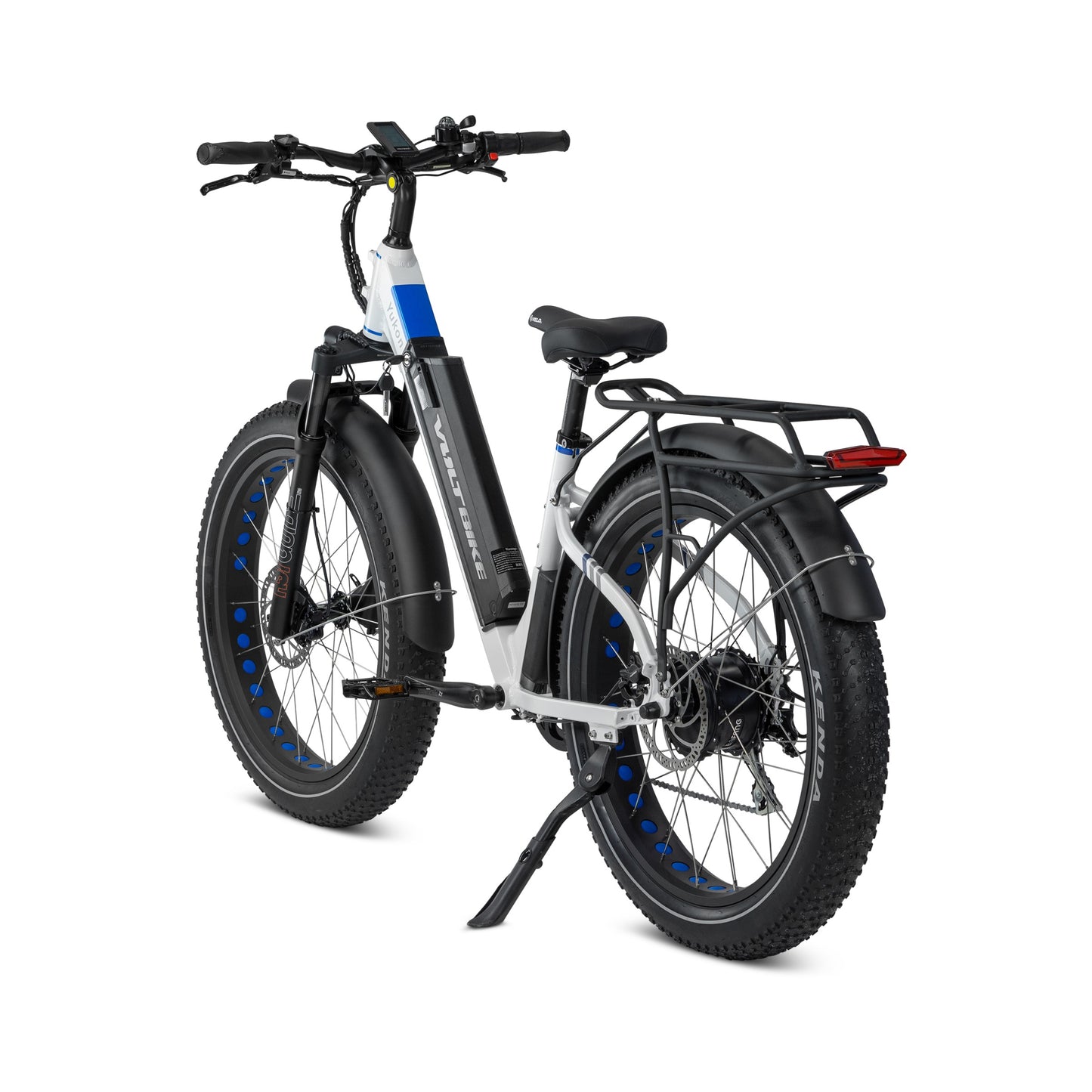

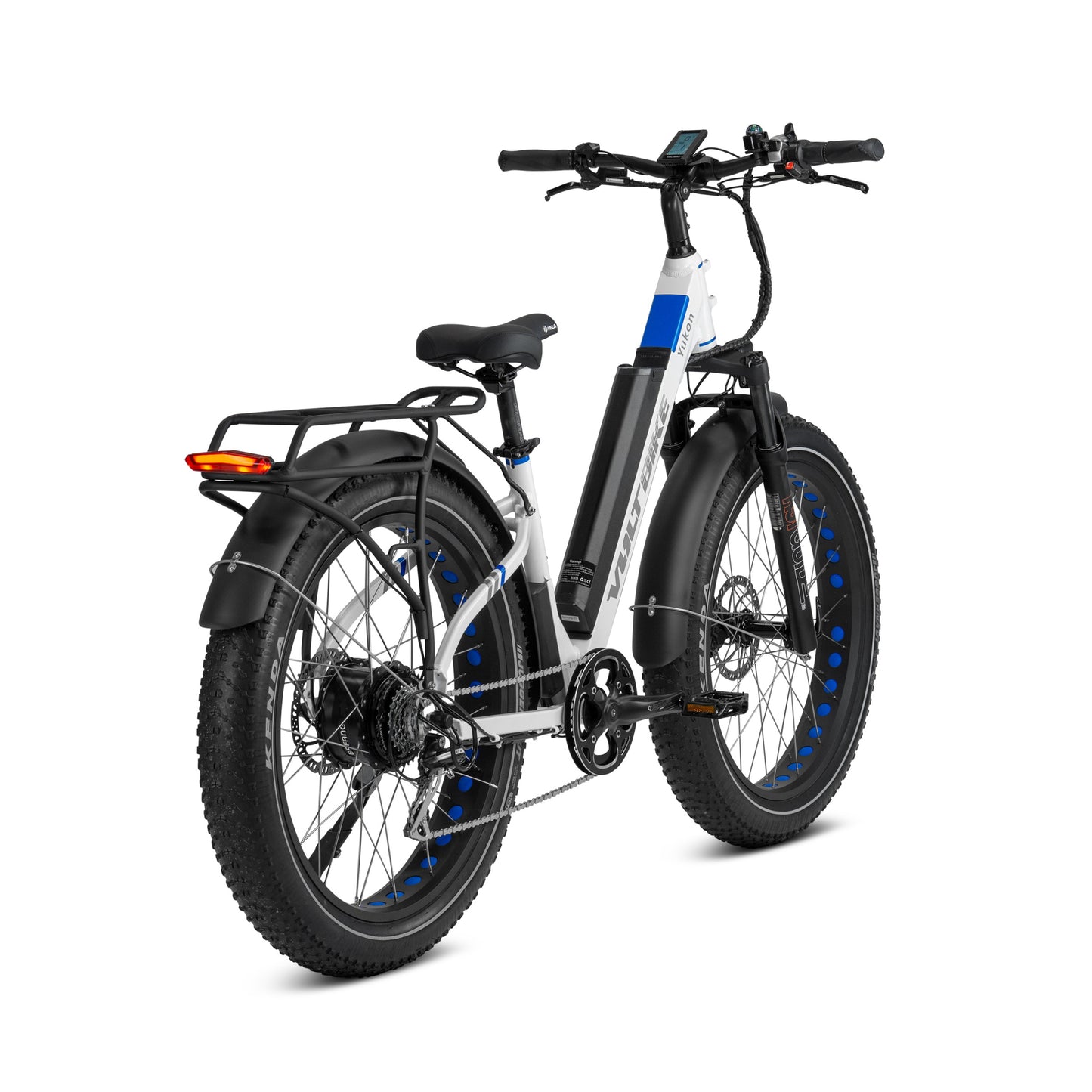

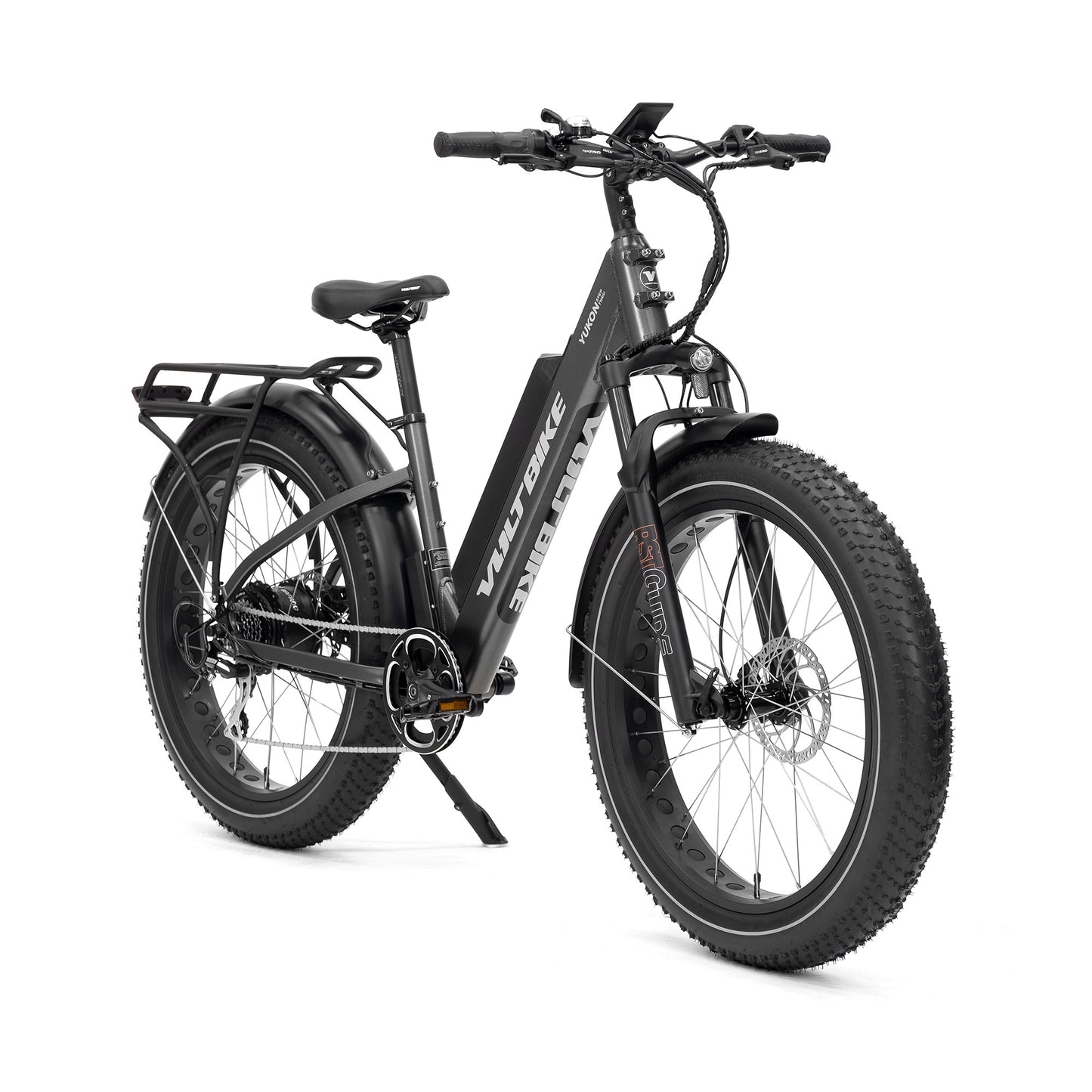

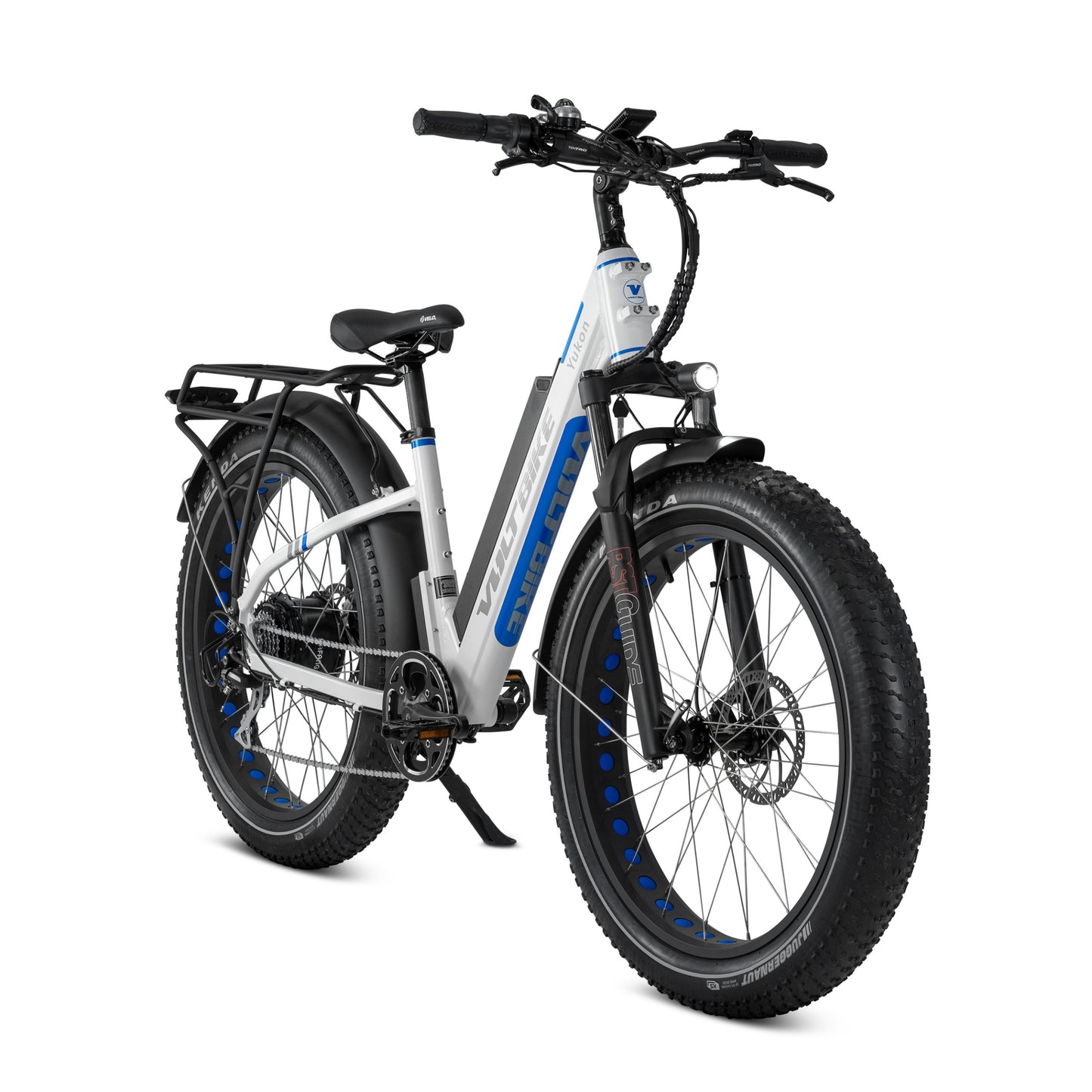

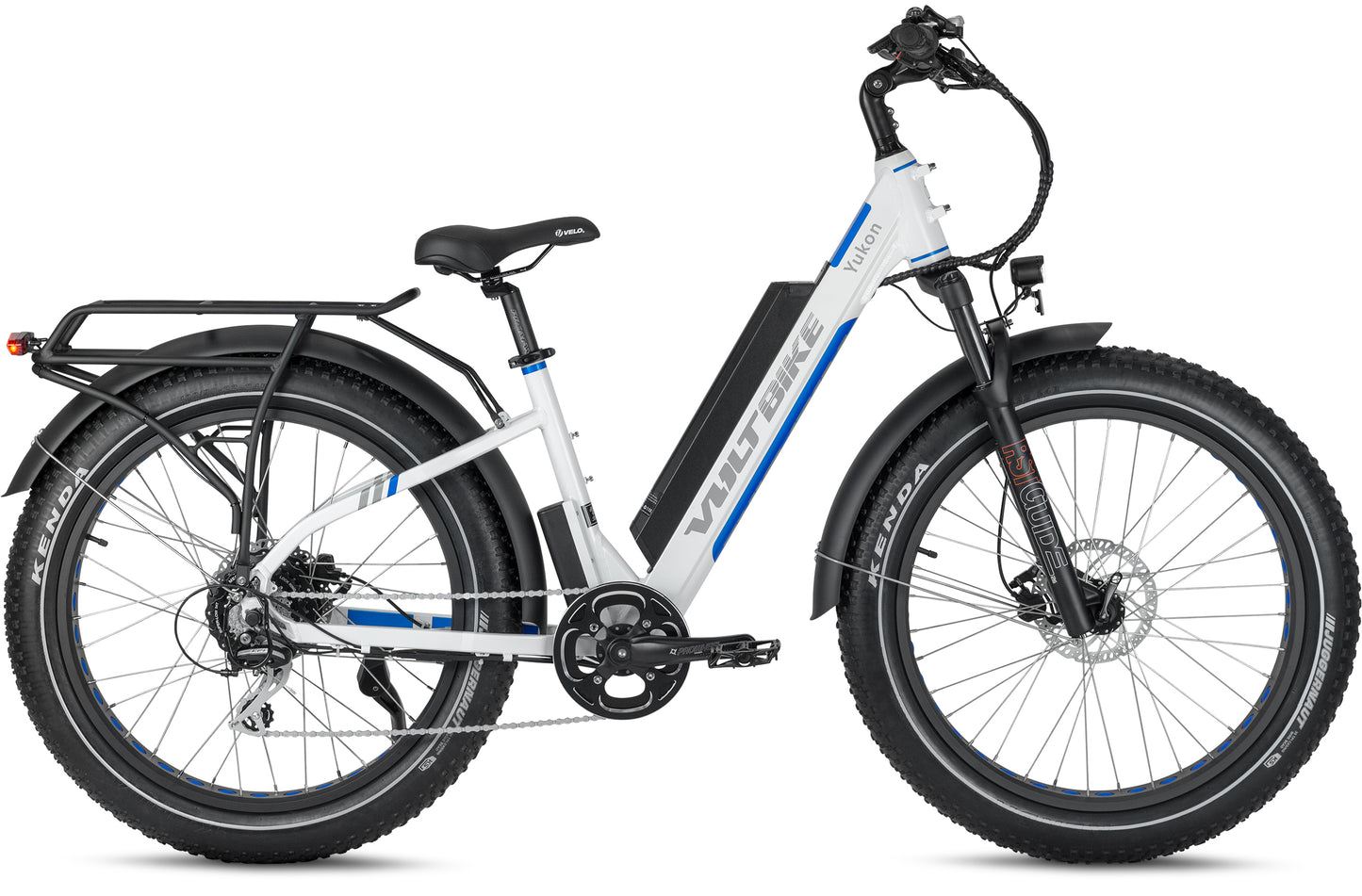

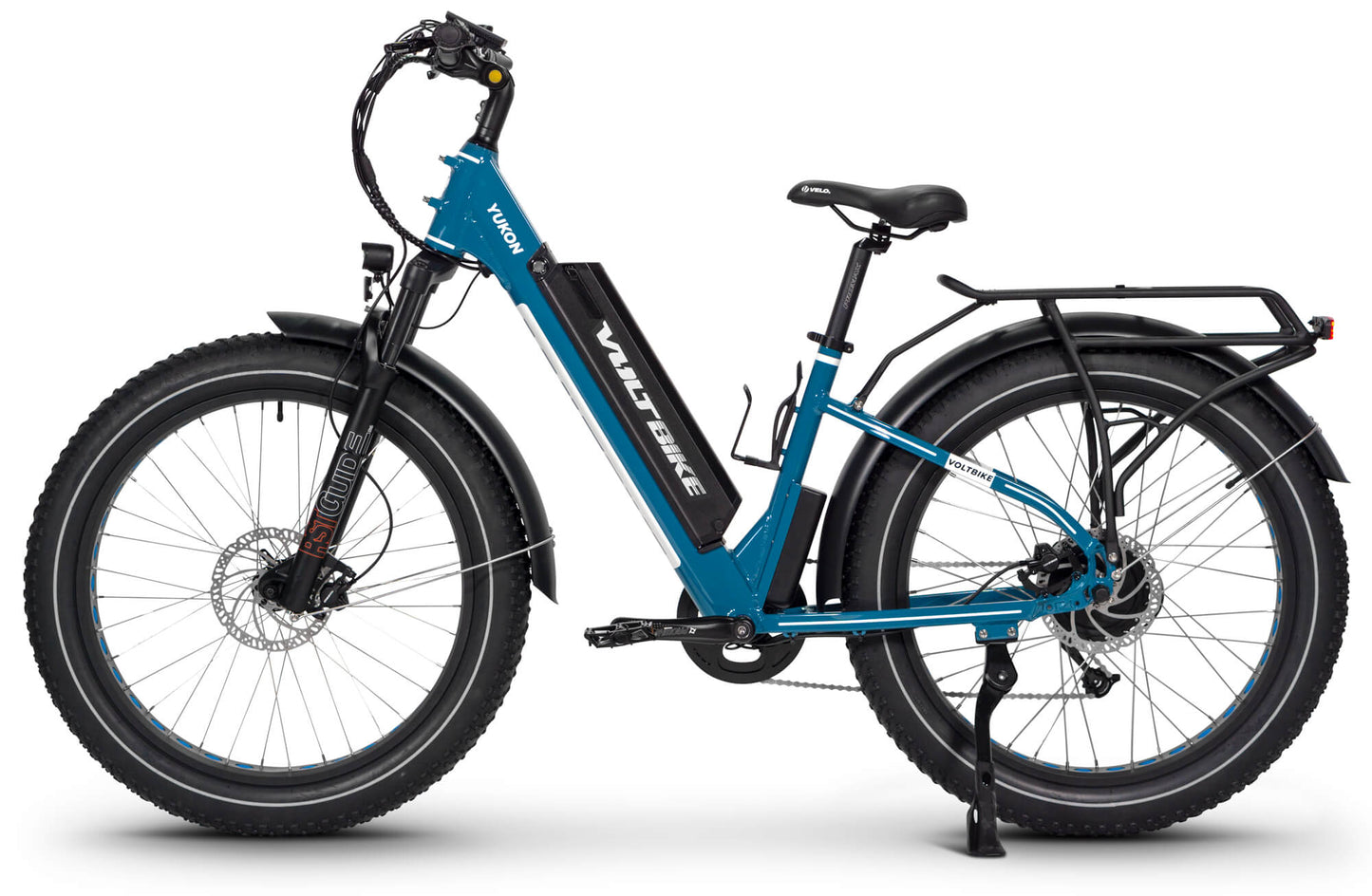

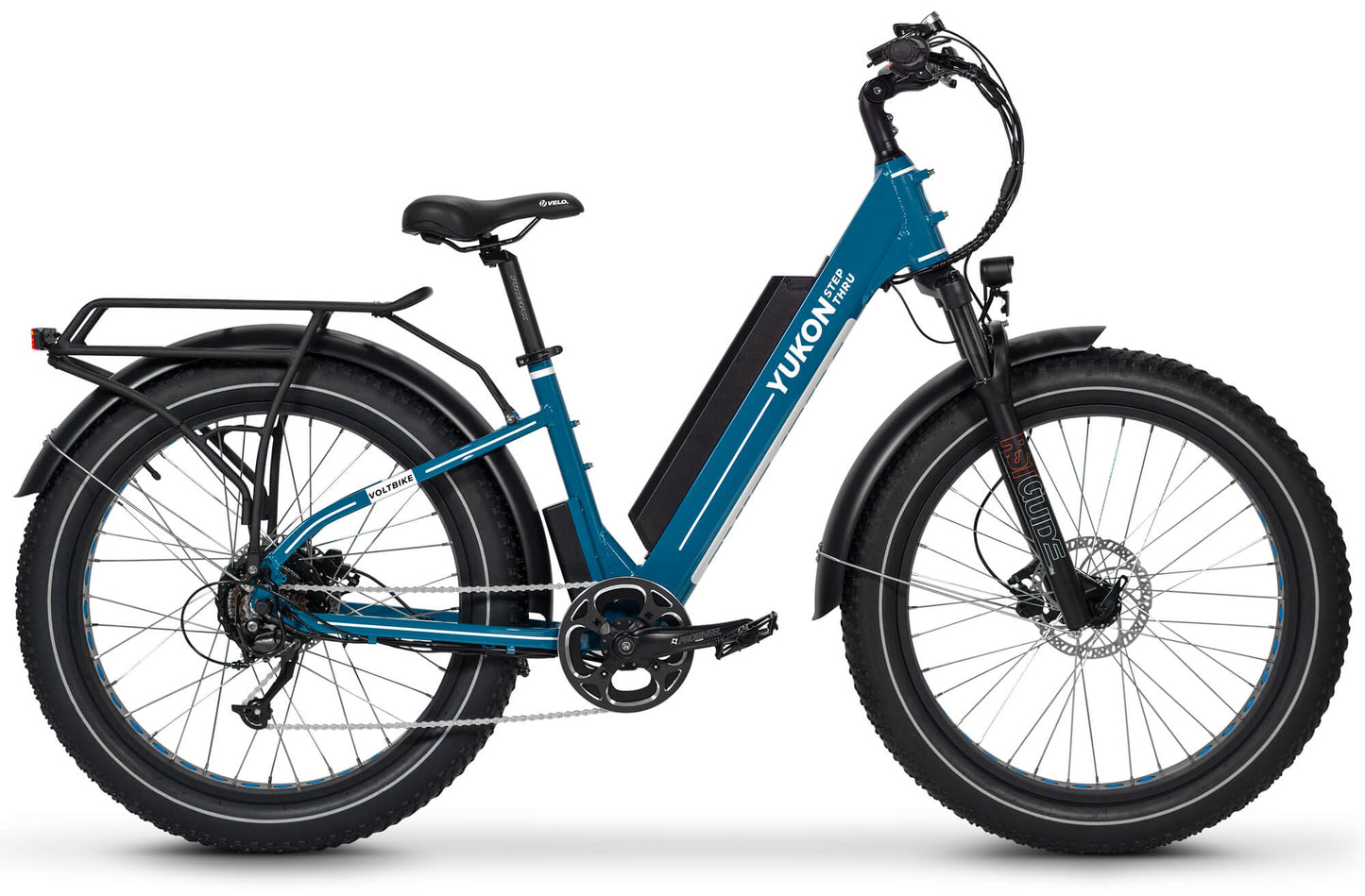

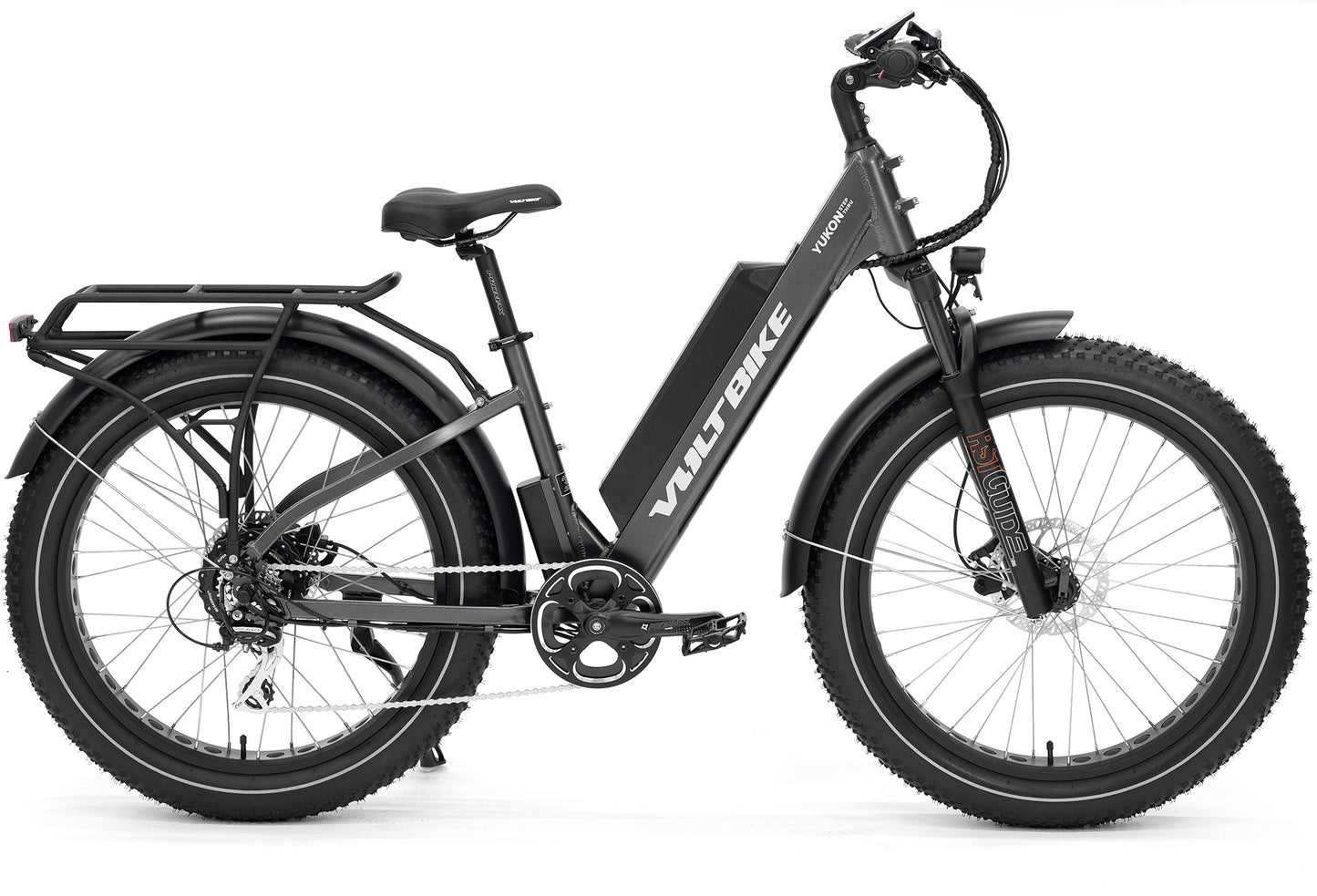

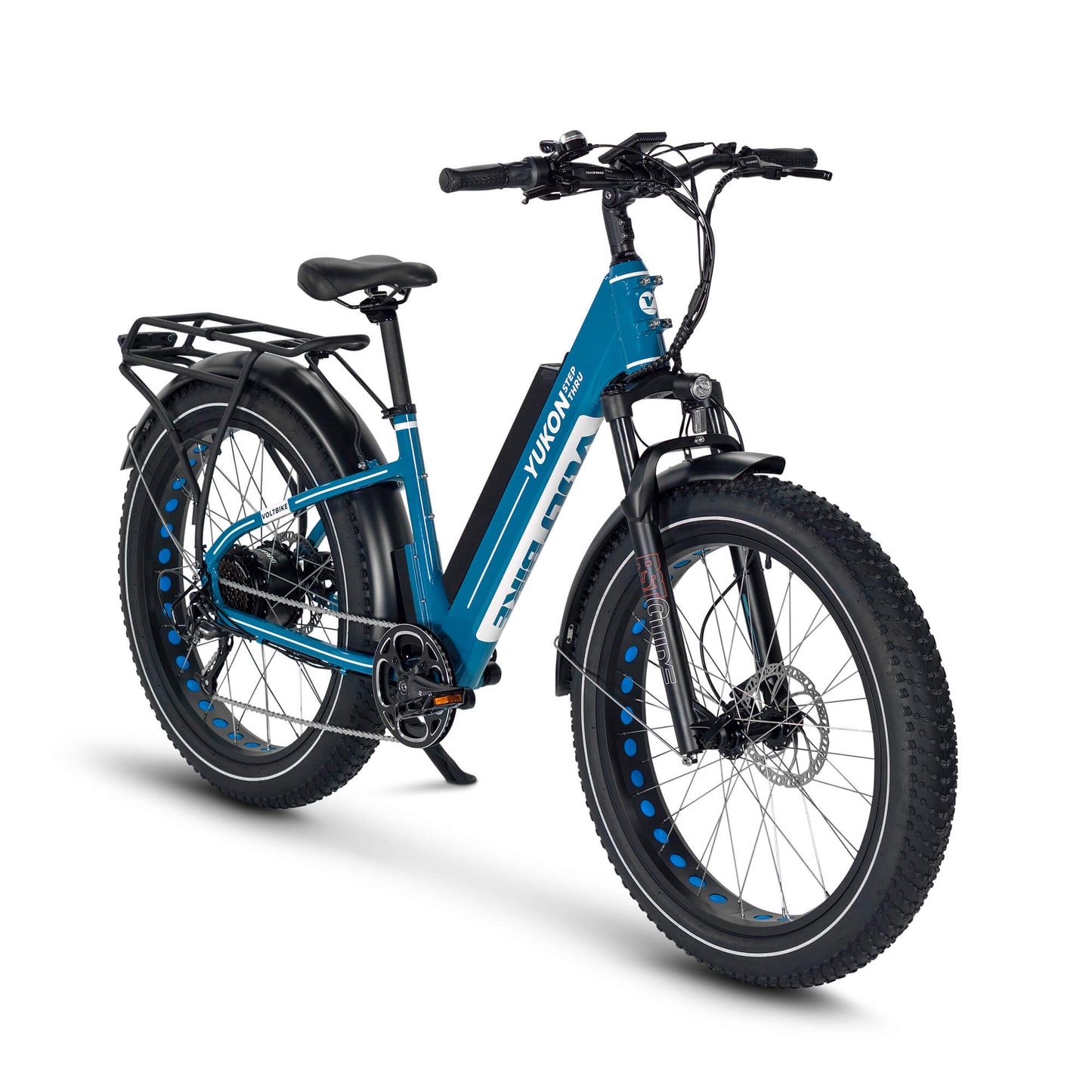

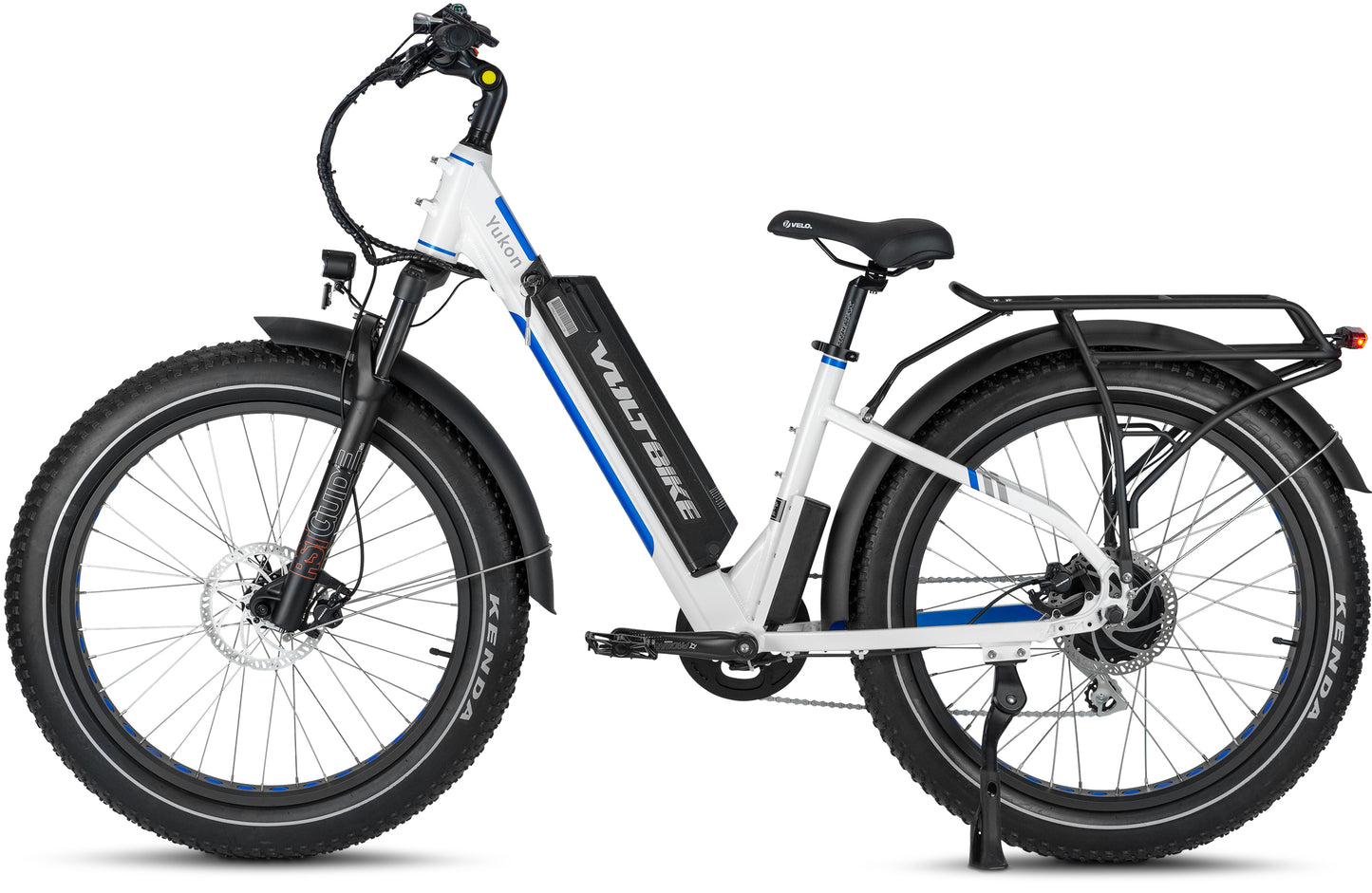

Yukon Step-Thru

Yukon Step-Thru

It’s got all the power and grit of the Yukon 750, our Best Seller, but with a frame that’s comfy to step onto making it easier to get up and away on your trusty electric bicycle. The Yukon Step-Thru features our 500w (750w peak) rear hub motor, matched with 4” wide Fat Tires which roll confidently over all sorts of challenging terrain. Regardless of the season, the Yukon is ready to face the challenge.
In stock and ships on the next business day.
$1,949.00 CAD
$2,409.00 CAD $1,949.00 CAD
Sale Sold out
Bicycle Color
Battery Size
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

500W Pure Power

BAFANG is the world’s biggest manufacturer of hub motors for e-bikes. VoltBike Yukon Step-Thru is using Bafang G06 series geared motor which provides 80 N.m. max torque and up to 750w of peak power. The Bafang G06 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Long Range Battery

VoltBike Yukon Step-Thru is using 48v 19.6Ah (950Wh) battery pack with Samsung INR18650-35E cells. The battery pack holds UL 2271 safety certification. Assembled by Phylion which is one of the largest battery manufacturers for ebike batteries with facilities in China, Europe and India. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Voltbike Yukon Step-Thru comes standard with lockout suspension Mozo FatMan which can handle up to 4.8 inch tire. Designed for quick release axles and bolt on axles for ease of use. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weighing a remarkable 7 lbs., this fork is ready to tackle anything you throw at it.

Sturdy Rear Rack

Standard for Yukon Step-Thru is aluminum rear rack with extra wide tubing. Rated for up to 50lbs of cargo this rack can fit any load with ease. Mounted directly on the rack is LED rear taillight with brake light functionality.

Step-Through Convenience

Step-through bikes are the easiest for riders to mount and dismount by simply stepping through the curved frame. VoltBike Yukon's aluminum step-through frame offers comfortable ride and is fun and enjoyable for your everyday routine. Elegant comes standard with water bottle holder which you can install or remove based on your need.

Hydraulic Stopping Power

Voltbike Yukon Step-Thru is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Backlit Color Display

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

Simple Controls

Our redesigned cockpit includes large easy to read LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Always Visible

Staying visible can significantly decrease your chances of being involved in a crash with a car. VoltBike Yukon is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. The integrated rear LED light is powered using the main battery pack. The taillight features brake light functionality that is activated any time the brakes are applied. Reflective sidewall tires ensures you are visible from the side.

Extremely Customizable

The authentic VoltBike accessories are a great way to customize your ride while making it more functional. Whether you enjoy leisure biking through parks or riding on a busy city streets, the VoltBike accessories will make your bike more tailored to the way you ride. Choose a top tube bag to carry your cell phone, or front rack to load your cargo, side pannier bag for convenient storage or bike lock to secure your bike.

Recommended Accessories

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 72.0 lb
  • Battery 48V 20Ah Li-ion (960Wh) Samsung cells. UL 2271 certified. Assembled by Phylion.
  • Battery Style Clip-on
  • Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro HD-E350
  • Brake Lever Tektro Auriga with safety power cut
  • Chain KMC Rust Buster. 12.7mm pin to pin center. 124 links. Total length 1547.8mm.
  • Crankset Aluminum Alloy-6061 44T Crank, 170mm with Outer Guard
  • Derailleur Guard Rear Metal Derailleur Guard
  • Fork RST Guide aluminum alloy suspension with lockout. 90mm travel. (Upgradeable to RockShox Bluto)
  • Frame Type Step-Through
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Front Light Spanninga Kendo+ LED 30 Lux. Powered by the main battery and controlled from the keypad.
  • Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree
  • Hubset Alloy 6061 Electric Motor
  • Motor 500W (750W Peak) Hub Motor
  • Motor Type Hub Motor
  • Pedals Wellgo LU-313 with reflectors
  • Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailleur
  • Rear Light LED brake light. Powered by the main battery and activated any time the brakes are applied.
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 26 inch with 36 spokes
  • Seat Velo Plush VL-6142
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 30.4mm*350mm
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Spokes Front 12G, Rear 13G
  • Stem PROMAX MODEL MA-596 with adjustable angle 35° - 145°. 105mm extension with bar bore 31.8mm.
  • Tires Kenda Juggernaut 26x4 KS Shield, Wire Bead, 30 TPI casing. Puncture resistant layer.

Fit & Size

  • Fit Guidelines

    Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.

    Suitable inseam range:

    < 26"     66cm
    27" 69cm
    29" 74cm
    43" 109cm
    45" 114cm
    > 46" 117cm

    Great fit with plenty of room for seat height adjustment.

    Good fit but potentially limited seat height adjustment or top tube clearence.

    Poor fit, frame is either too big or too small.

  • Sizing

    • aFrame Size: 17"
    • bStand-over Height: 23"
    • cReach: 15"
    • dTop-tube Length: 21"
    • eHandlebar Height: 44.5"-46.5"
    • fSeat Height: 32.5"-39"
    • gWheel Size: ⌀26"x4"
    • hWheelbase: 47.5"
    • iLength: 75"

Frequently asked questions

Some questions and answers are automatically generated.

Is there any difference between Yukon 750 Limited and Yukon Step-Thru?
The Yukon 750 Limited and Yukon Step-Thru are the same bike with the same components. The only difference is in the frame design: the Yukon Step-Thru has a step-thru frame, while the Yukon 750 Limited has a top bar frame.
I don't like the fat tire. Is there a smaller tire available?
Yes, we offer two alternative tire options for the Yukon models. The Kenda Havoc tires and the Kenda Kinption tires are both 26x3" semi-fat tires, which are smaller than the standard 26x4" fat tires. Because they use different rim sizes, this choice must be made before purchasing. Once you decide on a frame style, changing to different tire sizes would require purchasing a new set of rims as well.
How far can I ride on a single charge?
Many reviewers report impressive range. One customer completed a 34 km level ride with the battery dropping only one bar, and another completed four one-hour trips on a single charge. Range varies with terrain, assist level, and battery configuration, but customers consistently praise the extended riding capability.
Does this bike handle hills well?
Yes. Multiple reviewers specifically note that the Yukon climbs hills with ease and minimal effort, even for heavier riders. The 500w (750w peak) rear hub motor is strong enough to tackle steep grades without pedaling becoming difficult.
Is the step-through frame easy to mount?
Most reviewers praise the step-through design for how much easier it makes mounting and dismounting compared to a standard frame. One reviewer noted it's much easier than throwing a leg over the seat, though a few mention that the battery takes up some space in the frame, making the step-through slightly tighter than expected.
How heavy is this bike to handle?
Reviewers describe the Yukon as sturdy and built like a tank, and several note it is quite heavy. A few mention that weight is noticeable when stationary or starting from a stop, but once moving, the bike feels agile and manageable. One reviewer suggests keeping the kickstand handy to avoid tipping.
What terrain can it handle?
The 4-inch fat tires perform well across varied terrain. Reviewers report confident riding on paved trails, gravel paths, single-track, and rough surfaces. The wide tires provide stability and cushioning, making the bike suitable for challenging conditions and all-season riding.
Is assembly quick and straightforward?
Yes. Most reviewers report the bike arrives mostly assembled, requiring only final touches like attaching handlebars and pedals. Several mention this takes just a few minutes, and that assembly tools are included, making the process simple even for first-time e-bike buyers.
Is the bike suitable for seniors?
Yes. An 83-year-old reviewer rides daily, and multiple customers in their senior years report renewed enjoyment of cycling. The step-through frame, easy power assist, and sturdy construction make it accessible for older riders, though some may prefer an upgraded seat for comfort on longer rides.
Is value for money good?
Reviewers consistently call out strong value, comparing the Yukon favorably to other e-bikes in its class. Multiple customers note the price is reasonable for the quality, power, and features offered, and several mention the bike often ships with extras like a free helmet and trunk bag.
Does the seat provide comfort on longer rides?
The stock seat receives mixed feedback. Some reviewers find it adequate, while others note it could be better. The manufacturer offers an upgraded seat option that reviewers praise for comfort and stability, and some customers recommend considering this upgrade if you plan frequent or long rides.
How well packaged does it arrive?
Reviewers consistently praise the packaging for protection and attention to detail. Multiple customers report their bikes arrived with no damage despite long-distance shipping, with generous padding and secure boxing ensuring the bike and components arrive in excellent condition.

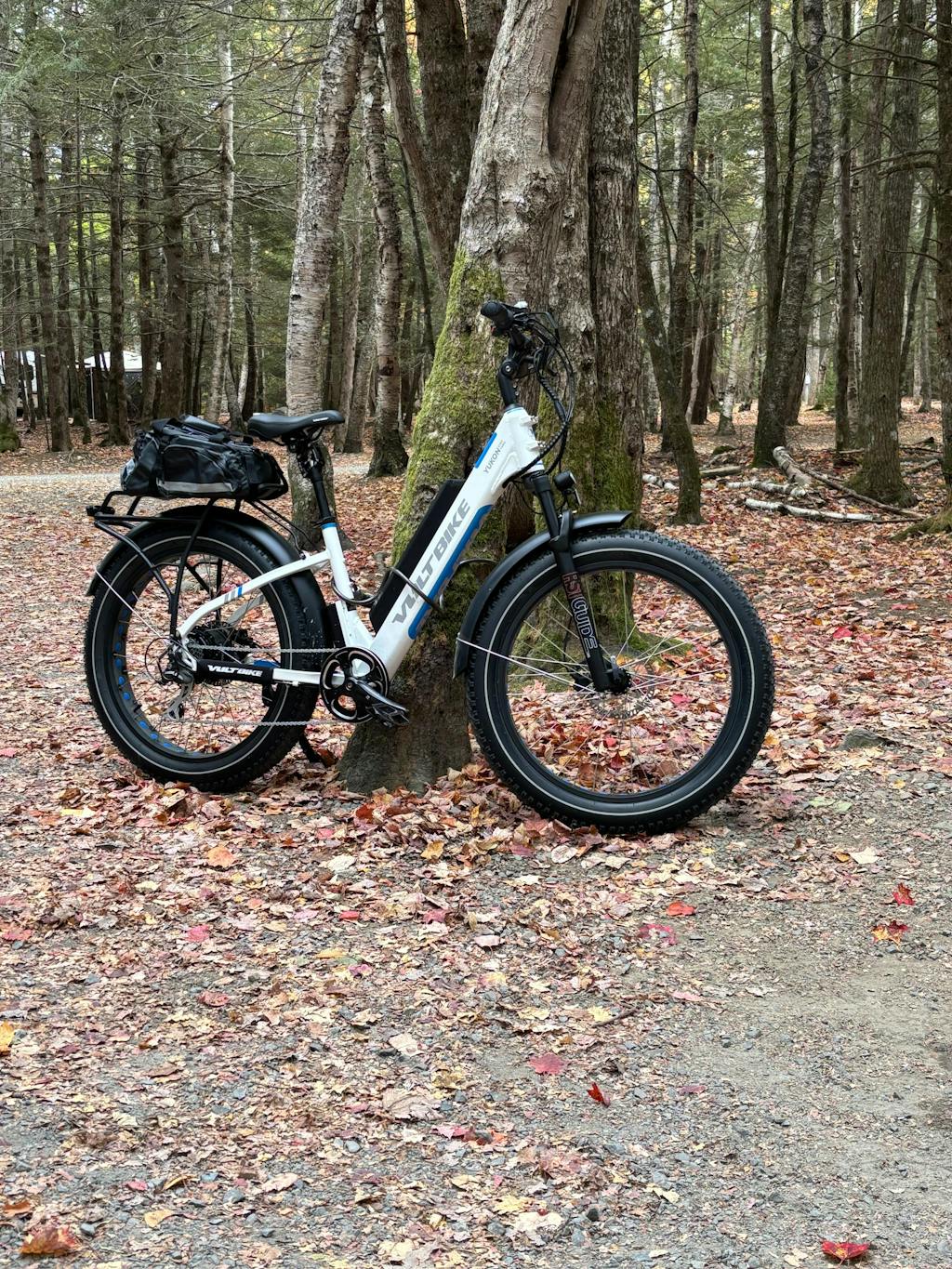

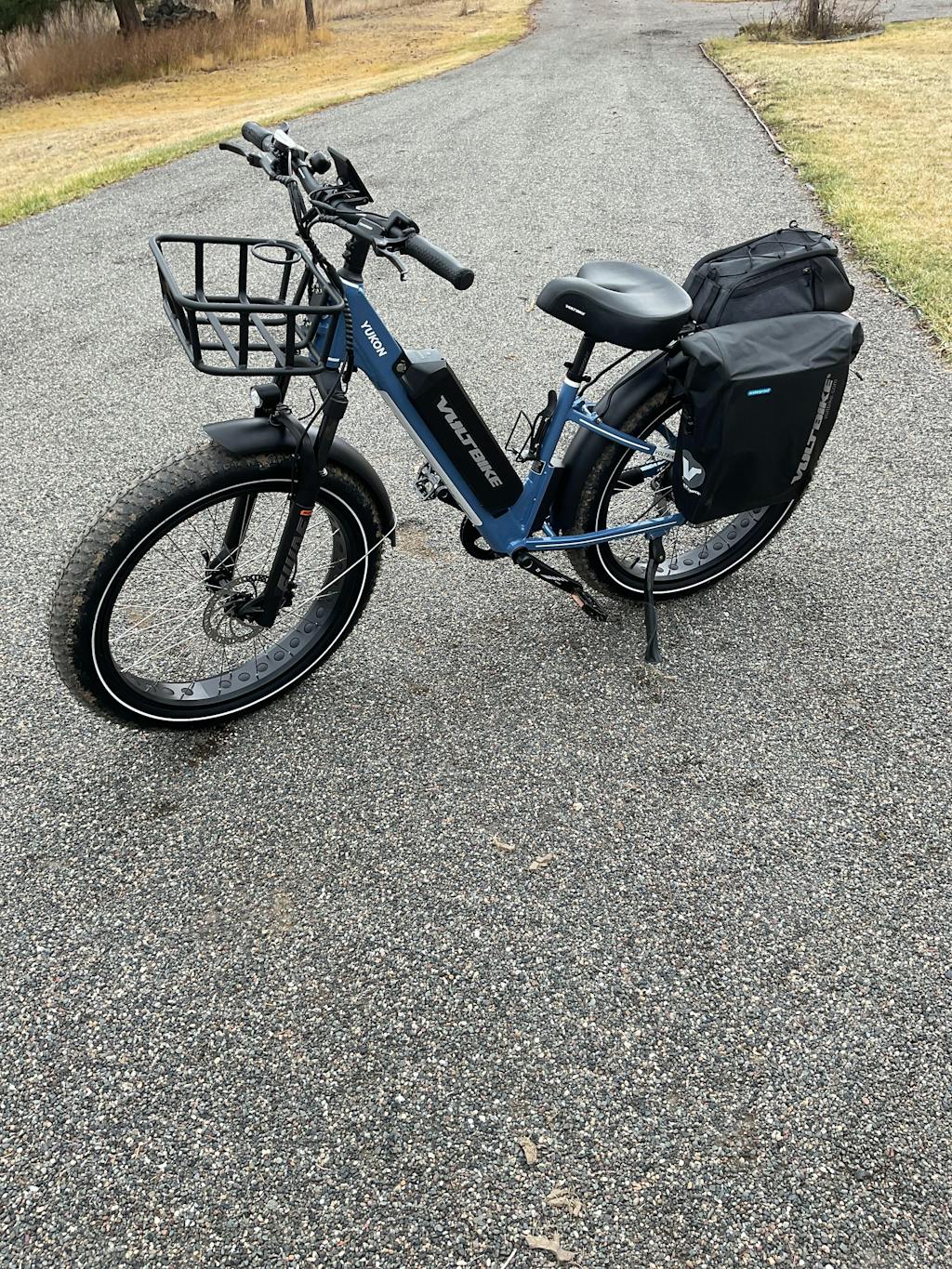

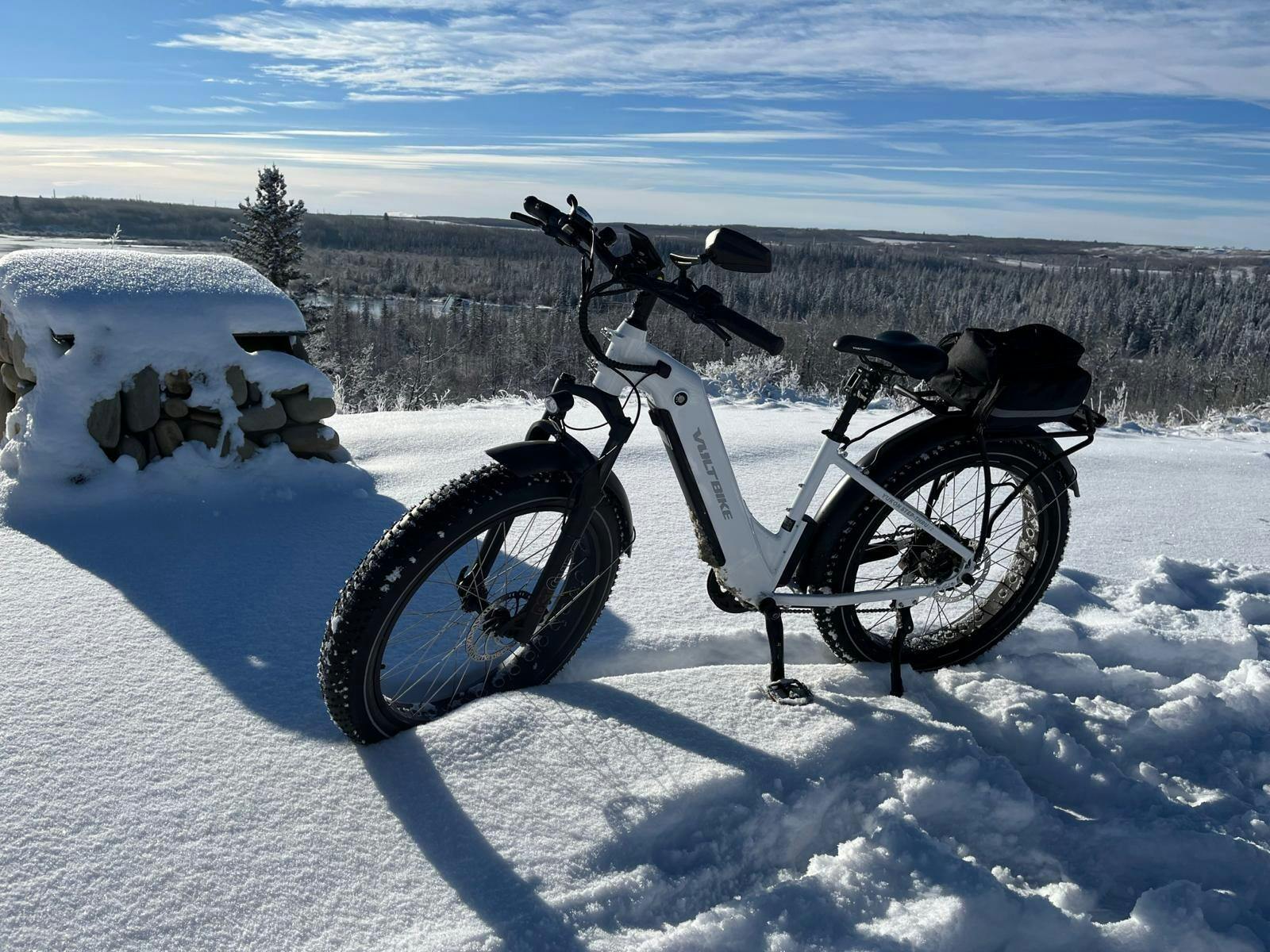

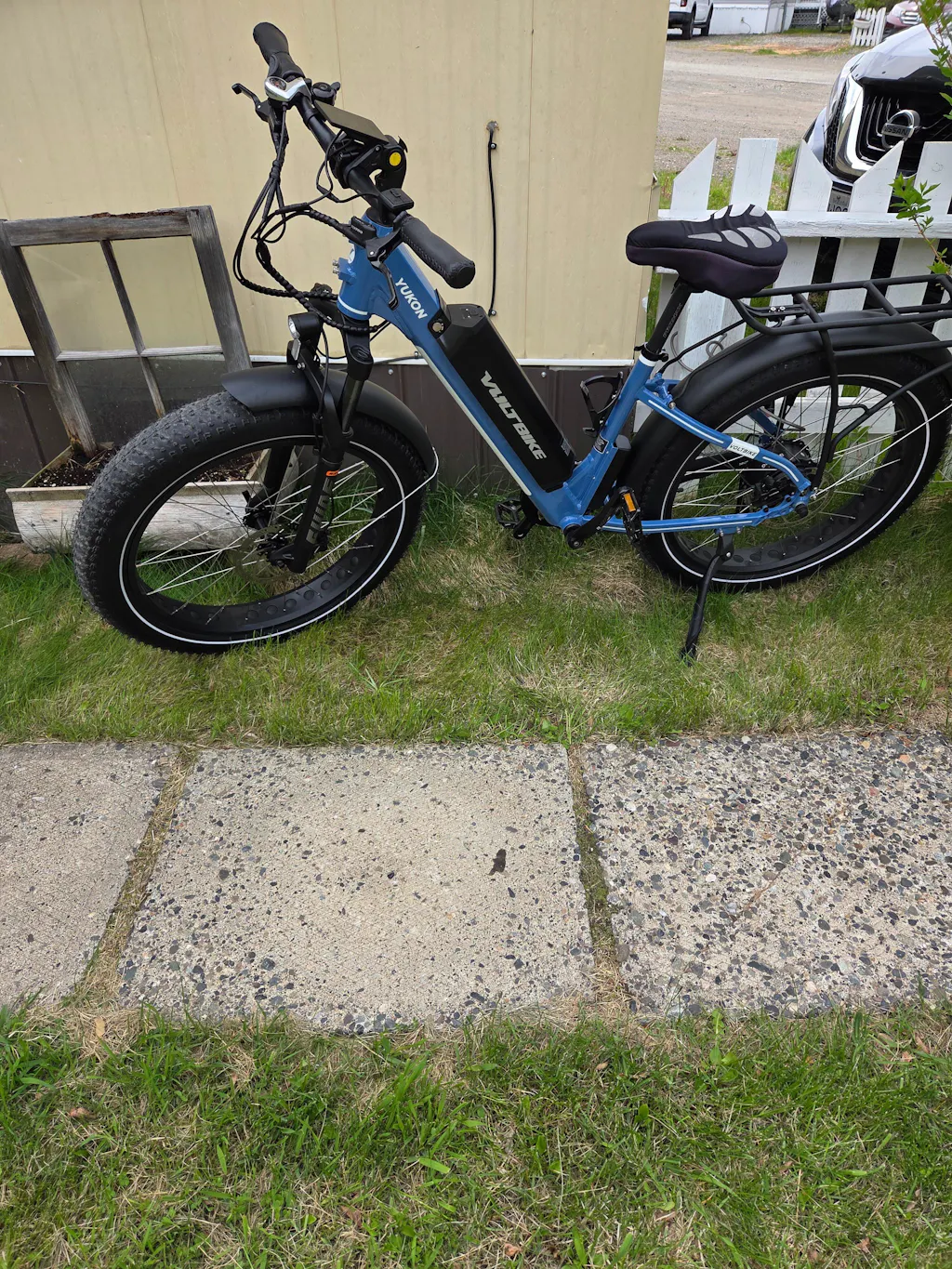

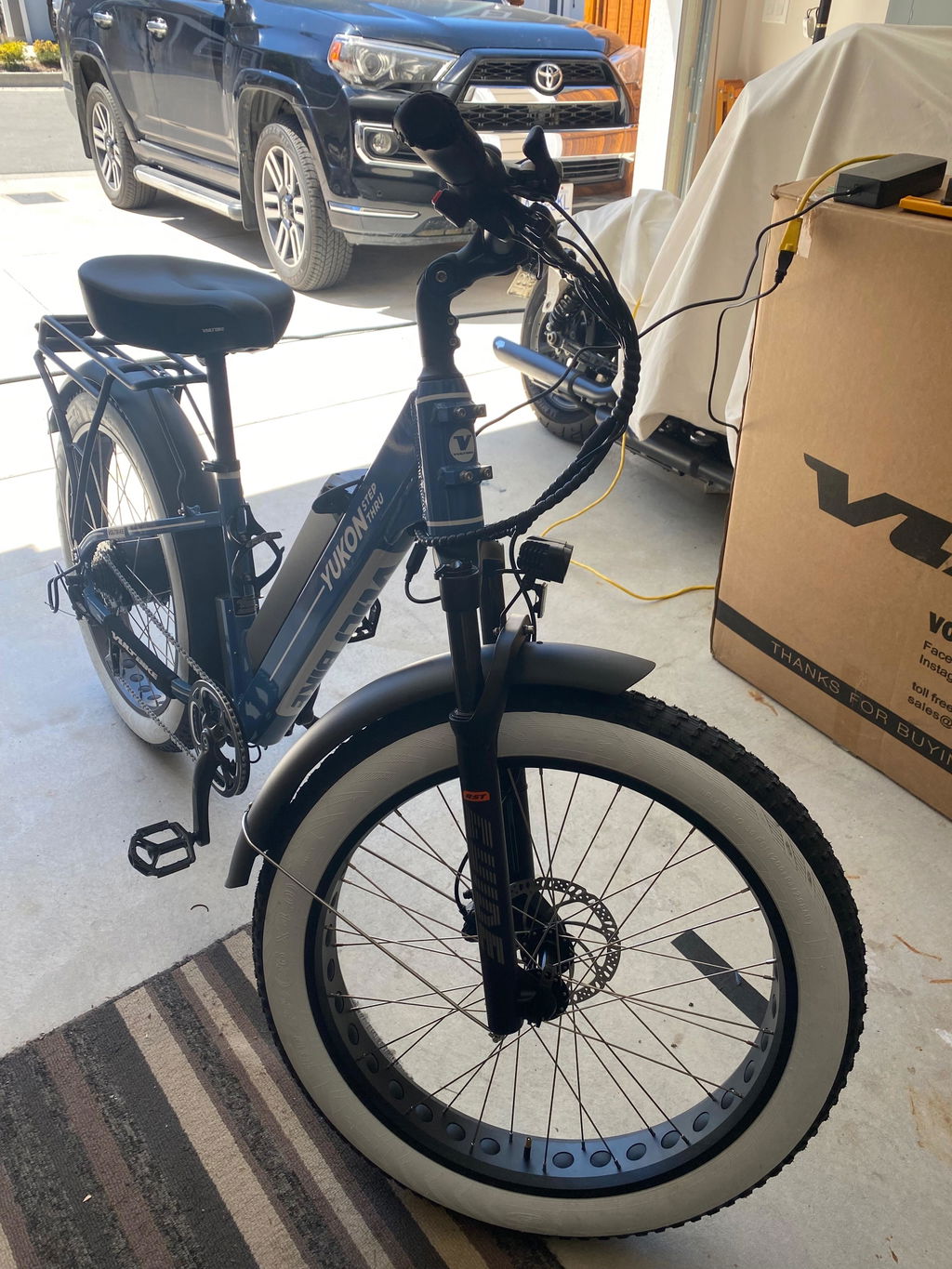

Customer Photos
