750W
160Nm
60-80+ km
32km/h
320lbs

VOLTBIKE

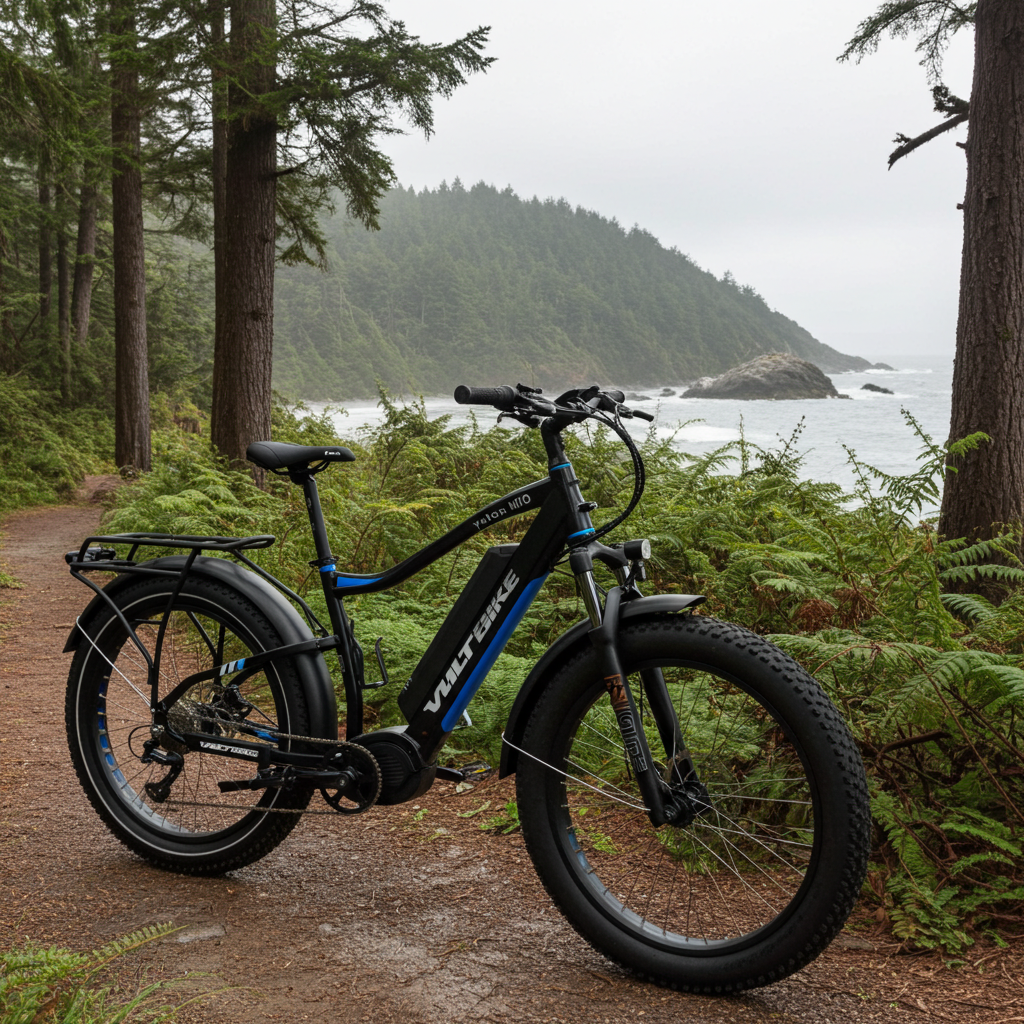

Yukon Core

Yukon Core

With the greatest performance, power, and adaptability of any VoltBike model, the Yukon Core is engineered to remove barriers. Featuring the signature cutting-edge M620 mid-Drive system with torque and cadence sensing. The Core has double the torque of our best-selling Yukon 750 model!

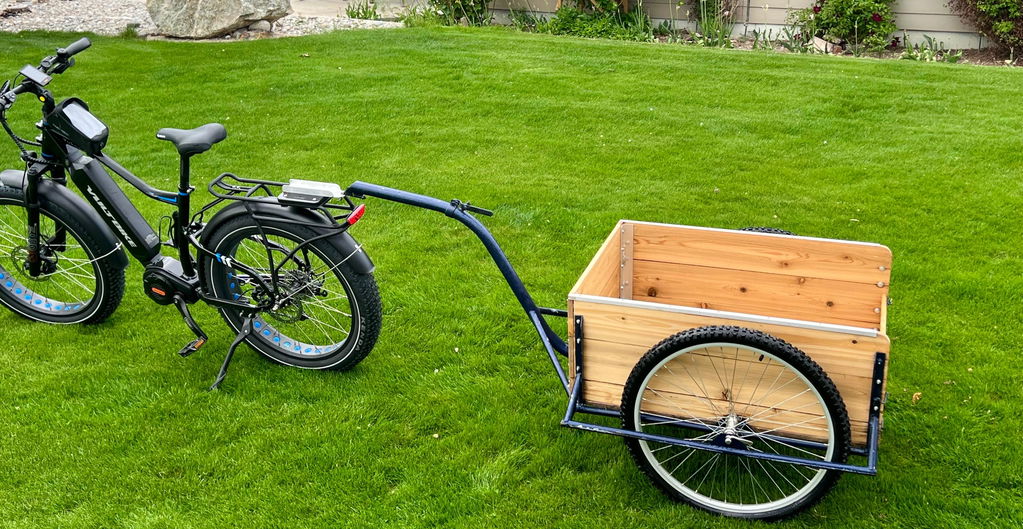

Delivering extremely natural feeling just like a non-motorized bike. Perfect for conquering big hills, or towing a bike trailer.

Comes with a 19.2Amp hour (or larger) Li-ion battery to power this extremely strong motor.  We've paired this with hydraulic brakes, a large colour LCD screen and SRAM X5 9 gears clutch rear derailleur, Yukon Core brings absolute versatility and strength.

In stock and ships on the next business day.
Regular price $2,899.00 CAD
Regular price $3,299.00 CAD Sale price $2,899.00 CAD
Sale Sold out
Bicycle Color
Battery Size
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

500W Power / 160Nm Torque

Would you like a little more? The M620 motor with 500 watts rated power, 160Nm of torque, just 5.3kg - always delivers top performance and is the first choice for electric cargo and modern eMTBs. With its triple sensor system (1 torque, 2 speed sensors) it reacts with lightning speed to your pedal-power input and delivers impressive support at all times. Voltbike Yukon Core is using mid-drive motor Bafang M620 48v 500w.

Samsung Battery

VoltBike Yukon Core is using 48v 19.2Ah (921Wh) battery pack with Samsung INR18650-35E cells. Samsung SDI’s superb cell balance technology contributes to the uniform quality of the packs and driving units, and ultimately to the quality of the e-bike. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Voltbike Yukon Cores comes standard with lockout suspension RST Guide which can handle up to 4.8 inch tire. Designed for quick release axles and bolt on axles for ease of use. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weighing a remarkable 7 lbs., this fork is ready to tackle anything you throw at it.

Sturdy Rear Rack

Standard for Yukon Core is aluminum rear rack with extra wide tubing. Rated for up to 50lbs of cargo this rack can fit any load with ease. Mounted directly on the rack is LED rear taillight with brake light functionality.

Puncture Resistant Fat Tire

Fat tire bikes provide improved grip and traction on the most troublesome terrain by adding extra contact surface. Yukon Cores comes with puncture resistant tires Kenda Juggernaut K-Shield. Reflective liners are adding extra visibility at night.

LCD Screen

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

SRAM X5 9 Speed

The SRAM X5 rear derailleur provides incredible shifting speed and precision EXACT ACTUATION™ technology eliminates slop and shifting variation. The actuation remains accurate and smooth, effortlessly navigating through mud, rebounding off rocks, no matter where you are or what conditions you encounter.

Simple Controls

Our redesigned cockpit includes large easy to read LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated thumb throttle.

Always Visible

Yukon is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. Rear LED light powered using the main battery pack. Features brake light functionality that is activated any time the brakes are applied. Reflective tire liner ensures you are visible from the side.

Extremely Customizable

Customize your Yukon with over 20 VoltBike certified accessories. Choose a top tube bag to carry your cell phone or pannier bag to carry bigger cargo. Add front rack on your bike to carry even more load.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 80.0 lb
  • Battery 19.2Ah 48V Li-ion Samsung (921Wh)
  • Battery Style Clip-on
  • Bottom Bracket Bafang M620 with integrated torque sensor
  • Chain KMC Rust Buster. 12.7mm pin to pin center. 124 links. Total length 1547.8mm
  • Crankset Aluminum Alloy-6061 40T Crank 130 BCD
  • Derailleur Guard Rear Metal Derailleur Guard
  • Fork RST Guide aluminum alloy suspension with lockout function. 90mm travel. 135mm dropout. 32mm stanchions
  • Frame Type Step-Over
  • Front Light Spanninga Kendo+ LED 30 Lux. Powered by the main battery and controlled from the keypad
  • Motor Bafang M620 Mid-Drive 160Nm Torque
  • Motor Type Mid-Drive
  • Pedals Wellgo LU-313 w/ reflectors
  • Rear Derailleur SRAM X5 9 speed rear derailleur
  • Rider Max Weight {"value":320.0,"unit":"lb"}
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 31.6mm*350mm
  • Shifter Type SRAM X5 trigger shifter
  • Spokes Front 255mm 12G, Rear 220mm 13G
  • Stem Promax MA-596 w/ adjustable angle 35° - 145°. 105mm extension, bar bore 31.8mm
  • Tires Kenda Juggernaut 26x4 KS Shield, Wire Bead, 30 TPI casing, puncture resistant layer
  • Fit Guidelines

    Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.

    Suitable inseam range:

    < 30"     76cm
    31" 79cm
    33" 84cm
    46" 117cm
    48" 122cm
    > 49" 124cm

    Great fit with plenty of room for seat height adjustment.

    Good fit but potentially limited seat height adjustment or top tube clearence.

    Poor fit, frame is either too big or too small.

  • Sizing

    • aFrame Size: 19"
    • bStand-over Height: 32"
    • cReach: 18"
    • dTop-tube Length: 22"
    • eHandlebar Height: 44"-46.5"
    • fSeat Height: 36.5"-41"
    • gWheel Size: ⌀26"x4"
    • hWheelbase: 47.5"
    • iLength: 76"
