Trio V2
Trio V2

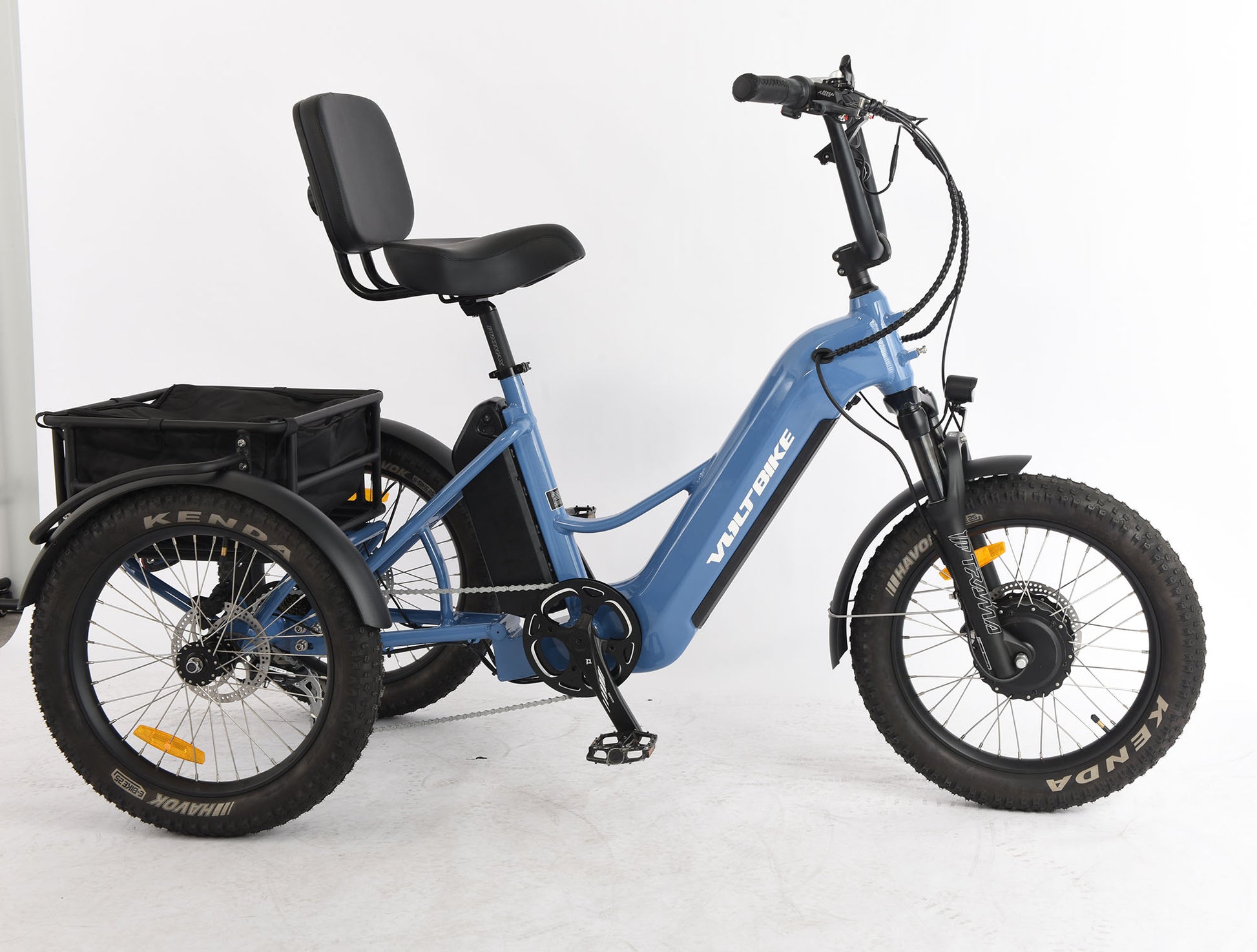

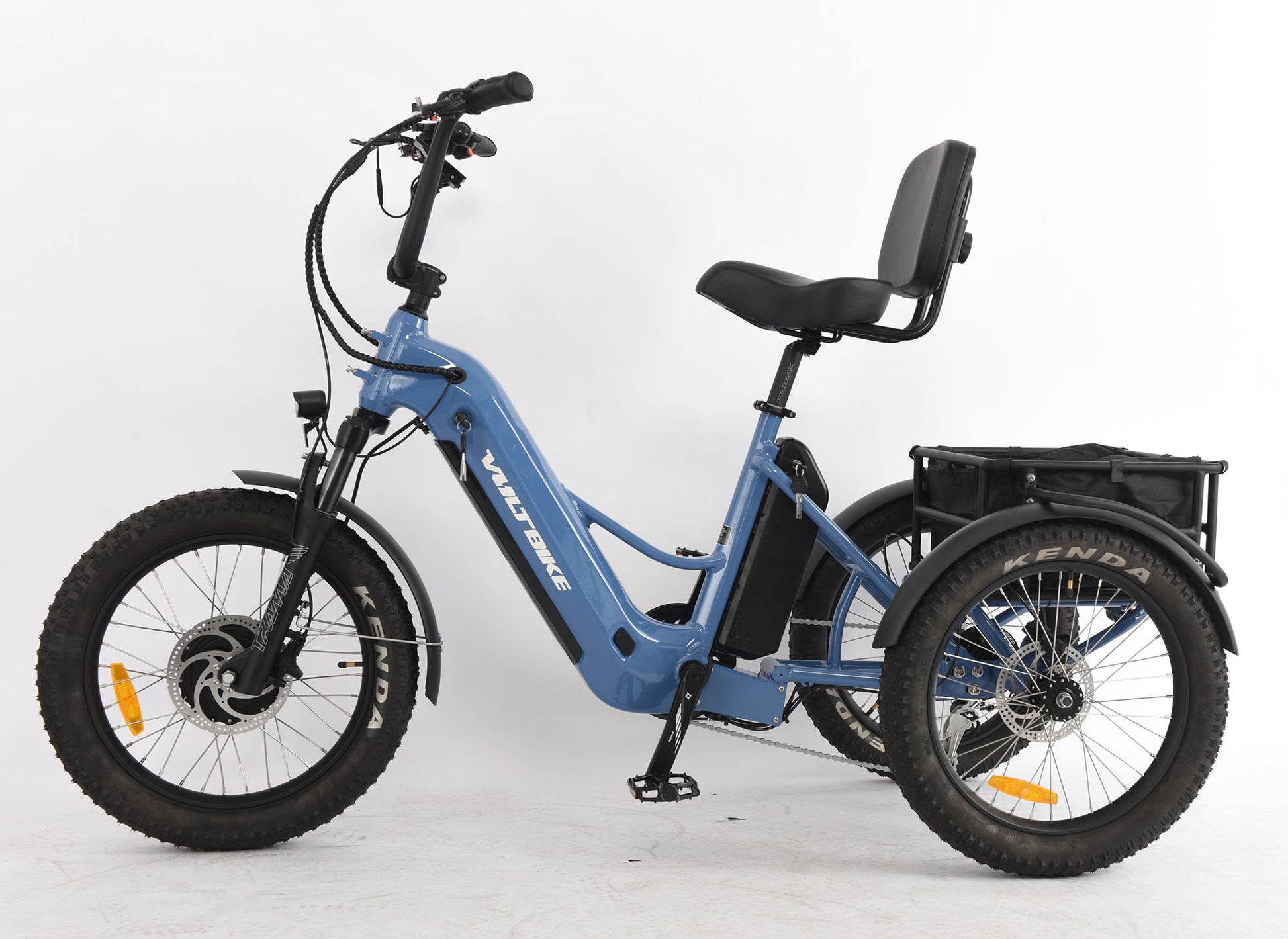

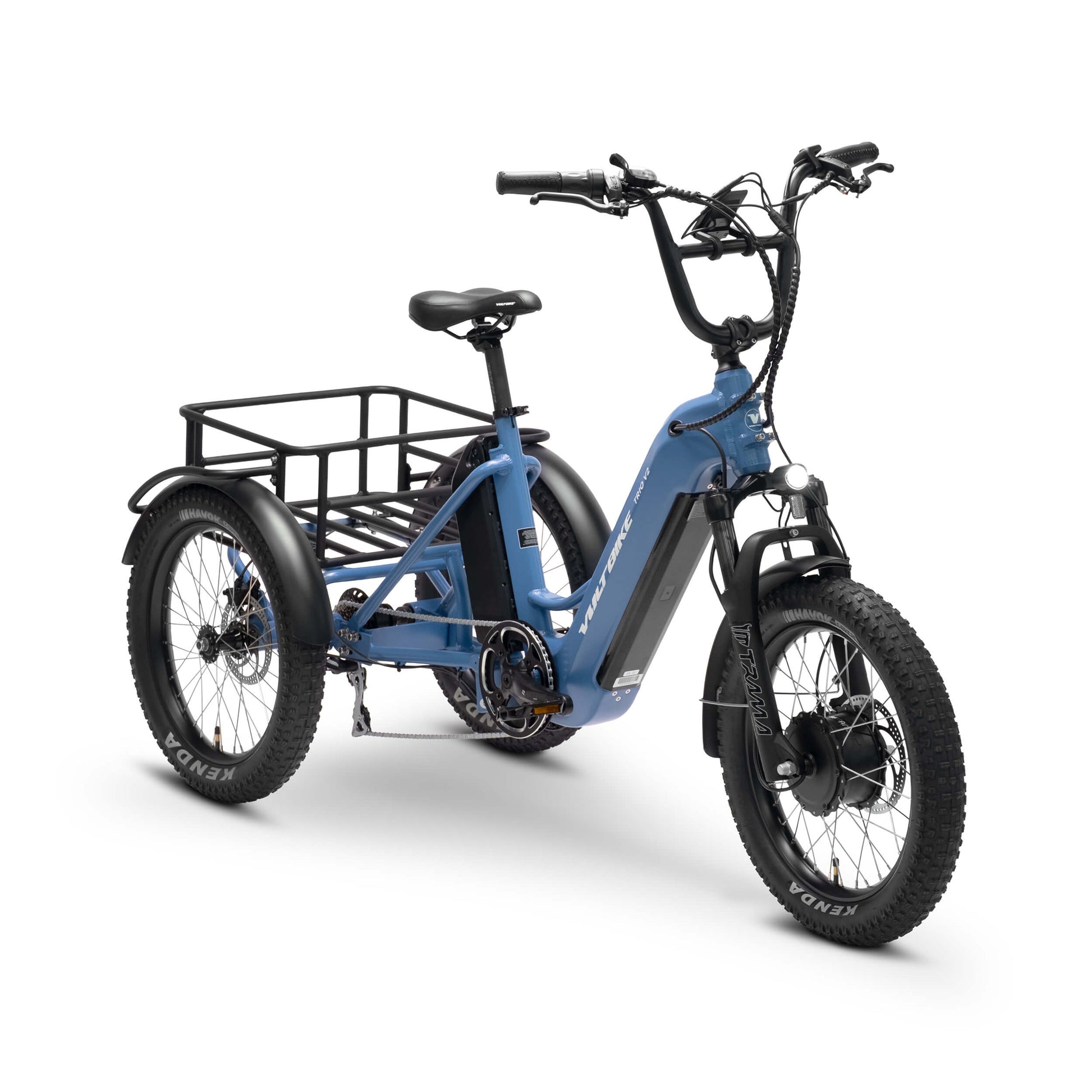

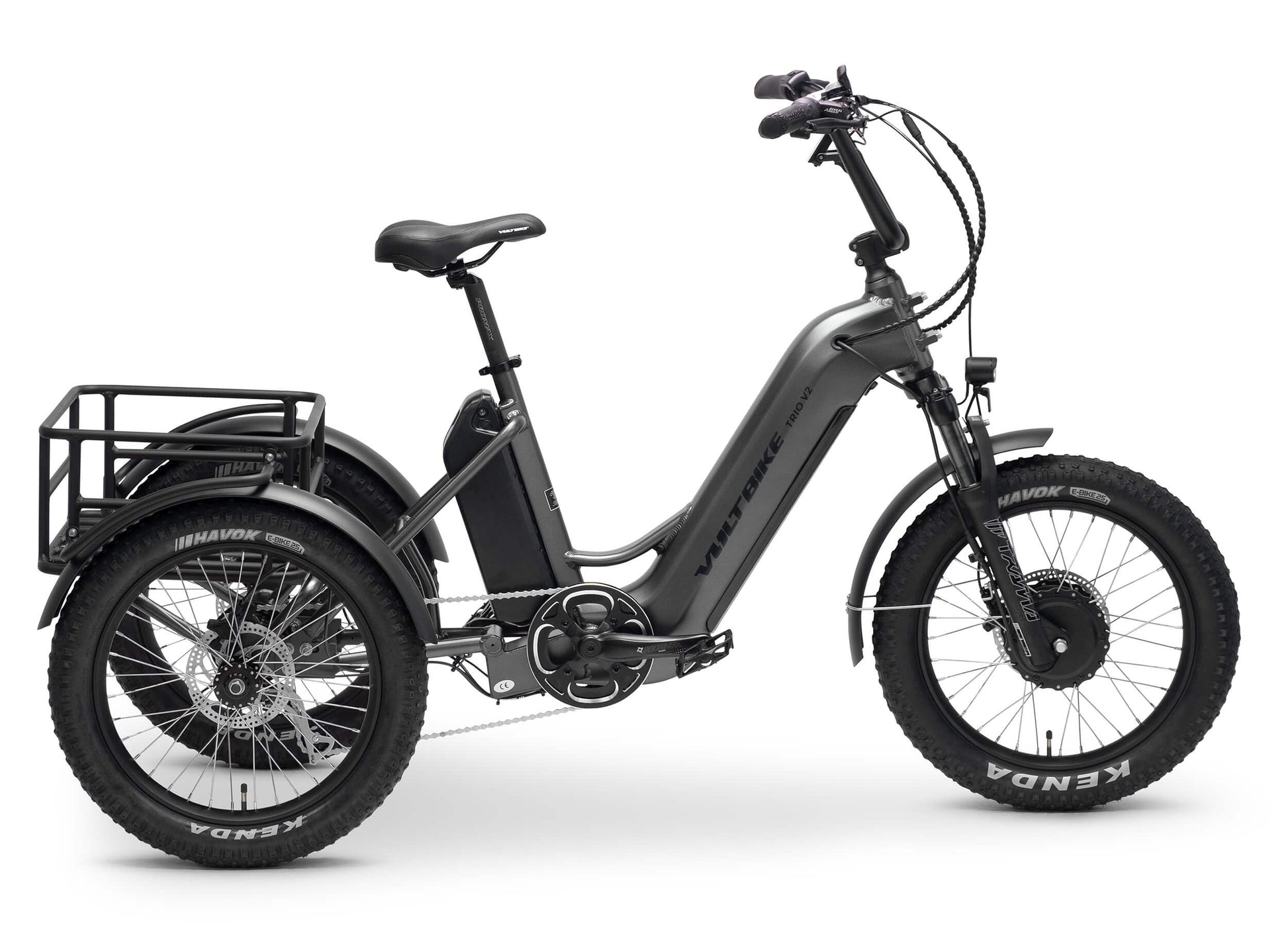

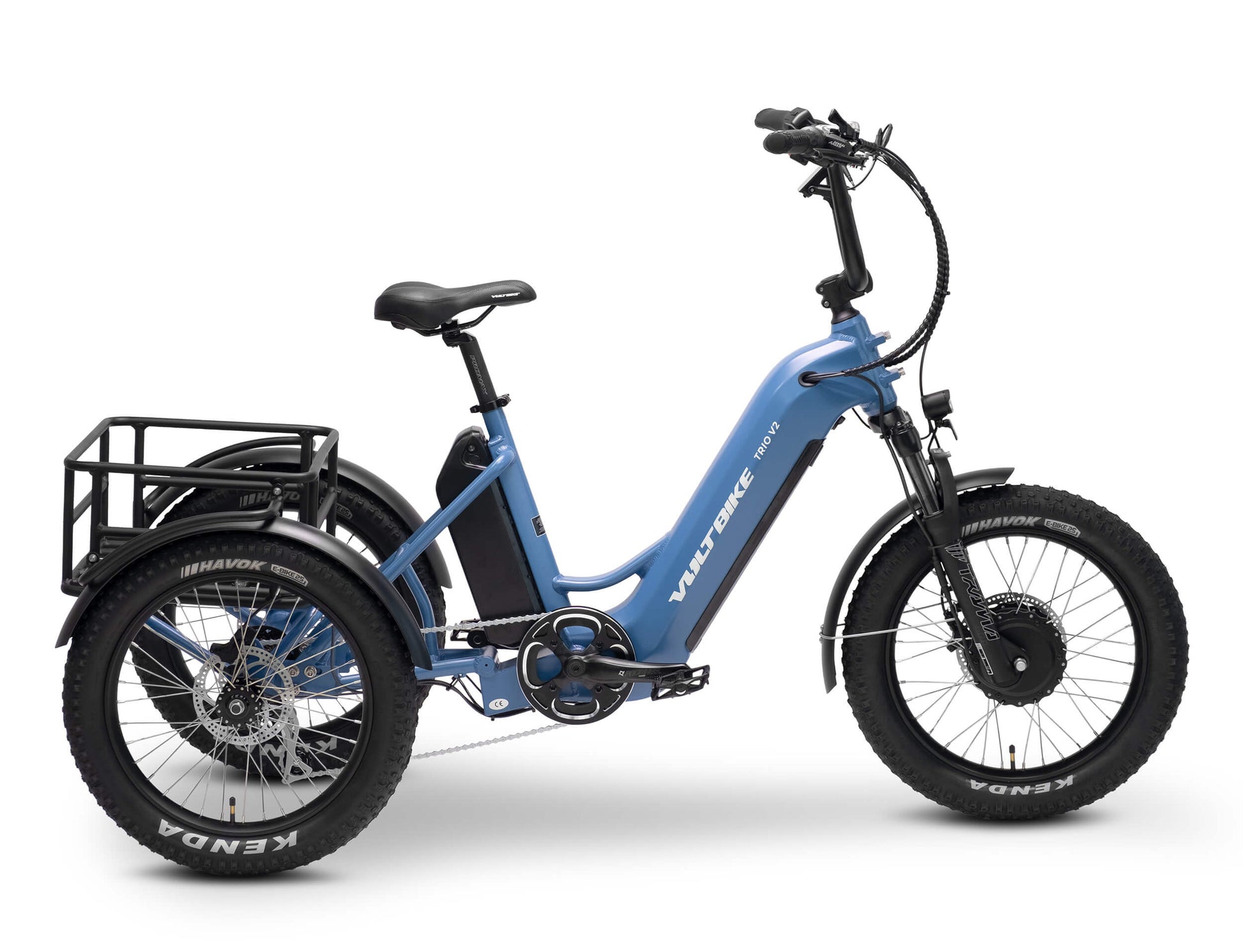

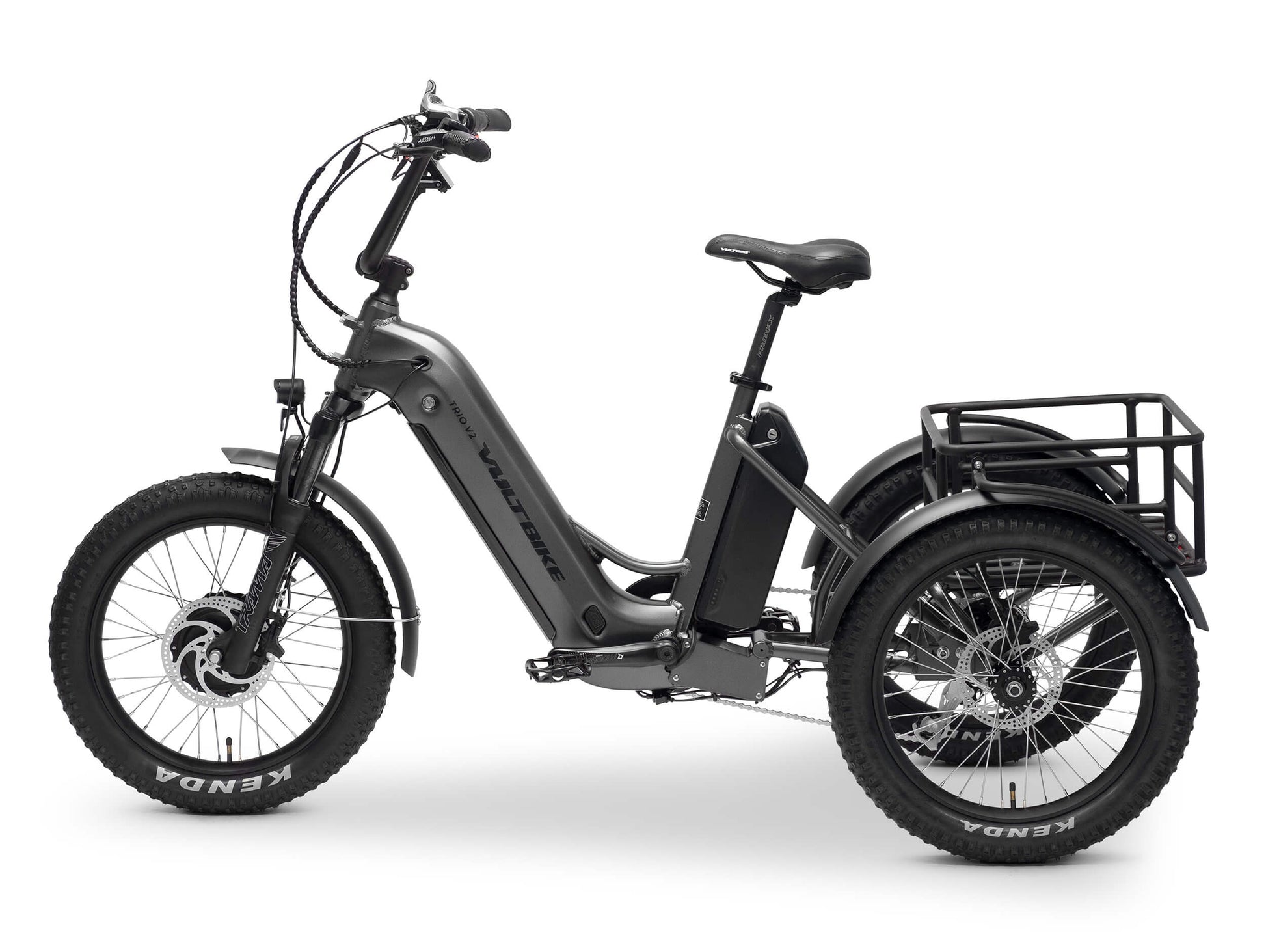

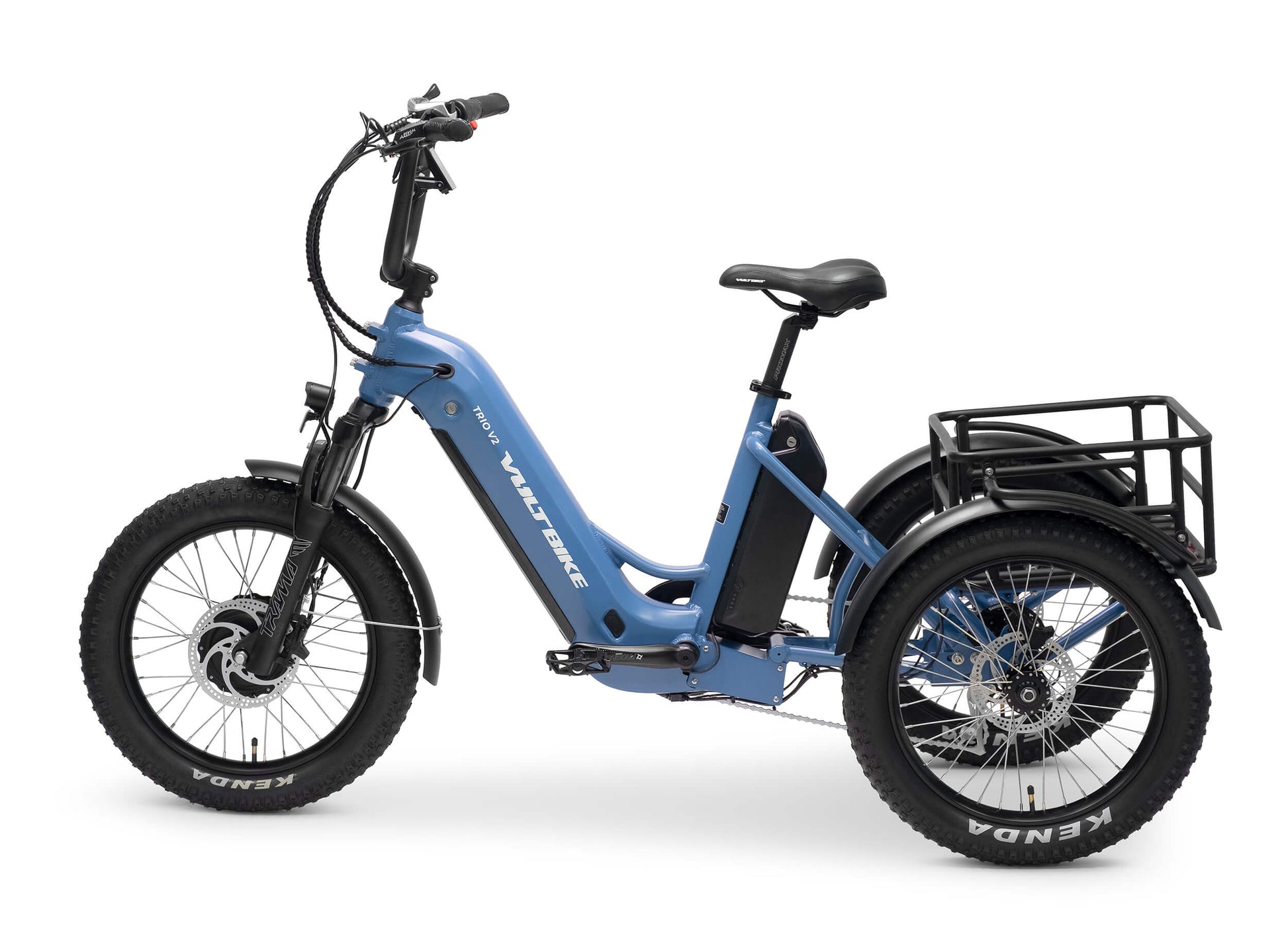

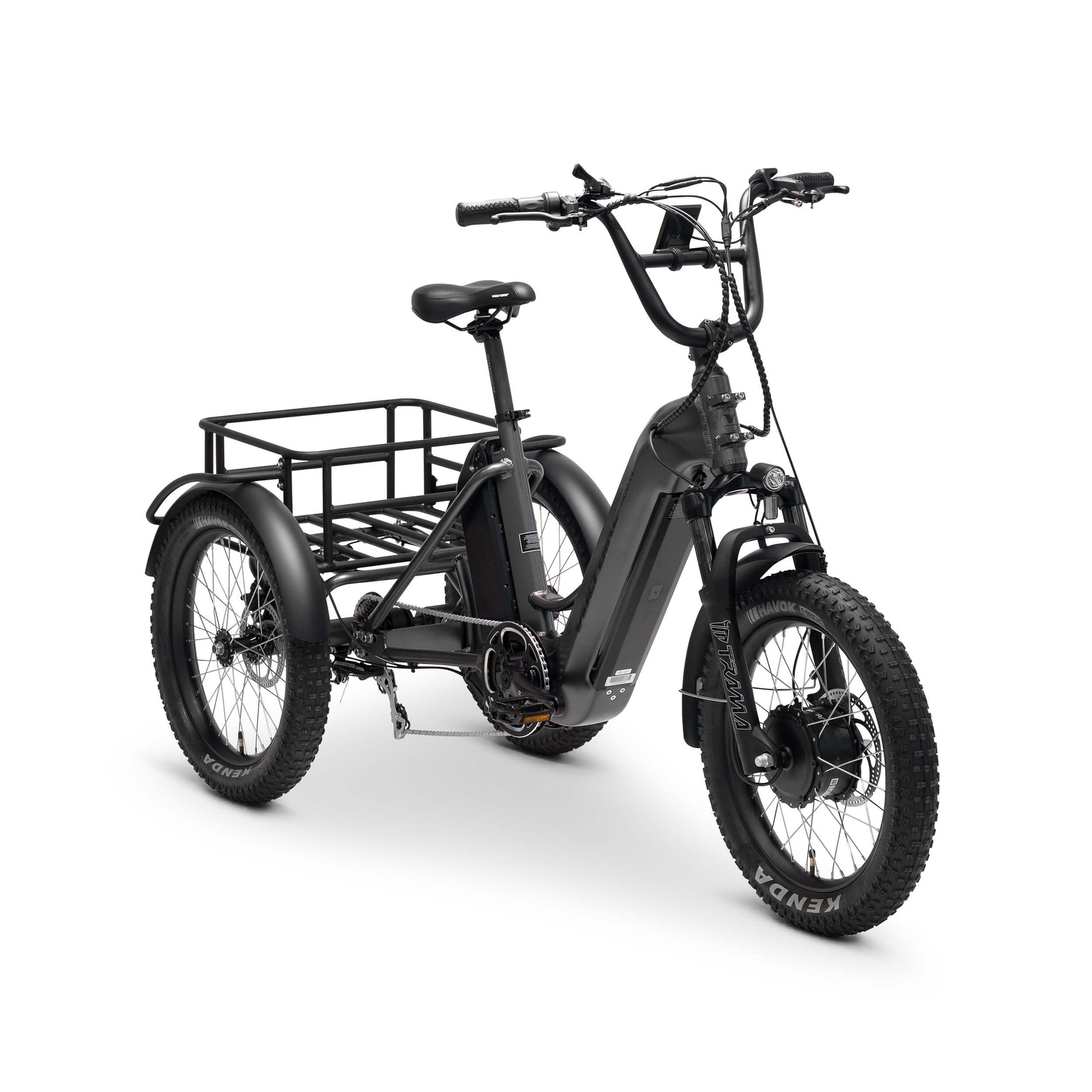

VoltBike is proud to present our newest eTrike, the Trio V2. This model builds on all the great features of the original Trio, but with a dual-battery format. Combined, the 20ah internal battery, and 15ah external battery offer a combined 35 amp hours of pure delight.
Our 500W (750W peak) front-hub motor offers ample power and responsiveness. With 9 levels of Pedal Assistance as well as a throttle, this powerful electric trike is ready to take on hills and trails.
A spacious rear cargo area allows you to bring everything you need with you, with room to spare.
If you're looking for a stable, fun, eTrike, that will go very far, the Trio V2 is the best choice.
Couldn't load pickup availability
Free Shipping
1 Year Warranty
20+ Quality Standards Checklist








Overview
500W Pure Power
BAFANG is the world’s biggest manufacturer of hub motors for e-bikes. VoltBike Trio V2 is using Bafang G06 series front mounted geared motor which provides 80 N.m. max torque and up to 750w of peak power. The Bafang G06 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.
Fully Integrated Battery
Trio V2 is using 48v 20Ah (960Wh) battery pack with Samsung INR18650-35E cells. The integrated frame design gives you security in various weather conditions plus offering unmatched visual appearance. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.
Extra Smooth Ride
Voltbike Trio V2 comes standard with suspension Trama FAT34 with hydraulic lockout. Made of aluminum 6061 this fork weight is only 7lbs. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 80mm travel.

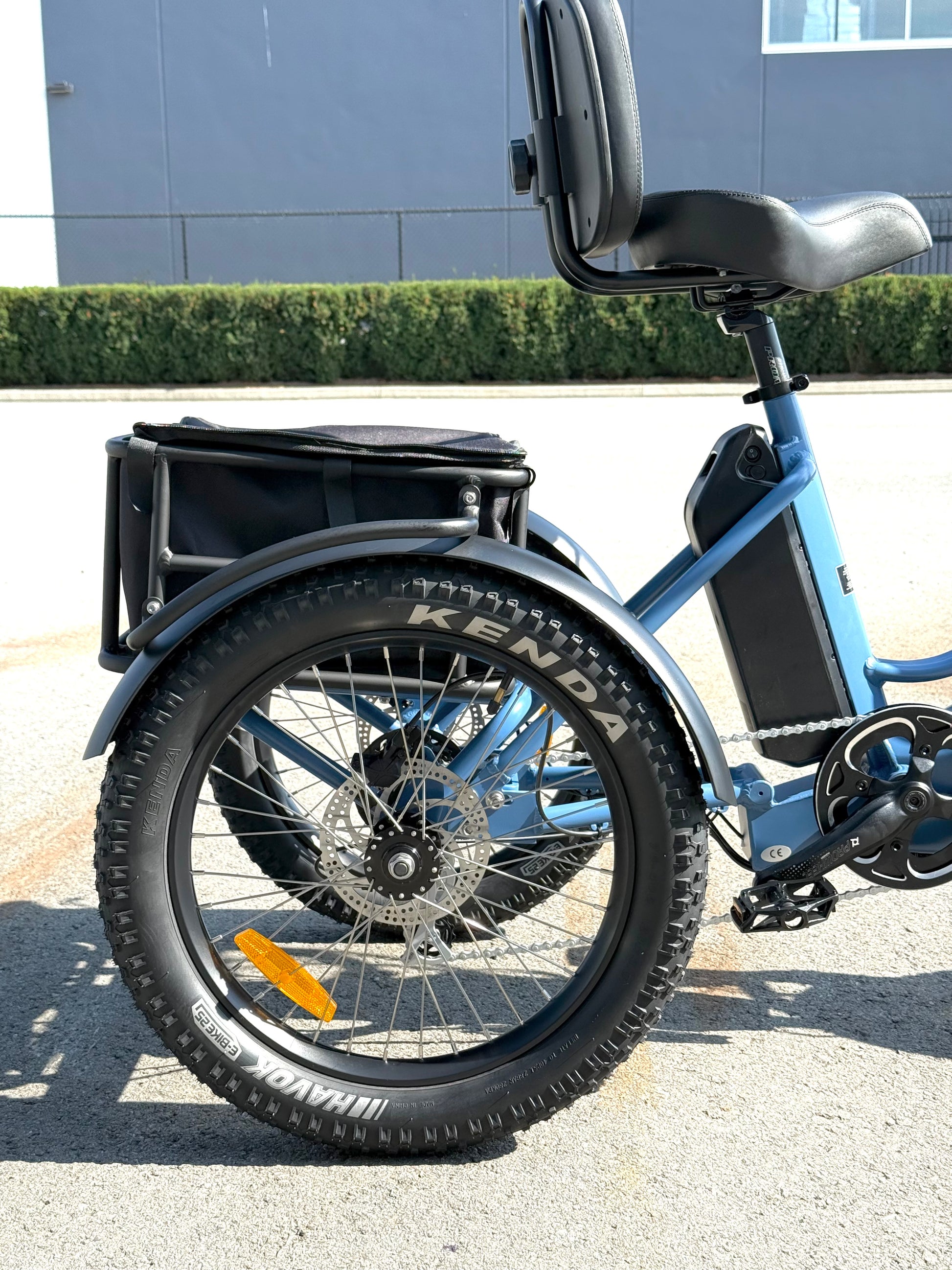

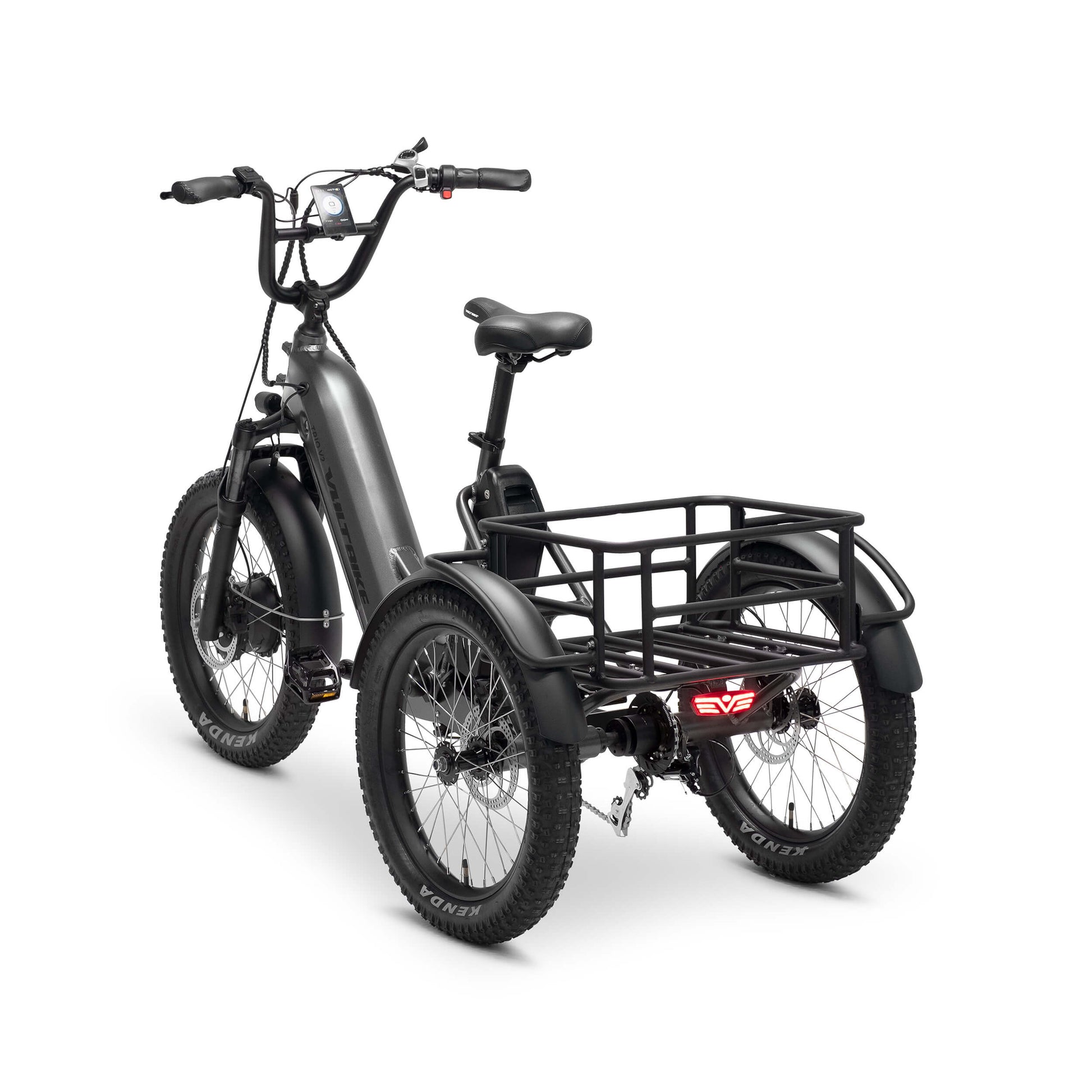

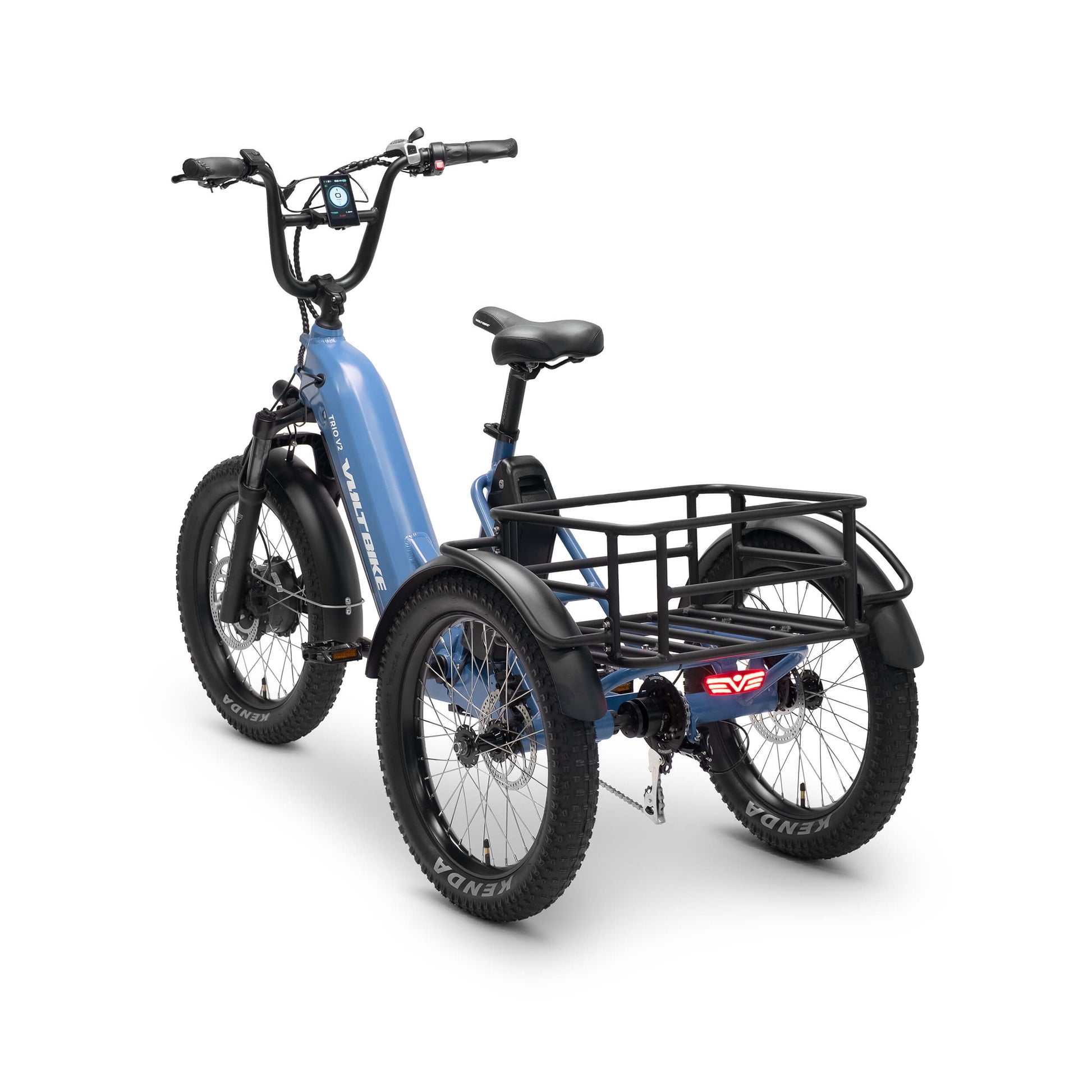

Sturdy Rear Rack and Mudguards
VoltBike Trio V2 comes standard with rigid metal fenders which can sustain the highest abuse on the trail. Also comes with rear rack which features extra wide tubing so you can carry more load compared to our rivals.
Fat Tire
Fat tire bikes provide improved grip and traction on the most troublesome terrain by adding extra contact surface. The VoltBike Trio V2 comes with 20" x 3" front and rear tires Kenda Havok for improved corner stability.
Backlit Color Display
The 3.5-inch display, conveniently positioned at the center of the handlebar, provides real-time information, including speed, pedal assist level, battery capacity, distance traveled, and current load. Additionally, you can charge your cell phone using the built-in USB connector. An innovative feature of the display is the lighting sensor, which automatically activates your lights when it detects darkness.
Parking Brake
The VoltBike Trio V2 is equipped with a brake locking mechanism that serves as a parking brake. This feature proves to be quite valuable, as it prevents the trike from rolling away and secures the tricycle in place while you load and unload your belongings. To engage the parking brake, you simply push the pin on each brake lever, thereby effectively locking all three wheels.
Speed Differential
A rear differential enhances the tricycle’s stability and maneuverability by allowing the rear wheels to rotate at different speeds during turns. This results in smoother handling, improved traction, and reduced tire wear. It also ensures better control on various terrains, offering a safer turns and more comfortable ride, with lower maintenance costs over time.
Hydraulic Stopping Power
VoltBike Trio V2 is using Bengal Ares 7+ hydraulic front and dual rear disc brake design. The front wheel is using 180mm rotor. Each rear wheel is equiped with independent 160mm rotor. The rear wheels braking is controlled by the right hand side brake lever located on the handlebar. The new dual brake rear system provides improved stopping power compared to the traditional single rear brake design.
Now eligible for
British Columbia Specialty Use Vehicle Incentive
The Trio V2 is now eligible for the Specialty Use Vehicle Incentive (SUVI) Program, designed to provide rebates on cargo e-bikes, electric motorcycles, utility trucks, and more. If qualified, you could save up to $858 CAD on your purchase of a VoltBike Kodiak. To read more about this program and the eligibility requirements, please click the button below.
Read moreTrio Safety Notice
Riders must be aware that the Voltbike Trio handles differently than a standard two-wheel bicycle. We recommend that riders lower their speed, especially when taking sharp turns, while still getting accustomed to riding a fat-tire trike. Failure to do so may cause the Trio to become unstable and result in personal injury. Please watch the video for quick overview of the most important aspects of rider safety.
Parts Included
Our bikes ship 95% assembled with everything you’ll need to get up and running, including:
Specifications
- Battery 48V 20Ah Li-ion Samsung (960Wh) + 48V 15Ah Li-ion Samsung (720Wh)
- Battery Style Internal
- Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
- Brakes Hydraulic disc brakes front/rear Bengal Ares 7+
- Brake Lever Bengal Ares 7+ with safety power cut
- Chain KMC Rust Buster
- Crankset Aluminum Alloy-6061 44T Crank, 170mm with Outer Guard
- Fork Trama FAT34 with lockout. 80mm travel. 135mm dropout. 6061 Aluminum
- Frame Type Step-Through
- Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
- Front Light Spanninga Kendo+ LED 30 Lux. Powered by the main battery and controlled from the keypad.
- Handlebars Promax alluminum alloy 31.8mm*22.2mm*680mm, 9 degree
- Hubset Alloy 6061 Electric Motor
- Motor Bafang 500W (750W Peak) Hub Motor
- Motor Type Hub Motor
- Pedals Wellgo LU-313 with reflectors
- Rear Light LED brake light. Powered by the main battery and activated any time the brakes are applied.
- Rims 20 inch with 36 spokes
- Seat Velo Plush VL-6142
- Seat Post Promax SP-252 Aluminum 6061 Alloy, 27.2mm*350mm
- Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
- Spokes Front 12G, Rear 13G
- Stem Promax MA-50 Aluminum Alloy w/ 10° angle, 40mm extension. Bar bore 31.8mm
- Tires Front and rear tires Kenda Havok 20x3" with 60TPI
Fit & Size
-
Fit Guidelines
Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.
Suitable inseam range:
< -3" -8cm-2" -5cm0" 0cm2" 5cm4" 10cm> 5" 13cmGreat fit with plenty of room for seat height adjustment.
Good fit but potentially limited seat height adjustment or top tube clearence.
Poor fit, frame is either too big or too small.
-
Sizing
- aFrame Size: 17.5"
- bStand-over Height: 22"
- cReach: 18"
- dTop-tube Length: 23"
- eHandlebar Height: 41"-45"
- fSeat Height: 31"-38"
- gWheel Size: ⌀20"x3"
- hWheelbase (C to C): 48"
- iLength: 70"
- jRear Cargo Dimensions: L15"xW18"xH9"
- kRear Width: 30"
