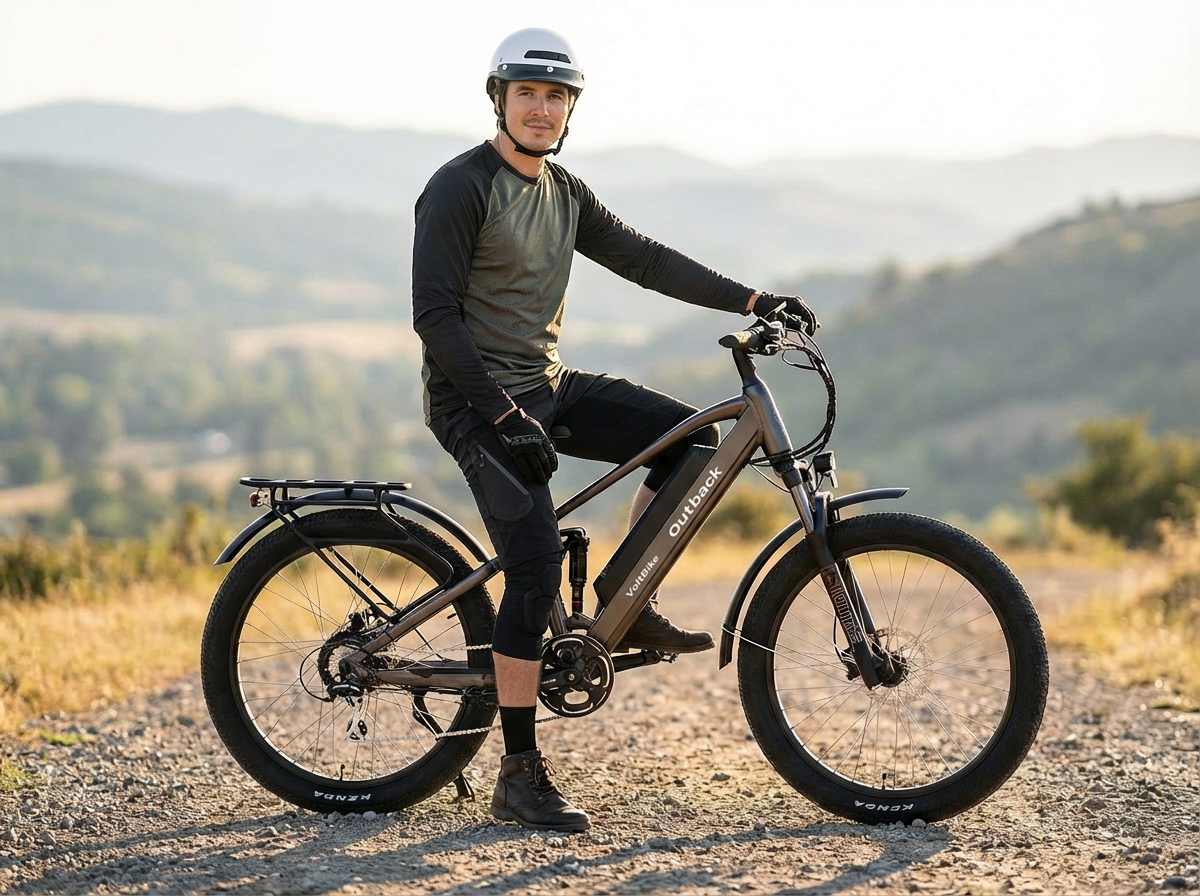

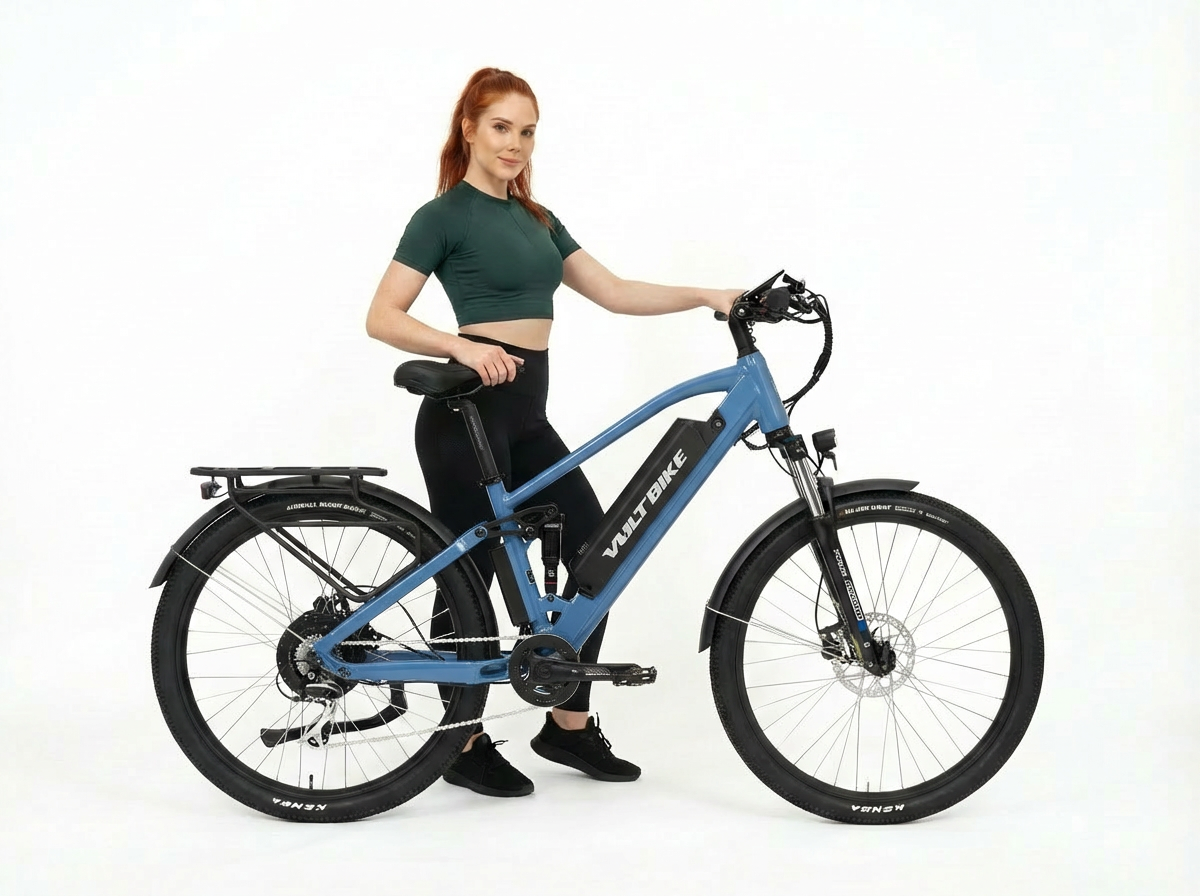

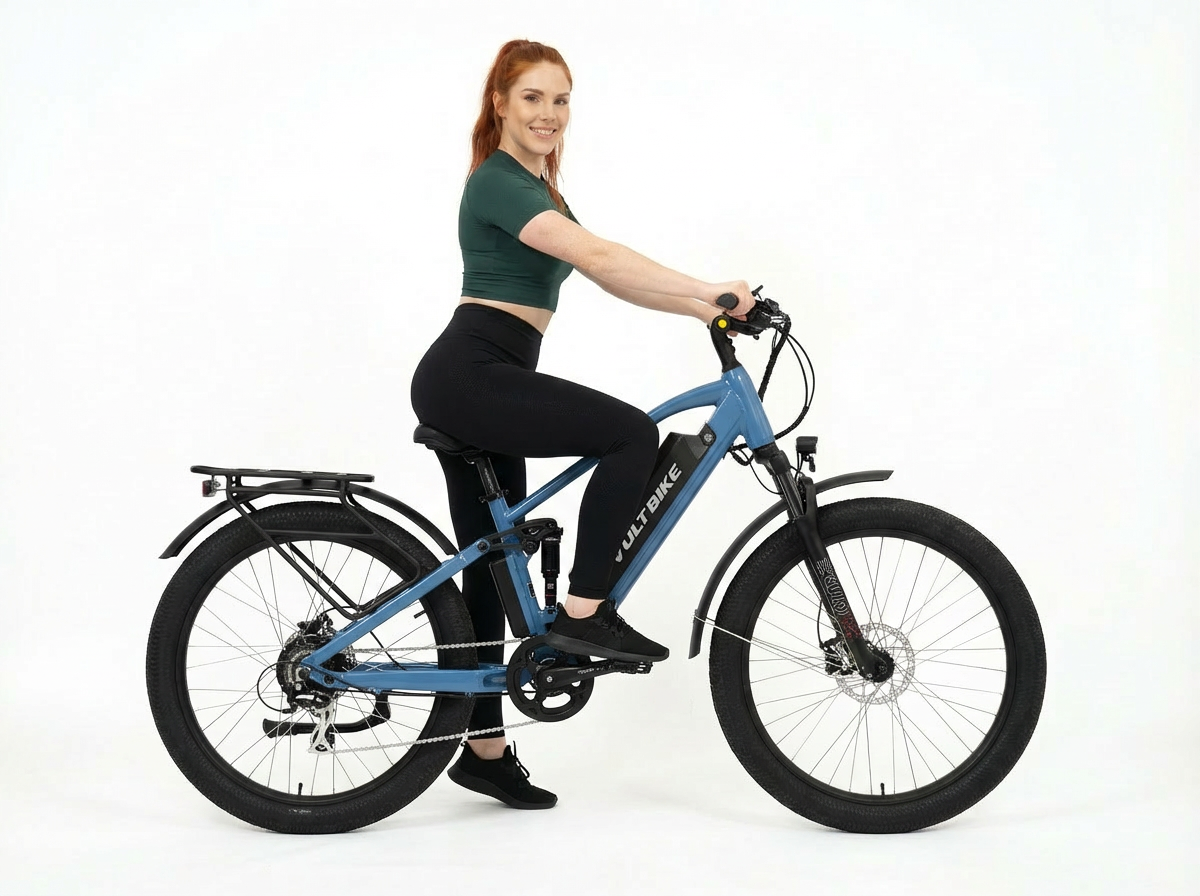

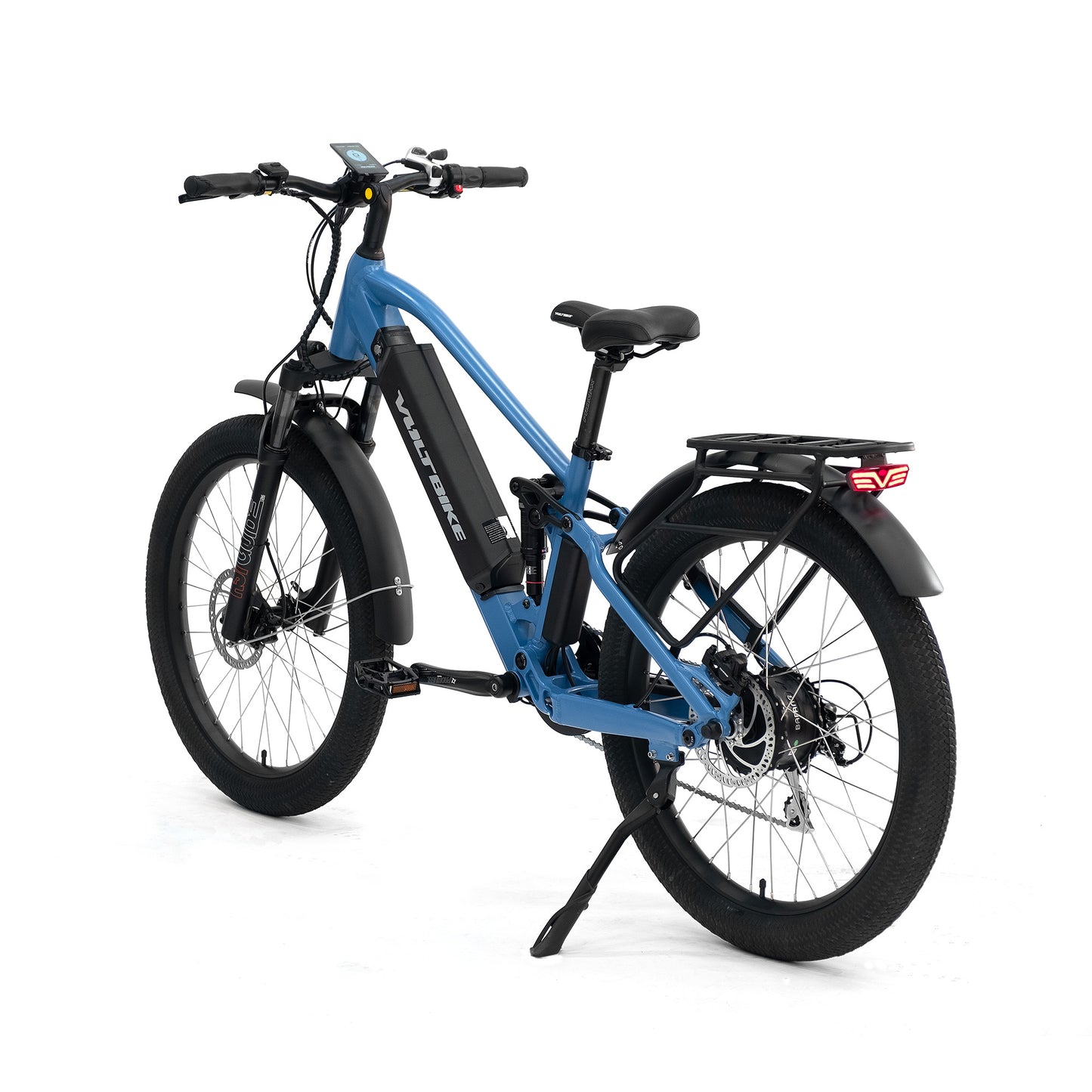

The Outback offers the ultimate mix between trail and city biking. The power of a Yukon but with a RockShox full-suspension package and 27.5x3" tires. All this comes together to make for an exhilarating yet comfortable riding experience, all in a very well priced package. Its powerful Bafang 500w(750w peak) motor paired with a 48v 17.5Ah Li-ion battery (with optional 19.6Ah or 25ah upgrade) ensures that your trip doesn’t come to an end on an uphill climb.
The Outback is now also available in a Medium size as well for riders 5'2" and above, featuring 26x3" tires and a smaller frame.
- Free Shipping
- 1 Year Warranty
- 20+ Quality Standards Checklist
Overview
750W Peak Power
BAFANG is the world’s biggest manufacturer of hub motors for e-bikes. VoltBike Outback is using Bafang G06 series geared motor which provides 80 N.m. max torque and up to 750w of peak power. The Bafang G06 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.
Samsung Battery
VoltBike Outback is using 48v 17.5Ah (840Wh) battery pack with Samsung INR18650-35E cells. The battery pack holds UL 2271 safety certification. Assembled by Phylion which is one of the largest battery manufacturers for ebike batteries with facilities in China, Europe and India. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.
RockShox Rear Air Shock
The RockShox Monarch R is a wolf in sheep's clothing. Its lightweight design not only delivers silky smooth travel, but thanks to the DebonAir air spring, it also delivers a spring rate you'd generally only get from a much heavier coil shock. Fully adjustable shock capable of smoothing out the most aggressive trails, while simultaneously saving you weight for epic cross-country riding.
Full Suspension
Get increased stability in the bumps and while descending.VoltBike Outback is a smart choice for all types of riding including trails or in the city. Get better traction, control, and steering, minimizing the risk of mistakes on tough terrain.
Hydraulic Stopping Power
Voltbike Outback using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.
Backlit Color Display
Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cellphone through the built-in USB connector. New for the display is the lighting sensor which automatically activates your lights when it gets dark.
Adjust Your Ride
Adjust your bike as per your need. No matter what your style of riding, VoltBike has a stem with the fit, performance and style you're looking. VoltBike is using stem Promax MA-570 with adjustable angle 35° - 145° and 108mm extension.
Simple Controls
Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.
Parts Included
Our bikes ship 95% assembled with everything you’ll need to get up and running, including:
Specifications
- Weight 75.0 lb
- Battery 48V 17.5Ah Li-ion Samsung (840Wh) Samsung Cells. UL 2271 certified. Assembled by Phylion.
- Battery Style Clip-on
- Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
- Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
- Brake Lever Tektro Auriga with safety power cut
- Chain KMC Rust Buster
- Crankset Aluminum Alloy-6061 44T Crank, 170mm with Outer Guard
- Derailleur Guard Rear Metal Derailleur Guard
- Fork RST Guide aluminum alloy suspension with lockout function.
- Frame Type Step-Over
- Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
- Front Light Spanninga Kendo+ LED 30 Lux. Powered by the main battery and controlled from the keypad.
- Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree
- Hubset Alloy 6061 Electric Motor
- Motor 48v 500W (750W Peak) Bafang G06 Hub Motor
- Motor Type Hub Motor
- Pedals Wellgo LU-313 with reflectors
- Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailler
- Rear Suspension Air Shock RockShox Monarch R. Highly tunable DebonAir™ with rebound adjustment
- Rider Max Weight {"value":280.0,"unit":"lb"}
- Rims 27.5 inch with 36 spokes
- Seat Velo Plush VL-6142
- Seat Post Promax SP-252 Aluminum 6061 Alloy, 31.6mm*350mm
- Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
- Spokes Rear 13G, Front 13G
- Stem PROMAX Fixed Stem
- Tires Kenda Havok 27.5 x 3, Wire Bead, 30 TPI casing, Weight is 1285 g. Tread 2mm in the center.
Fit & Size
-
Fit Guidelines
Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.
Suitable inseam range for 16.5" frame:
< 27.0" 69cm29.0" 74cm30.0" 76cm42.0" 107cm43.0" 109cm> 45.0" 114cmSuitable inseam range for 18.5" frame:
< 28.0" 71cm30.0" 76cm31.0" 79cm44.0" 112cm45.0" 114cm> 47.0" 119cmGreat fit with plenty of room for seat height adjustment.
Good fit but potentially limited seat height adjustment or top tube clearence.
Poor fit, frame is either too big or too small.
-
Sizing
- aFrame Size: 18.5" / 16.5"
- bStand-over Height: 31"
- cReach: 20" / 17"
- dTop-tube Length: 24" / 22"
- eHandlebar Height: 41"
- fSeat Height: 35-44" / 33-42"
- gWheel Size: ⌀27.5x2.6" / ⌀26x3"
- hWheelbase: 50" / 48"
- iLength: 76" / 75"
Related Blog Posts
Get Moving, Stay Young: How Ebikes are the Fountain of Youth
Sometimes, the best stories aren't written; they're told right in our showroo...
Read PostElectric Bike Hub Motors vs Mid-Drive Motors
VoltBike is pleased to offer a range of electric bikes, giving you many mo...
Read PostBest Electric Bicycle In Canada That Fit Every Budget and Ride
Amidst pandemic, environmental and inflationary events, electric bikes are...
Read Post5 Fantastic Electric Fat Bikes: Perfect Complement To Your 2022 Resolution
Fat bikes are a trending thing these days, people love how the plus-size tire...
Read Post6 Best Electric Bikes in Canada Ideal For Every Ride
Everyone is moving towards technology, high-tech gadgets, and accessories; e...
Read PostI just went on my first ride on my new outback. I was so impressed, very smooth ride and so much power. A very nice e bike.
The Outback.....WOW! What an amazing bike…… UPDATE Nov 2024
My Outback still has the WOW factor, I have really enjoyed biking this spring, summer and fall and have finally put it away for the winter. I have put on a total of 1002 KM since May using it to commute to work and back several times a week, general paved trail riding in the city, and hitting the trails and gravel roads while camping throughout the summer and fall.
The versatility of 3” tires is awesome, it still preforms well on concrete, with only some minor road noise, and handle the gravel trails and roads with authority. My Outback is still going strong with only minor maintenance required, which involved removing and cleaning my pads of dust and grime, brake rotors and general cleaning as well. I used the Help videos to do this, which makes cleaning or changing pads very easy to do. Whenever I have had question regarding maintenance of my Bike Volt Bike responded to my emailed questions within 24 hours; I am already looking forward to riding next year.
For my Outback I designed and 3D printed a battery terminal cover and a LCD Screen Cover The terminal cover will protect the battery terminal from dust and some moistures when storing or transporting your bike without the battery installed as I do. You can find these STL files on Thingiverse searching for “Volt Outback”
**Just a word of advice**, make you lock your bike up securely no matter where you are storing it as I found out with an attempted theft of my bike from inside of my garage. Luckily, I had I used a 18mm Steel U Shackle with a 10mm hardened steel chain meant for motorcycles to secured it to a concreate floor anchor, this is the reason I still have my Outback.
This is a great bike. As as senior I researched a ton of bikes before picking the Outback. I was a little concerned that there was no step through model but i manage fine with it. The bike handles well on a variety of surfaces from small trails to paved roads. Good service from Volt too. The bike arrived within a couple of days, well packed, and was easy to add the few parts needed to get up and going. Fun bike to ride.
Everything was going very good except for the last moment of the deal ! When I started to inquire about Voltbike , I had asked if I could change to a smaller tire on my Outback and I was told yes but there would be an extra charge for the tire switch plus some labor and I was all good with paying the extra expense . So the next day , I place my order for 2 Ebikes and I request a down sizing of the tire, then I get a No Can Do answer because we do not have the tire in stock so I asked for another size and I get the same response then I asked what can you offer me as an alternative size tire . The response I got was , I should change the tire once the one I'm getting is worn out ???? Long story short , I was happy with the way our dealing started but was very disappointed with the missed information and how it finished . FYI : I have 25 years of experience of manufacturing,wholesale and retailling of recreational product, I was the national sales for Canada , so I do know how things work on the corporate side and at the retail end . As for the bikes I ordered , even if we have less than 50 KM on each bike things seems to be going good so far. Yours truly , Paul
Hello Paul,
Thank you for the review. Very sorry to hear about how this turned out, as it's well below the standard we strive for. We are working to improve our inventory management, as I believe this is a from a disconnect between the sales team's assumptions and mechanic team's reality. Our sales agents have been reminded not to offer customizations as our bikes are designed to be produced by the factory with suitable components, and tires wide enough to protect the rim. We hope these bikes will perform well for you for many years to come.
Best regards,
VoltBike
Wow ! For the price this is a really nice bike, the fact that this quality bike assembled is delivered to your door step is awesome. If there was just a little detail i’d say it is slightly lackng braking power. But its a very little detail. Happy trails
Thank you for your review Ronald. The Outback is an amazing bike. There is a small set-screw on the front of the brake lever that can be tightened which may help firm up the brakes, or when you go for a tune-up as the mechanic to ensure the mineral oil is topped up.
