1 6
Power
500W
Torque
120Nm
Range
70-80+ km
Top Speed
32km/h
Payload
280lbs

VOLTBIKE

Bravo Core

Bravo Core

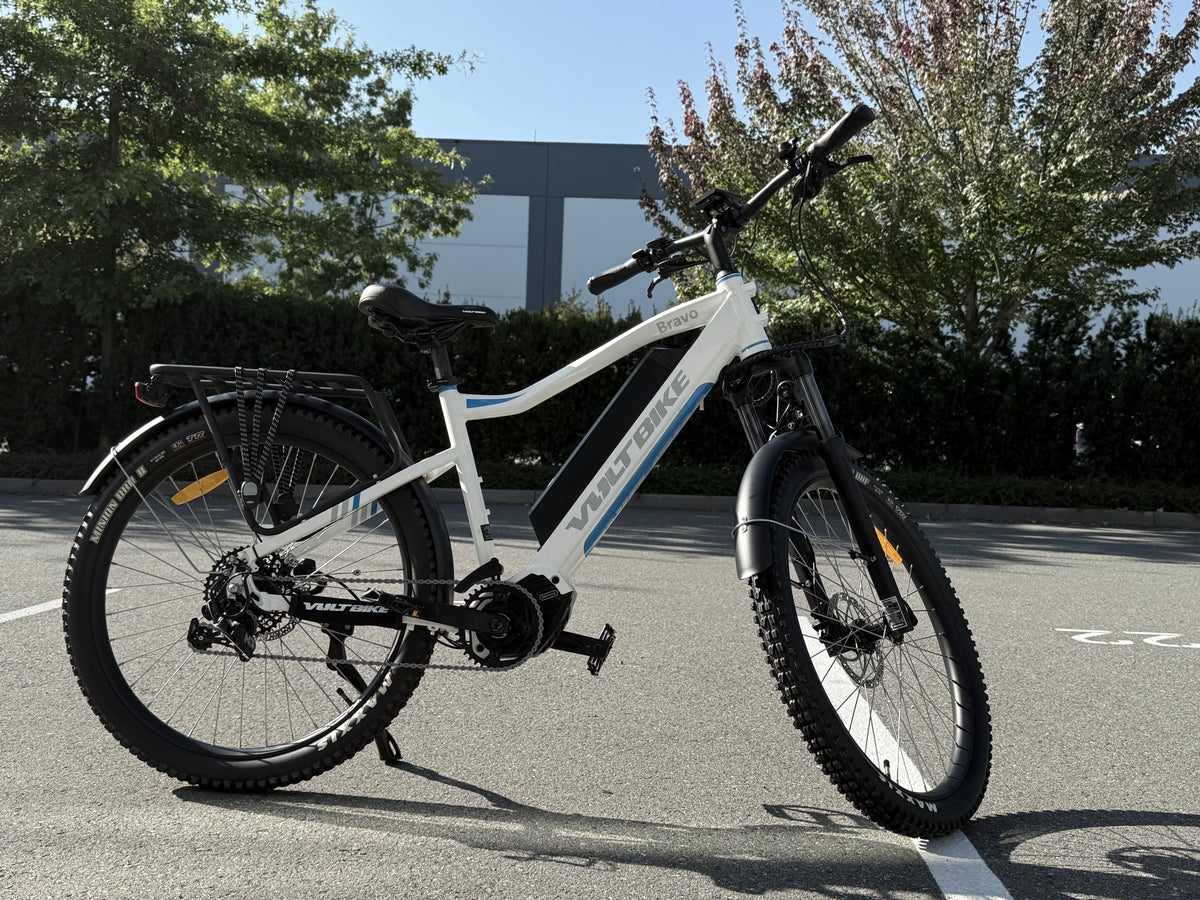

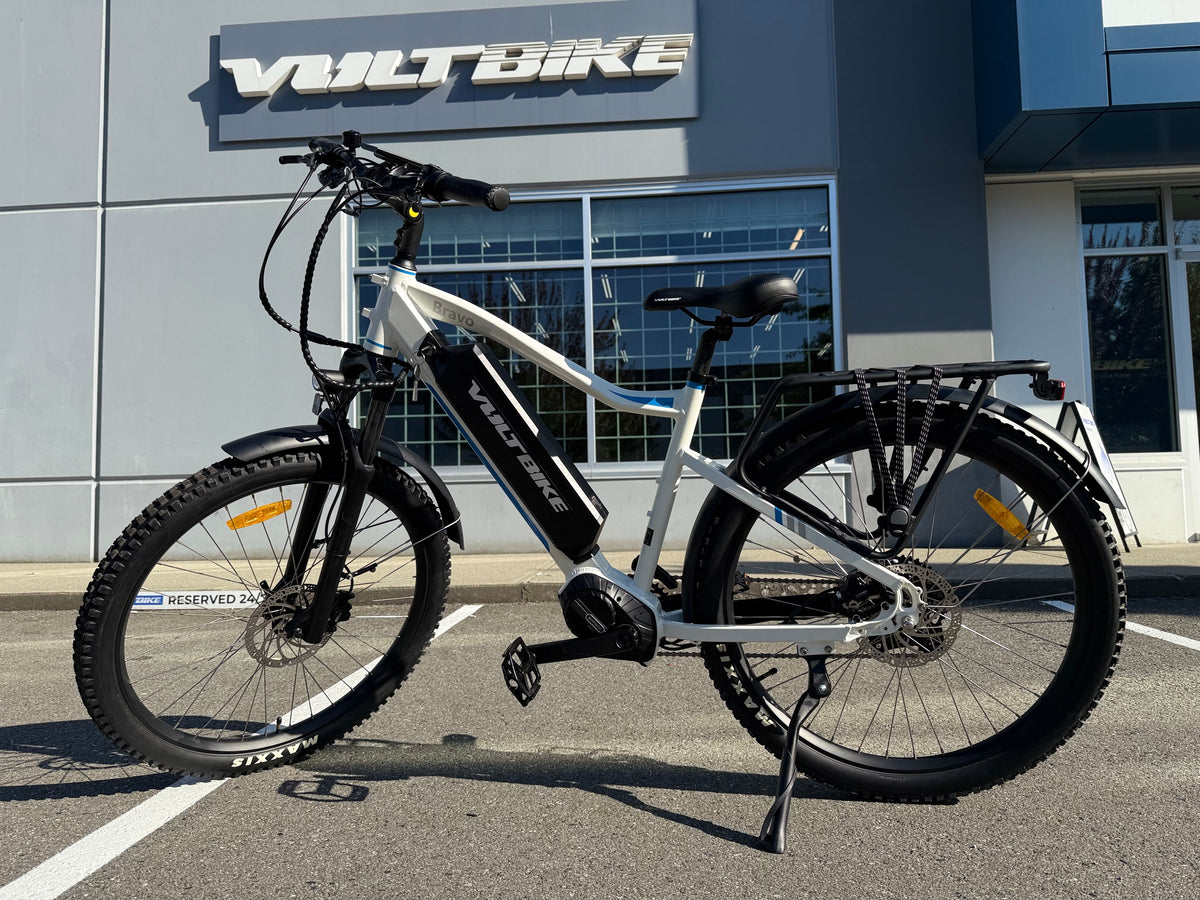

Introducing the VoltBike Bravo Core with its cutting-edge Bafang M600 Mid-Drive system featuring torque sensing technology. This powerful electric bike delivers an extremely natural riding experience, feeling just like a non-motorized bike but with the power to get you where you need to go. The VoltBike Bravo Core offers 120nm of torque, nearly double the rating of the regular Bravo e-bike. The 2023 edition of the Bravo Core comes upgraded with a SRAM X5 9 speed drivetrain for improved power transfer. Standard for the bike is a large 17.5Ah (with optional 19.6Ah upgrade) Li-ion battery with Samsung cells. Paired with powerful hydraulic brakes and large color LCD screen, Bravo Core offers some serious technology advancements. This nimble, lightweight e-bike is VoltBike's ultimate commuter ebike.
Bravo Core in white is in stock and ships on the next business day.
Bravo Core in black color is out of stock.
$2,749.00 CAD
$3,149.00 CAD $2,749.00 CAD
Sale Sold out
Bicycle Color
Battery Size
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

500W Power / 120Nm Torque

Would you like a little more? The M600 motor with 500 watts rated power, 120Nm of torque, just 3.7kg - always delivers top performance and is the first choice for modern eMTBs. With its triple sensor system (1 torque, 2 speed sensors) it reacts with lightning speed to your pedal-power input and delivers impressive support at all times. Voltbike Bravo Core is using mid-drive motor Bafang M600 48v 500w.

Samsung Battery

VoltBike Bravo Core is using 48v 17.5Ah (840Wh) battery pack with Samsung INR18650-35E cells. Samsung SDI’s superb cell balance technology contributes to the uniform quality of the packs and driving units, and ultimately to the quality of the e-bike. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Extra Smooth Ride

Voltbike Bravo Core comes standard with lockout suspension Suntour XCT DS. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

Sturdy Rear Rack

Standard for Bravo Core is an aluminum rear rack which can fit any load with ease up to 50lbs. Mounted directly on the rack is LED rear taillight with brake light functionality.

Hydraulic Stopping Power

Voltbike Bravo Core is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

LCD Screen

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

SRAM X5 9 speed

Leveraging the legendary history of SRAM shifting, the X5 rear derailleur provides incredible shifting speed and precision EXACT ACTUATION™ technology eliminates slop and shifting variation.

Simple Controls

Our redesigned cockpit includes large easy to read LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated thumb throttle which activates when the speed is 8km/h or higher.

Always Visible

Bravo Core is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. Rear LED light powered using the main battery pack. Features brake light functionality that is activated any time the brakes are applied. Reflective tire liner ensures you are visible from the side.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 65.0 lb
  • Battery 17.5Ah 48V Li-ion Samsung (840Wh)
  • Battery Style Clip-on
  • Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Tektro Auriga HD-E500 front/rear
  • Chain KMC Rust Buster
  • Crankset Aluminum Alloy 44T Crank, 170mm with Outer Guard
  • Derailleur Guard Rear, metal
  • Fork SR Suntour XCM32 ATB
  • Frame Type Step-Over
  • Freewheel Cassette Shimano Altus CS-HG31 8 Speed Casette, 11-32t
  • Front Light Spanninga Kendo+ LED 30 Lux
  • Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9°
  • Motor Bafang M600 Mid-Drive 120Nm Torque
  • Motor Type Mid-Drive
  • Pedals Wellgo LU-313
  • Rear Derailleur SRAM X5 9 speed, Exact Actuation, Direct Route
  • Rear Light LED brake light
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 27.5", 36 spokes
  • Seat Velo Plush VL-6142
  • Seat Post Promax SP-252, 30.4mm*350mm
  • Shifter Type Shimano Acera SL-M310 Rapid Fire Shifter 8 Speed
  • Stem PROMAX MODEL MA-596, 35°-145°, 105mm extension, 31.8mm bore
  • Tires Kenda 27.5" x 2.1"

Sizing

  • aFrame Size: 19"
  • bStand-over Height: 32"
  • cReach: 18"
  • dTop-tube Length: 24"
  • eHandlebar Height: 44"-46"
  • fSeat Height: 34"-40.5"
  • gWheel Size: ⌀27.5"x2.1"
  • hWheelbase: 46"
  • iLength: 73"
Bravo Core sizing chart.
