VOLTBIKE

Bravo

Bravo

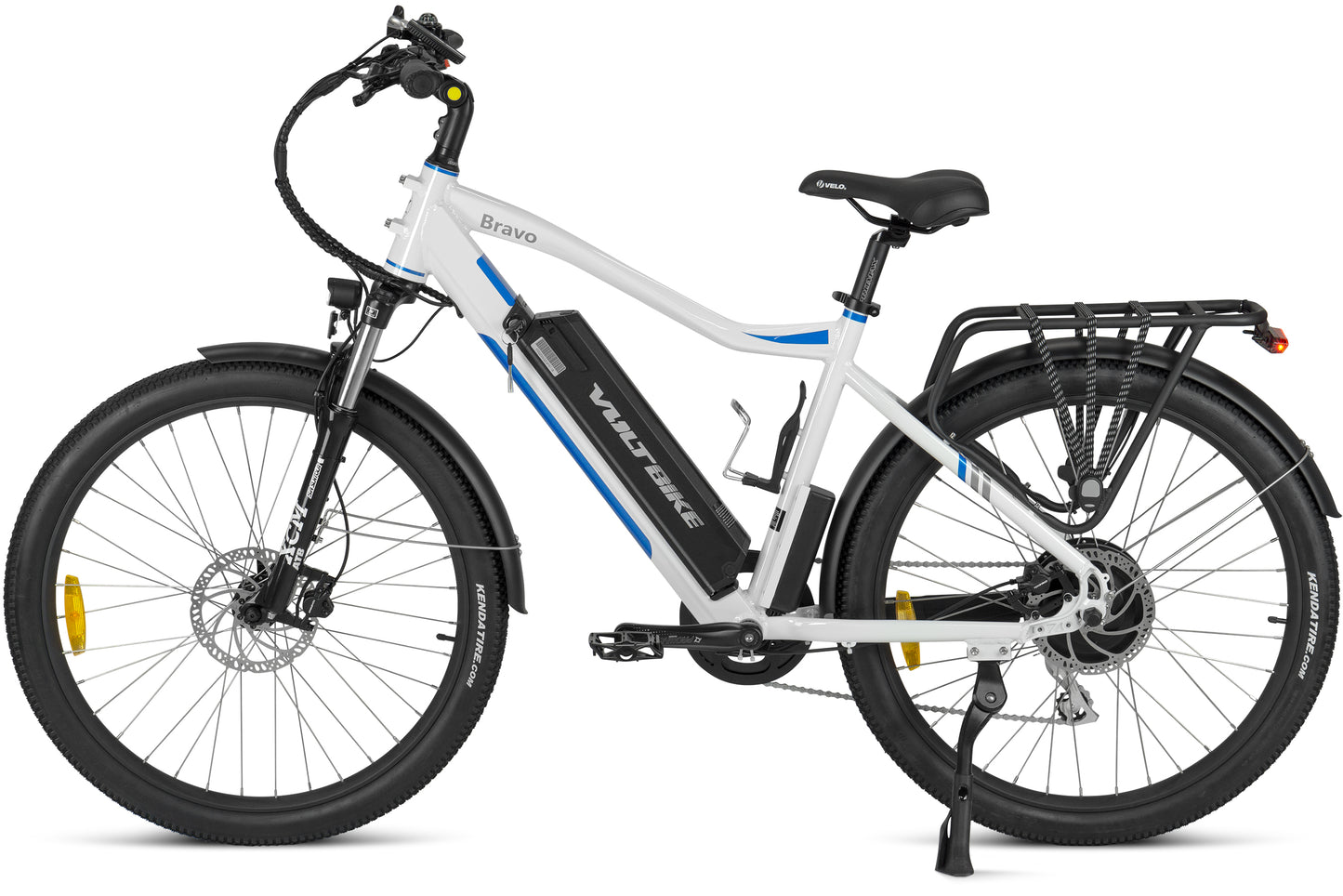

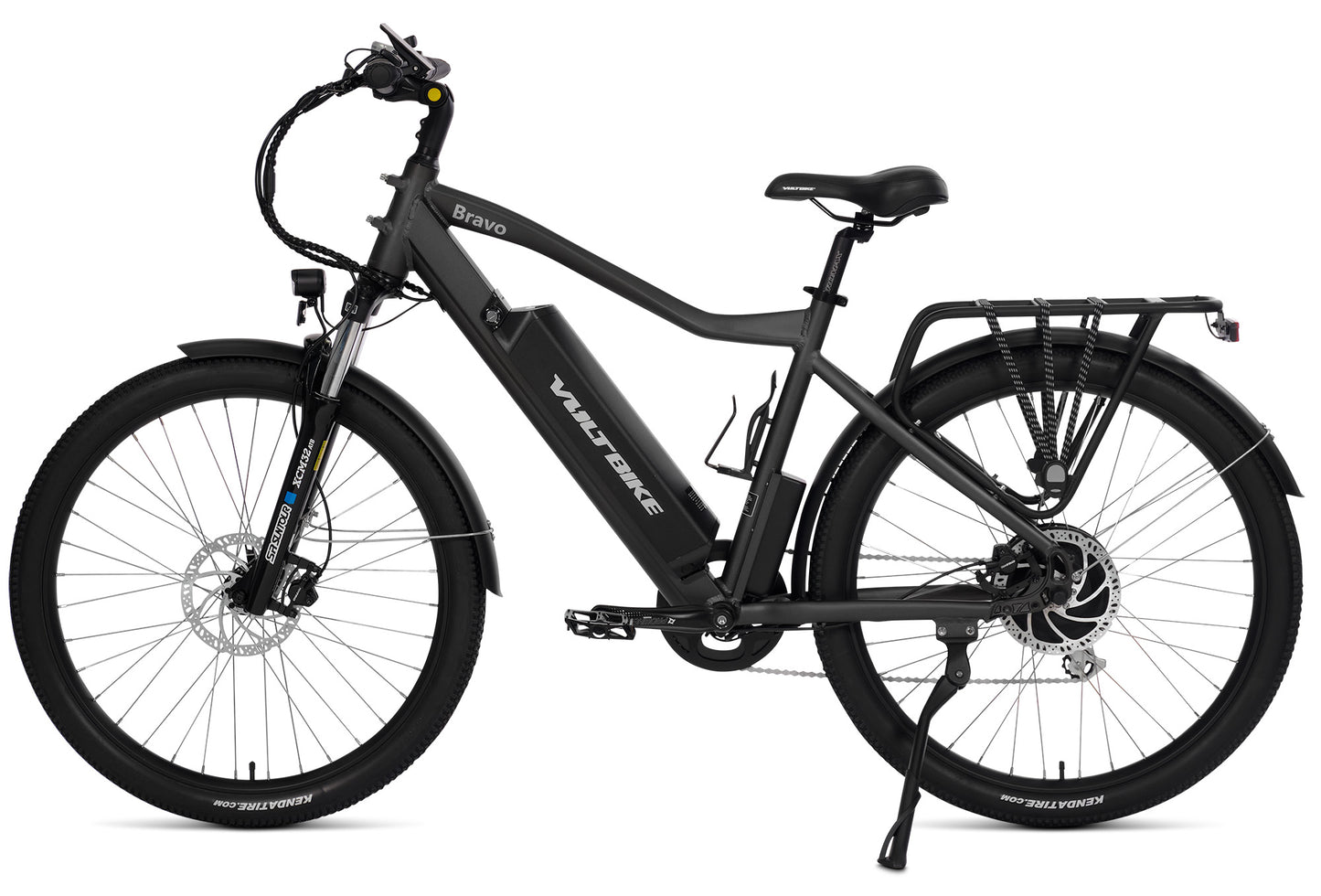

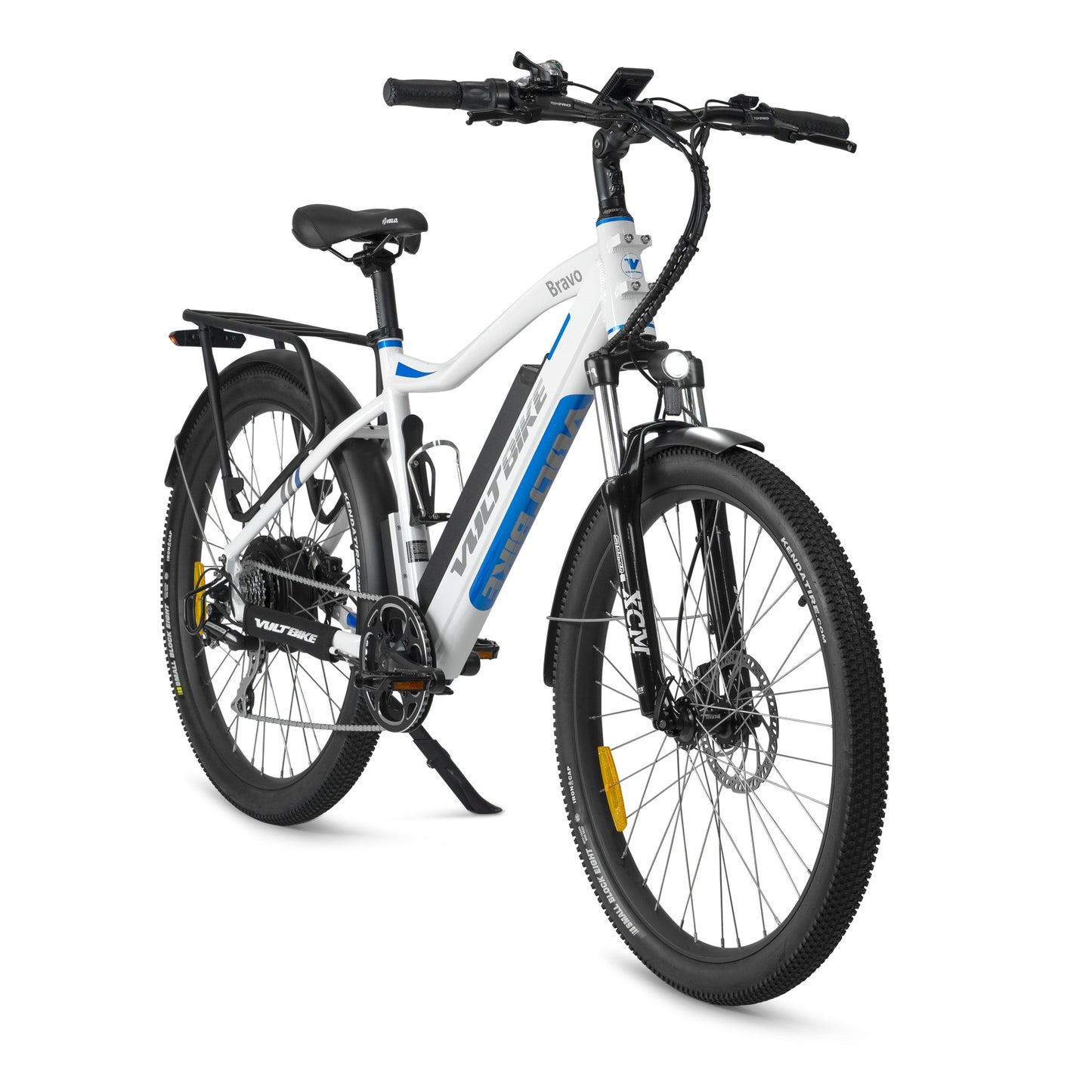

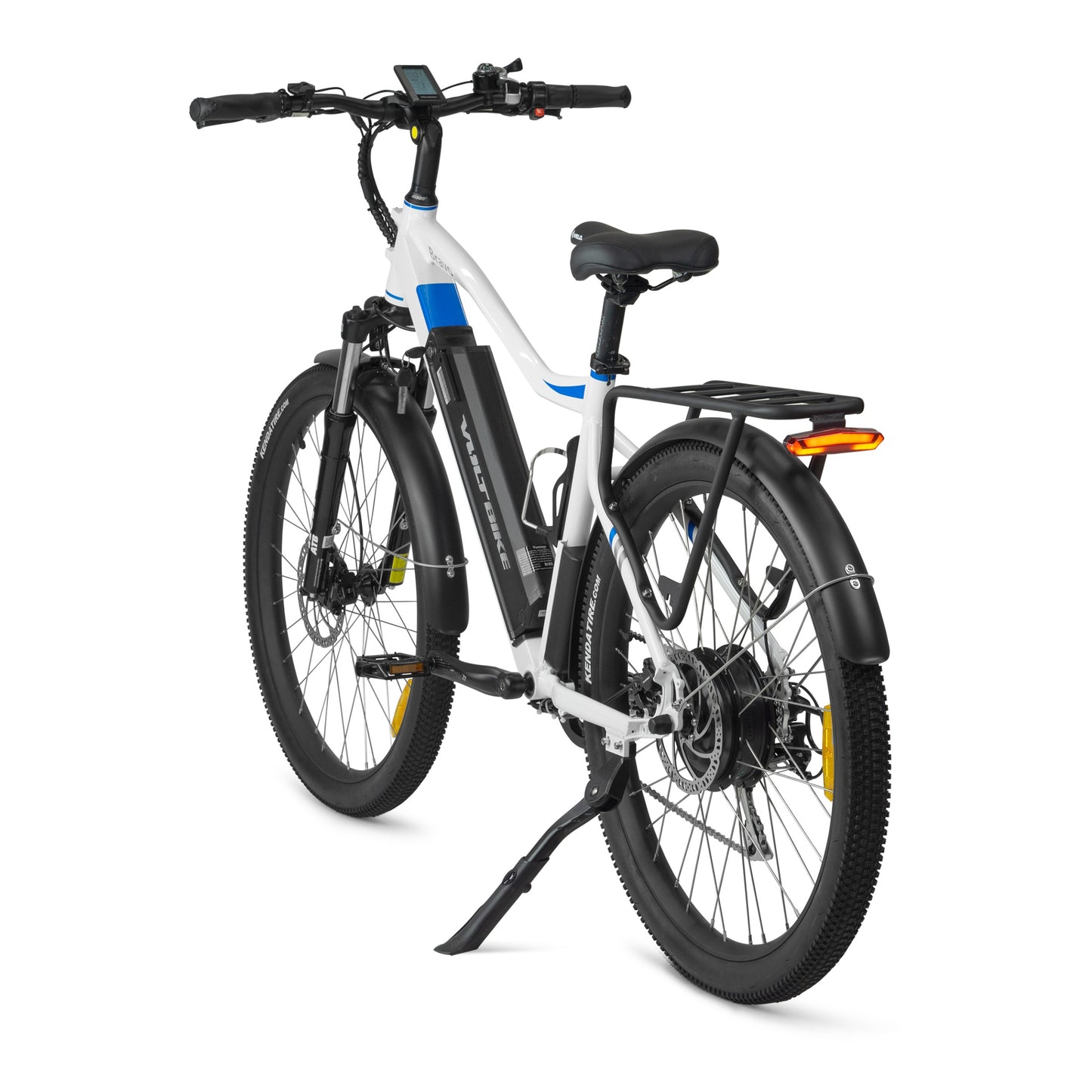

Are you looking for a sporty bike but prefer riding longer distances on- and off-road? If so, the Voltbike Bravo is the right choice. Designed specifically for long trips, whether for fun or for everyday life. This ebike is equipped with hydraulic disc brakes, providing enhanced stopping power. Large size 17.5Ah battery, ideal for extended journeys. Bravo is matched with a robust 500-watt Bafang motor and 27.5-inch wheels to ensure a smooth ride on light to moderate terrain.
Due to popular demand Bravo is out of stock.
$1,899.00 CAD
$2,299.00 CAD $1,899.00 CAD
Sale Sold out
Bicycle Color
Battery Size
  • Free Shipping
  • 1 Year Warranty
View full details

Overview

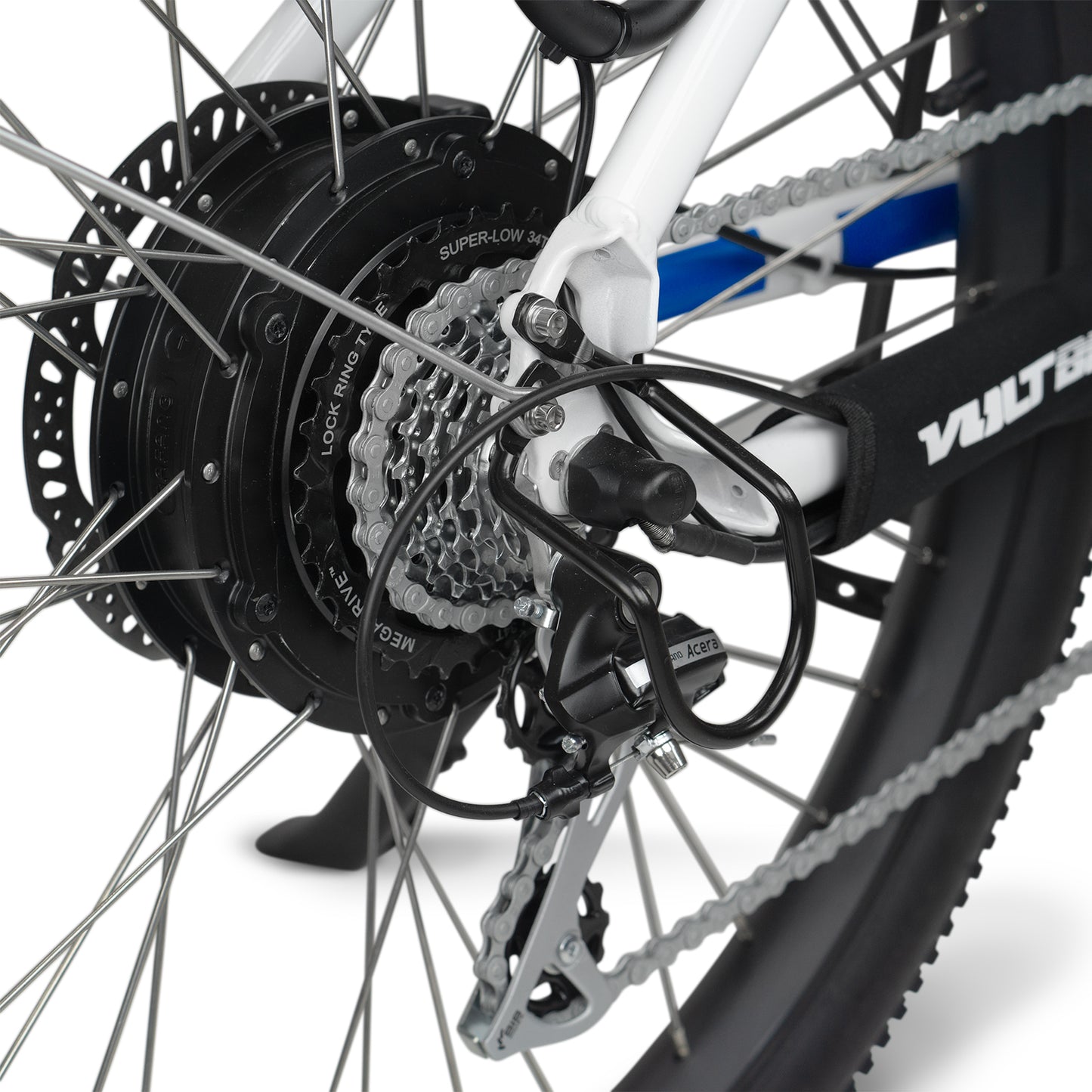

500W Rated Power

The Bravo is using a Bafang G07 series geared motor which provides 65 N.m. max torque and 500w rated power. The Bafang G07 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Long Range Battery

The Bravo comes with a 48v 17.5Ah battery packed with Samsung Li-ion battery cells. The battery pack is assembled by Phylion which is one of the largest battery manufacturers for ebike batteries with facilities in China, Europe and India. These Samsung cells are preferred by almost all high-end e-bike manufacturers due to their superb cell balance technology.

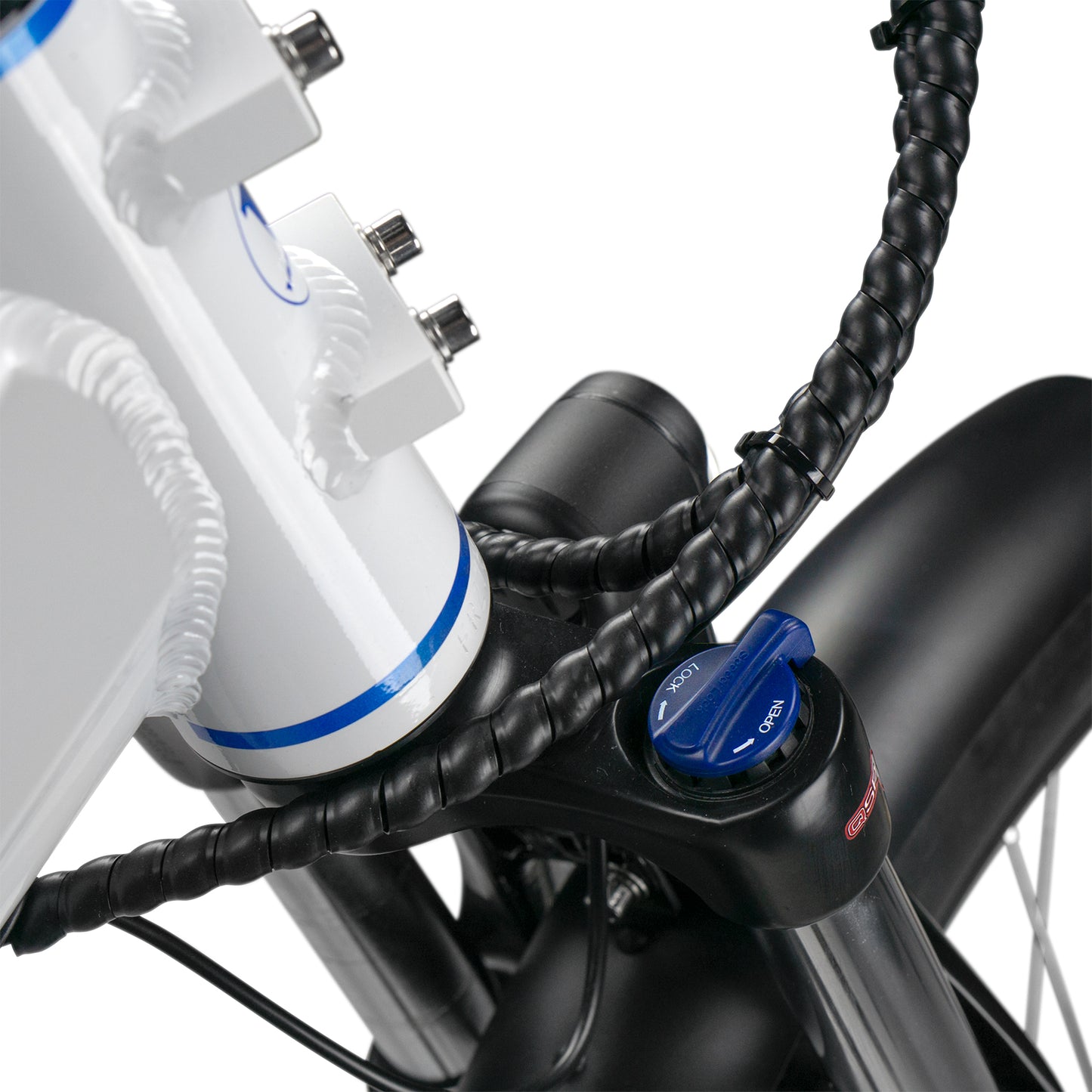

Extra Smooth Ride

The Voltbike Bravo comes standard with Suntour XCT DS lockout suspension. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.

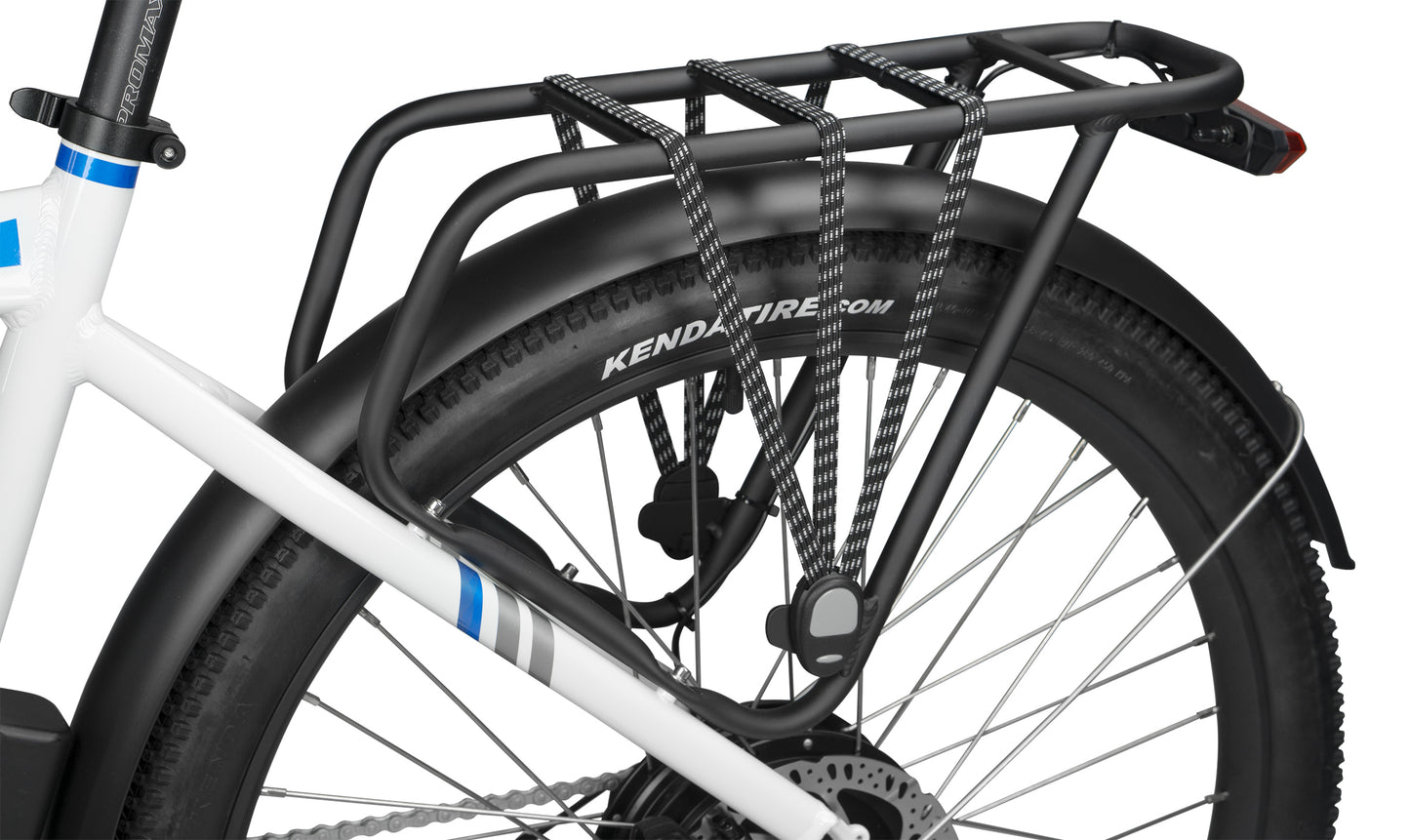

Sturdy Rear Rack

Standard for Bravo is an aluminum rear rack which can fit any load with ease up to 50lbs. Mounted directly on the rack is LED rear taillight with brake light functionality.

Backlit Color Display

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

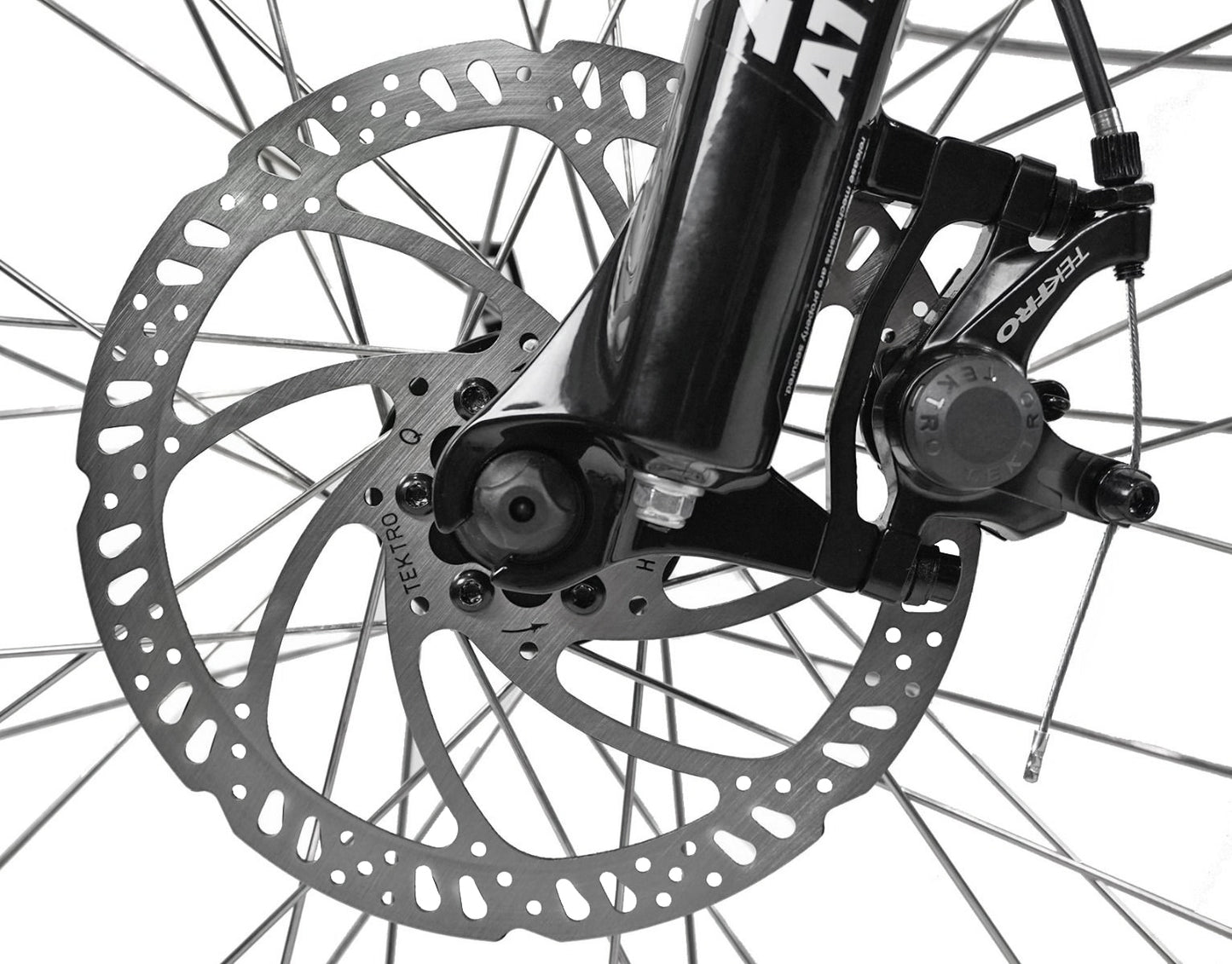

Hydraulic Stopping Power

The Bravo is equipped with Tektro Auriga hydraulic front and rear disc brakes. Tektro Auriga comp disc brakes feature an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

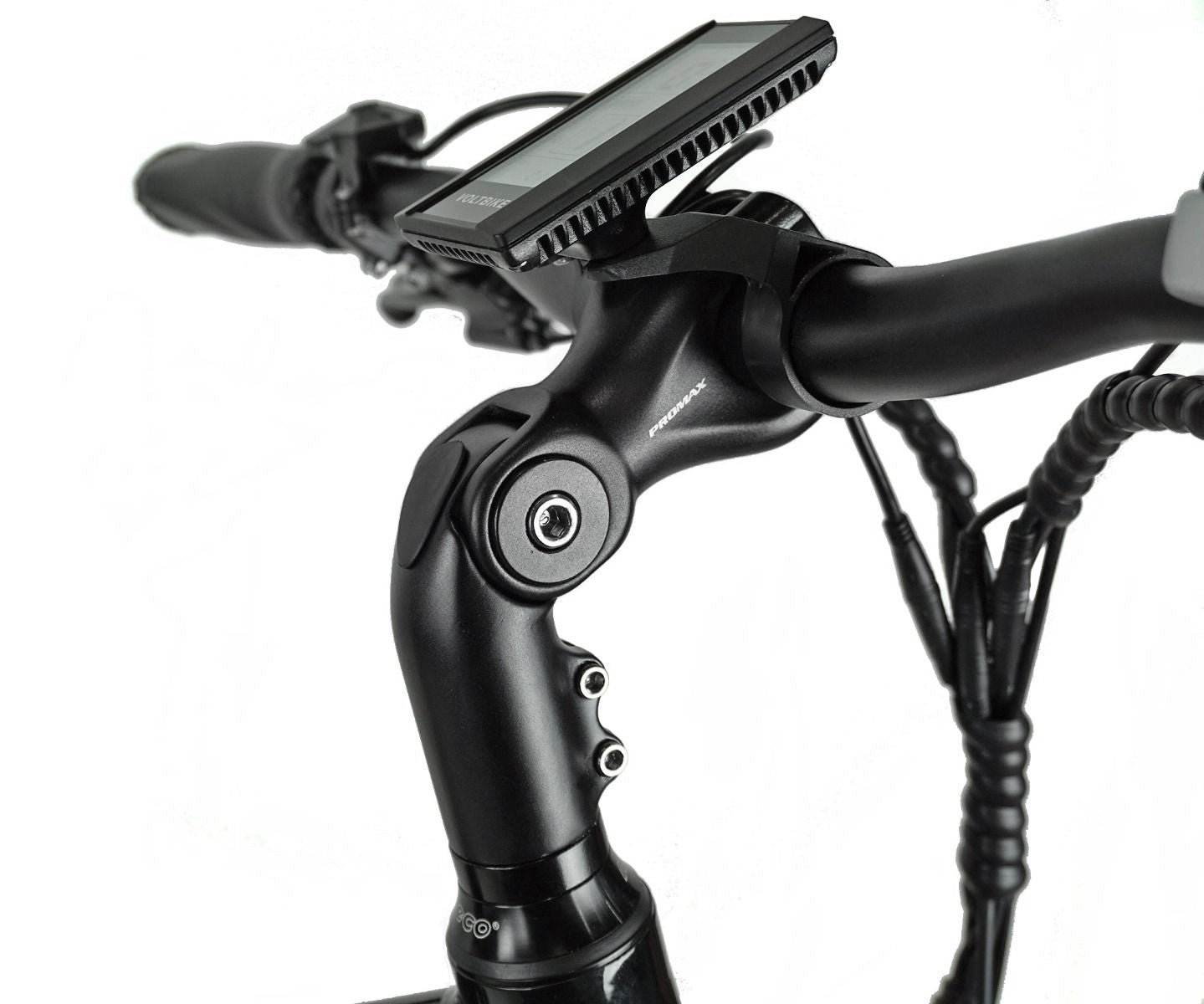

Adjust Your Ride

Adjust your bike as per your need. No matter what your style of riding, VoltBike has a stem with the fit, performance and style you're looking. VoltBike is using stem Promax MA-570 with adjustable angle 35° - 145° and 108mm extension.

Simple Controls

Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Always Visible

The Bravo is equipped with a high lumen front LED light with a consistent, well-focused beam pattern. Rear LED light powered using the main battery pack. Features brake light functionality that is activated any time the brakes are applied. Reflective tire liner ensures you are visible from the side.

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 63.0 lb
  • Battery 48V Li-ion 17.5Ah Samsung (840Wh)
  • Battery Style Clip-on
  • Bottom Bracket Neco 910, 23.5mm + 120mm + 23.5mm
  • Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
  • Brake Lever Tektro with integrated bell
  • Chain KMC Rust Buster
  • Crankset Aluminum Alloy-6061 44T Crank, 170mm with Outer Guard
  • Derailleur Guard Rear Metal Derailleur Guard
  • Fork SR Suntour XCM
  • Frame Type Step-Over
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Handlebars PROMAX ALLUMINUM ALLOY 31.8mm*22.2mm*680mm, 9 degree
  • Hubset 6061 Alloy Electric Motor
  • Motor 48v 500W Bafang G070 Hub Motor
  • Motor Type Hub Motor
  • Pedals Wellgo LU-313
  • Rear Derailleur Shimano Acera RD-410 7 Speed Direct
  • Rider Max Weight {"value":280.0,"unit":"lb"}
  • Rims 27.5", 36 spokes
  • Seat Velo Plush VL-6142
  • Seat Post Promax SP-252 Aluminum 6061 Alloy, 30.4mm*350mm
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Spokes Rear 13G, Front 13G
  • Stem PROMAX MA-596, 35° - 145°, 105mm extension, 31.8mm bore
  • Tires Kenda 27.5" x 2.1"

Sizing

  • aFrame Size: 19"
  • bStand-over Height: 32"
  • cReach: 18"
  • dTop-tube Length: 24"
  • eHandlebar Height: 44"-46"
  • fSeat Height: 34"-40.5"
  • gWheel Size: ⌀27.5"x2.1"
  • hWheelbase: 46"
  • iLength: 73"
Bravo sizing chart.
