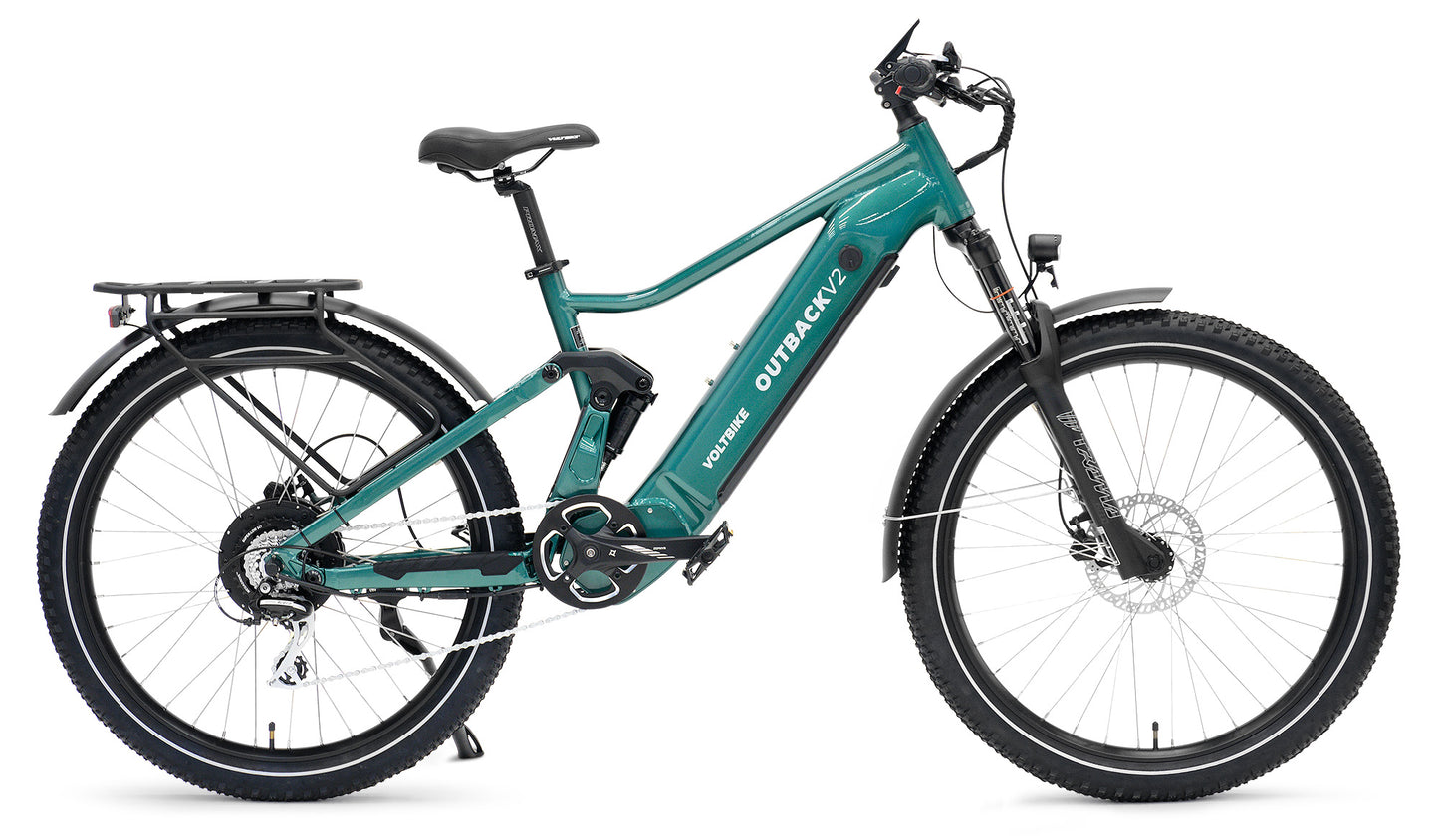

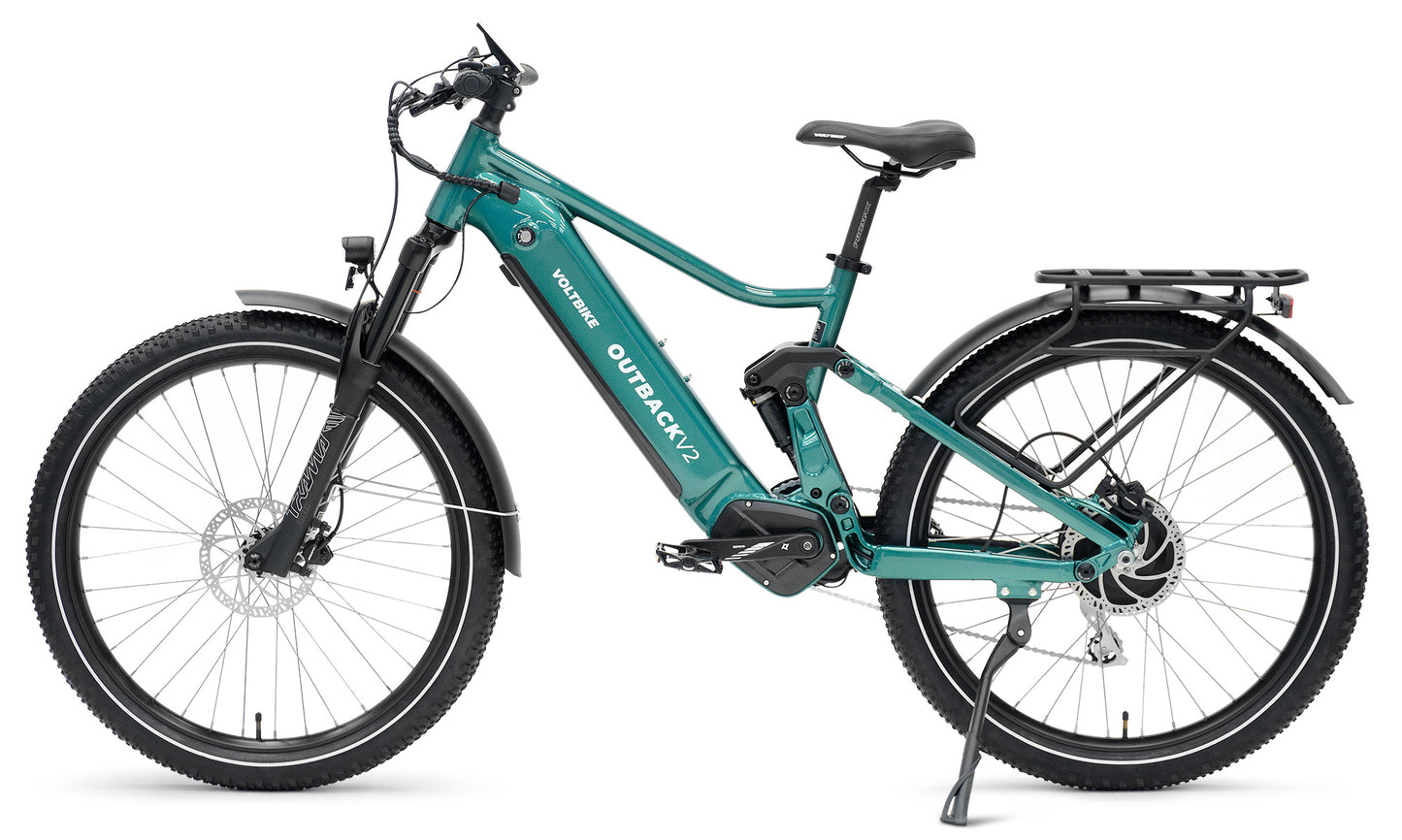

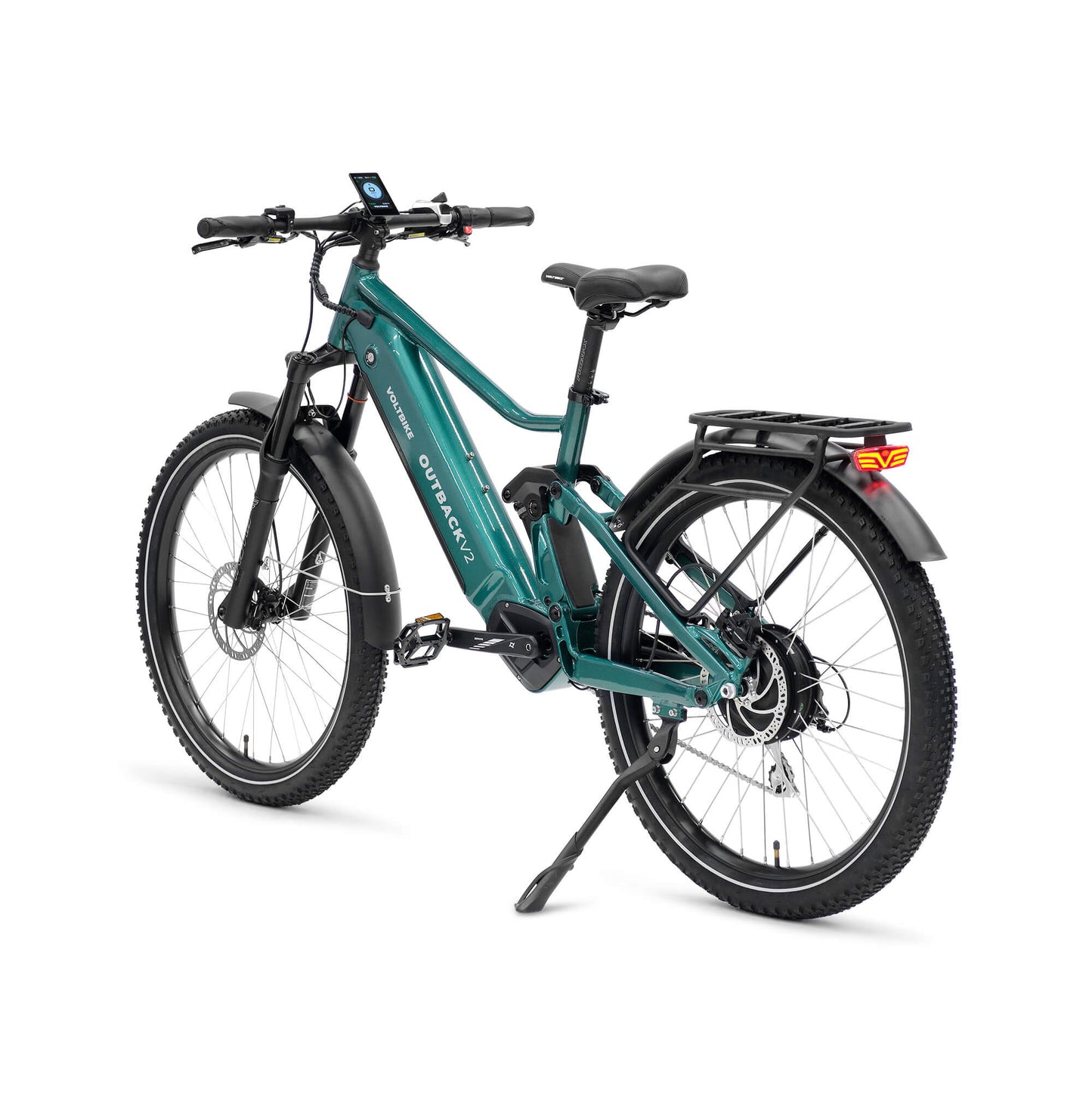

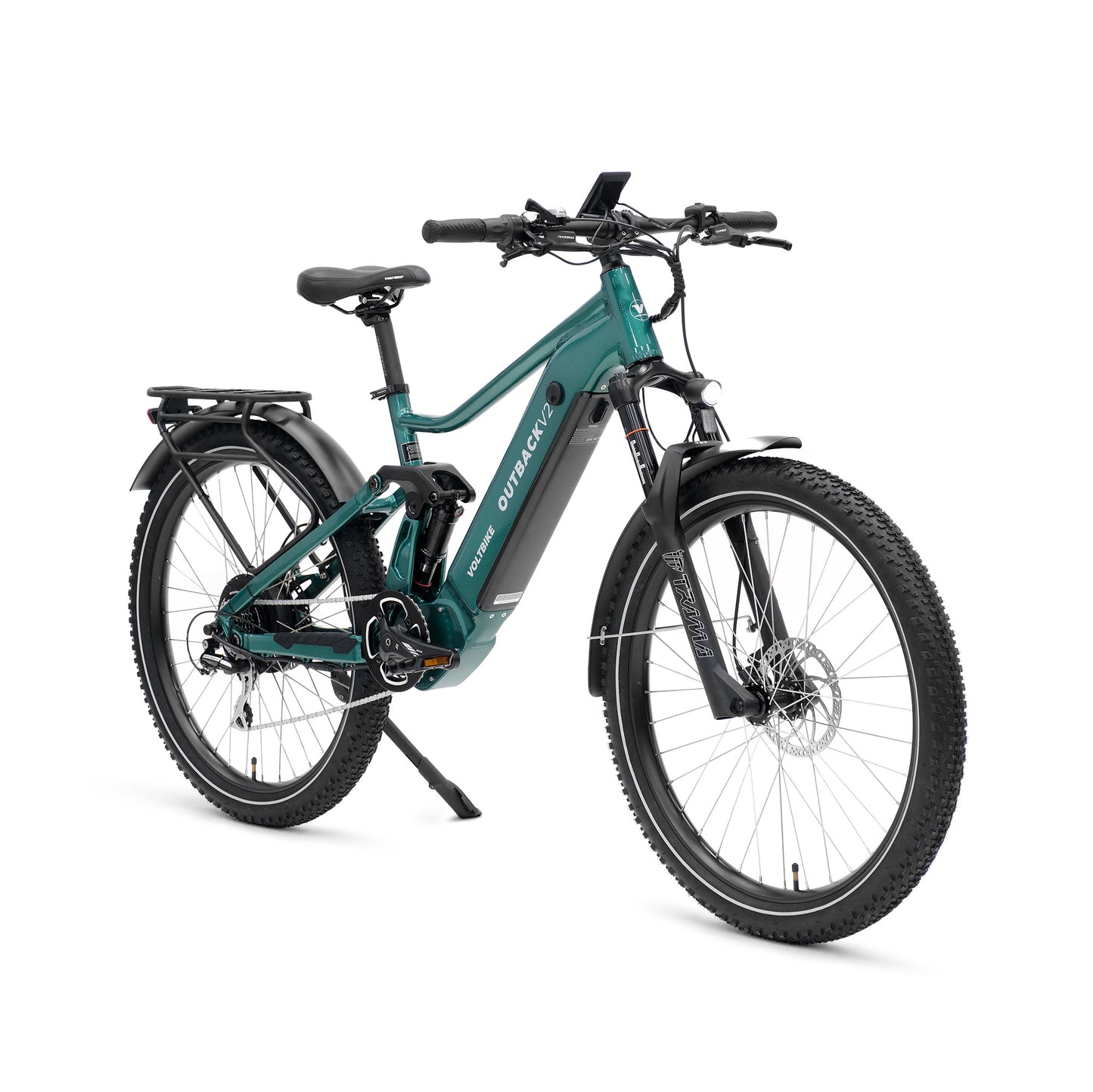

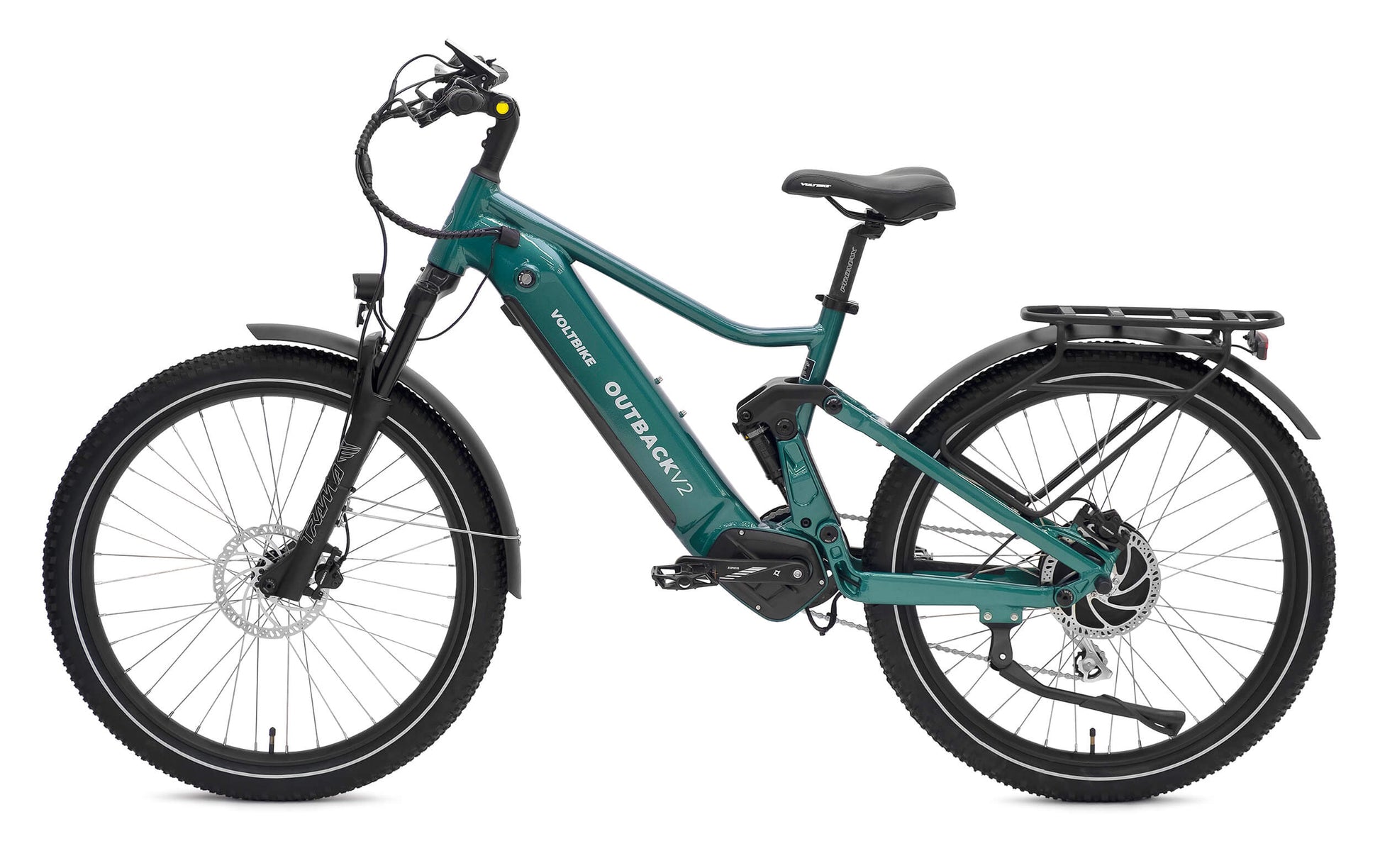

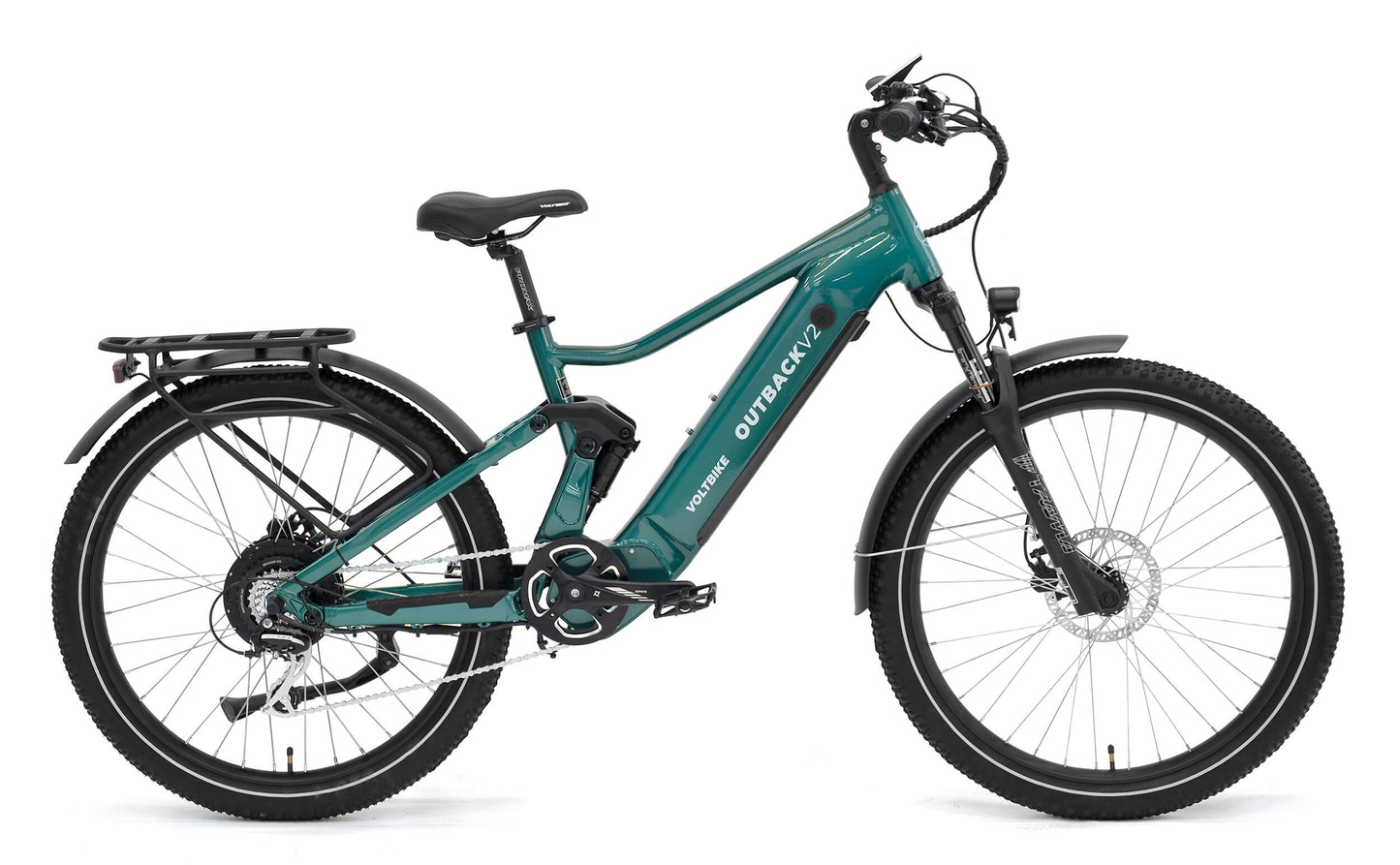

Outback V2
Outback V2
Introducing the Outback V2, the next evolution in adventure eBiking. At the heart of the Outback V2 lies its fully integrated but removable 17.5Ah Li-ion battery, which works seamlessly compatible with the rest of the VoltBike V2 lineup.
The Outback V2 is our first eBike fitted with a front air-fork, for the best ride quality and comfort. It's also equipped with an advanced rear-suspension mechanism featuring a Rockshox Monarch R shock absorber, the Outback V2 effortlessly conquers any terrain with grace and precision. Enhanced with practical features such as included fenders and a rear rack, the Outback V2 is prepared for every adventure, from off-road escapades to daily commutes.
- Free Shipping
- 1 Year Warranty
- 20+ Quality Standards Checklist
Overview
500W Rated Power
The Outback V2 is using a Bafang G07 series geared motor which provides 65 N.m. max torque and 500w rated power. The Bafang G07 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.
Fully Integrated Battery
Outback V2 is using 48v 17.5Ah (840Wh) battery pack with Samsung INR18650-35E cells. The integrated frame design gives you security in various weather conditions plus offering unmatched visual appearance. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.
RockShox Rear Air Shock
The RockShox Monarch R is a wolf in sheep's clothing. Its lightweight design not only delivers silky smooth travel, but thanks to the DebonAir air spring, it also delivers a spring rate you'd generally only get from a much heavier coil shock. Fully adjustable shock capable of smoothing out the most aggressive trails, while simultaneously saving you weight for epic cross-country riding.
Full Suspension
Get increased stability in the bumps and while descending.VoltBike Outback is a smart choice for all types of riding including trails or in the city. Get better traction, control, and steering, minimizing the risk of mistakes on tough terrain.
Hydraulic Stopping Power
Voltbike Outback V2 is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.
Extra Smooth Ride
The Voltbike Bravo comes standard with Suntour XCT DS lockout suspension. Designed for quick release axles and bolt on axles. 135mm dropout, 32mm stanchions, 210mm steerer tube, 90mm travel. Weight is only 7lbs.
Backlit Color Display
Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.
Simple Controls
Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.
Parts Included
Our bikes ship 95% assembled with everything you’ll need to get up and running, including:
Specifications
- Weight 75.0 lb
- Battery 48V 17.5Ah Li-ion Samsung (840Wh)
- Battery Style Internal
- Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
- Brake Lever Tektro Auriga with safety power cut
- Frame Type Step-Over
- Motor 48v 500W (750W Peak) Bafang G07 Hub Motor
- Motor Type Hub Motor
- Pedals Wellgo LU-313 with reflectors
- Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailler
- Rear Suspension Air Shock RockShox Monarch R. Highly tunable DebonAir™ with rebound adjustment
- Seat Velo Plush VL-6142
- Seat Post Promax SP-252 Aluminum 6061 Alloy, 31.6mm*300mm
- Tires Kenda 27.5 x 2.6"
Fit & Size
-
Fit Guidelines
Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.
Suitable inseam range:
< 29" 74cm30" 76cm32" 81cm43" 109cm45" 114cm> 46" 117cmGreat fit with plenty of room for seat height adjustment.
Good fit but potentially limited seat height adjustment or top tube clearence.
Poor fit, frame is either too big or too small.
-
Sizing
- aFrame Size: 17"
- bStand-over Height: 31"
- cReach: 18"
- dTop-tube Length: 22.5"
- eHandlebar Height: 44"-46.5"
- fSeat Height: 36.5"-41"
- gWheel Size: ⌀27.5"x2.6"
- hWheelbase: 50"
- iLength: 77"
My new outback V2 is a blast to ride, the suspension is amazing, on or off road my commutes have never been this smooth. The battery takes me as far as I want and more, no range anxiety. I highly recommend this bike, exceeded my expectations.
Same value and quality from VoltBike, but with dual suspension! This beauty is smoooth riding, and the upgraded big seat is worth it. Looks great, too. Thanks for the great service!
we are so happy with our Voltbikes - they are fantastic and great value!

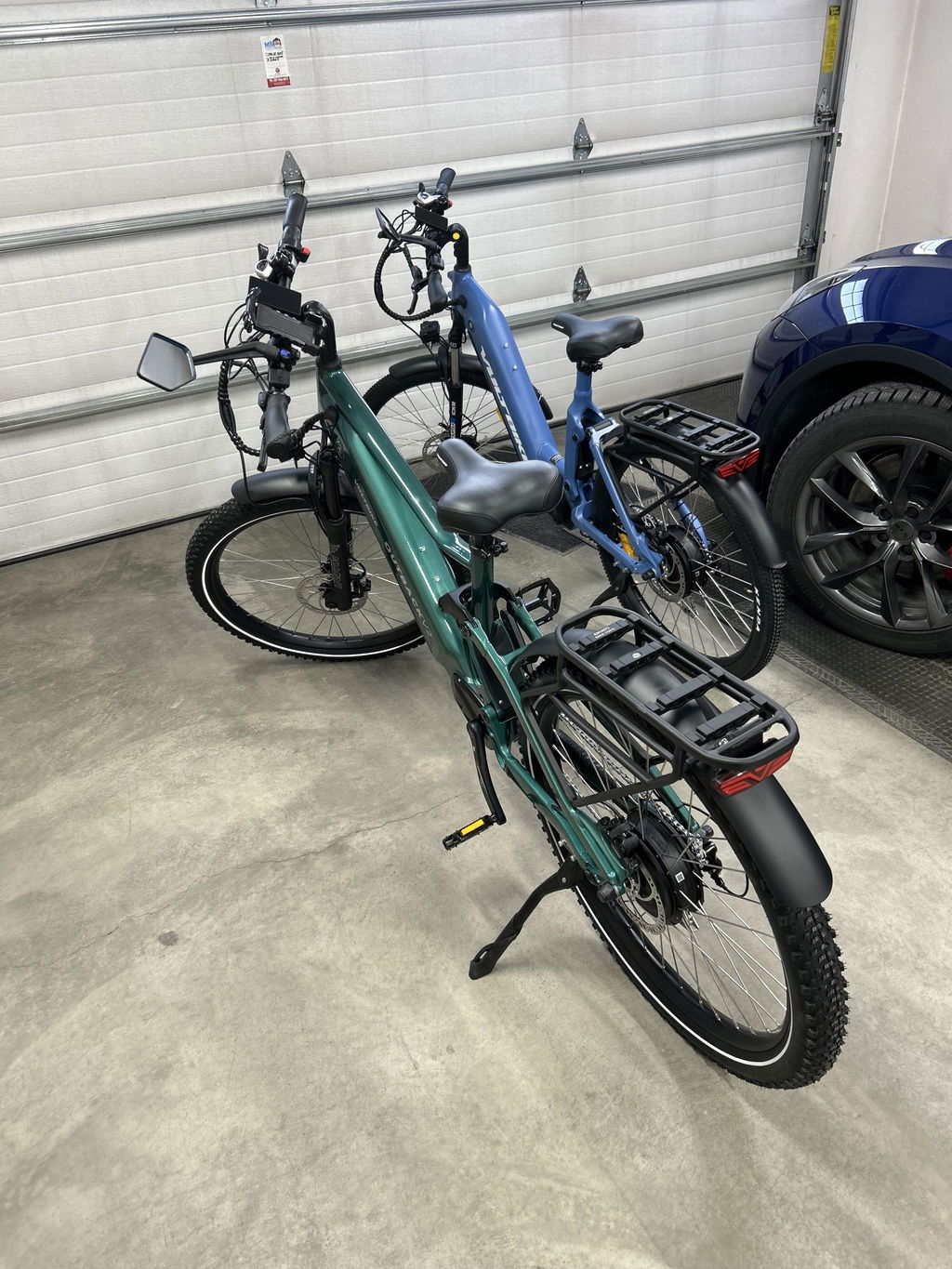

After unpacking and set up I felt intimidated by its size in comparison to our Elegant V2. First time swinging my leg over the saddle I was soon at ease and the smile on my face never left. Such a smooth ride even over speed bumps. Love the green paint!
