Power
500WW
Torque
80Nm
Range
100+ km
Top Speed
32km/h
Payload
300lbs

VoltBike

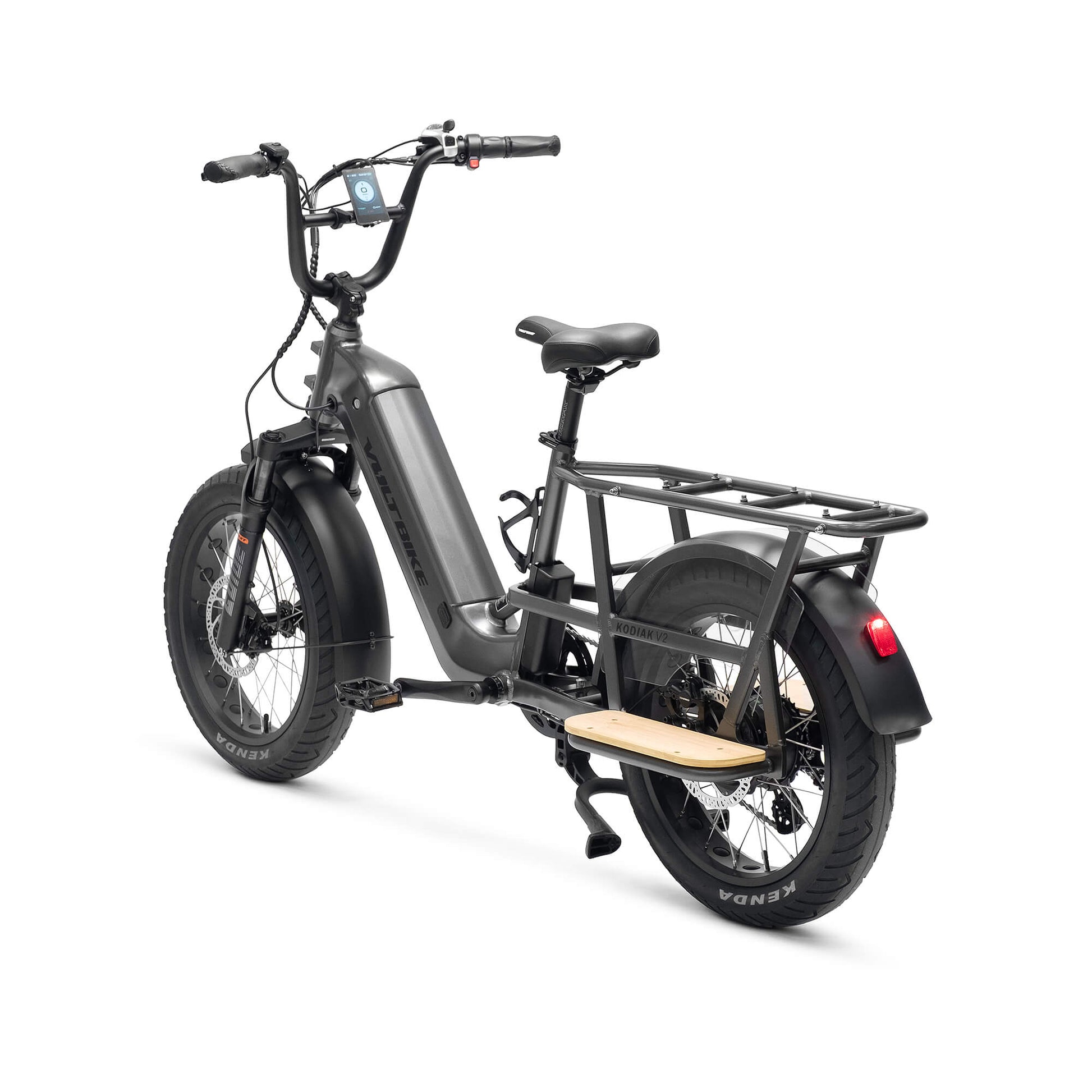

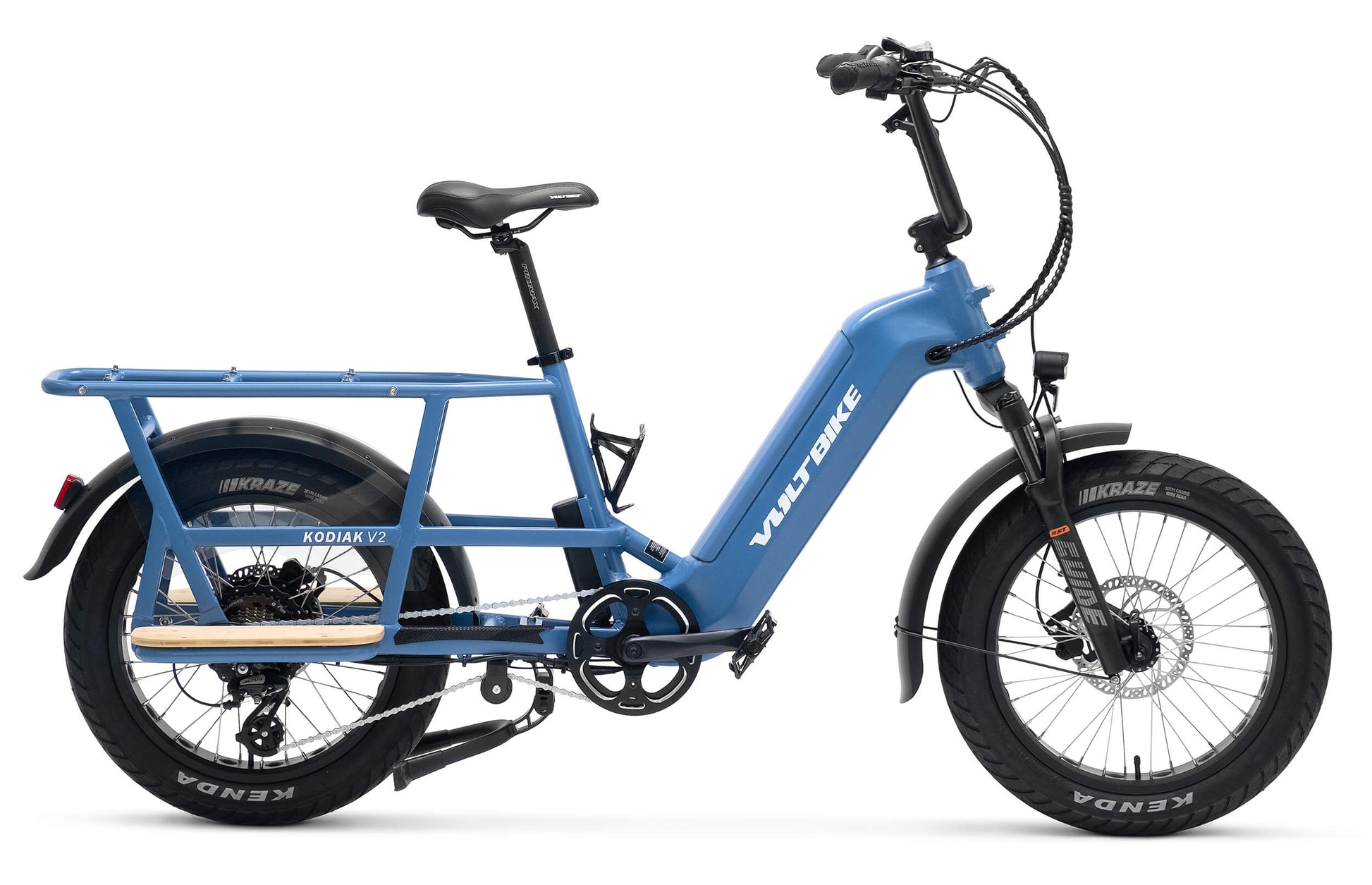

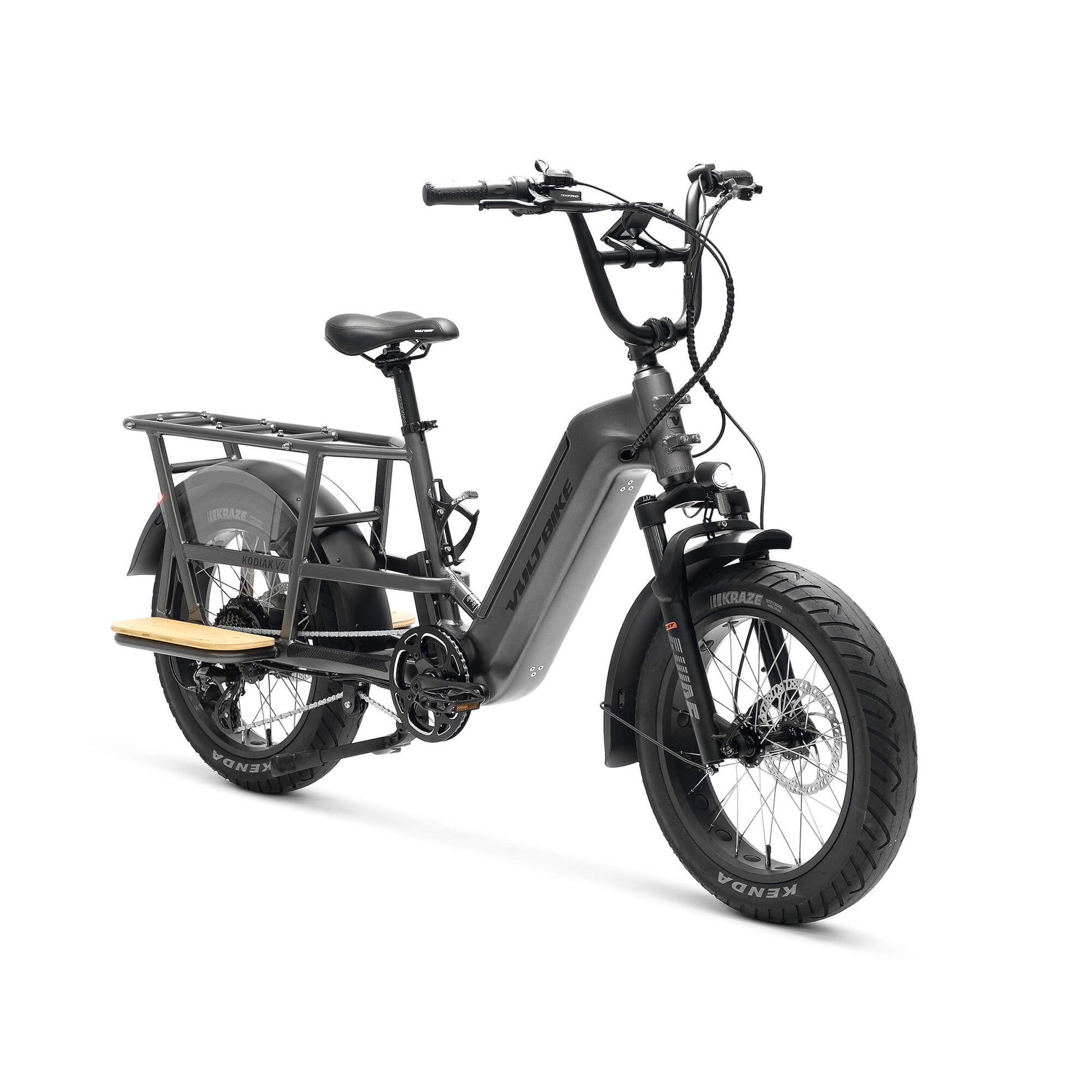

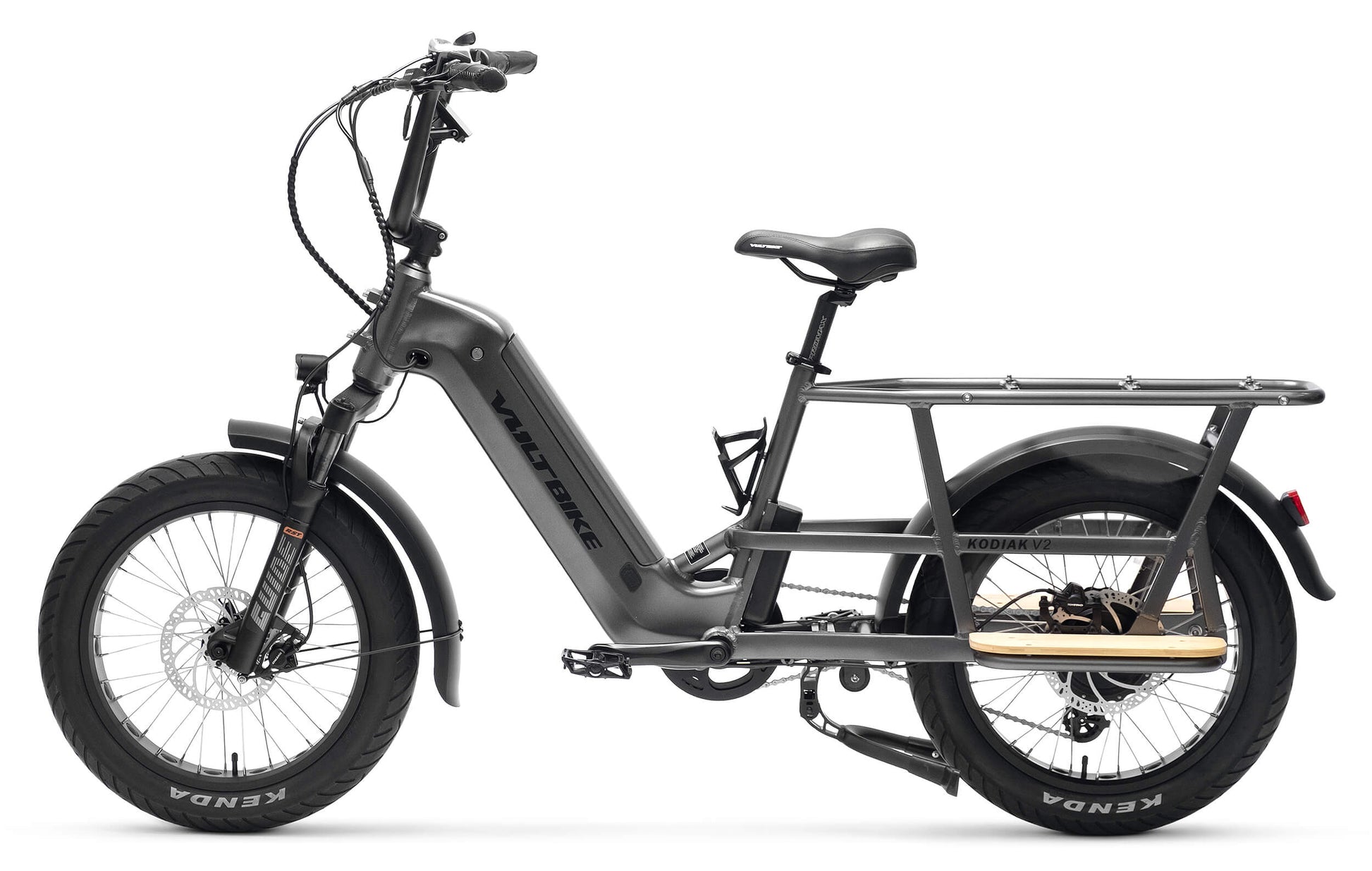

Kodiak V2

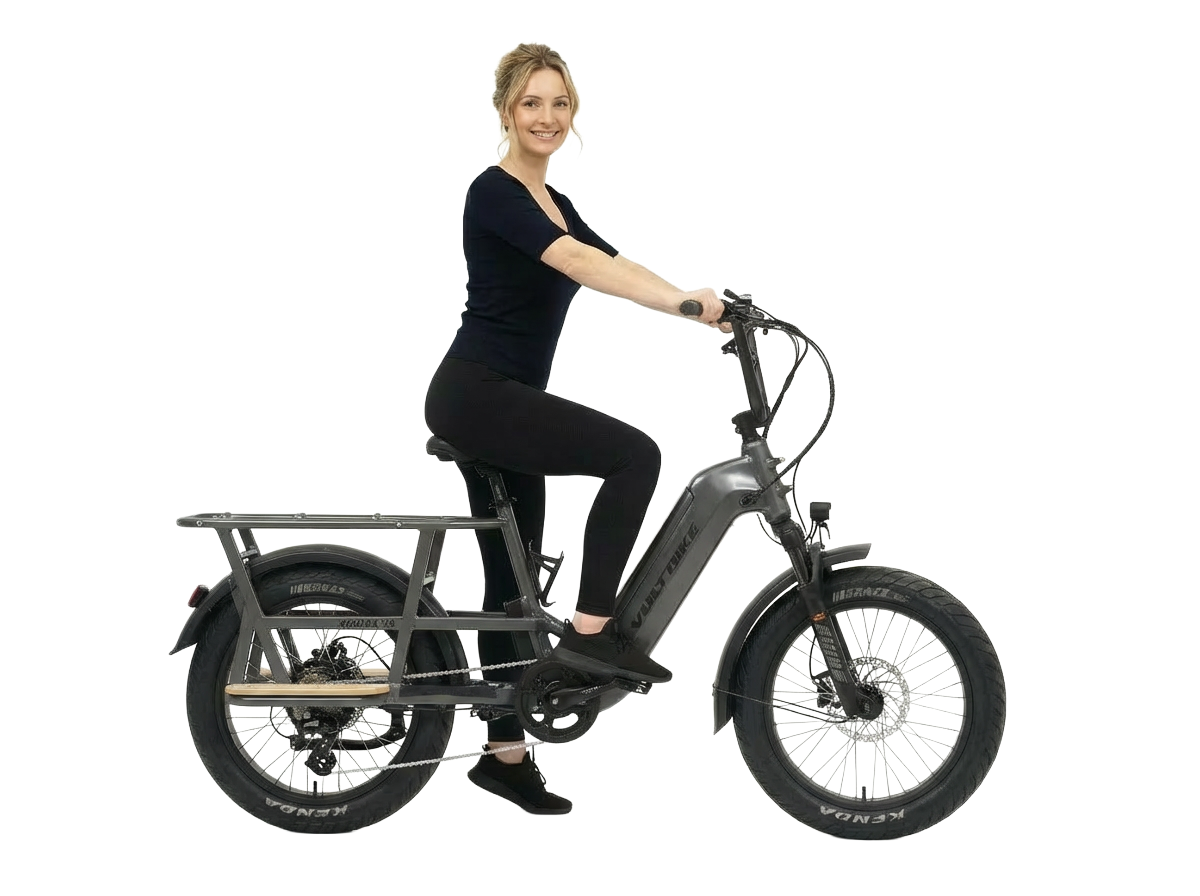

Kodiak V2

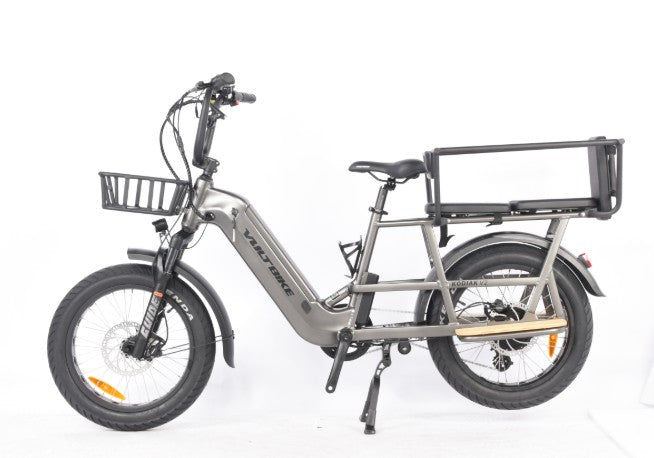

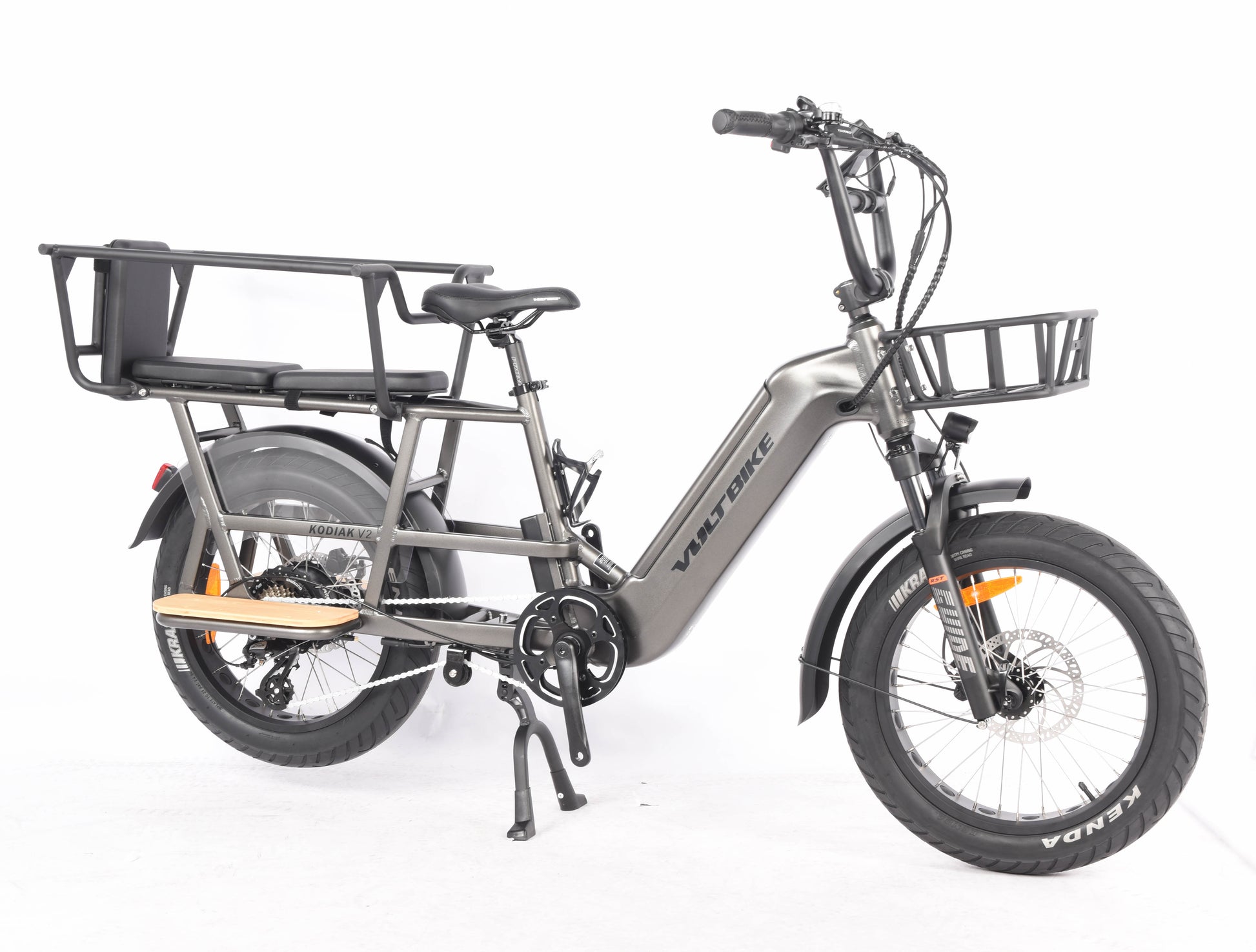

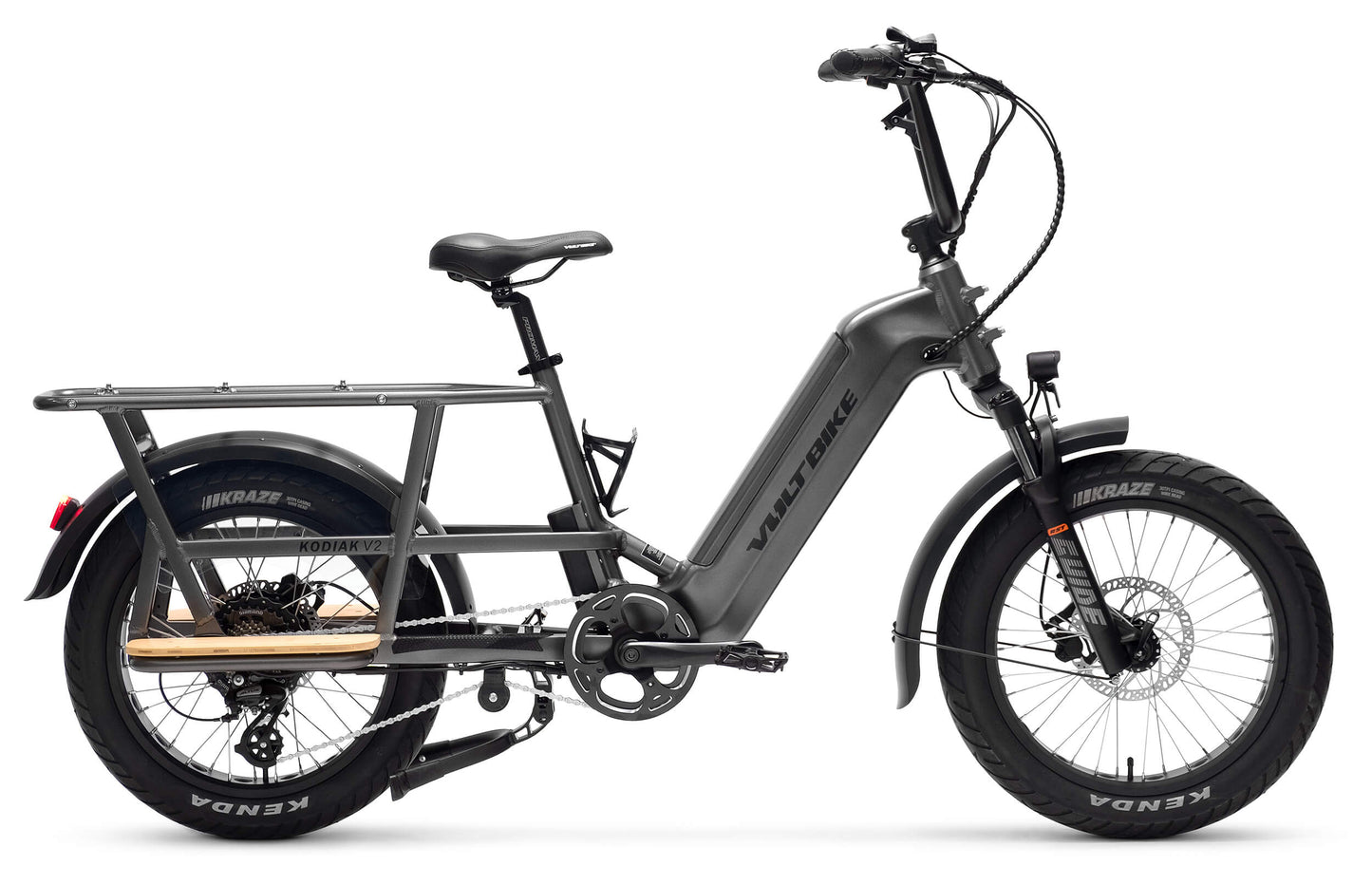

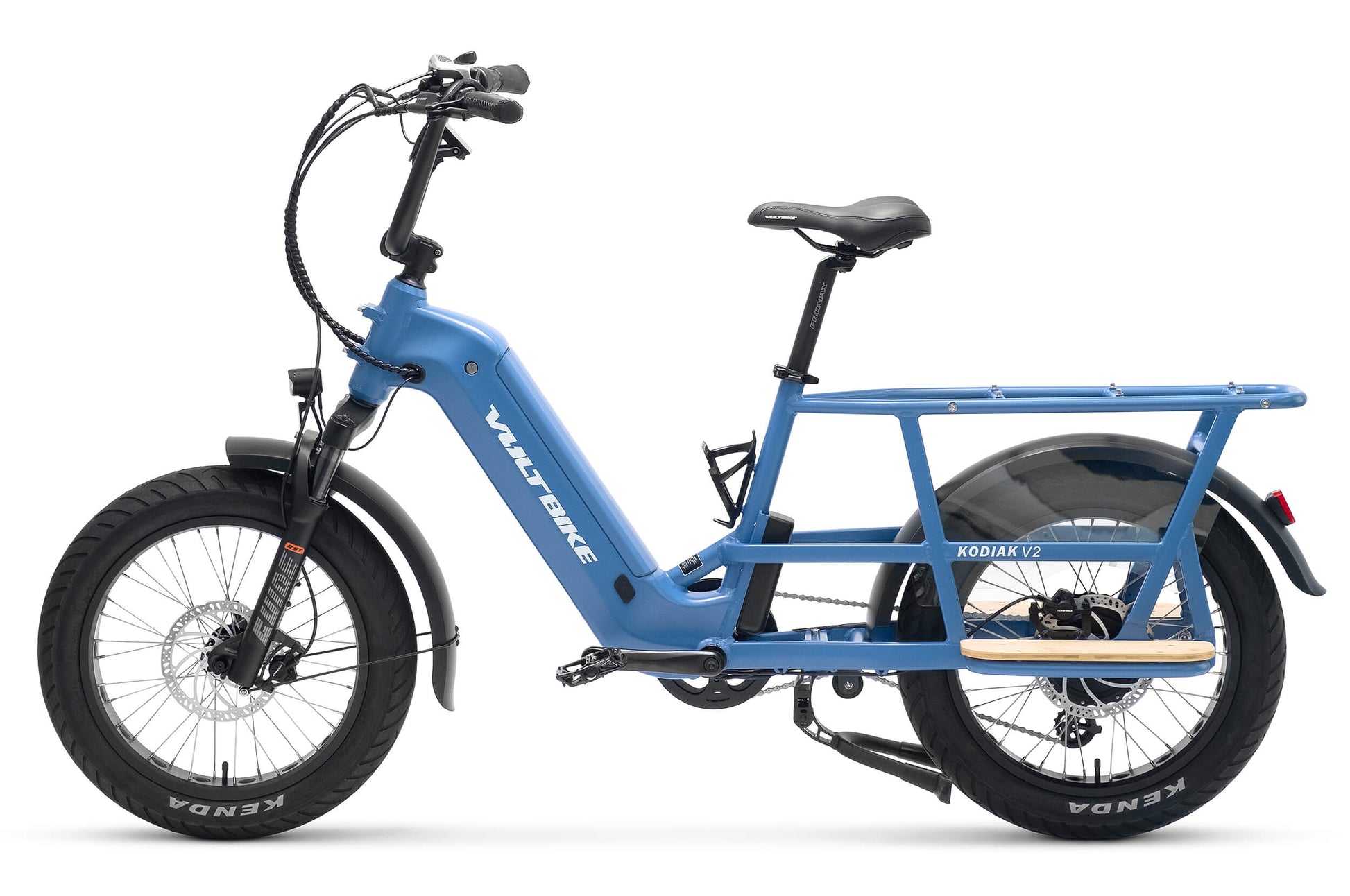

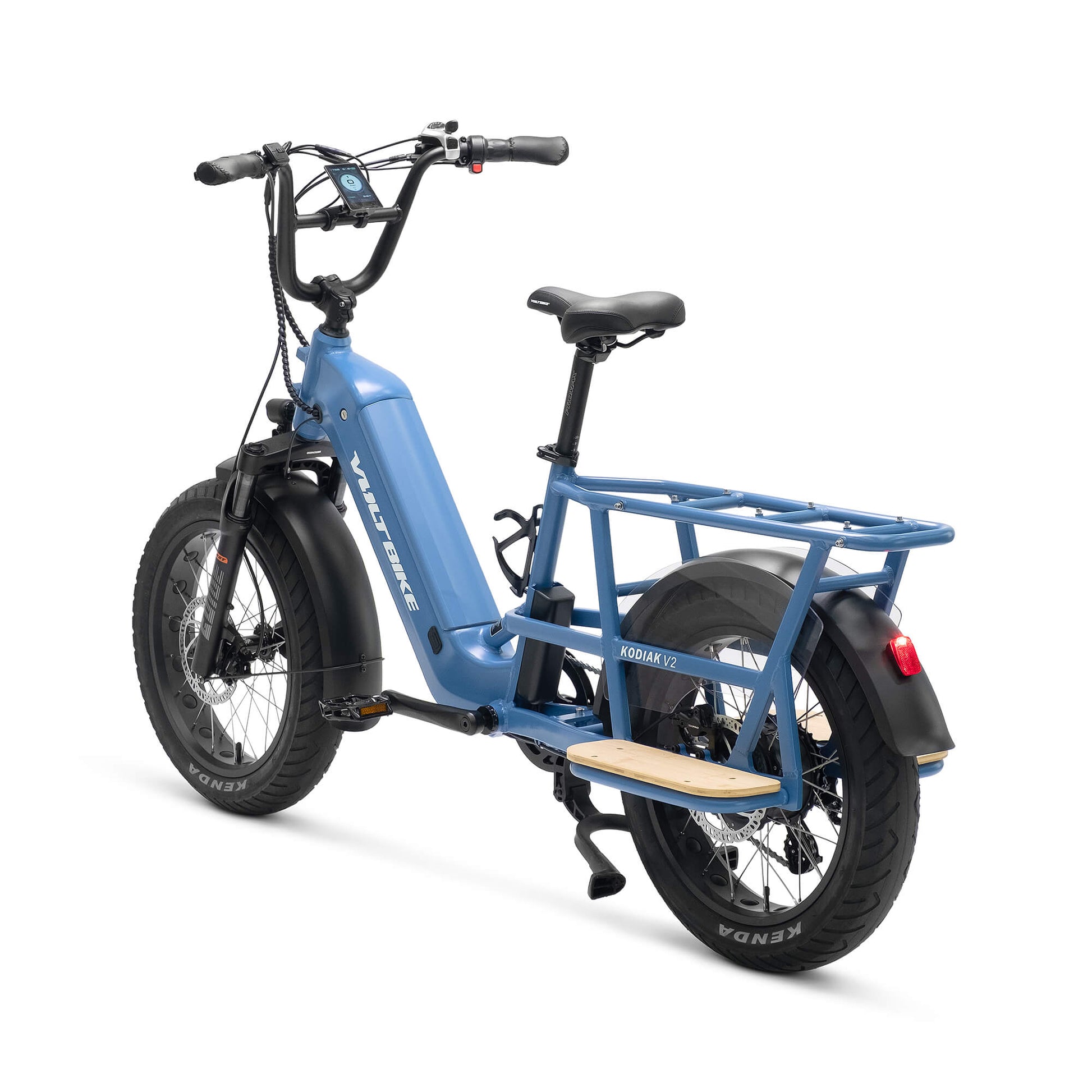

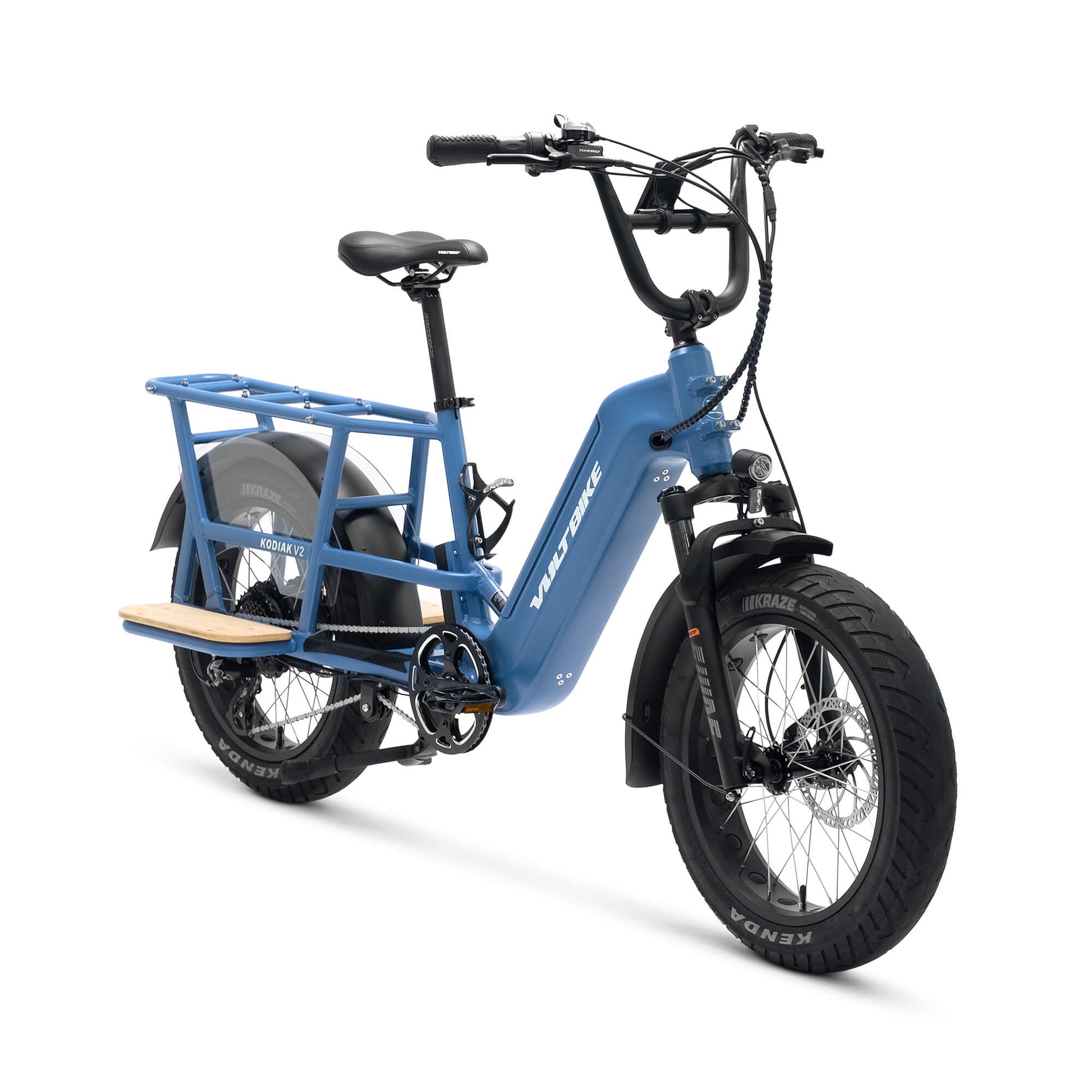

The VoltBike Kodiak V2– an evolution of our popular Kodiak e-bike. It's got the same powerful 500W (750W Peak) motor, Torque Sensor, a 20 amp hour removable internal battery, and now comes with front suspension to make long rides more comfortable than ever.

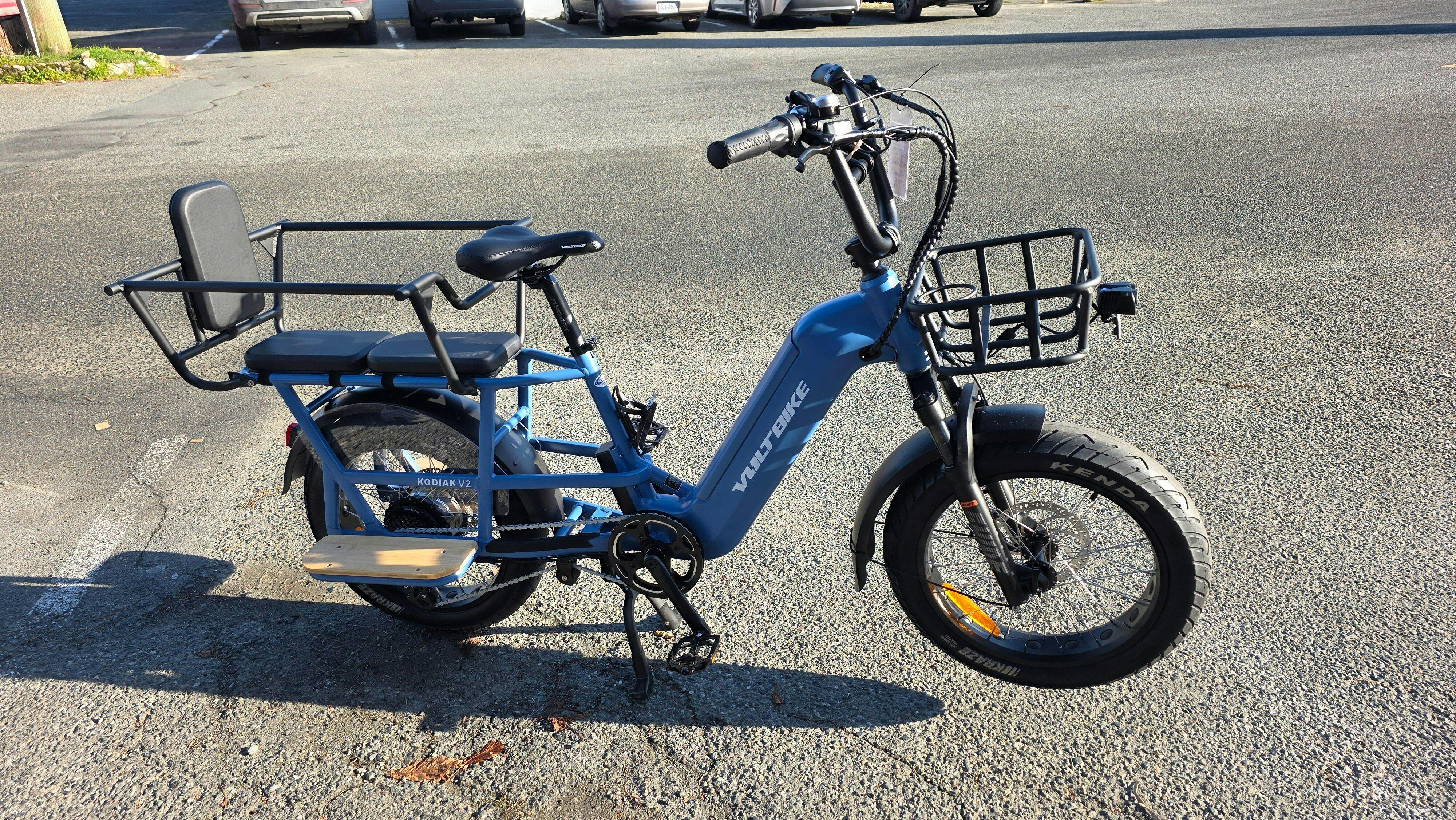

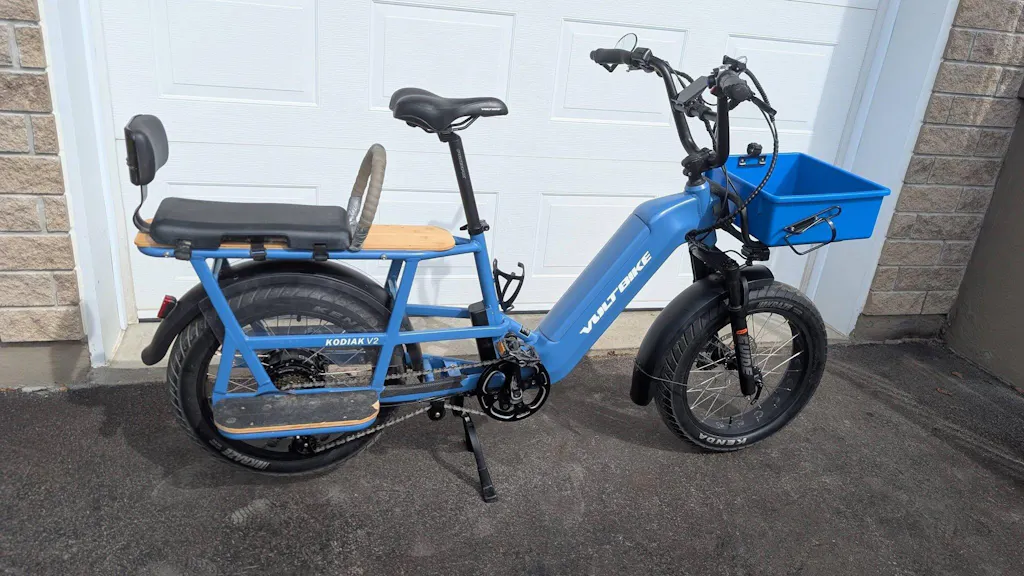

The Kodiak V2 comes fitted with 20x4" Kenda Kraze city tread tire, and can be fitted with optional rear passenger bars with padded seats for a premium passenger experience. A new front basket is also available, boosting cargo capacity even further.

Our Kodiak is perfect for those looking to replace their cars with an eco-friendly, fun ride.

*Please note that the rear basket and front basket are sold separately and are not included in the price. The rear child carrier is $200 and front rack is $80.

In stock and ready to ship
$2,099.00 CAD
$2,599.00 CAD $2,099.00 CAD
Sale Sold out
Colour
  • Free Shipping
  • 1 Year Warranty
  • 20+ Quality Standards Checklist
View full details

Overview

750W Peak Power

BAFANG is the world’s biggest manufacturer of hub motors for e-bikes. VoltBike Kodiak V2 is using Bafang G06 series geared motor which provides 80 N.m. max torque and up to 750w of peak power. The Bafang G06 series is remarkable for its high efficiency and power thanks to the integrated nylon planetary gears.

Fully Integrated Battery

Kodiak V2 is using 48v 20Ah (960Wh) battery pack with Samsung INR18650-35E cells. The integrated frame design gives you security in various weather conditions plus offering unmatched visual appearance. Samsung SDI’s Li-ion battery cells are preferred by high-end e-bike makers and companies that lead the e-bike market.

Backlit Color Display

Large practical display located in the middle of the handlebar offers real time stats such as speed, pedal assist level, battery capacity, distance traveled and current load. You can also charge your cell phone through the built-in USB connector. New for the display is the lighting sensor which atomically activates your lights when it gets dark.

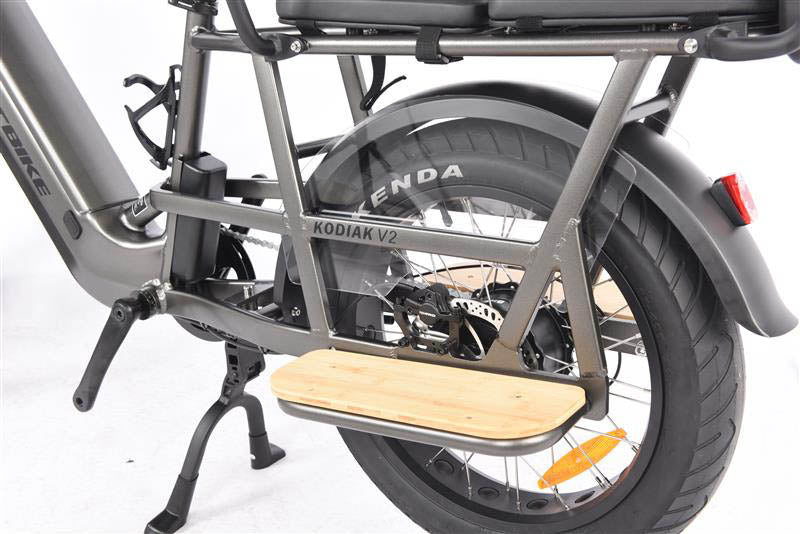

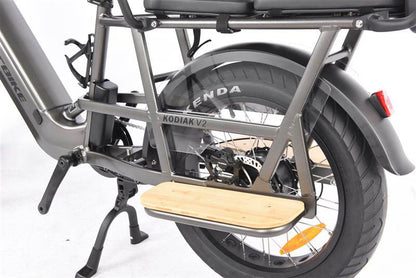

Sturdy Rear Rack

Standard for Kodiak V2 is extra long aluminum rear rack with extra wide tubing for heavy cargo. Rated for up to 120lbs of cargo this rack can fit any load with ease.

Extra Smooth Ride

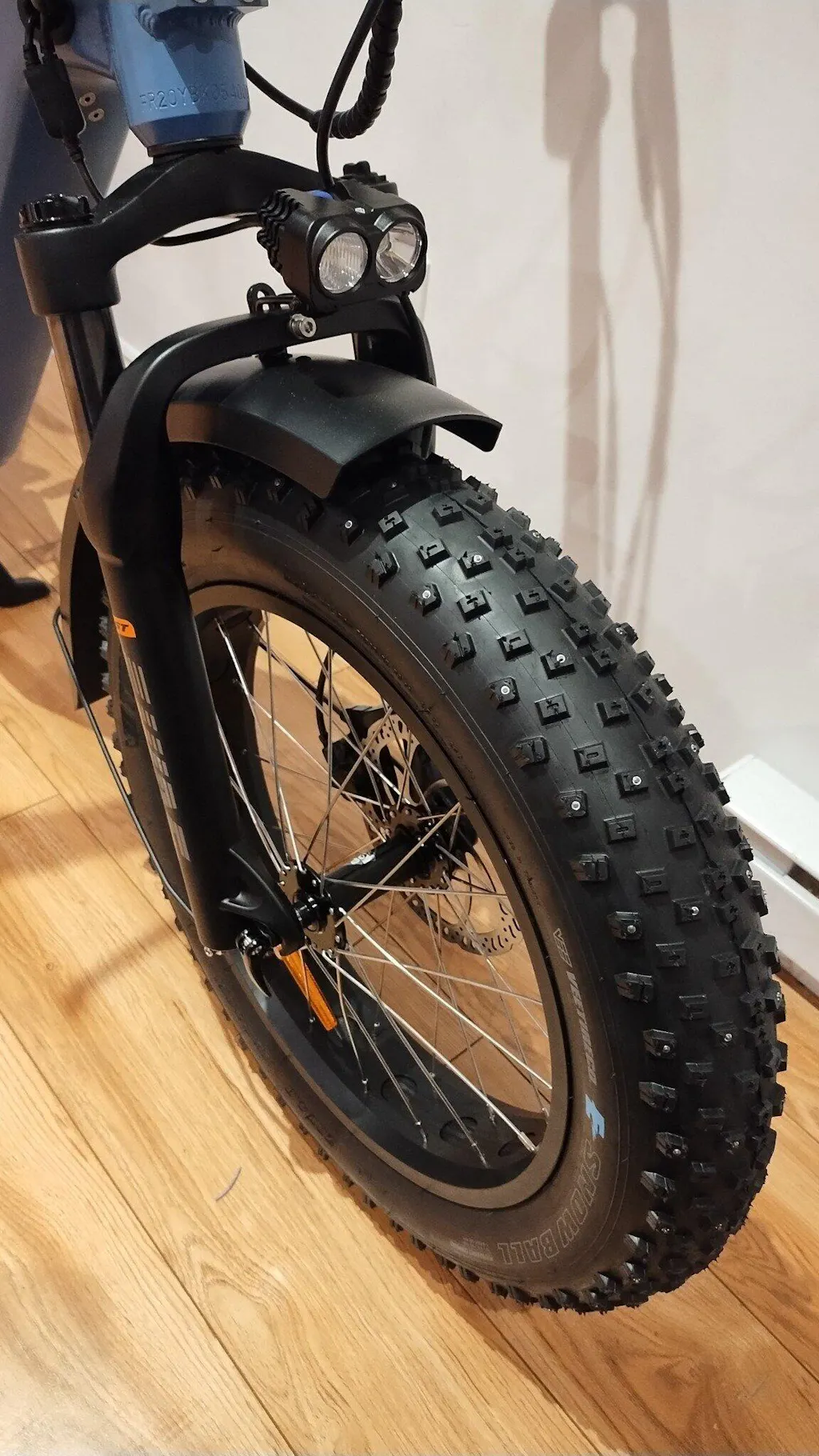

The VoltBike Kodiak V2 is equipped with the RST Guide suspension fork, delivering a smooth and comfortable ride even under heavy loads. It also features a lockout function, allowing you to disable the suspension when a rigid setup is preferred.

Step-Through Convenience

Step-through bikes are the easiest for riders to mount and dismount by simply stepping through the curved frame. VoltBike Elegant's aluminum step-through frame offers comfortable ride and is fun and enjoyable for your everyday routine.

Hydraulic Stopping Power

Voltbike Kodiak is using Tektro Auriga hydraulic front and rear disc brakes with 180mm rotors. Tektro Auriga comp disc brakes features an open system design using non-corrosive and environment-friendly mineral oil. Features dual piston design, melt forged caliper body with automatic positioning via front or rear adapters.

Simple Controls

Our redesigned cockpit includes large easy to read color LCD screen which shows all the important information like speed, battery level and current load. Get instant power with the integrated half-twist throttle with and on/off button which helps prevent accidental activation.

Now eligible for

British Columbia Specialty Use Vehicle Incentive

The Kodiak is now eligible for the Specialty Use Vehicle Incentive (SUVI) Program, designed to provide rebates on cargo e-bikes, electric motorcycles, utility trucks, and more. If qualified, you could save up to $858 CAD on your purchase of a VoltBike Kodiak. To read more about this program and the eligibility requirements, please click the link below.

Read more

Parts Included

Our bikes ship 95% assembled with everything you’ll need to get up and running, including:

Specifications

  • Weight 82.0 lb
  • Battery 48V 20Ah Li-ion Samsung (960Wh)
  • Battery Style Internal
  • Brakes Hydraulic disc brakes front/rear Tektro Auriga HD-E500
  • Brake Lever Tektro Auriga with safety power cut
  • Chain KMC Rust Buster. 12.7mm pin to pin center. 124 links. Total length 1547.8mm
  • Fork RST Guide aluminum alloy suspension with lockout function
  • Frame Type Step-Through
  • Freewheel Cassette Sunrace M2 Freewheel Super-Low 7 Speed 13-34T
  • Motor Bafang 500W (750W Peak) Hub Motor
  • Motor Type Hub Motor
  • Pedals Wellgo LU-313 w/ reflectors
  • Rear Derailleur Shimano Acera RD-410 7 speed direct rear derailleur
  • Shifter Type Shimano Tourney TX50R6CT Thumb Shifter Plus 7-Speed
  • Stem Promax MA-50 Aluminum Alloy w/ 10° angle, 40mm extension. Bar bore 31.8mm
  • Tires Kenda Kraze 20x4" 60 TPI

Fit & Size

  • Fit Guidelines

    Choosing the right frame size is essential for ensuring comfort on your new bike, and the simplest way to approach this is by measuring your inseam. Your inseam is measured from the middle of your crotch down to your ankle bone on either leg.

    Suitable inseam range:

    < -3"     -8cm
    -2" -5cm
    0" 0cm
    2" 5cm
    4" 10cm
    > 5" 13cm

    Great fit with plenty of room for seat height adjustment.

    Good fit but potentially limited seat height adjustment or top tube clearence.

    Poor fit, frame is either too big or too small.

  • Sizing

    • aFrame Size: 17"
    • bStand-over Height: 22"
    • cReach: 18"
    • dTop-tube Length: 23"
    • eHandlebar Height: 43"-45"
    • fSeat Height: 31.5"-39.5"
    • gWheel Size: ⌀20"x4"
    • hWheelbase: 49"
    • iLength: 71"
    • jTop Rear Platform: 24"x20"
    • kBottom Rear Platforms: 14"x5"
